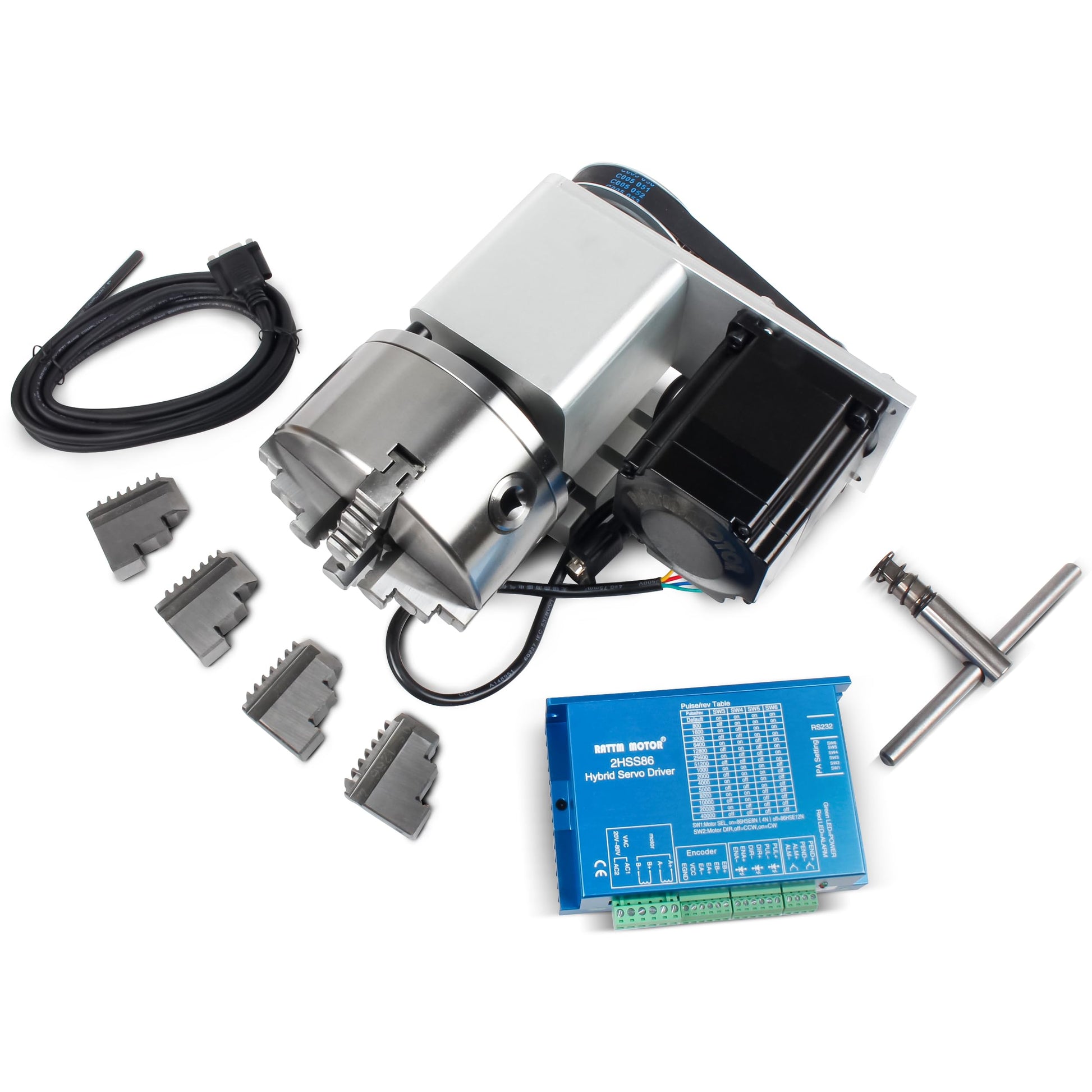

RATTMMOTOR K12-130mm CNC Router Table Rotary Milling Machine Rotational Axis A 4th Axis, 4 Jaw Chuck Dividing Head, 4.5N.m Closed Loop Servo Motor+2HSS86 Driver

Brand: RATTMMOTOR

Features:

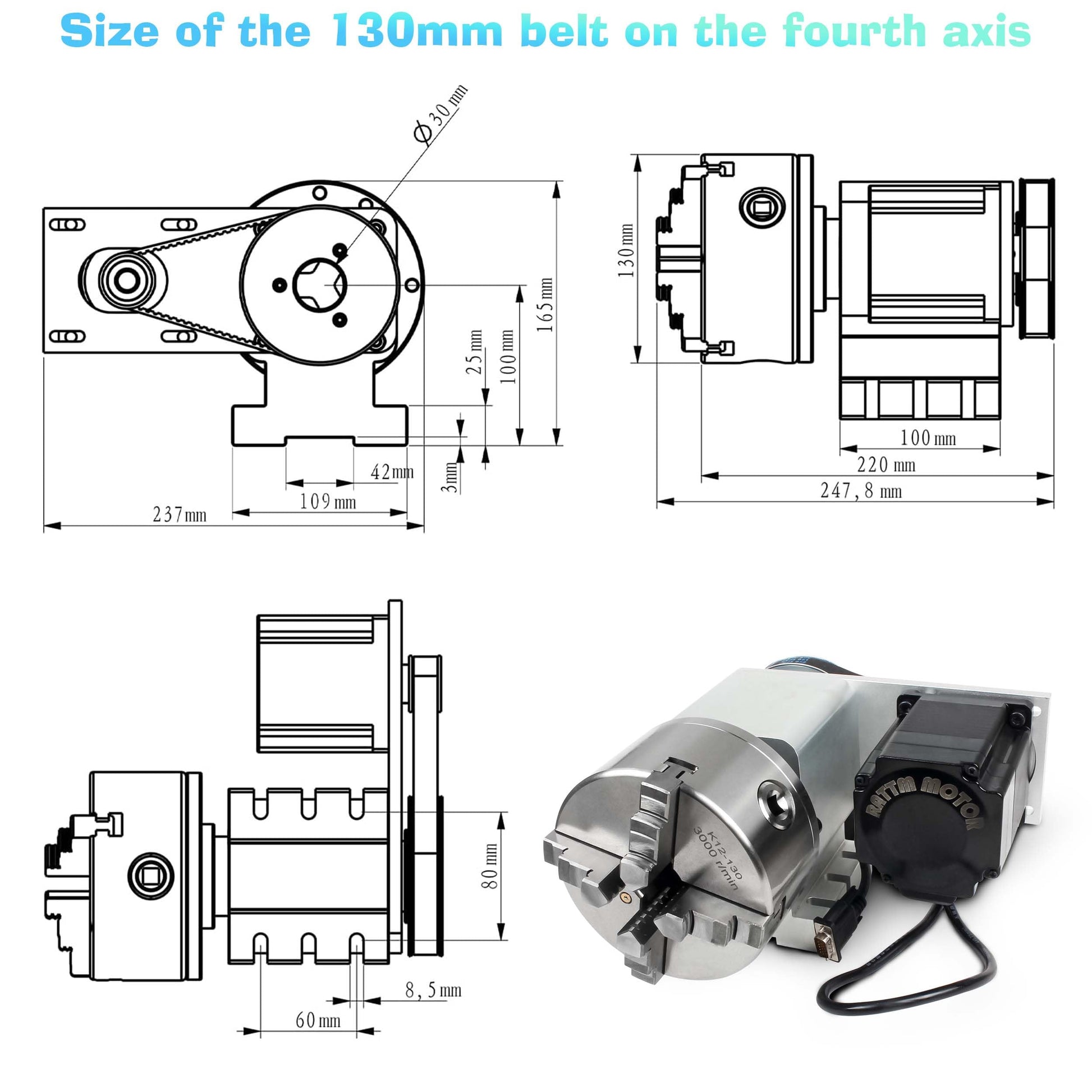

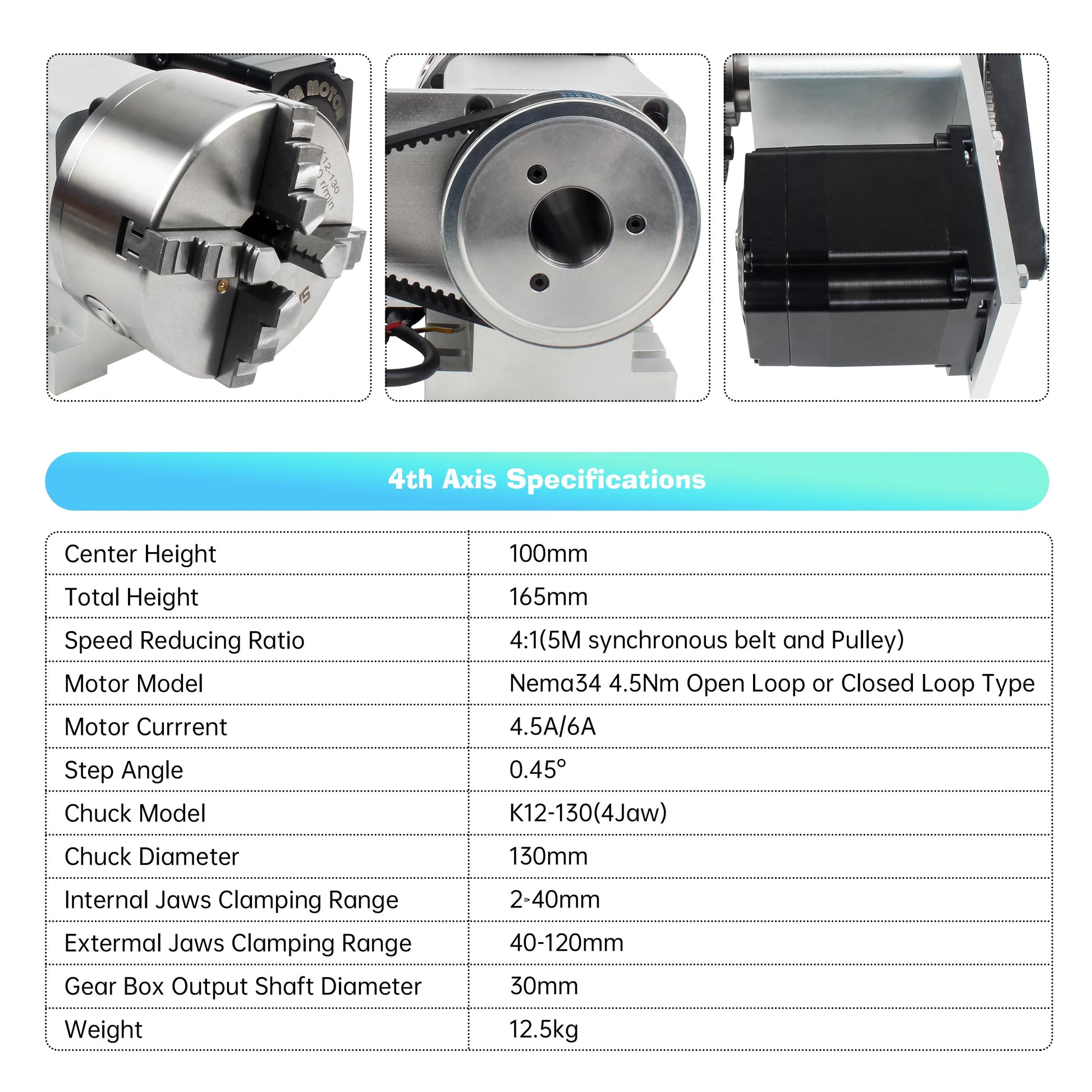

• ✅【CNC 4th axis】Product Model: 5M-H100-4-130B; Chuck type: K12-130mm 4-jaw centring chuck; Centre height: 100MM; Total height: 165MM; Through-hole diameter: 30MM; Angle: 0.45 degree/step; Deceleration ratio: 4:1 (synchronous belt deceleration mode); Stepping motor: 2-phase 4-wire 86 stepping motor (current 4.5A); Synchronous belt: 5M-450 (width 15MM).
• ✅【K12-130mm four-jaw centring chucks】Maximum input torque: 100N.m; Limit speed: 3000r/min; Maximum static clamping force: 17KN; Positive jaw clamp: 3-40mm; ; Positive jaw support: 40-130mm; Reverse Jaw Clamp: 40-120mm; Mounting screw: M8.
• ✅【Features】High tensile strength, local secondary hardening, surface fine grinding, rust and corrosion prevention; Dust-proof design, streamlined structure, easy maintenance; Use a variety of machinery and equipment, high clamping force, repeatable centring accuracy.

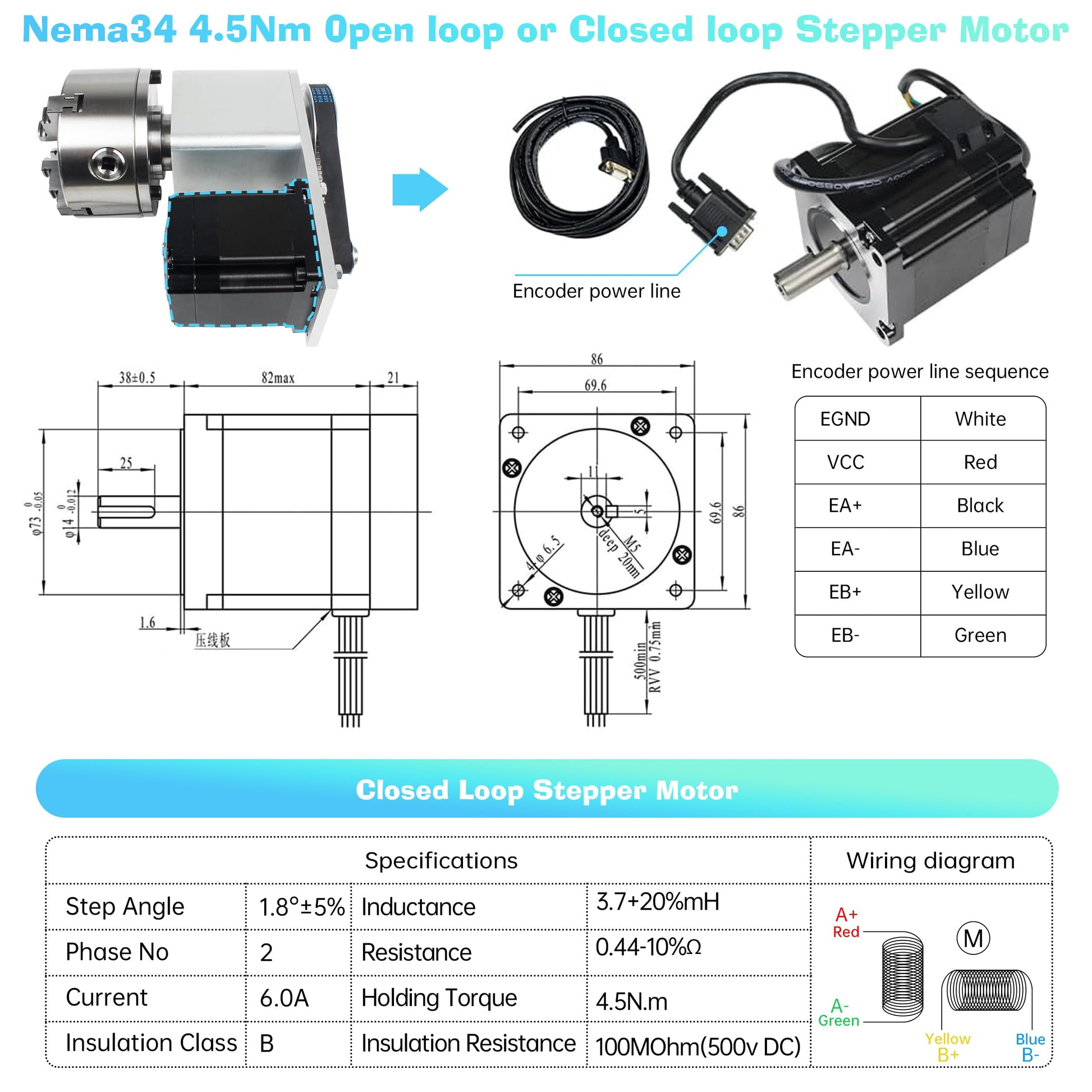

• ✅【4.5N.m Closed Loop Servo Motor】Size:86x86x82mm; Current :6.0A; Phase:2; Step Angle(degrees):1.8 degree; Lead wire:4pcs; Holding Torque:450Ncm; Resistance:0.44±10%Ω; Inductance:3.7±20%mH; Insulation resistance:100MOhm(500V DC); Insulation Class: B.

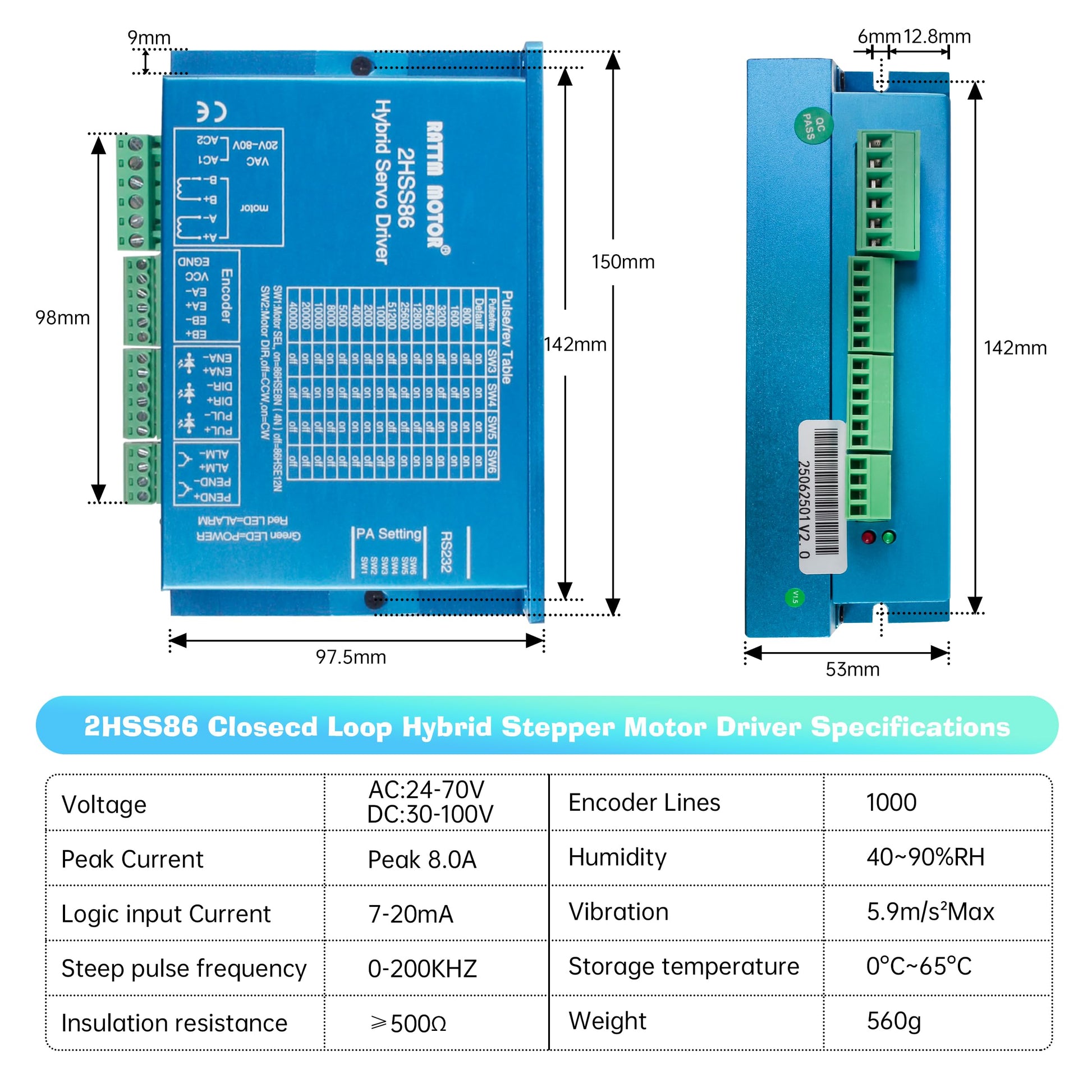

• ✅【2HSS86 Servo Motor Driver 】Voltage range: AC24-70V or DC30-100V; Peak current :Peak 8.0A; Logic input current:7-20mA; Frequency:0-200KHz; Encoder lines:1000; Insulation resistance:>=500MΩ; Operating temprature:0~50℃; Virbration:5.9m/s2Max.

model number: K12-130mm

Package Dimensions: 14.8 x 14.8 x 11.0 inches
