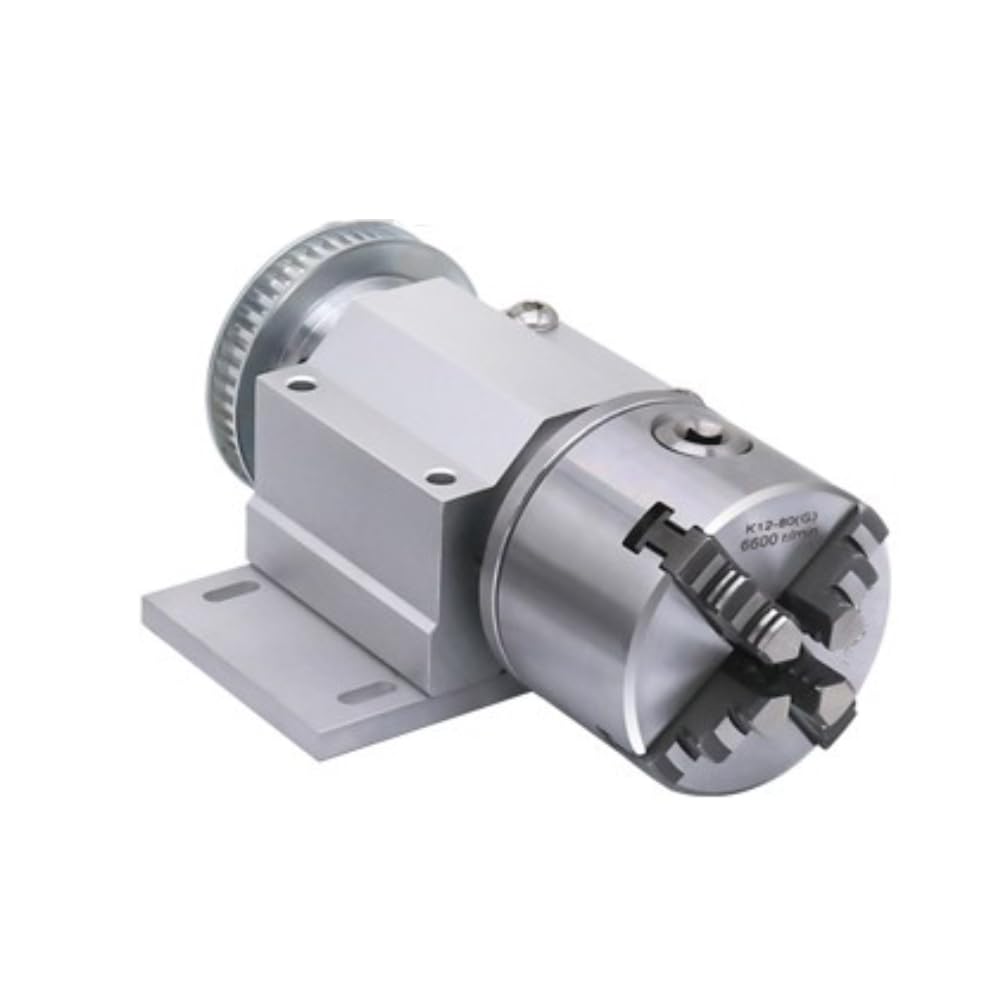

RATTMMOTOR No Powered Multi-Function Lathe Chuck Spindle Assemblies Rotary Lathe Woodworking Motor Chuck 80mm for CNC Lathe Grinder Drilling Machine Table Saw (4 Jaw 80mm)

Brand: RATTMMOTOR

Features:

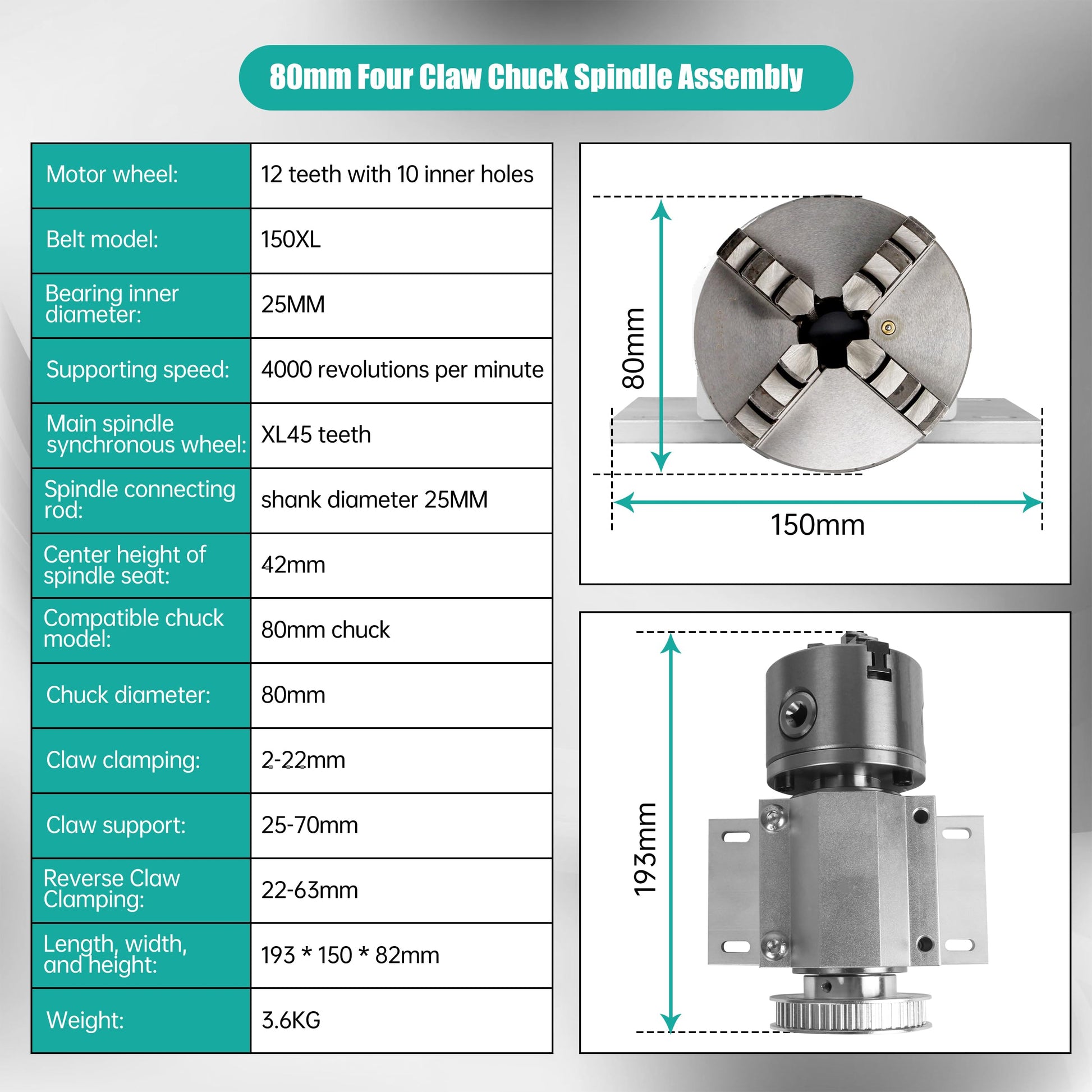

• ✅【Basic parameters】Chuck Diameter: 80MM; Motor Wheel: 12 teeth bore 10; Belt Model: 150XL; Bearing I.D.: 25MM; Supporting Speed: 4000 RPM; Spindle Synchronous Wheel: XL45 teeth; Spindle Connector: Shank Diameter: 25MM; Spindle Block Center Height: 42mm; Length, Width, and Height: 193*150*82mm; Weight: 3.7KG

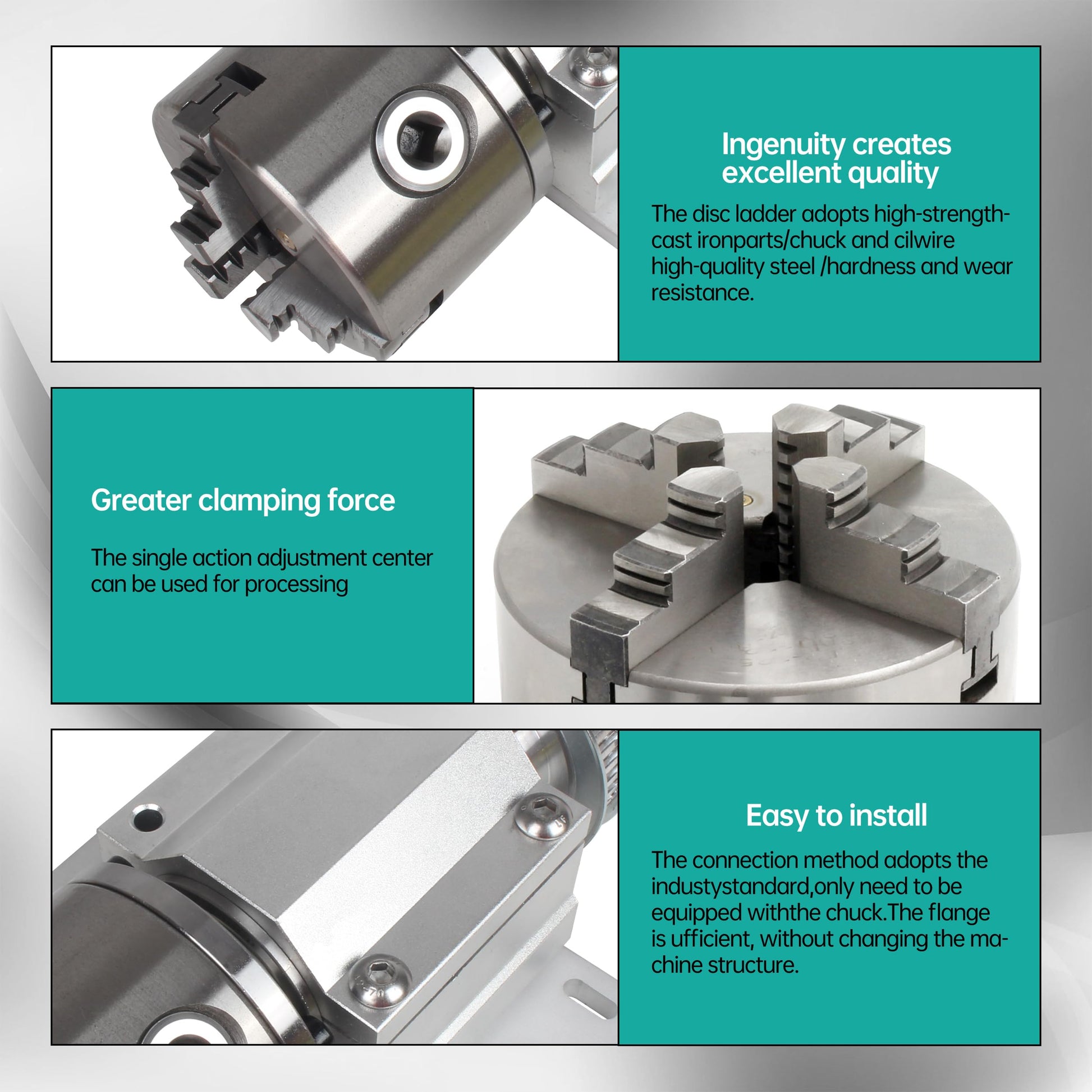

• ✅【Chuck parameters】Chuck type: 80mm chuck; chuck diameter: 80mm; positive jaws clamping: 2-22mm; positive jaws support: 25-70mm; reverse jaws clamping: 22-63mm; Limit speed: 4000r/min; Maximum input torque: 40N.m; Maximum static clamping force: 10KN.

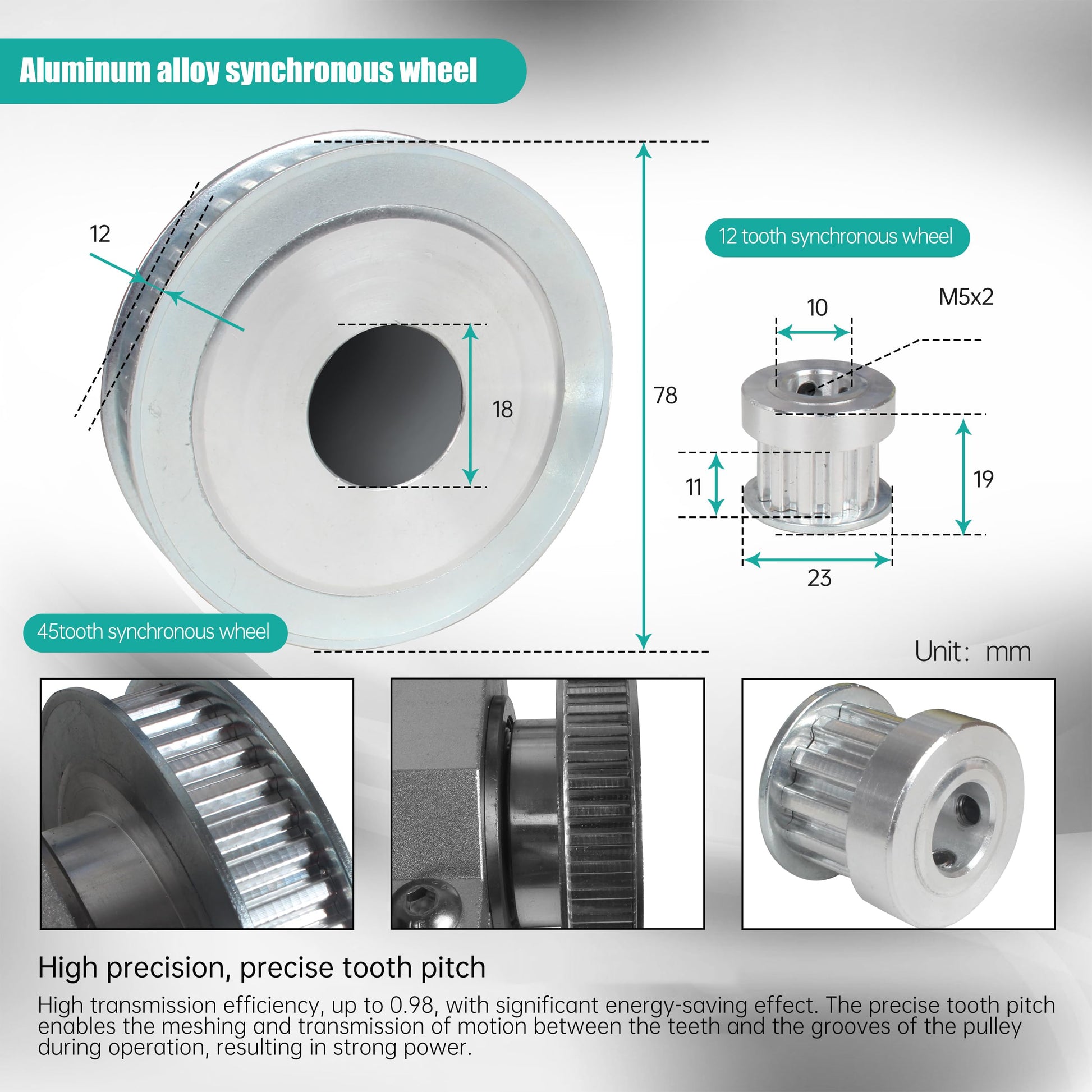

• ✅【45-tooth and 12-tooth synchronizer wheels】Synchronous wheels are made of aluminum alloy with high transmission efficiency and strong power. The transmission is smooth, with cushioning and vibration damping ability, and low noise. Synchronous wheel speed ratio: 1 : 3.75.

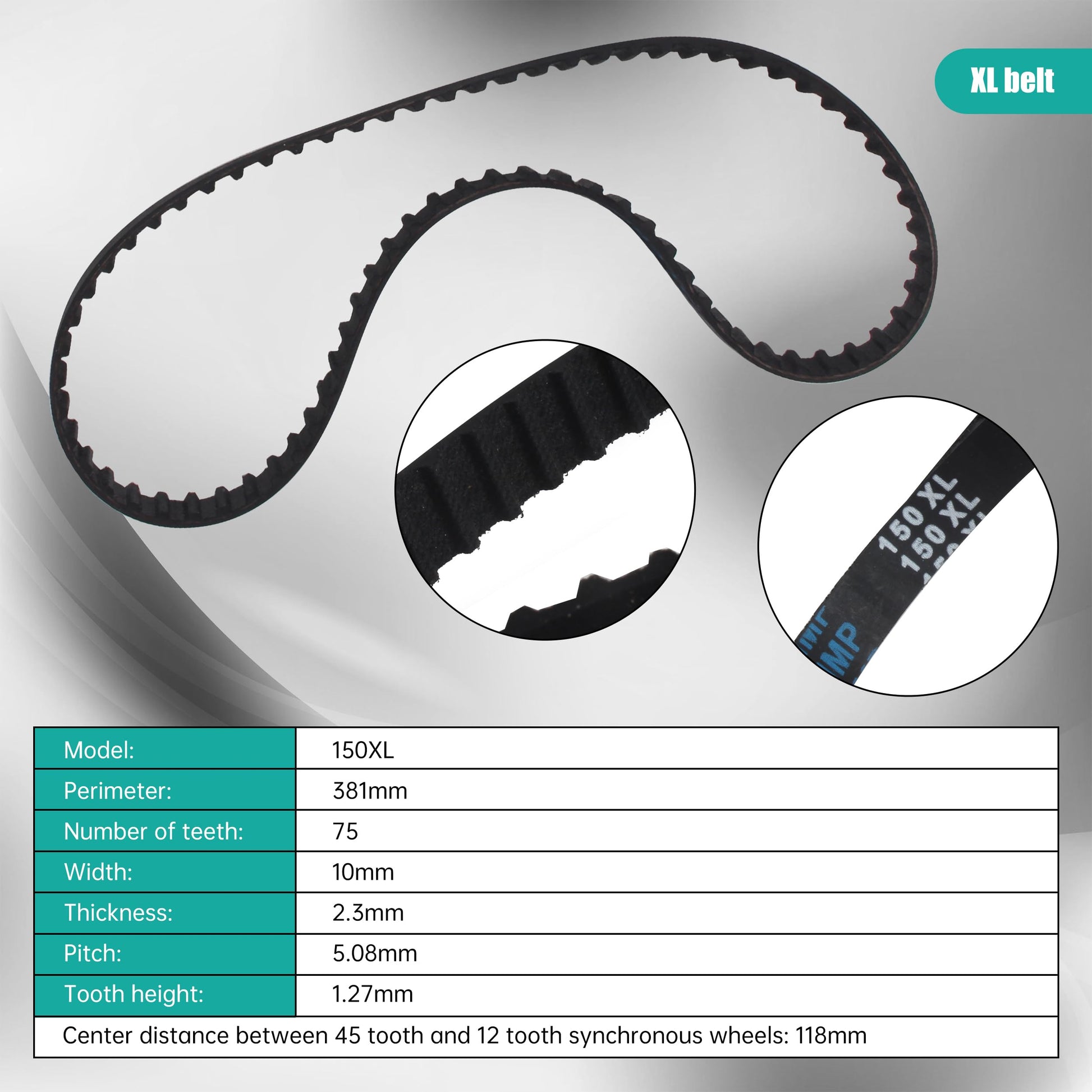

• ✅【XL150 Belt】Model: 150XL; Circumference: 381mm; Number of teeth: 75; Center distance between 45 teeth and 12 teeth synchronous wheel: 118mm; Width: 10mm; Thickness: 2.3mm; Pitch: 5.08mm; Tooth height: 1.27mm.

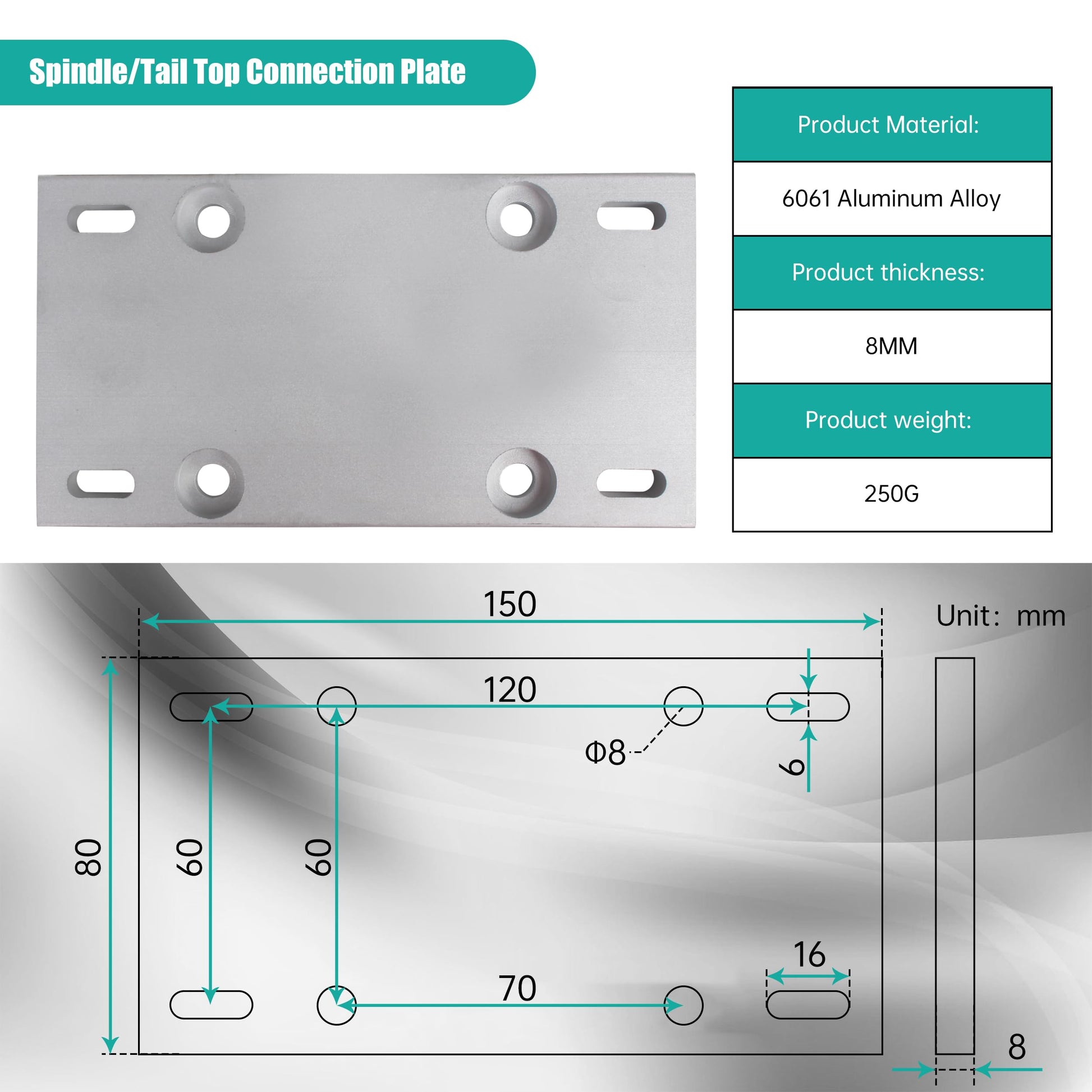

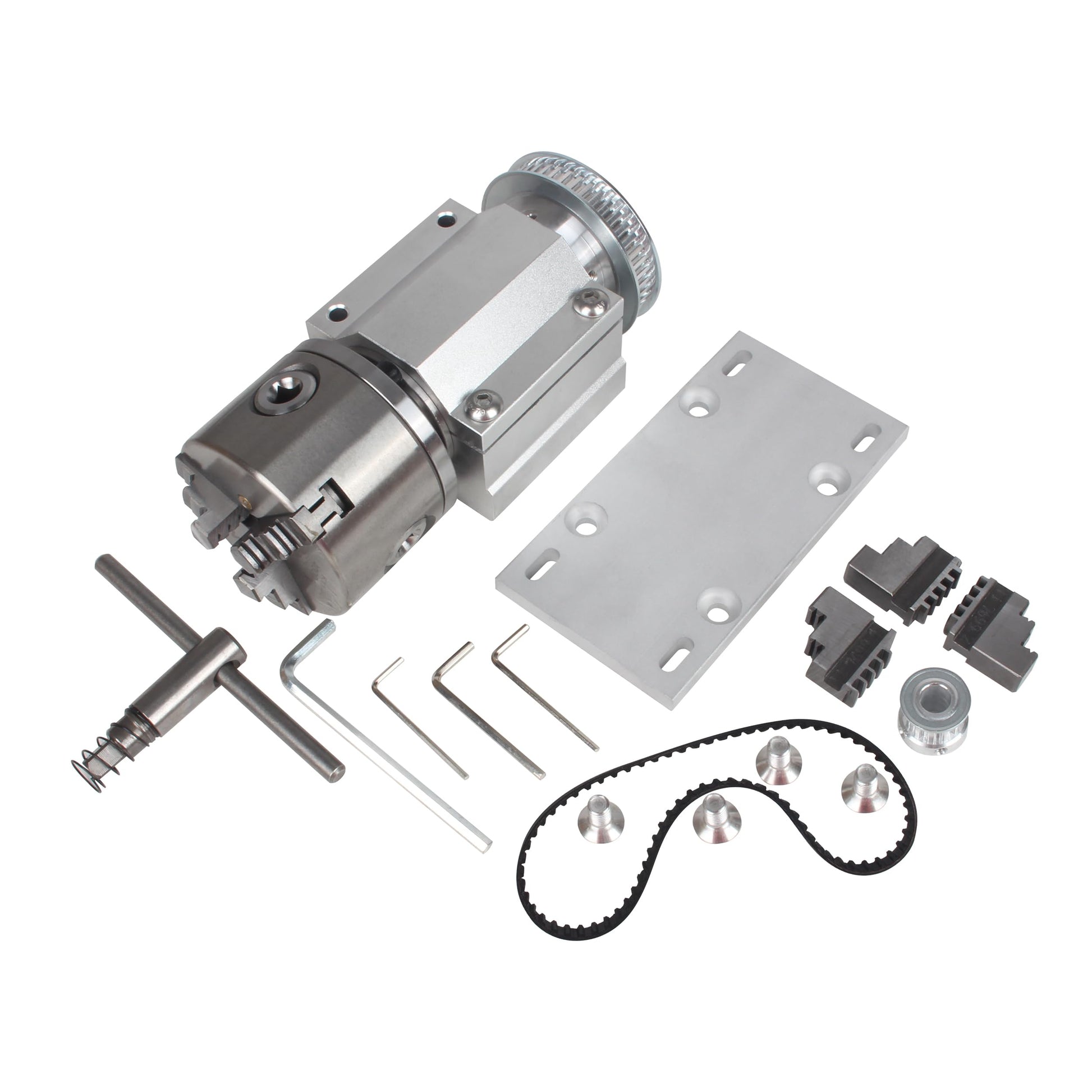

• ✅【Chuck assembly kit parts】1*Chuck spindle assembly; 1*Aluminum alloy bearing housing connecting plate; 4* fixing screws for housing connecting plate; 1*Four-jaw 80mm chuck; 4*Counter-jaw chuck; 1*Chuck wrench; 1*XL12 tooth spindle synchronous wheel; 1*XL45 tooth spindle synchronous wheel; 1 Set wrenches.

model number: XIAOJ-80mm

Part Number: 4J80-XIAOJ-HU

Package Dimensions: 10.2 x 7.1 x 5.9 inches
