RCmall Feetech STS3215 Digital Servo Motor, High-Torque 19KG, 7.4V Dual Axis TTL Serial Bus Control, 360° Magnetic Encoder, Feedback Function, Black, 6-Pack

Brand: RCmall

Color: Purple/Black

Features:

• HIGH TORQUE PERFORMANCE: Digital servo motor delivers powerful 19KG of torque at 7.4V, ideal for demanding robotic arm and RC model applications

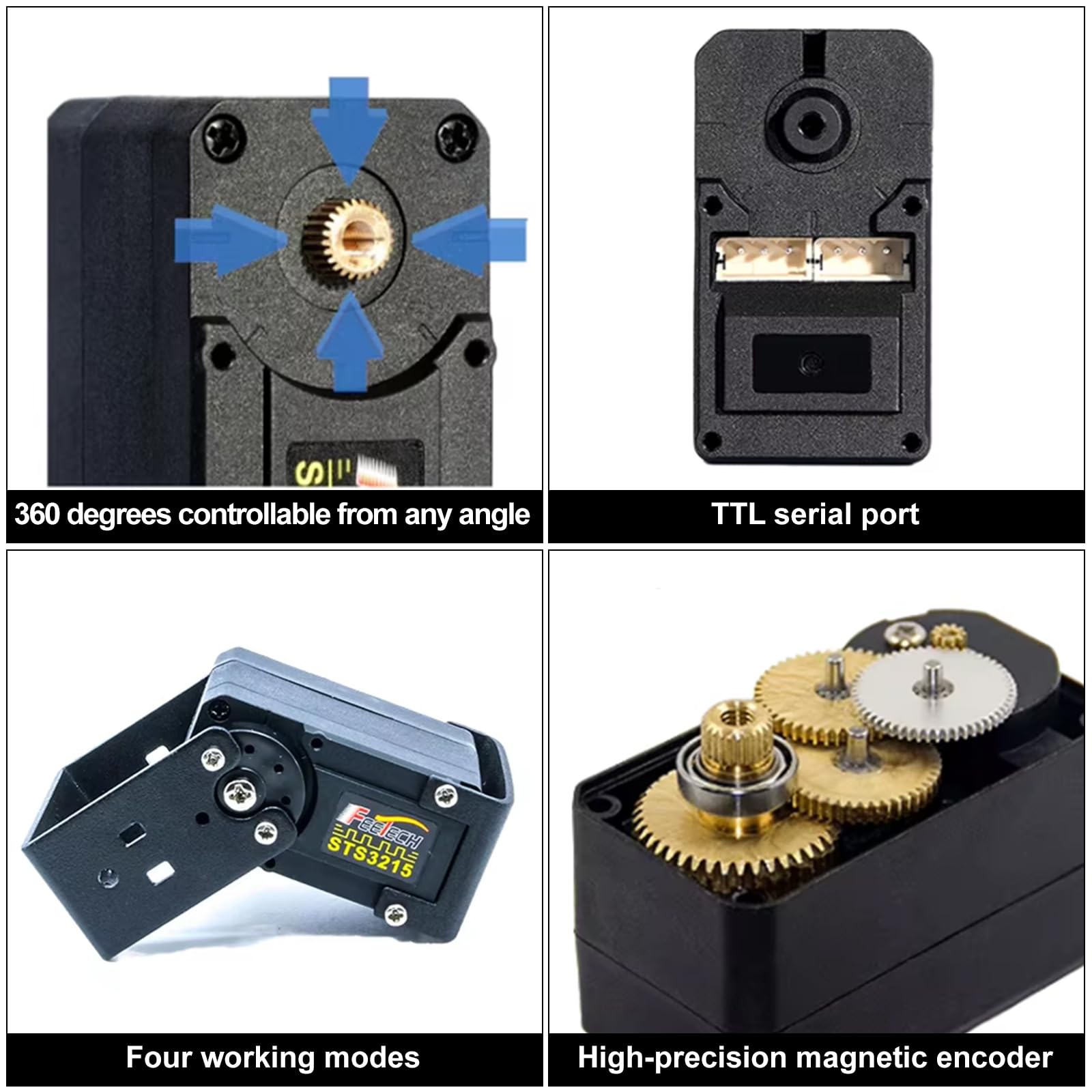

• DUAL AXIS CONTROL: Features TTL serial bus control system with dual axis capability for precise movement and positioning
• ADVANCED FEEDBACK: Integrated 360-degree magnetic encoder provides accurate position feedback for enhanced control precision

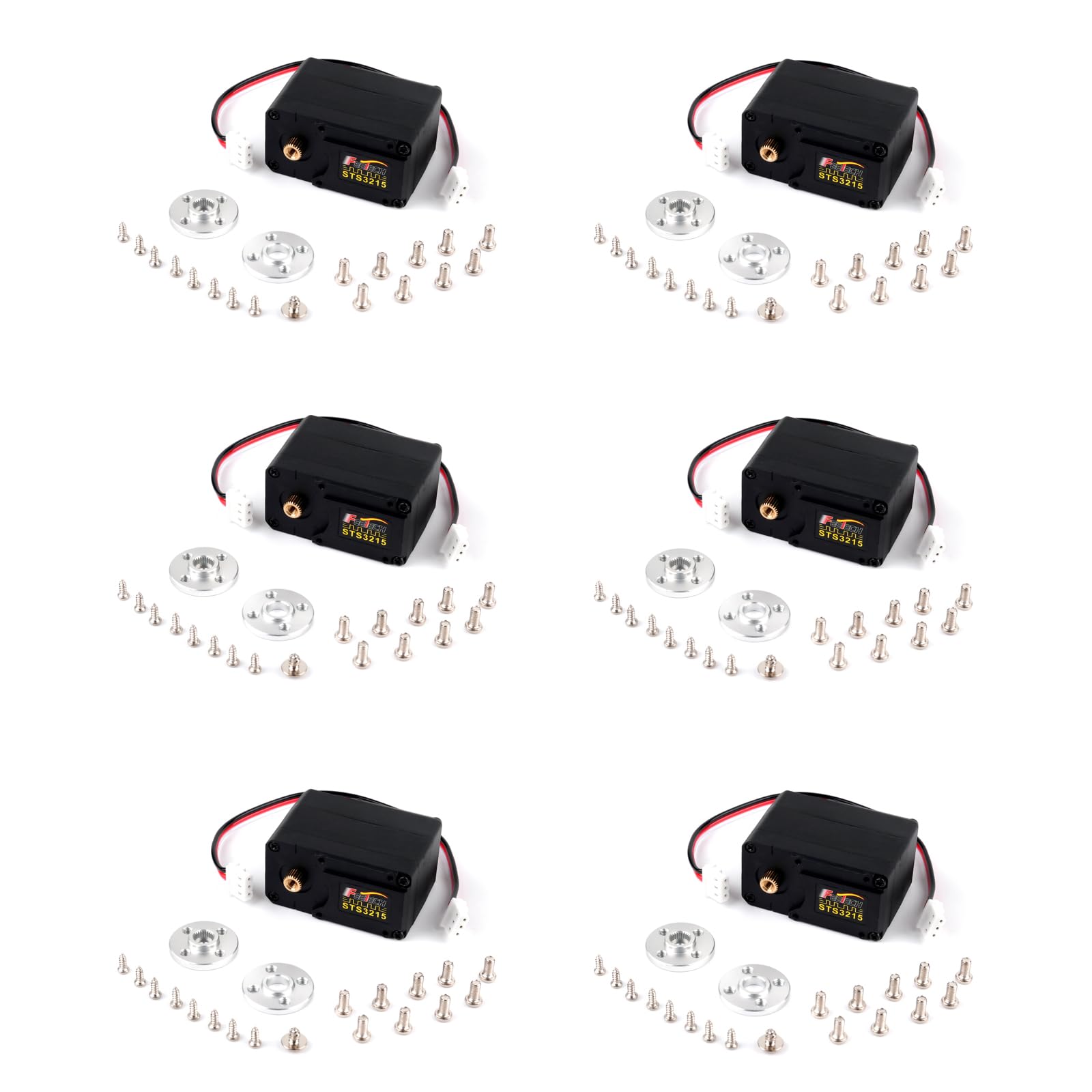

• MULTI-PACK VALUE: Includes 6 identical high-performance servo motors with mounting hardware for comprehensive project needs
• COMPATIBILITY: Designed to work seamlessly with Arduino and various robotic control systems through TTL serial interface

Part Number: STS3215

Details: Elevate your robotics and RC projects with RCmall's STS3215 Digital Servo Motors.
This comprehensive 6-pack of high-performance servos delivers an impressive 19KG of torque, making them ideal for robotic arms, AI robots, and advanced RC models.
Operating at 7.4V, these dual-axis servos feature TTL serial bus control for precise movement and positioning.
The integrated 360-degree magnetic encoder ensures accurate rotation tracking, while the feedback function provides real-time position data for enhanced control and automation.
Each servo comes in a sleek black housing designed for durability and efficient heat dissipation. The package includes mounting hardware and connectors for easy installation.
Perfect for makers, hobbyists, and engineering projects, these servos combine power, precision, and reliability in a compact form factor. Whether you're building a complex robotic system or upgrading your RC model, these digital servos provide the performance and control you need for sophisticated applications. Servo Parameter:
Weight: 55g

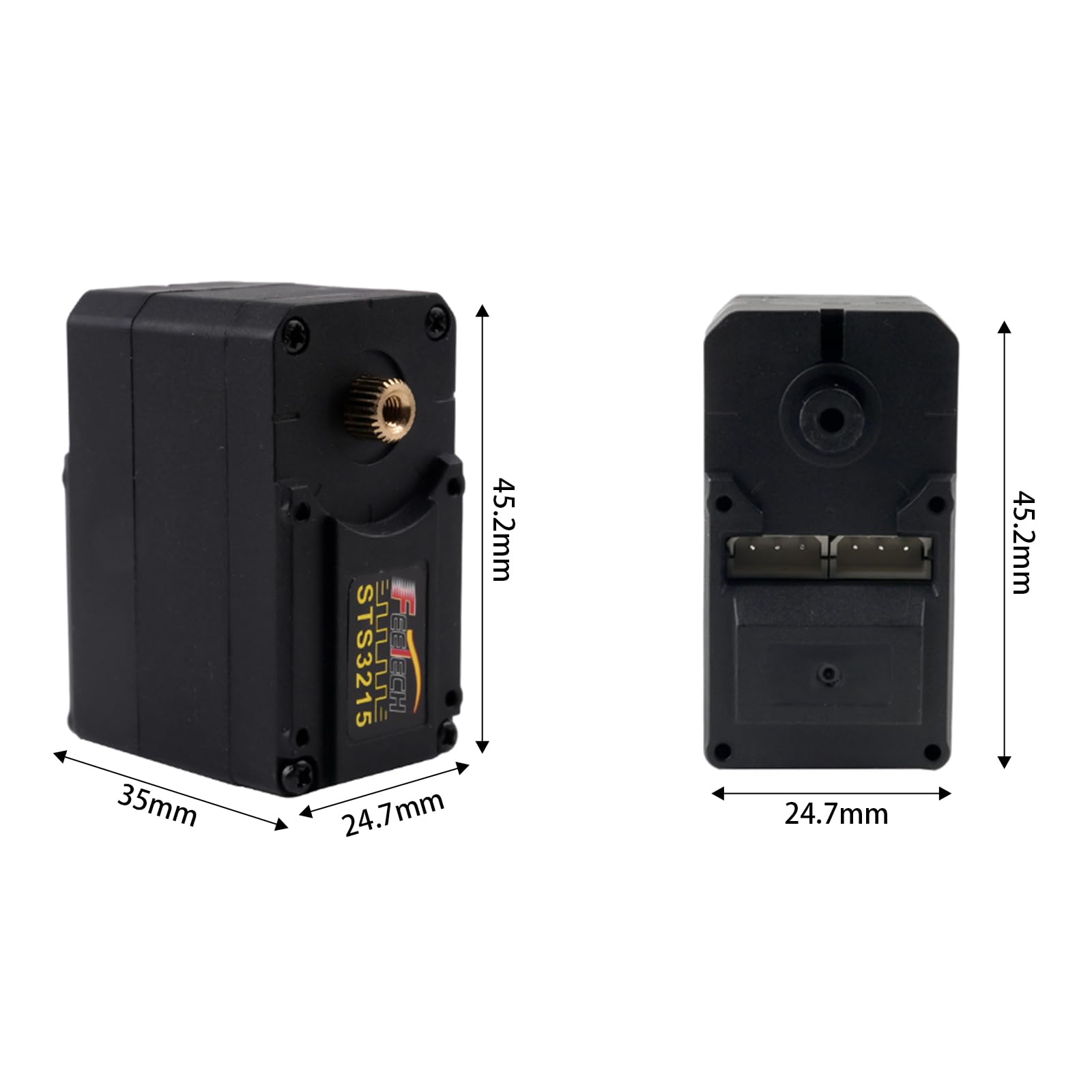

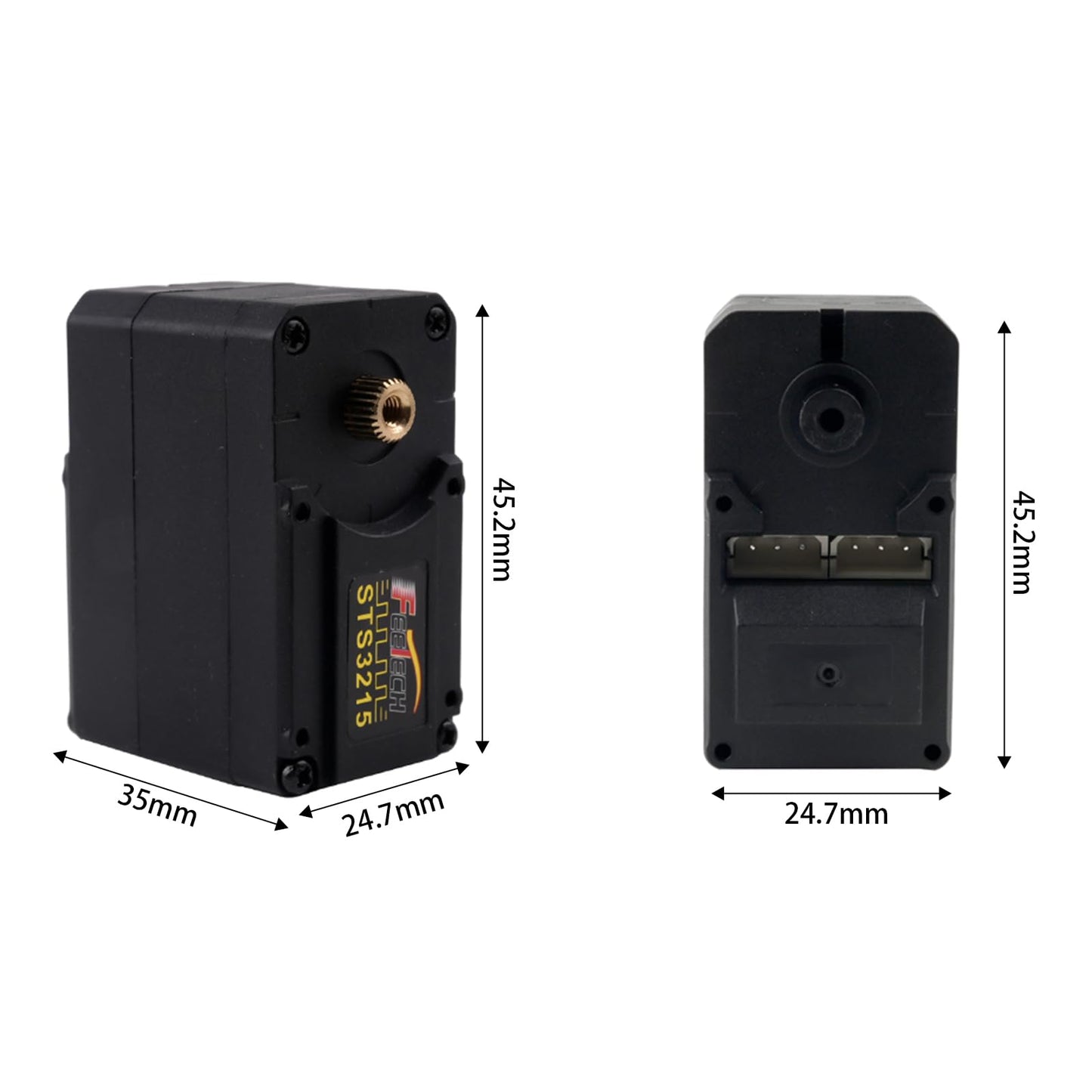

Size: 45.2X24.7X35mm
Gear: metal gear
Motor: core motor
Gear ratio: 1/345
Horn type: 25T/OD5.9mm
Connector and cable: 15cm with 5264-3p
Operating temperature: -20℃～60℃
Angle senor: 12Bits magnetic coding
Opearing voltage: 6-14V
No load speed: 0.22s/60°/12V
No load current: 200mA
Stall torque: 30kg.cm/12V
Stall current: 2.7A
Idle current: 30mA
Kt constant: 10kg.cm/A
Running angle: 360°（0-4096）
Neutral position: 180°(2048)
Electronic protection: Over hot/voltage/current/load protection
Feedback: Load/ position/ voltage/ current/ speed/ temperature feedback

Package Dimensions: 7.5 x 7.1 x 1.4 inches
