REFCO GOBI II Universal Condensate Pump, 11 GPH, 100-240V, for Systems from 6,000 to 120,000 BTU/h, Wide Range of Applications Including Indoor Air Conditioning, HVAC, Dehumidifier

Brand: REFCO

Color: White

Features:

• PROFESSIONAL INSTALLATION RECOMMENDED: Designed for installation by licensed professionals in residential or light commercial applications. Improper installation may affect performance or warranty coverage. For technical support or warranty assistance, please contact the seller through Amazon or Amazon Customer Service.
• Strongest, quietest under A/C mounted condensate pump on the market: 11 gallon pumping capacity per hour; 65 ft delivery head; <19 dB noise level
• No float problems thanks to digital sensor

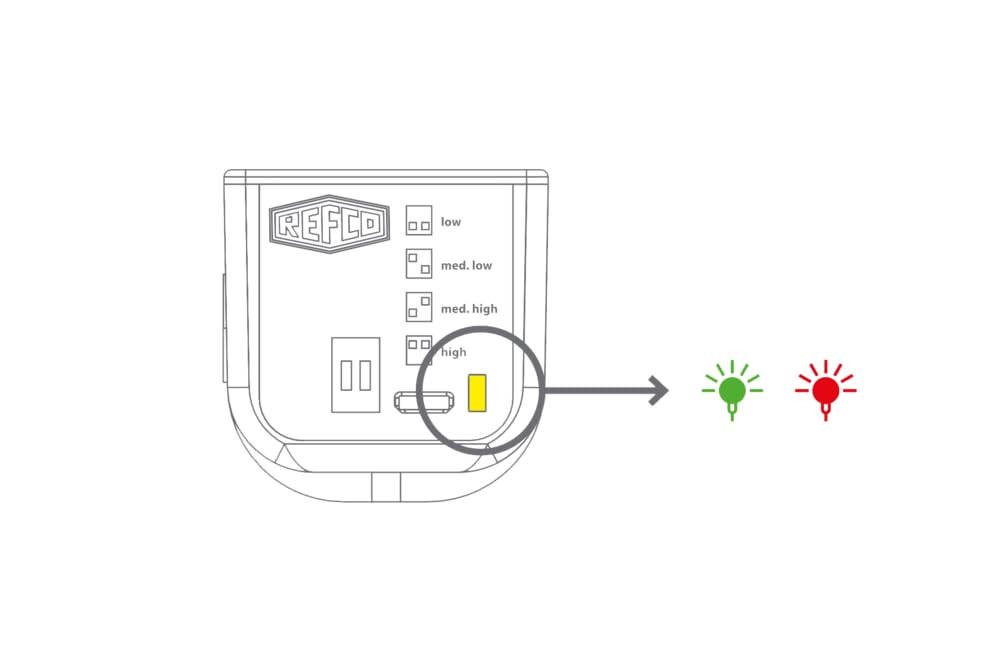

• Demand-oriented control of the pumping capacity
• Kit includes: Power cable, Alarm cable, Star tube and anti-siphon device, Screws (for mounting), Screw anchors, Factory-installed alarm fuse, Cable ties, Instruction manual
• Manufacturer Warranty Starts at Comissioning
• Universal use due to wide range of applications

model number: 3004145

Part Number: 3004145

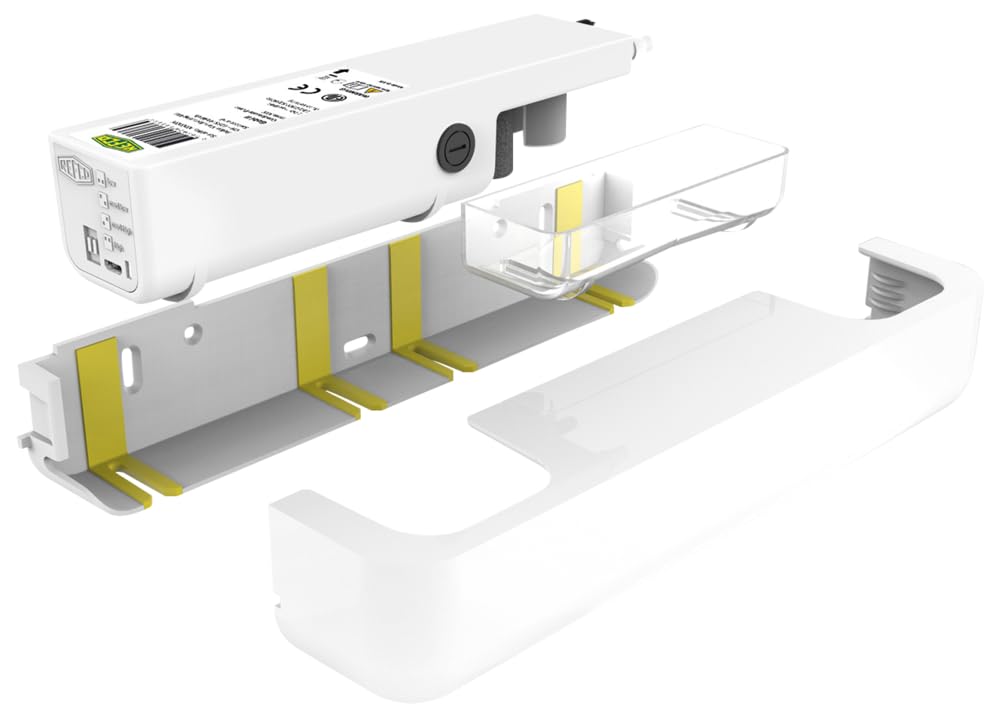

Details: The GOBI II condensate pump for direct mounting under the air conditioner is designed for systems from 6 000 BTU/h (1.75kW) up to 120 000 BTU/h (35kW). The digital water sensor, the universal voltage range and the individually configurable flow rate are features that contribute to making the Gobi II the most powerful and quietest condensate pump for air conditioning systems on the market today. The variable range of applications allows the trade as well as the installer to cover almost all needs with just one pump.

Max. Flow Rate: 11 GPH
Max. Discharge Head: 65.6 ft
Max. Suction Lift: 10 ft
Noise Level: 19 dB(A)
Type: Diaphragm type
Tube Diameter: 1/4 ″
Voltage: 100 - 240 VAC
Frequency: 50 / 60 Hz
Energy Consumption: 8 W
Protection Class: I
Alarm Relay: Interchangeable NO or NC, rated 250VAC, 6.3A or 28VDC, 6.3A
Ingression Protection: IP44
Cable Length: 5 ft
Operating Temperature Range: 41 - 104 °F
Water Temperature Range: 41 - 104 °F
Storage Temperature Range: -4 - 122 °F
Warranty period only starts with commissioning (readable via USB

EAN: 7640154084735

Package Dimensions: 12.6 x 9.1 x 2.5 inches
