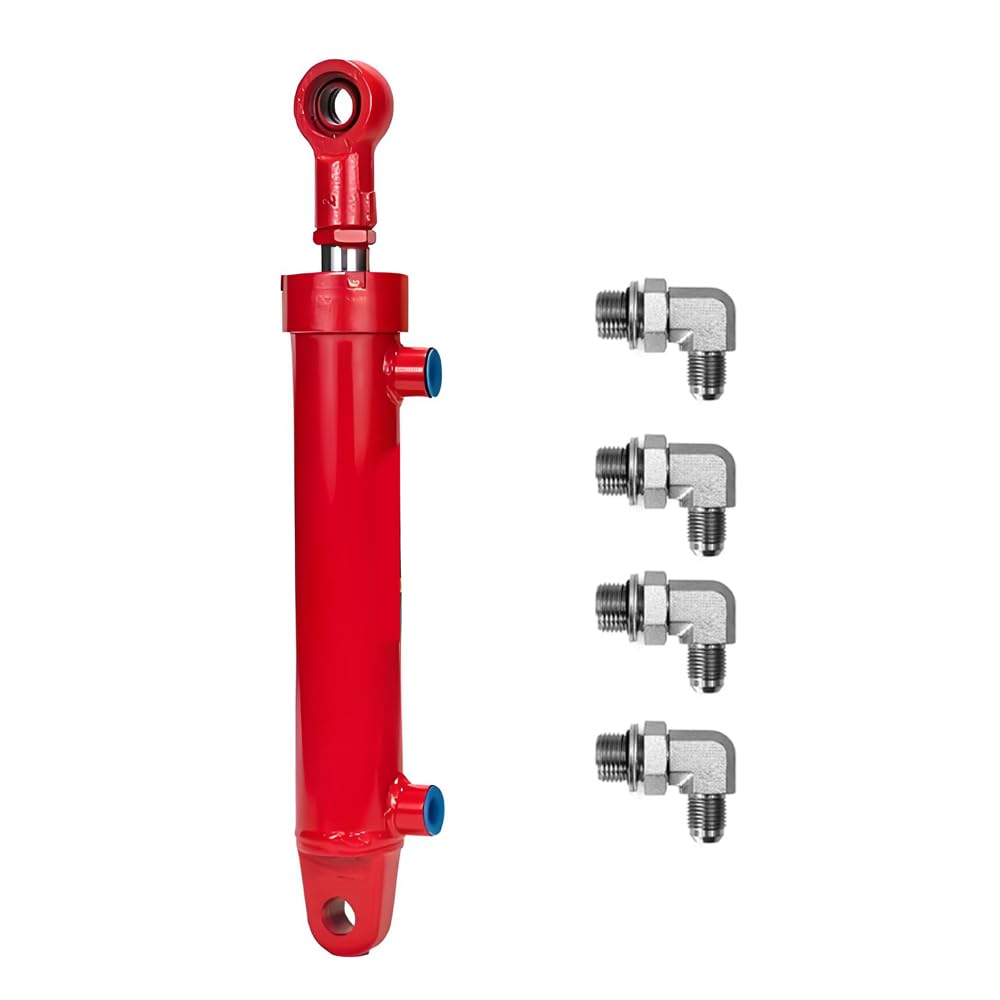

RHKING 2x10 Hydraulic Cylinder 3 Ton Double Acting Welded Hydraulic Cylinder 2" Bore x 10" Stroke with 3/8" JIC 37°(9/16"-18 Thread) Hydraulic End Connectors Maximum Thrust Force 6613lbs

Brand: RHKING

Color: Red

Features:

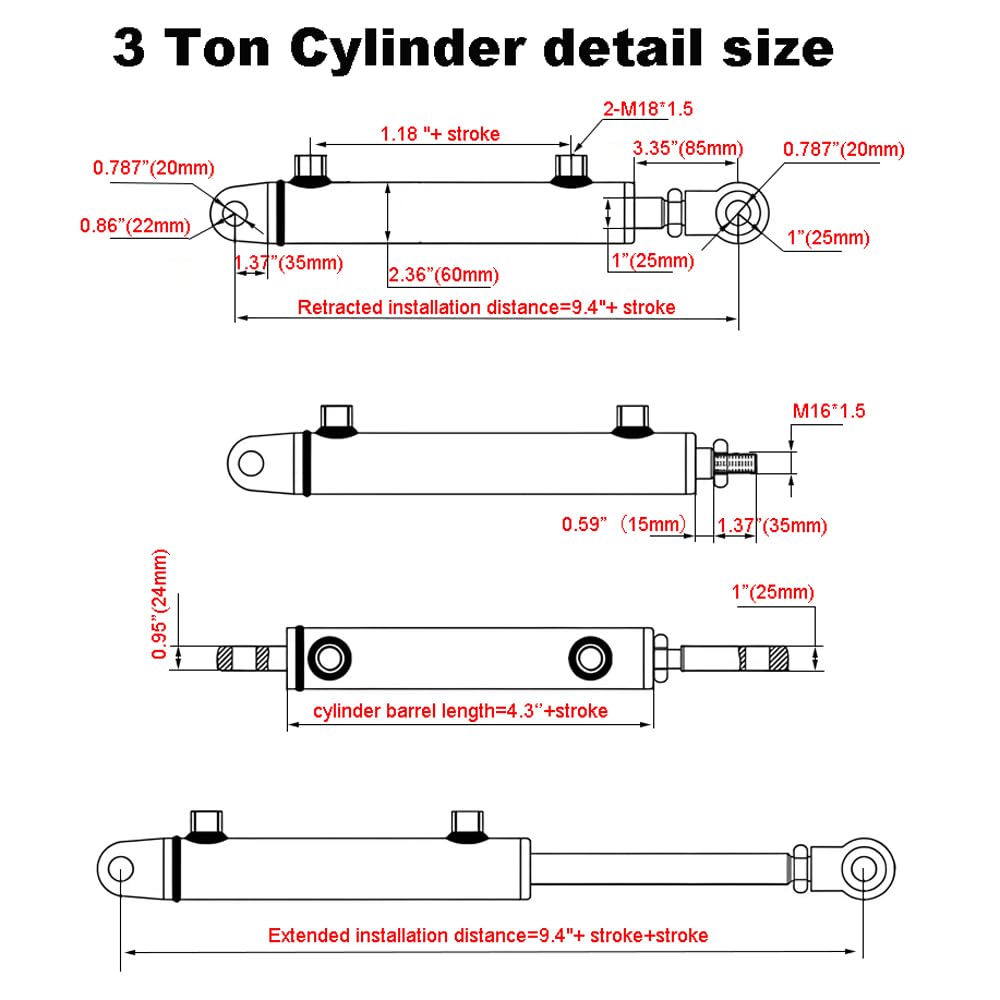

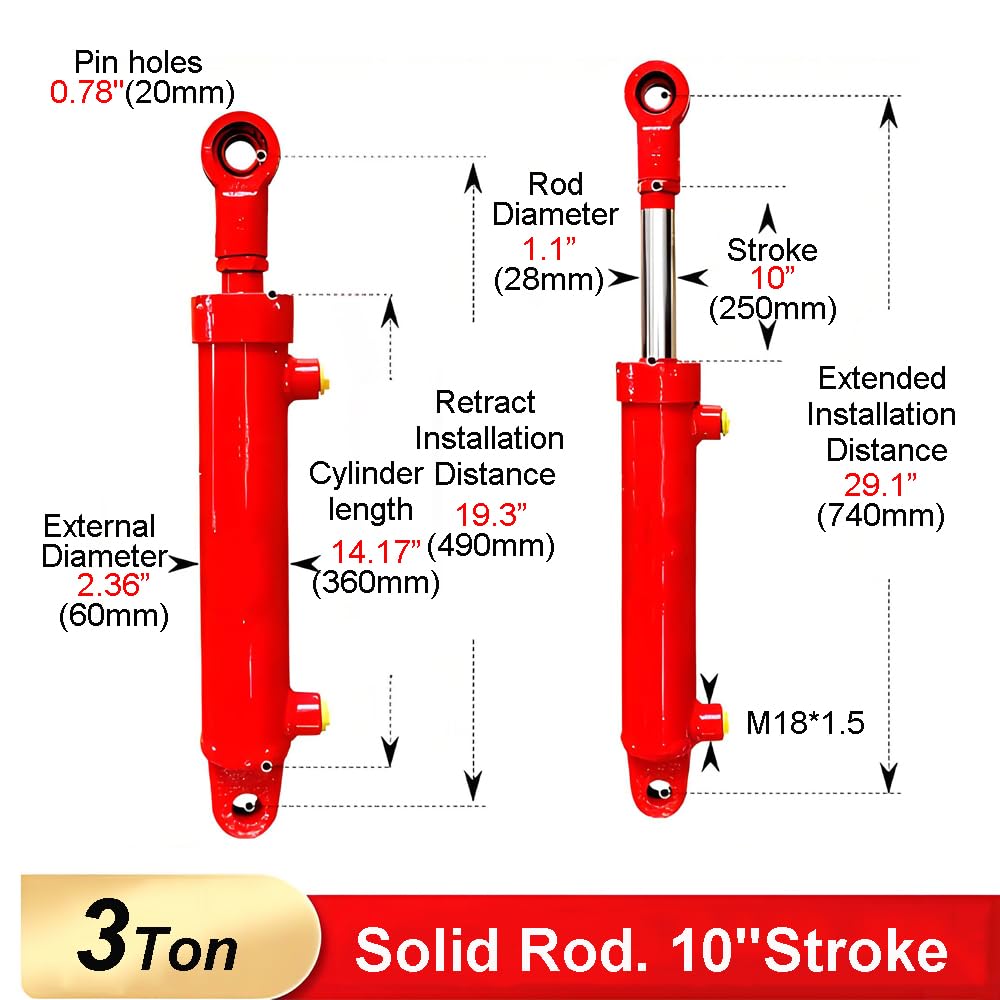

• Bore:2'(50mm),OD:2.36'(60mm),Stroke:10inches(250mm),Rod:1.1'(28mm),Retracted:19.3'(490mm), Extended: 29.1'(740mm), Pin holes: 0.78'(20mm)

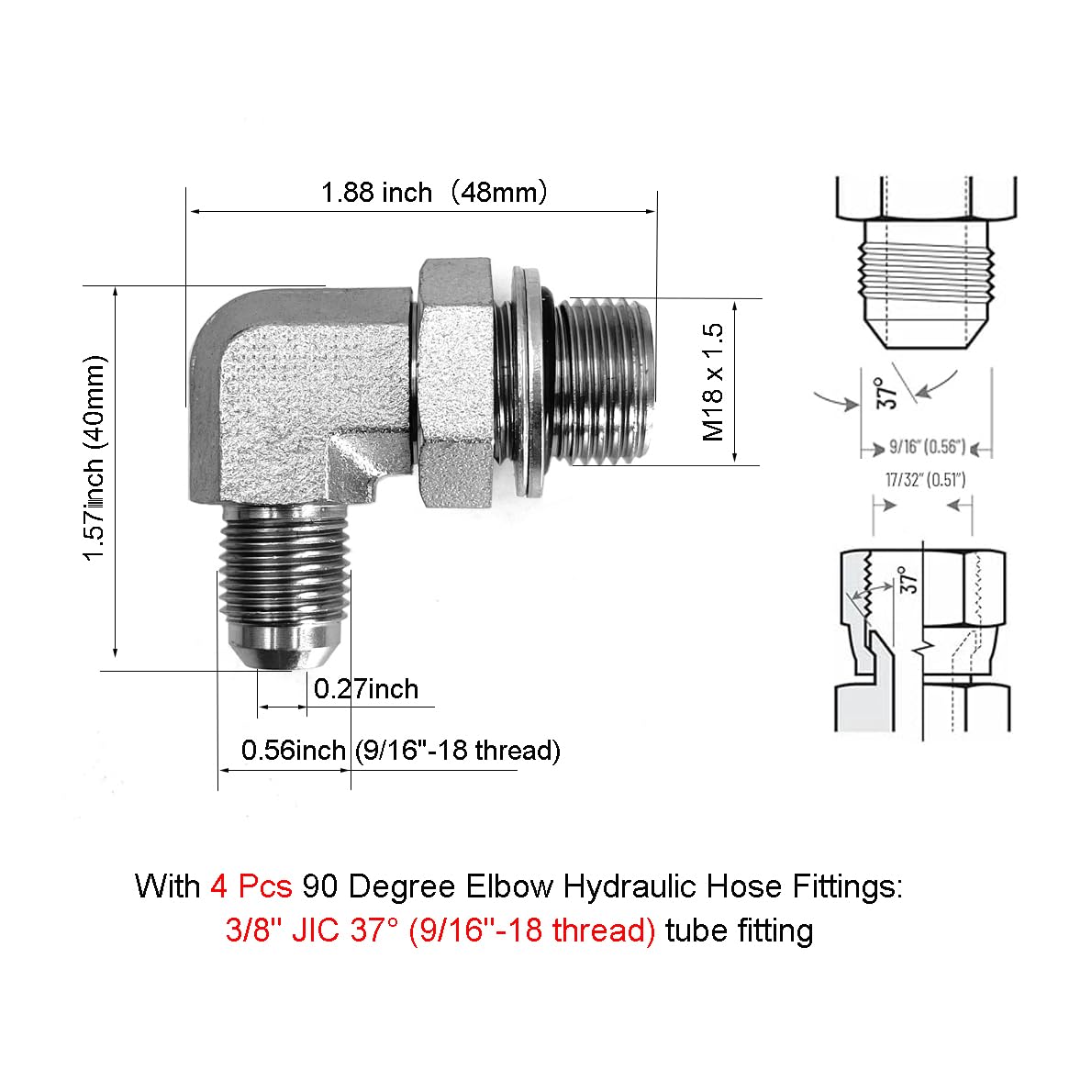

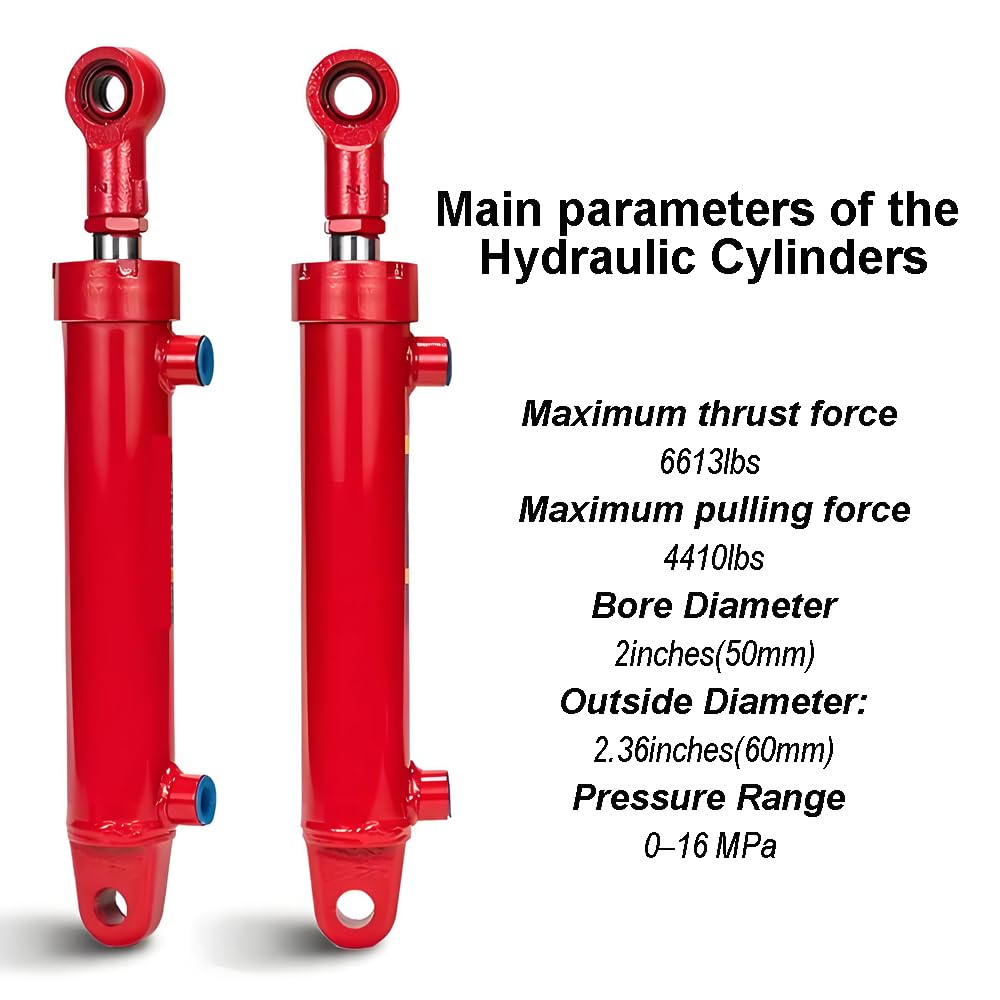

• Welded Double Acting Hydraulic Cylinder with 3/8' JIC 37°(9/16'-18 thread) Tube Fitting, Rated Pressure: 2320 PSI. Maximum thrust force 6613lbs, Maximum pulling force 4410lbs

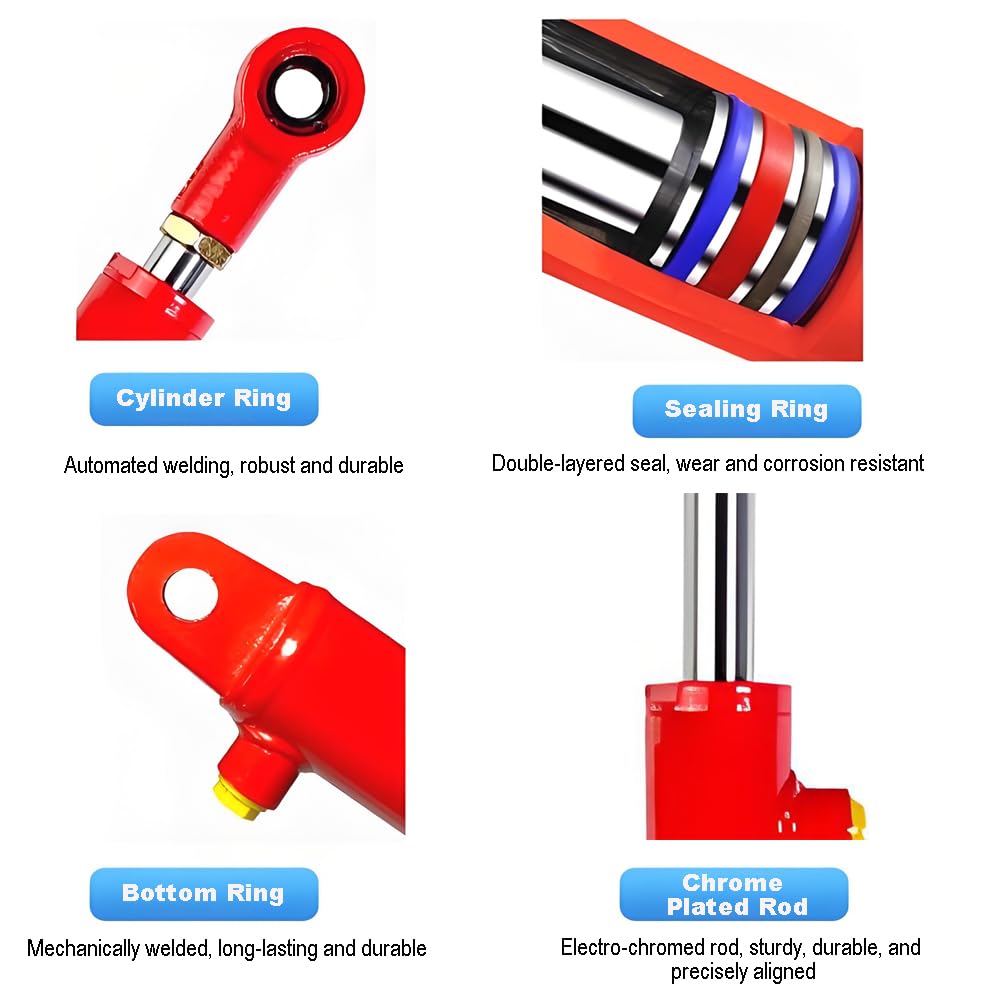

• Fully Welded Cylinder Design , Heavy-duty steel construction for high strength, impact resistance, and corrosion protection in harsh outdoor environments. High-quality compact sealing prevents leaks and rust. Features a solid chrome-plated rod for rugged durability and anti-deflection performance.
• All hydraulic cylinders are strictly pressure-tested to dependable performance .
• Suitable for use in hydraulic systems of: construction machinery, agricultural equipment, material handling equipment, and custom hydraulic designs.

model number: 2x10

Part Number: 2x10

Package Dimensions: 21.5 x 5.0 x 5.0 inches
