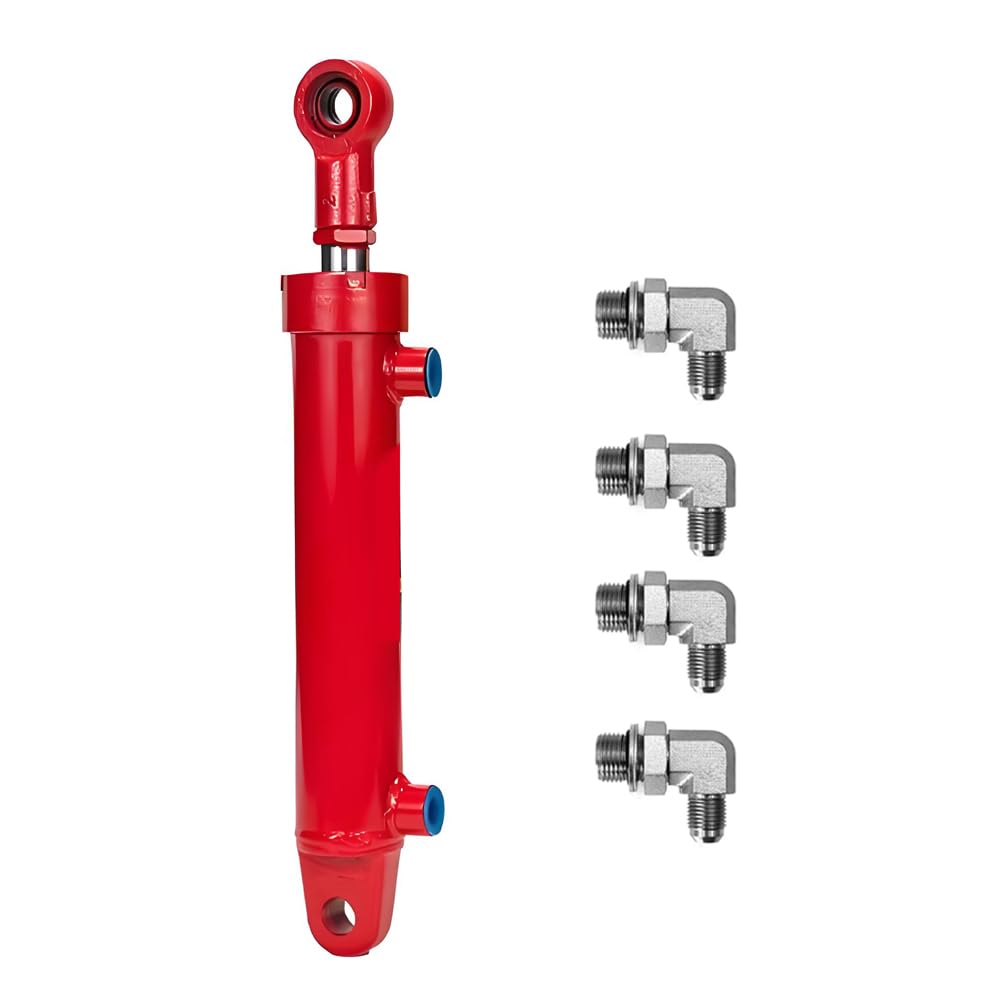

RHKING 2x8 Hydraulic Cylinder 3 Ton Double Acting Welded Hydraulic Cylinder 2" Bore x 8" Stroke with 3/8" JIC 37°(9/16"-18 Thread) Hydraulic End Connectors Maximum Thrust Force 6613lbs

Brand: RHKING

Color: Red

Features:

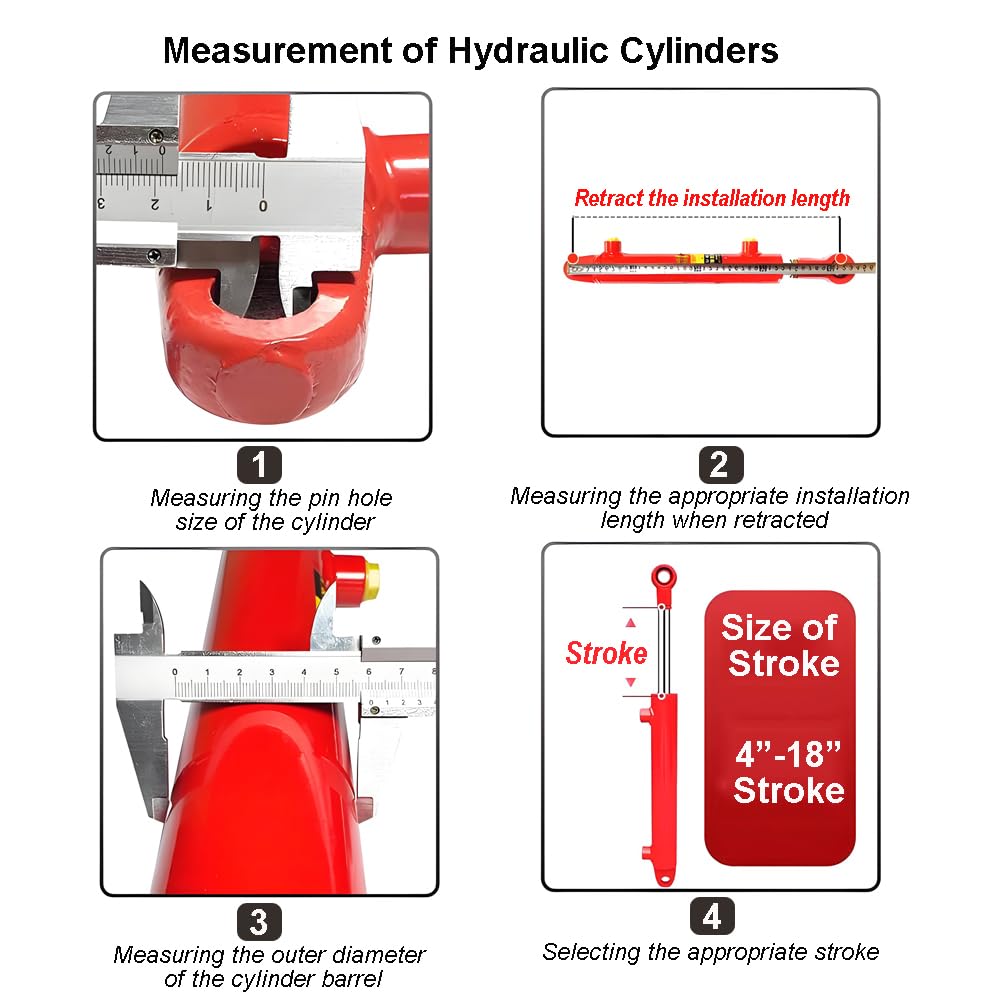

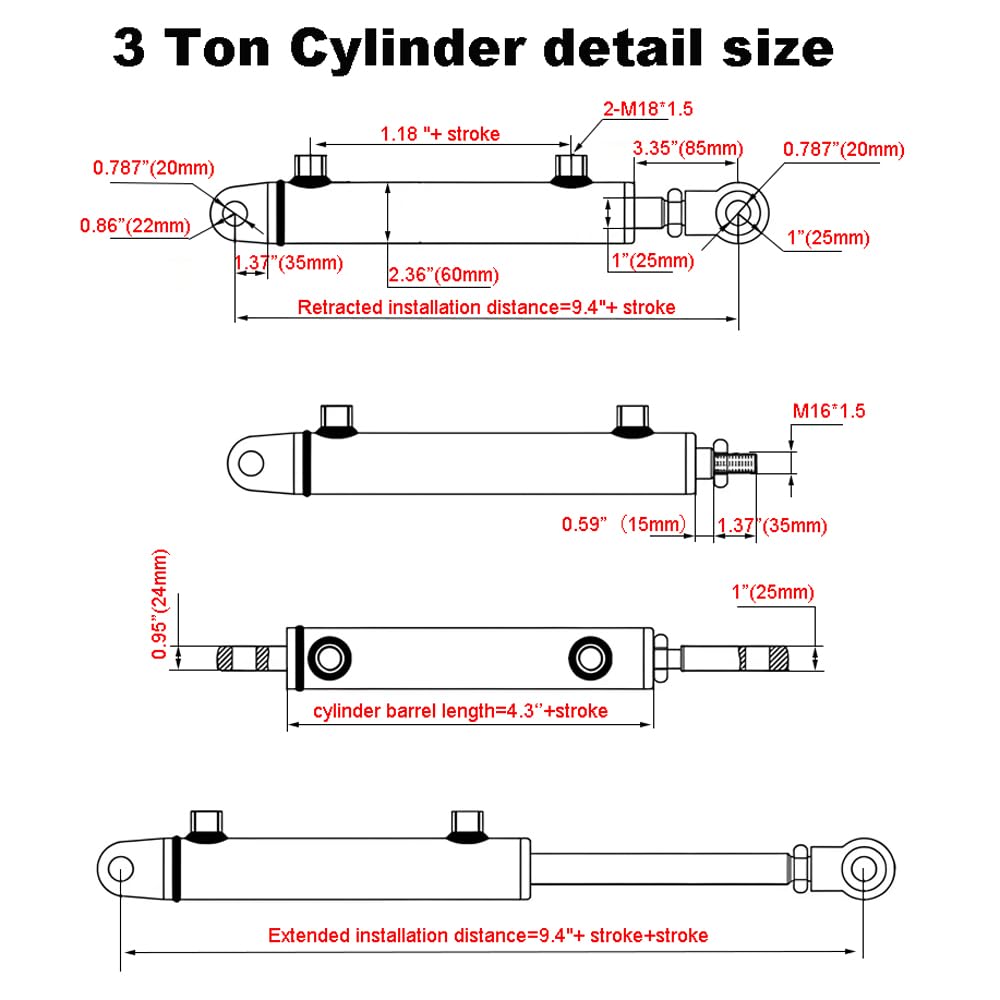

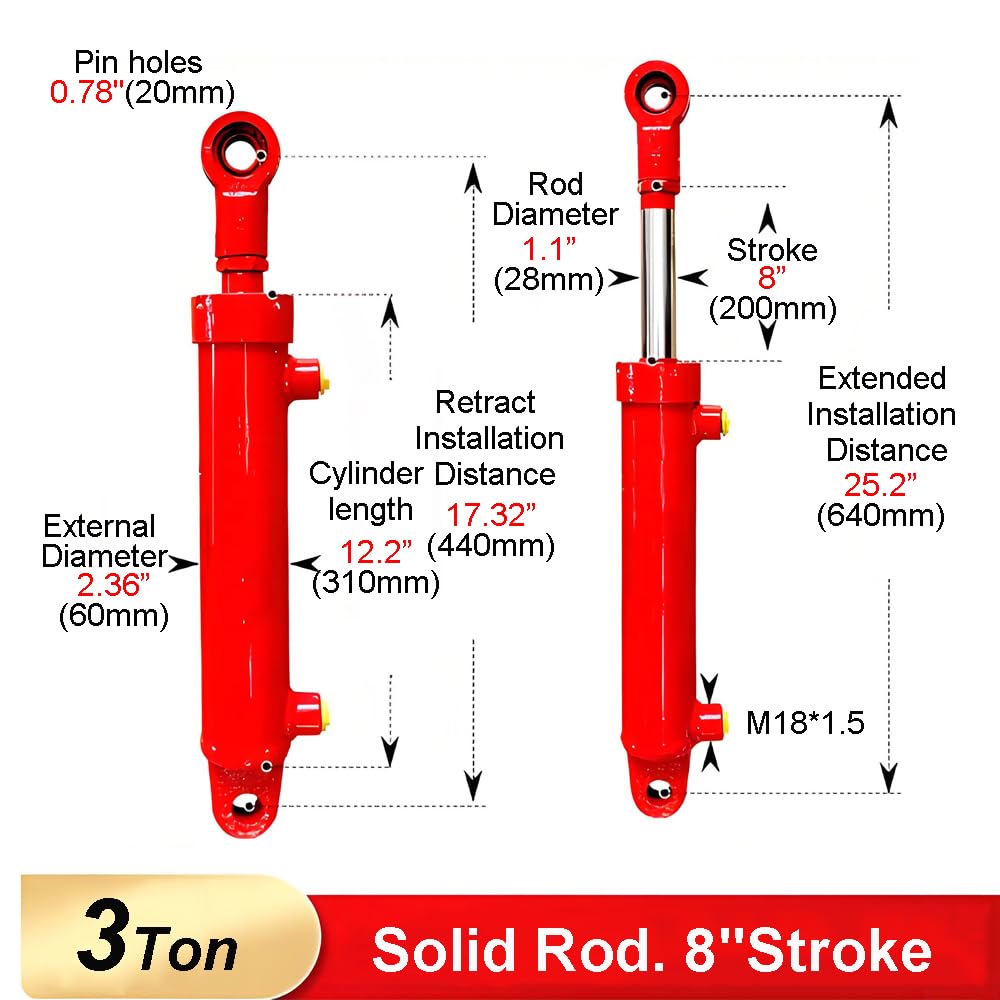

• Bore:2'(50mm),OD:2.36'(60mm),Stroke:8inches(200mm),Rod:1.1'(28mm),Retracted:17.32'(440mm), Extended: 25.2'(640mm), Pin holes: 0.78'(20mm)

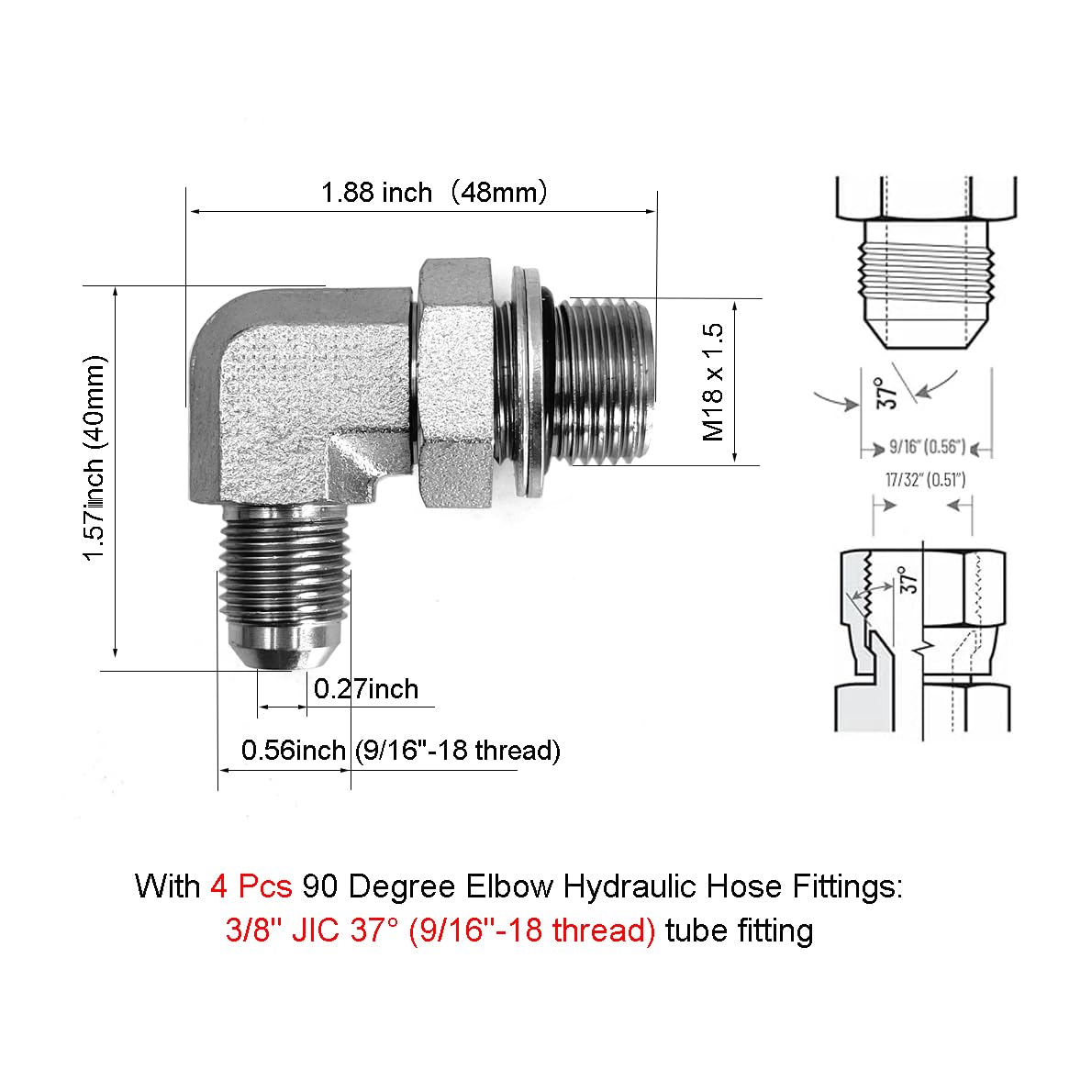

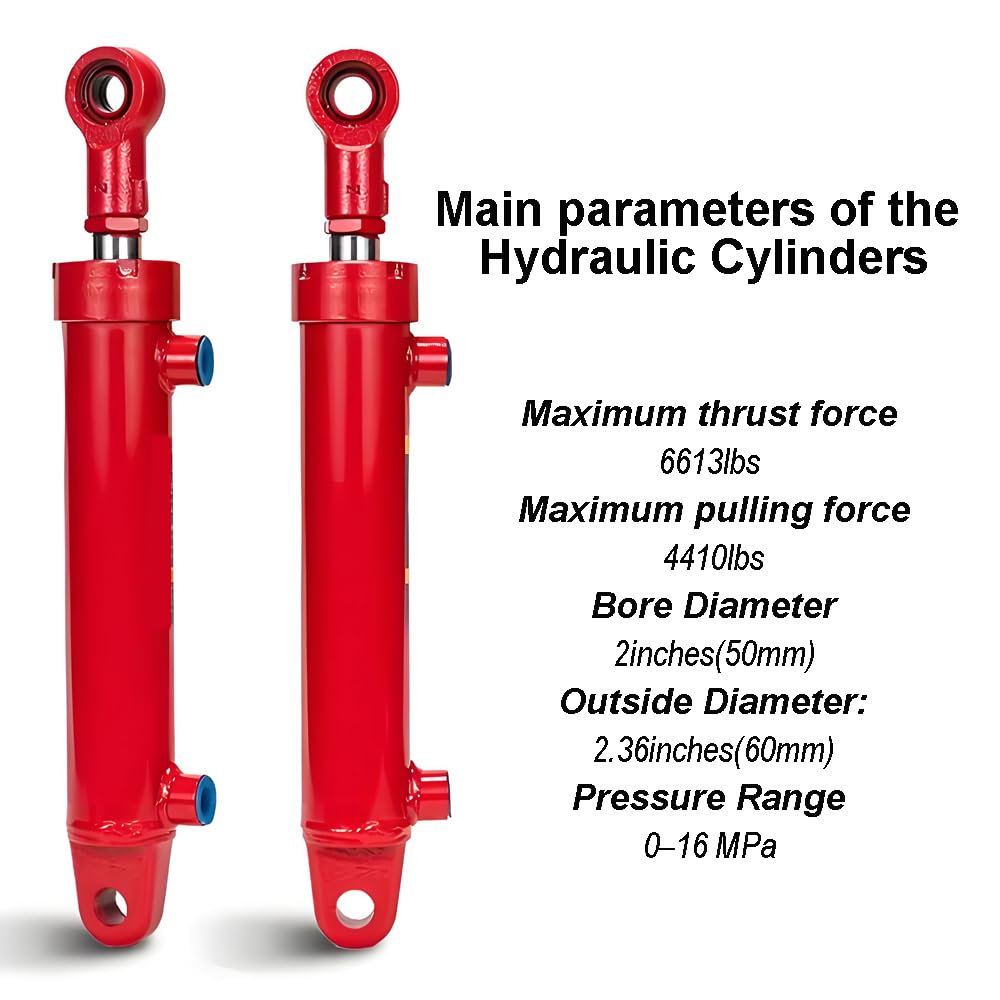

• Welded Double Acting Hydraulic Cylinder with 3/8' JIC 37°(9/16'-18 thread) Tube Fitting, Rated Pressure: 2320 PSI. Maximum thrust force 6613lbs, Maximum pulling force 4410lbs

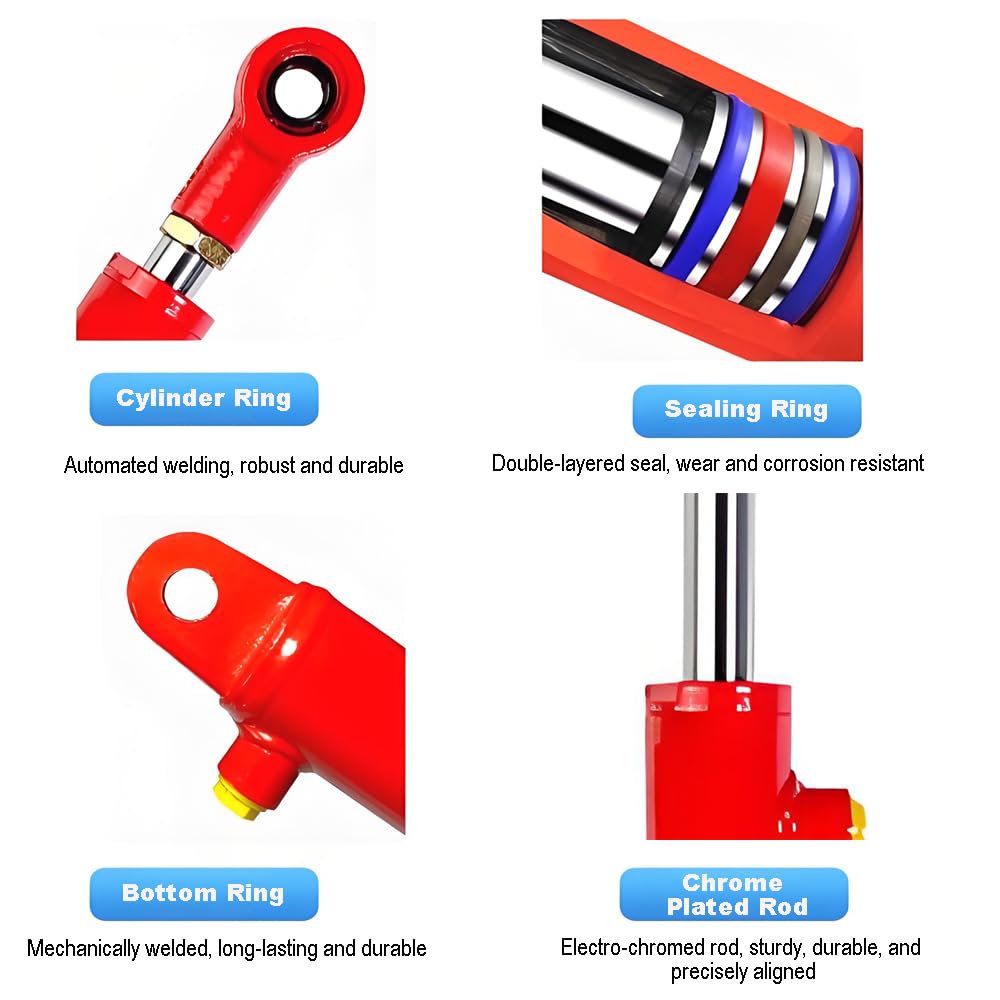

• Fully Welded Cylinder Design , Heavy-duty steel construction for high strength, impact resistance, and corrosion protection in harsh outdoor environments. High-quality compact sealing prevents leaks and rust. Features a solid chrome-plated rod for rugged durability and anti-deflection performance.
• All hydraulic cylinders are strictly pressure-tested to dependable performance .
• Suitable for use in hydraulic systems of: construction machinery, agricultural equipment, material handling equipment, and custom hydraulic designs.

model number: 2x8

Part Number: 2x8

Package Dimensions: 21.6 x 4.7 x 4.7 inches
