RHKING Pallet Jack Repair Pallet Truck Pump Hand Pallet Truck Restoration DIY Pallet Jack Replacement 4400 Lb Capacity Shaft 45mm

Brand: RHKING

Color: black

Features:

• DIY Replacement: Using a replacement pump for your pallet jack allows for quick and convenient repairs, saving time and effort.
• Pallet Jack Pump Dimensions:Spindle Diameter: 45mm,Circlip Groove Spacing: 40mm,Large Wheel Axle Hole Diameter: 25mm,Handle Shaft Diameter: 20mm,Height: 165mm,Piston Tip Diameter: 28mm.These specifications are critical for compatibility with your pallet jack. Verify all dimensions before installation or replacement.

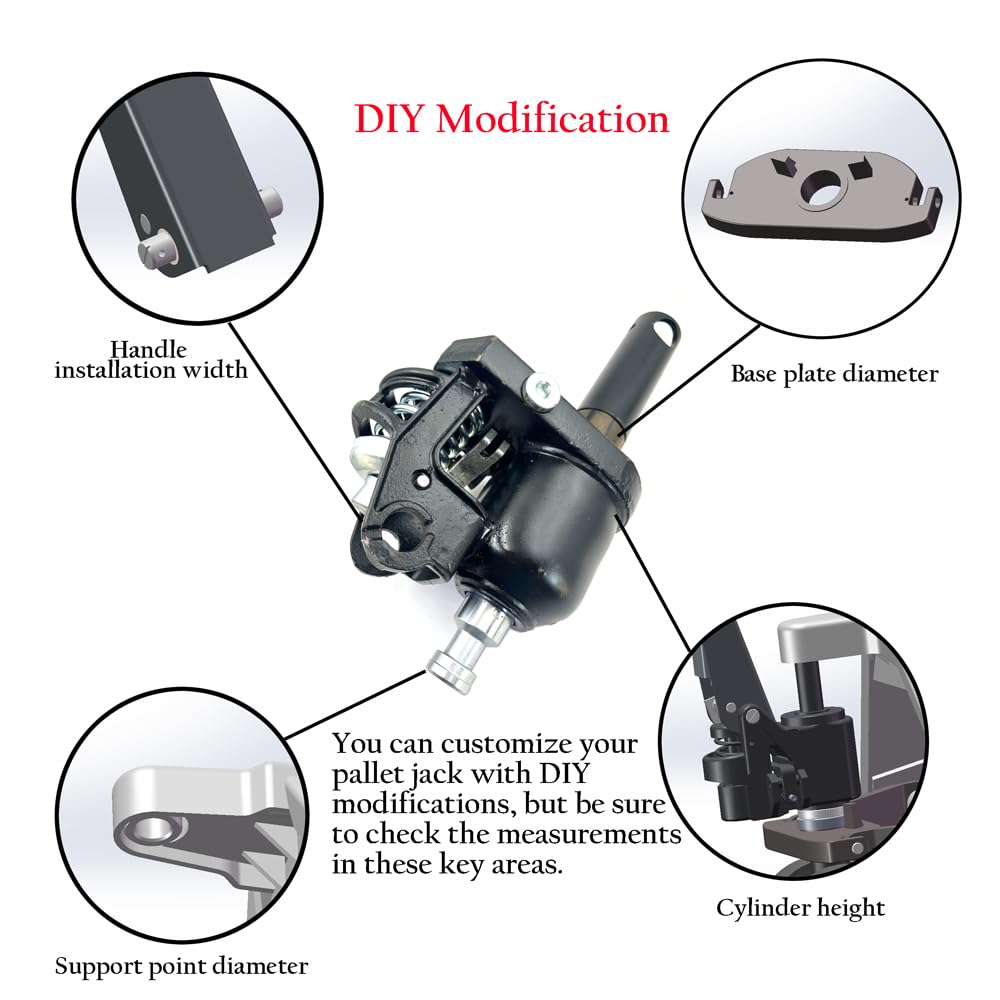

• Compatibility: The pallet jack pump must match the dimensions of other components on your pallet truck. If needed, you can DIY machining for compatible mounting parts.
• High Load Capacity: Rated for 4400 lbs, The pallet jack pump is suitable for most heavy-load handling scenarios.
• Installation Steps: Invert the pallet truck, detach the original pump, fit the plane bearing onto the spindle, install the oil cylinder into the base (secured with a snap ring), and attach the pallet jack wheel.

model number: Pallet Jacks

Part Number: 1

Details: Specification
Product Name: Pallet Jack Truck pump

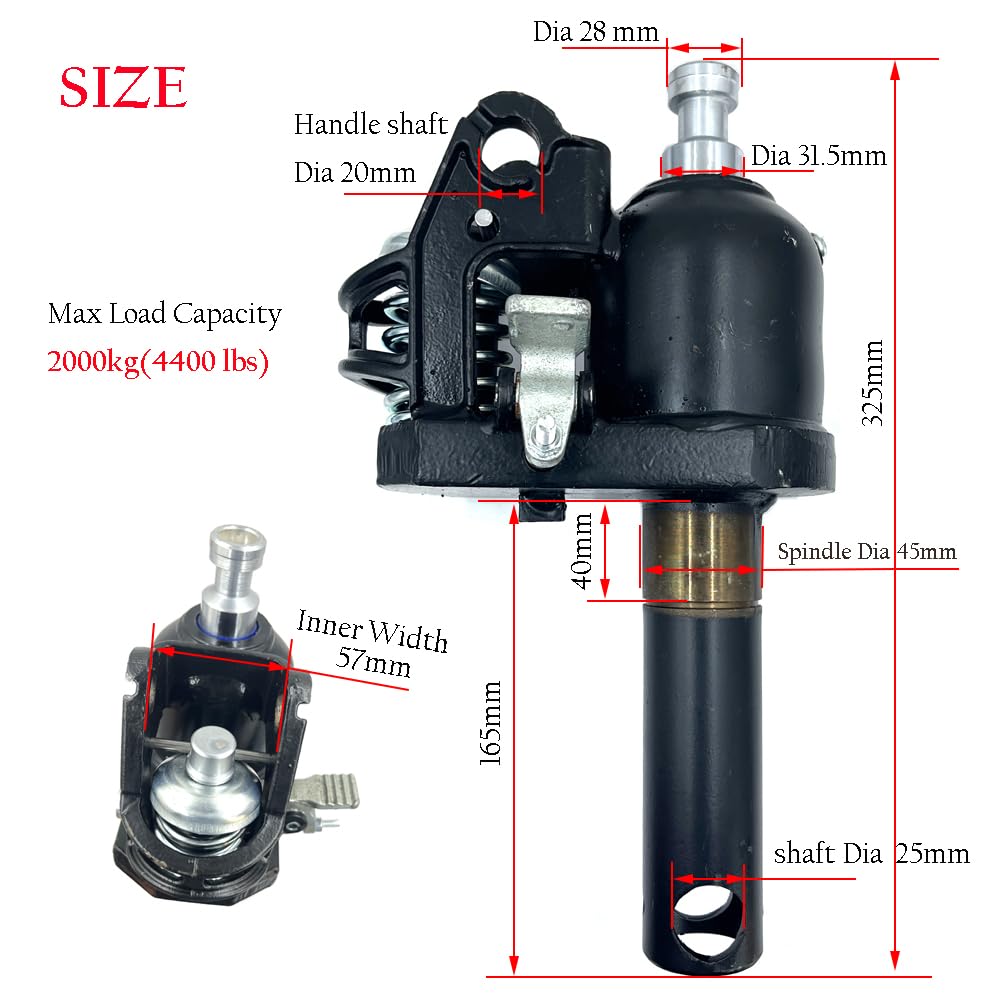

Pallet Jack Pump Dimensions:
Spindle Diameter: 45mm
Circlip Groove Spacing: 40mm
Large Wheel Axle Hole Diameter: 25mm
Handle Shaft Diameter: 20mm
Height: 165mm
Piston Tip Diameter: 28mm
Load Capacity: Rated for 4400 lbs

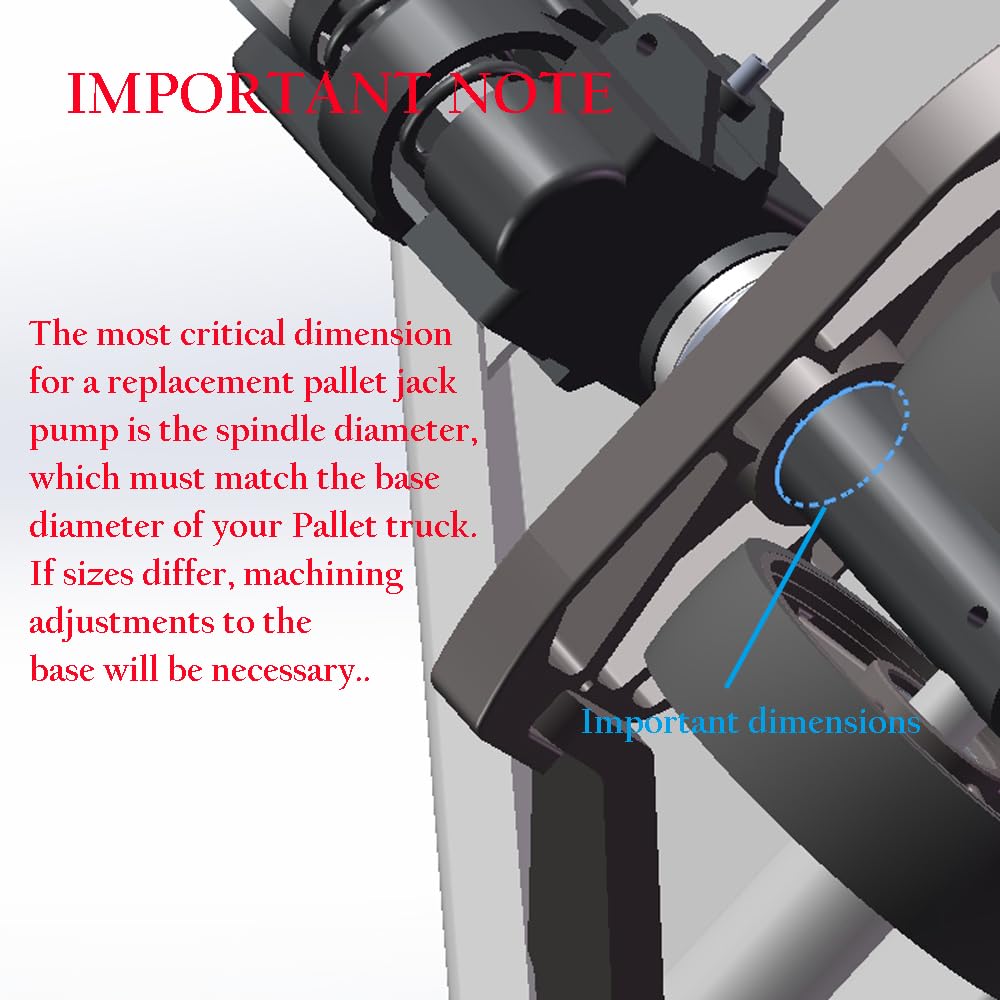

Important Note: These size are critical for compatibility with your pallet jack. Verify all dimensions before installation or replacement.The most critical dimension for a replacement pallet jack pump is the spindle diameter, which must match the base diameter of your Pallet truck. If sizes differ, machining adjustments to the base will be necessary.

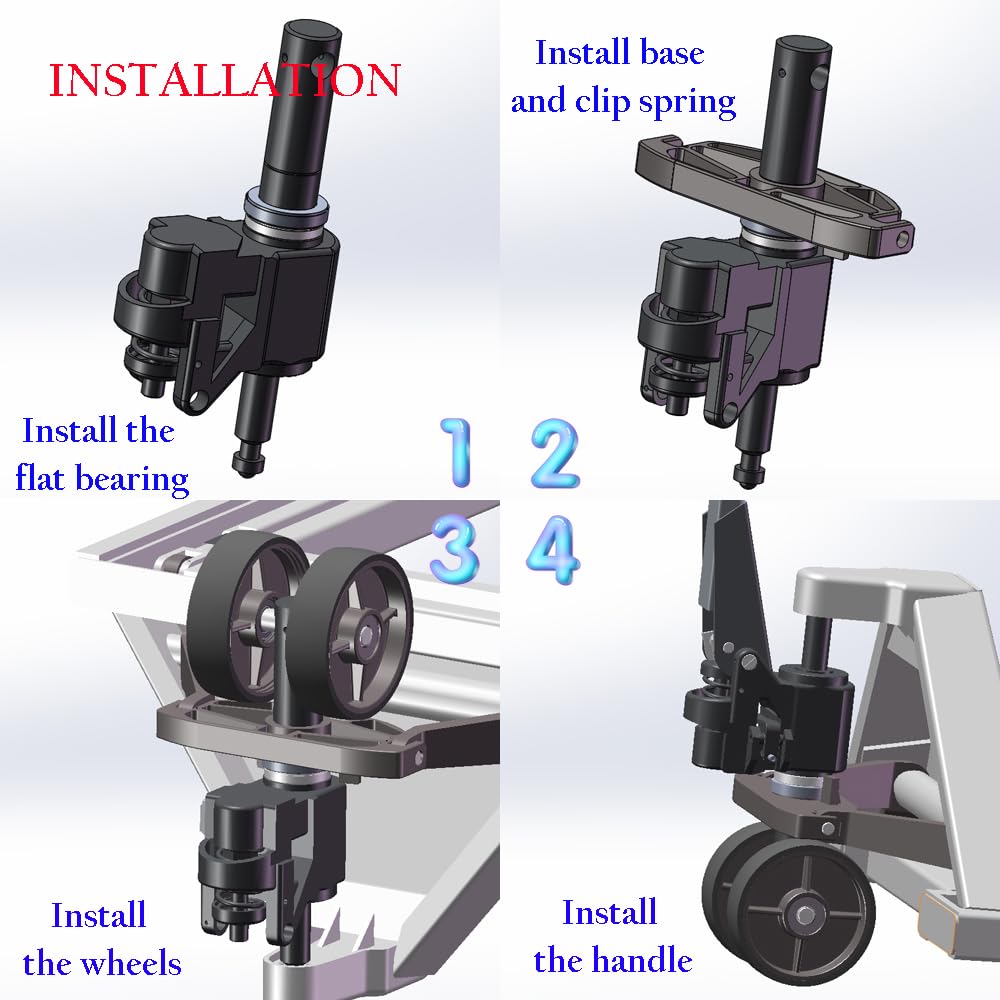

Installation Steps
Invert the pallet truck, detach the original pump, fit the plane bearing onto the spindle, install the oil cylinder into the base (secured with a snap ring), and attach the pallet jack wheel.
Include
1pcs x45mm Shaft Pallet Jack Pump

Package Dimensions: 16.0 x 12.0 x 8.0 inches
