Richauto A11E CNC Controller DSP 3 Axis Motion Control System for CNC Router, Engraver, Cutting Machine, Compatible with TYPE3, ARTCAM,UG Software,Mastercam,ProE.

Brand: ELECANE

Color: Black

Features:

• Richauto A11E compatible with TYPE3, ARTCAM, CASTMATE, Pro/E, MasterCAM, Cimatron, UG Software, etc. so it fit for most CNC routers on the market.
• High-performance core processor; Simple handheld key operation; Multiple transports, big memory (512MB);
• Intelligent pre-reading function; Interllient memory function; Parameters stored and restored function;
• Two machining modes for choice; Better encryption capability; Better performance on anti-interference; Bigger exploitability.
• English Version;upgraded DSP 0501 three-axis linkage motion controller, with more reliable functions, the upgraded A1X series controller contains A11, A12, and A18 controllers.

model number: A11E

Part Number: A11E

Details: Product Description:
1.Directly read files from U Disk, independently work without PC, and achieve offline running.
2.Multi I / O Point Control: there are eight input and output signals in every basic I / O signal node, expansion I / O nodes can be expanded to 32 input and output signals.
3.Multi-coordinate memory function: comes with nine working coordinate systems, the user can switch among the 9 coordinates, each coordinate system can save process origin information.
4.Support spindle operating frequency online adjustment: the spindle frequency is divided into 8 thresholds, 1 - 8 thresholds can be adjusted directly without suspending processing. Support speed ratio online adjustment: users can adjust the speed ratio to adjust the processing speed and empty running speed, speed ratio values from 0.1-1, and ascending or descending per 0.1 numerical.
5.Simply manual operate mode, the system provides three kinds of motion of continuous, step (crawl), and distance in manual mode, which makes manual operation simpler and more convenient.

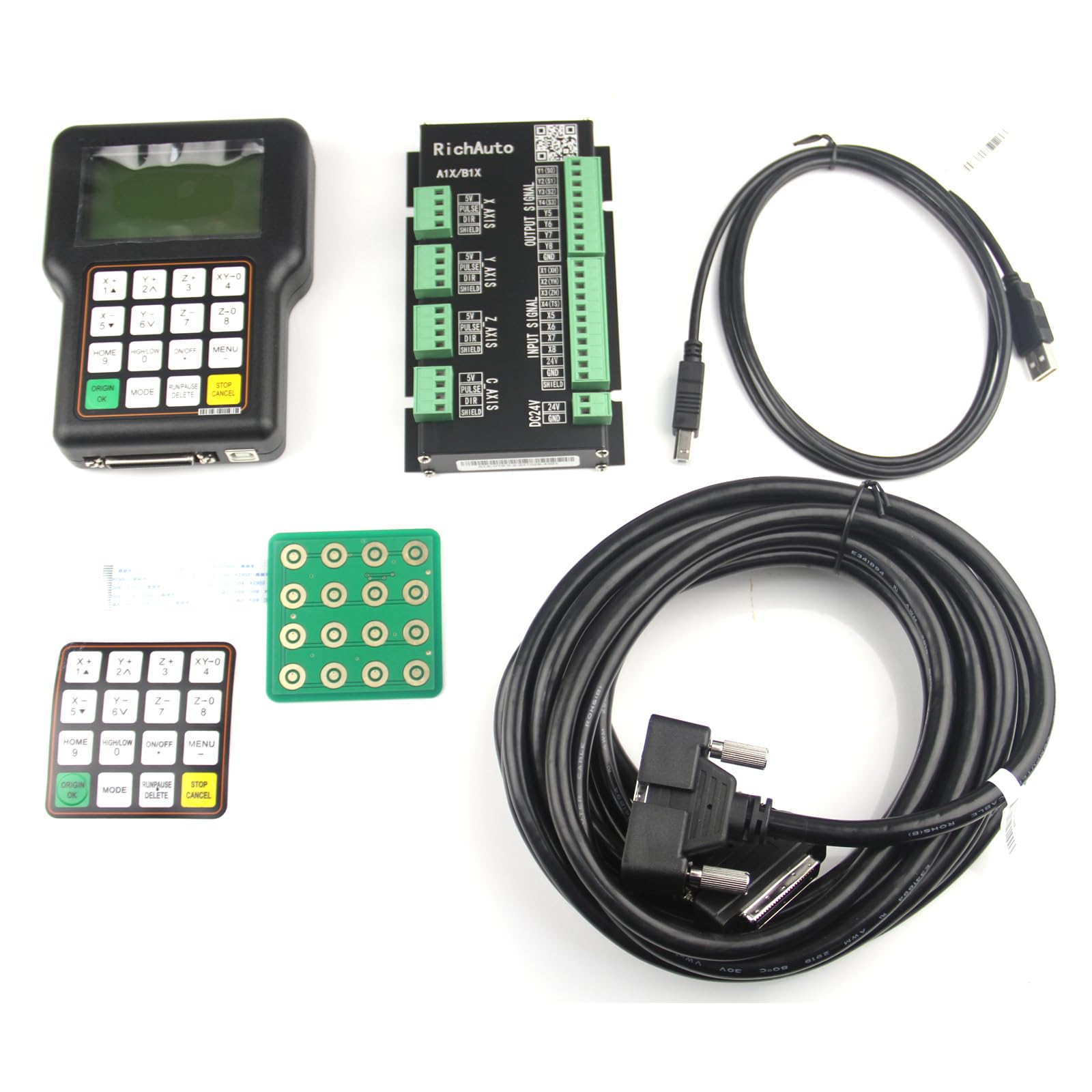

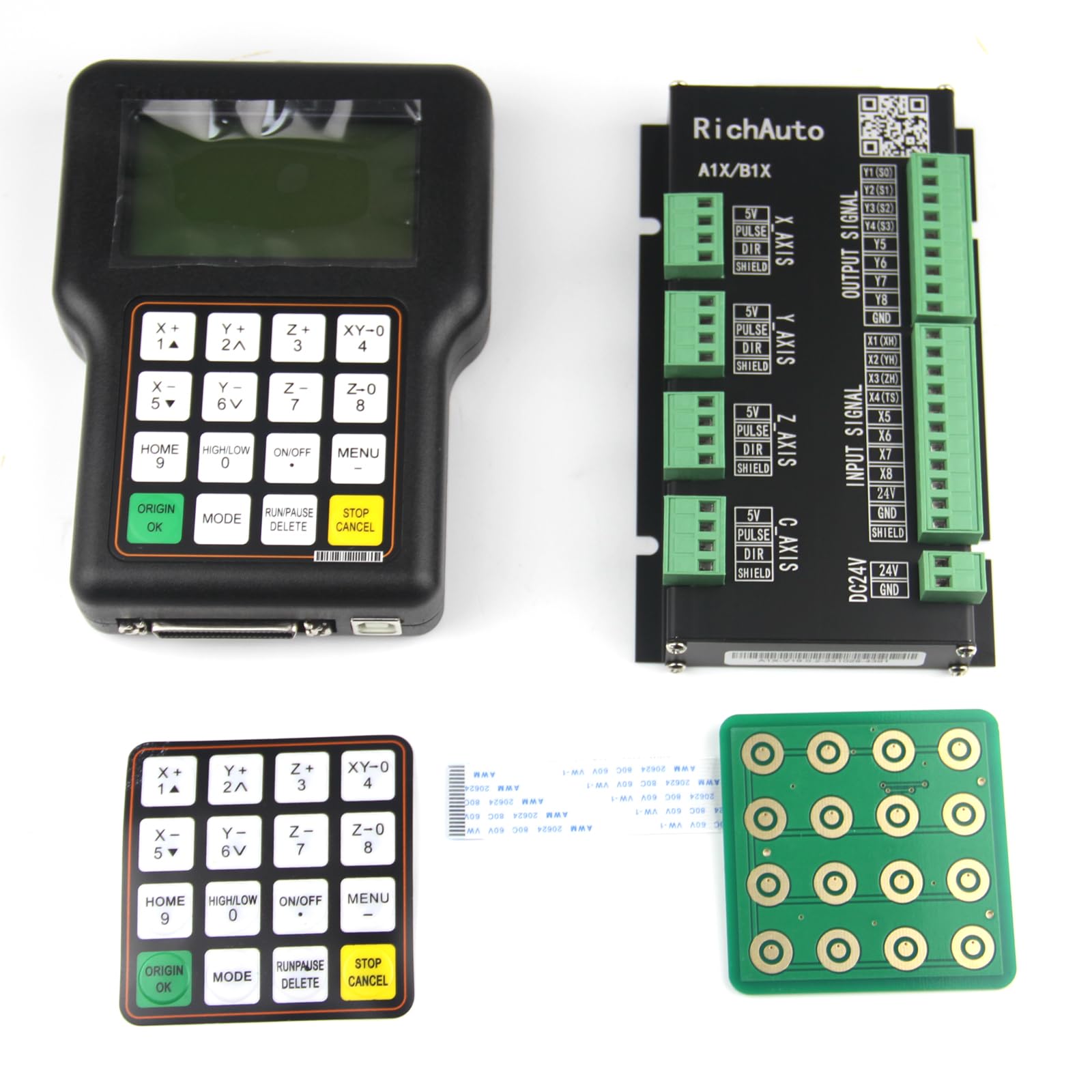

Package Include:

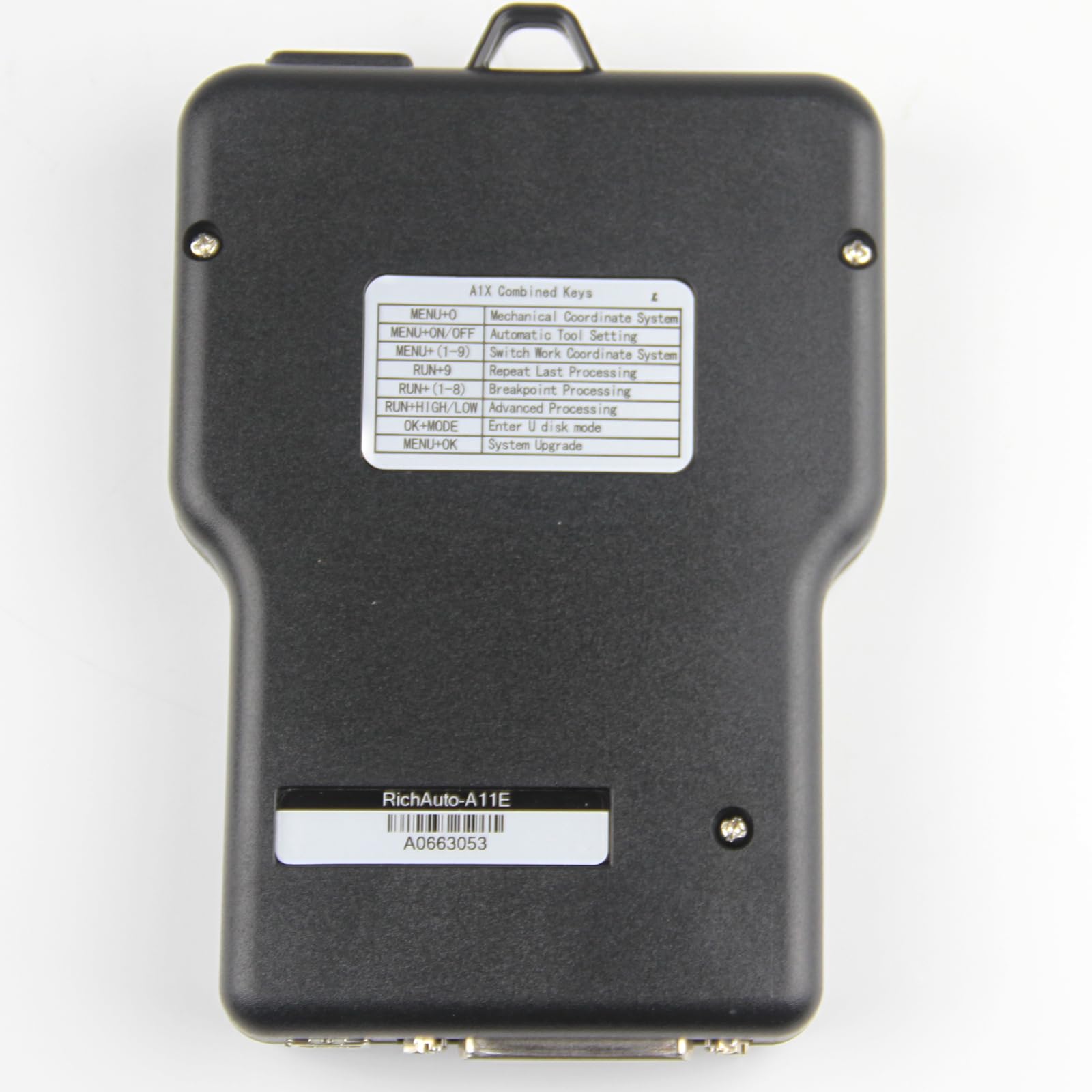

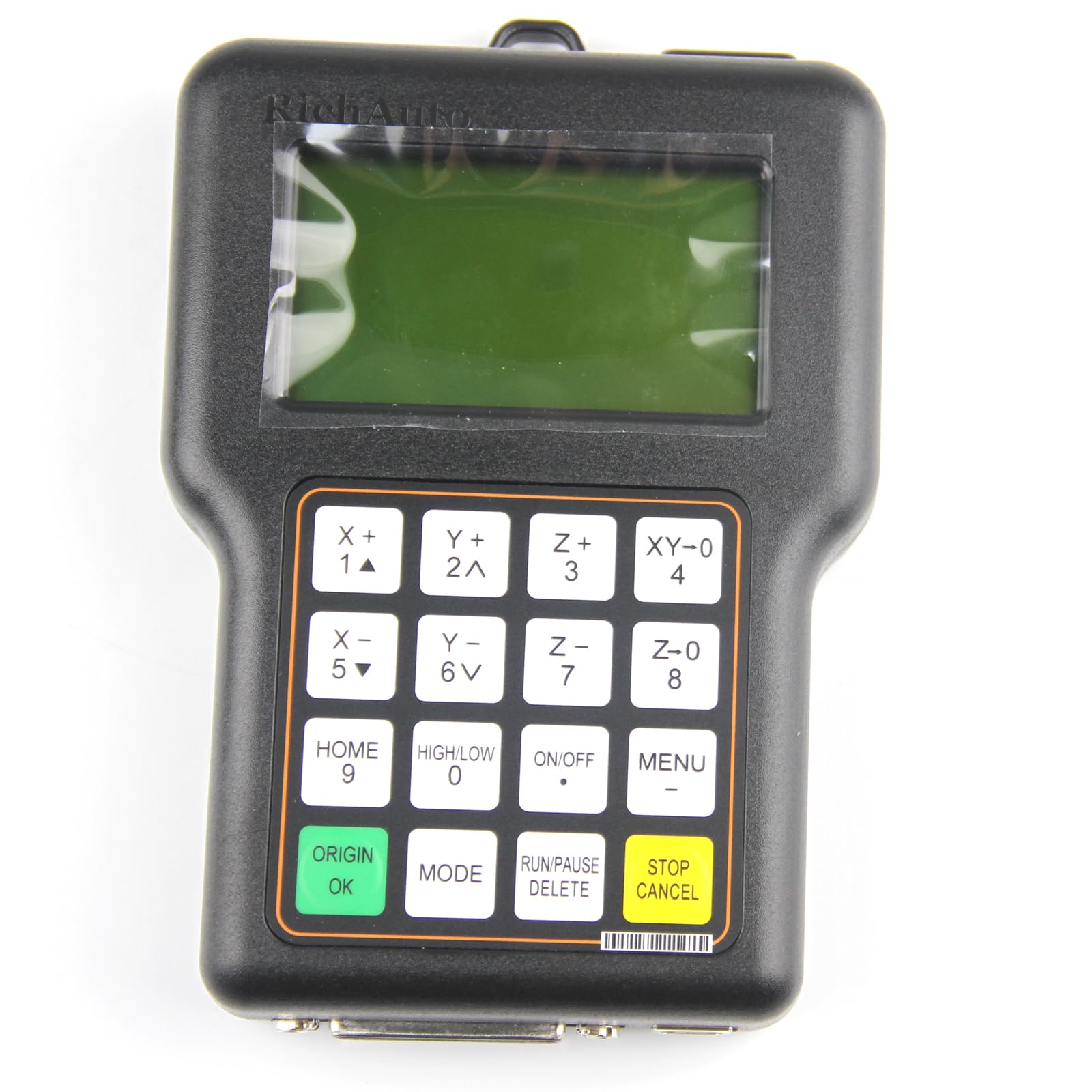

1x DSP A1X Pendant

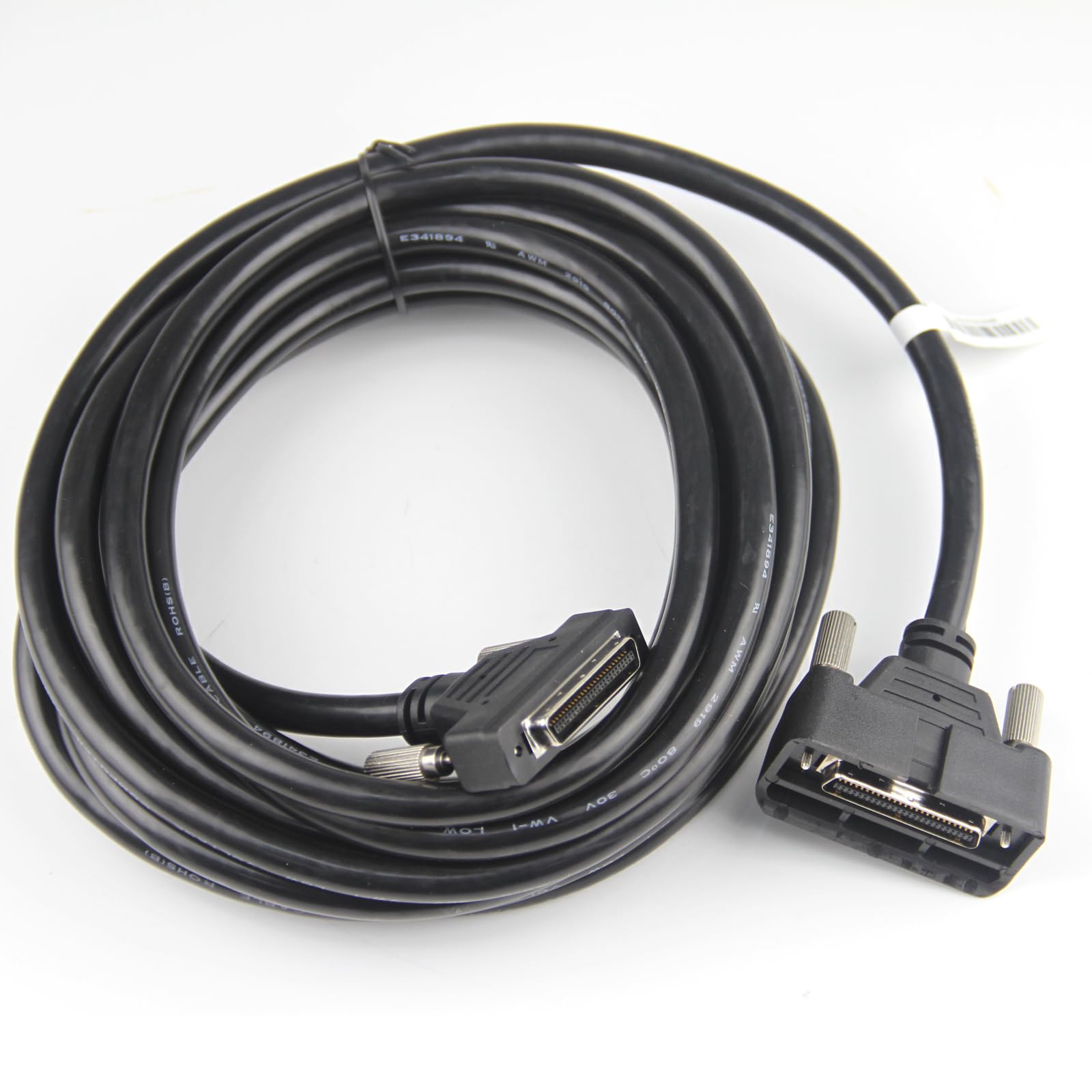

1x 50 Pins cable (6 meter)

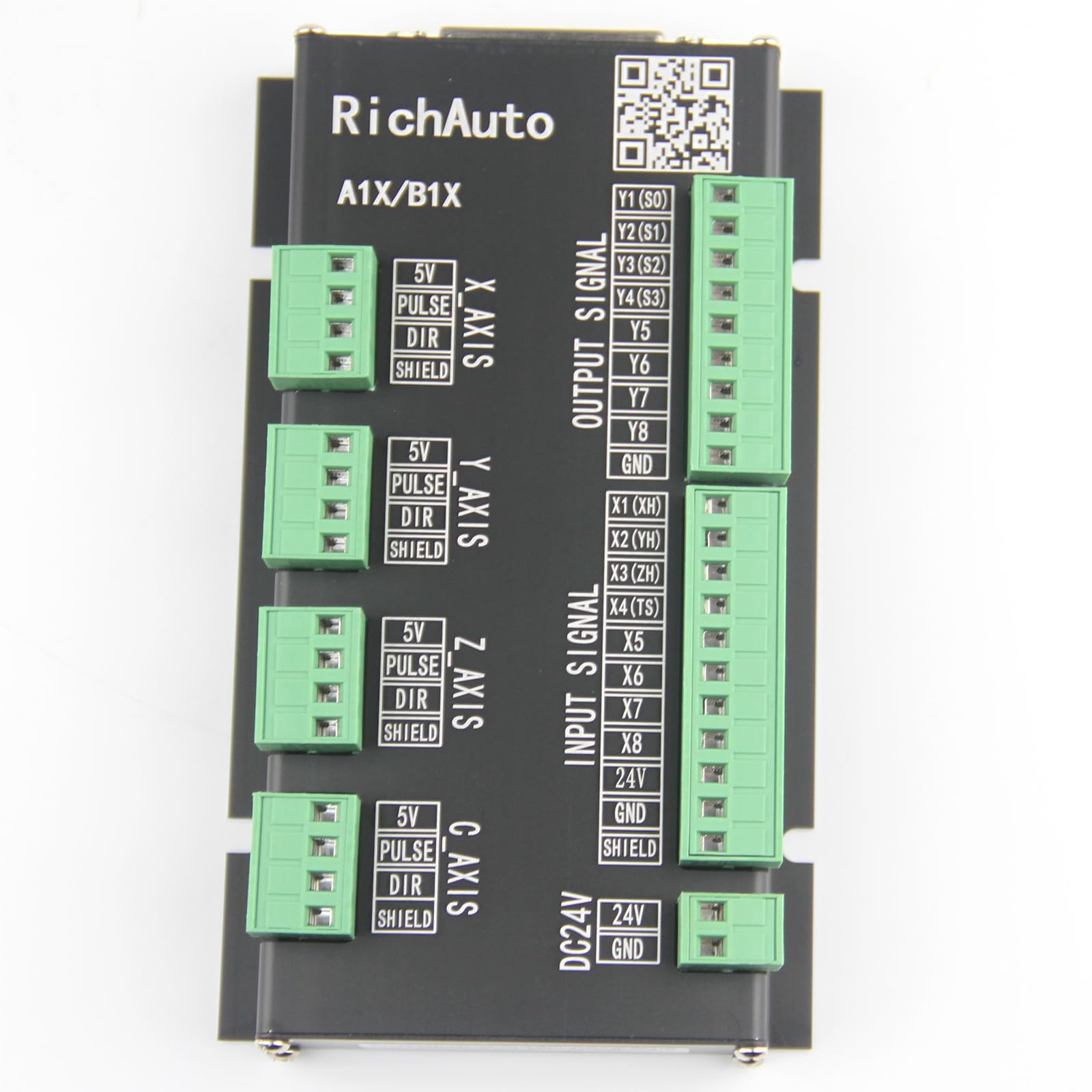

1x Connection Board

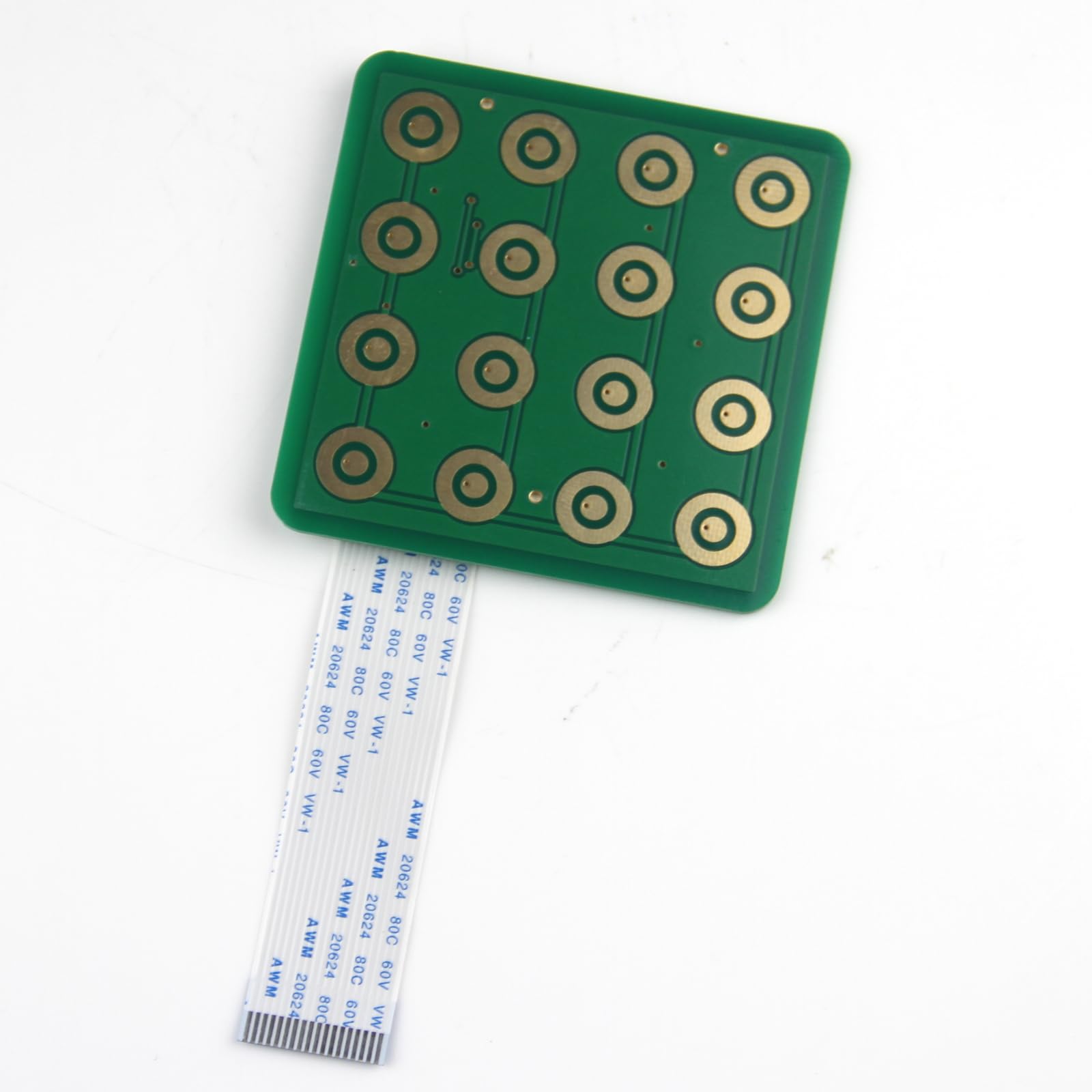

1x Keystoke

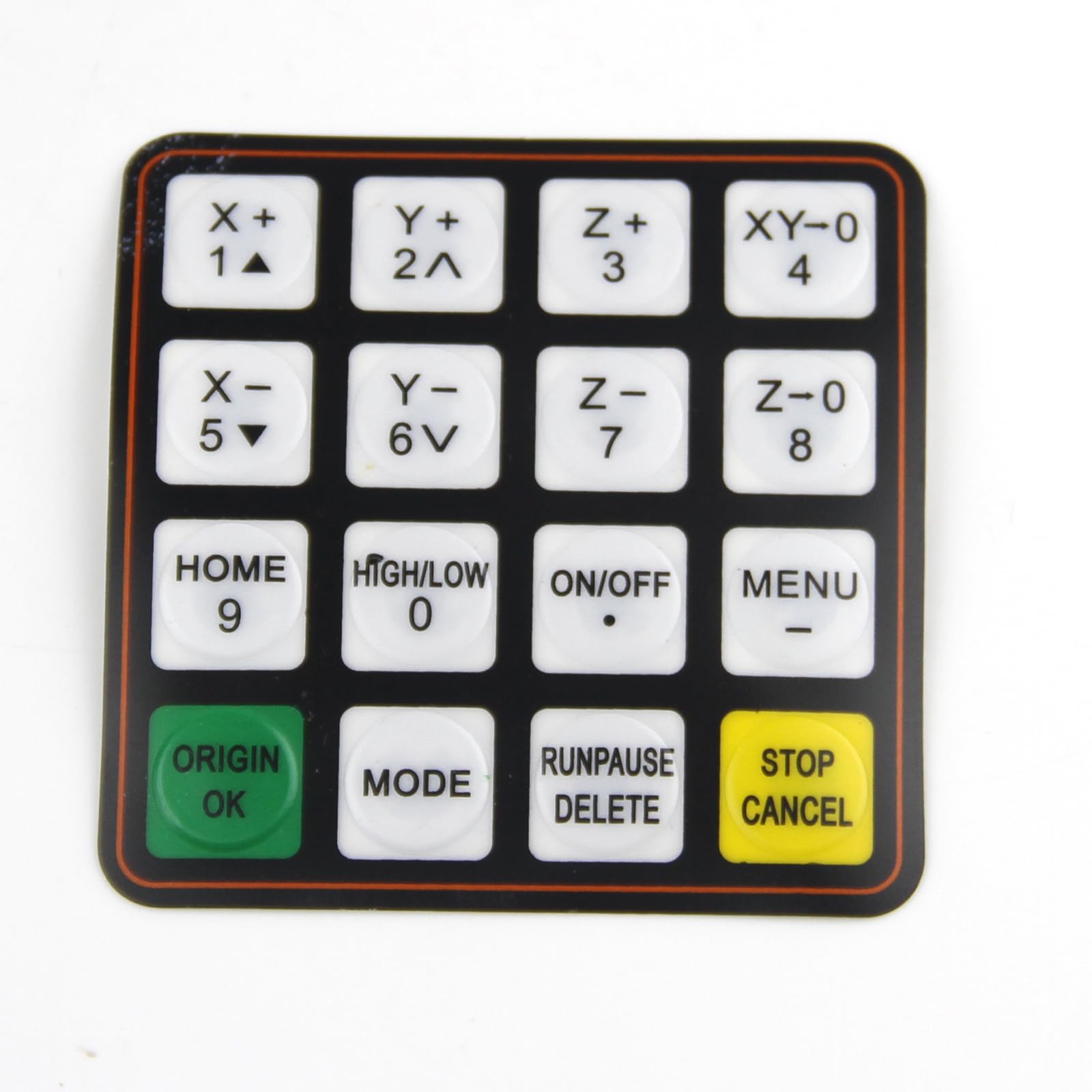

1x Keyboard film

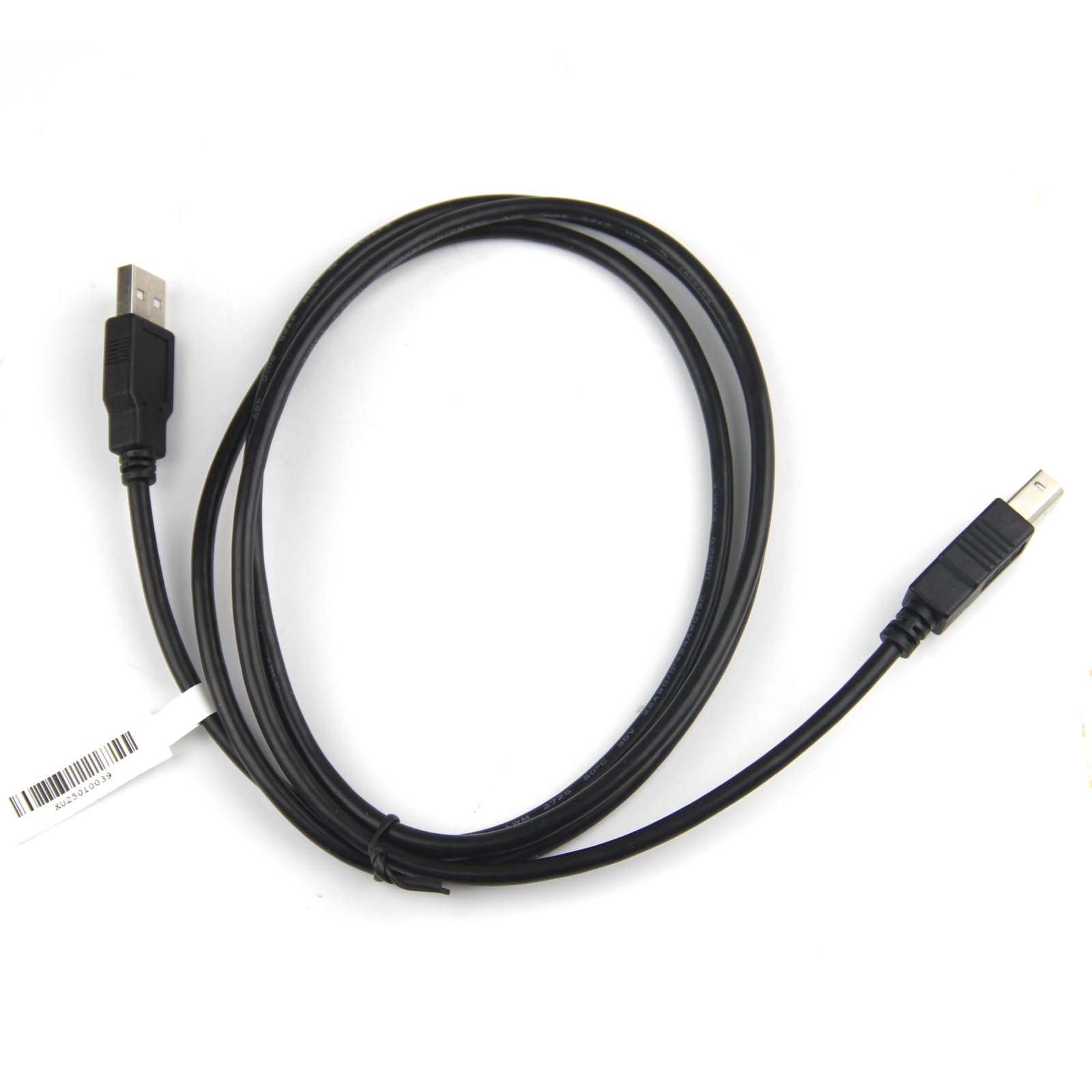

1x USB cable
1x English manual

EAN: 0717661974419

Package Dimensions: 10.2 x 7.6 x 4.7 inches
