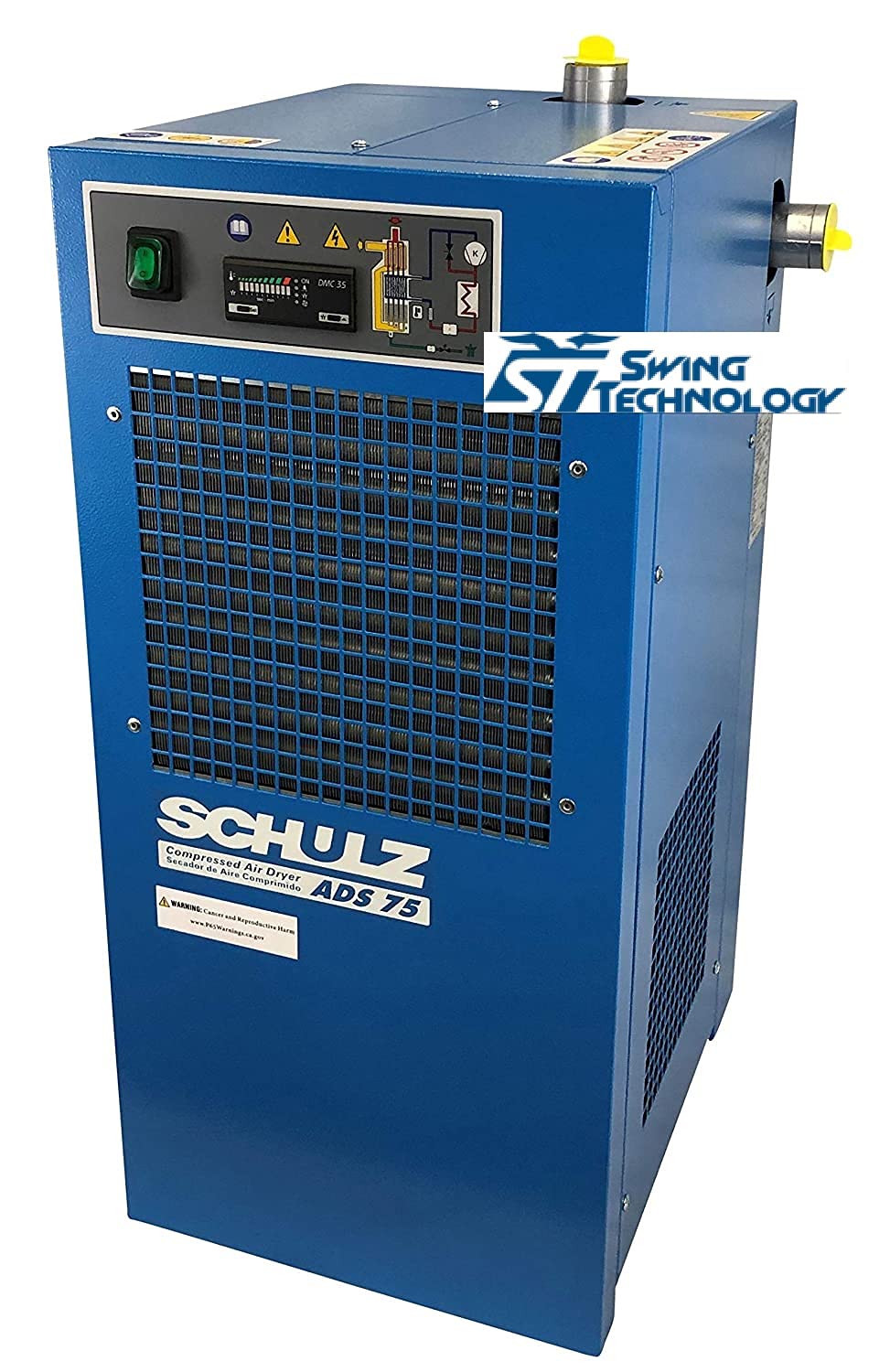

Schulz ADS-75-UP Non-cycling Compressed Air Dryer, Blue; Electronic Controller; 115V; 203 PSI Max Inlet Pressure; Single Phase Circuit; 75 CFM

Brand: Schulz

Color: Blue

Features:

• 203 PSI maximum
• Digitally shows temperature
• Controls the drain valve through a timer
• Controls the condenser fan through a probe
• Single phase

model number: ADS-75-UP

Part Number: SCHULZ

Details: Schulz ADS-75-UP Non-cycling Compressed Air Dryer, Blue; Electronic Controller; 115V; 203 PSI Max Inlet Pressure; Single Phase Circuit; 75 CFM

Schulz non-cycling compressed air dryers have been developed for applications with inlet and room temperatures up to 100 °F. Removable panels facilitate easy and quick access to internal components

Key Features:
- 203 PSI maximum
- Digitally shows temperature
- Controls the drain valve through a timer
- Controls the condenser fan through a probe
- Single phase

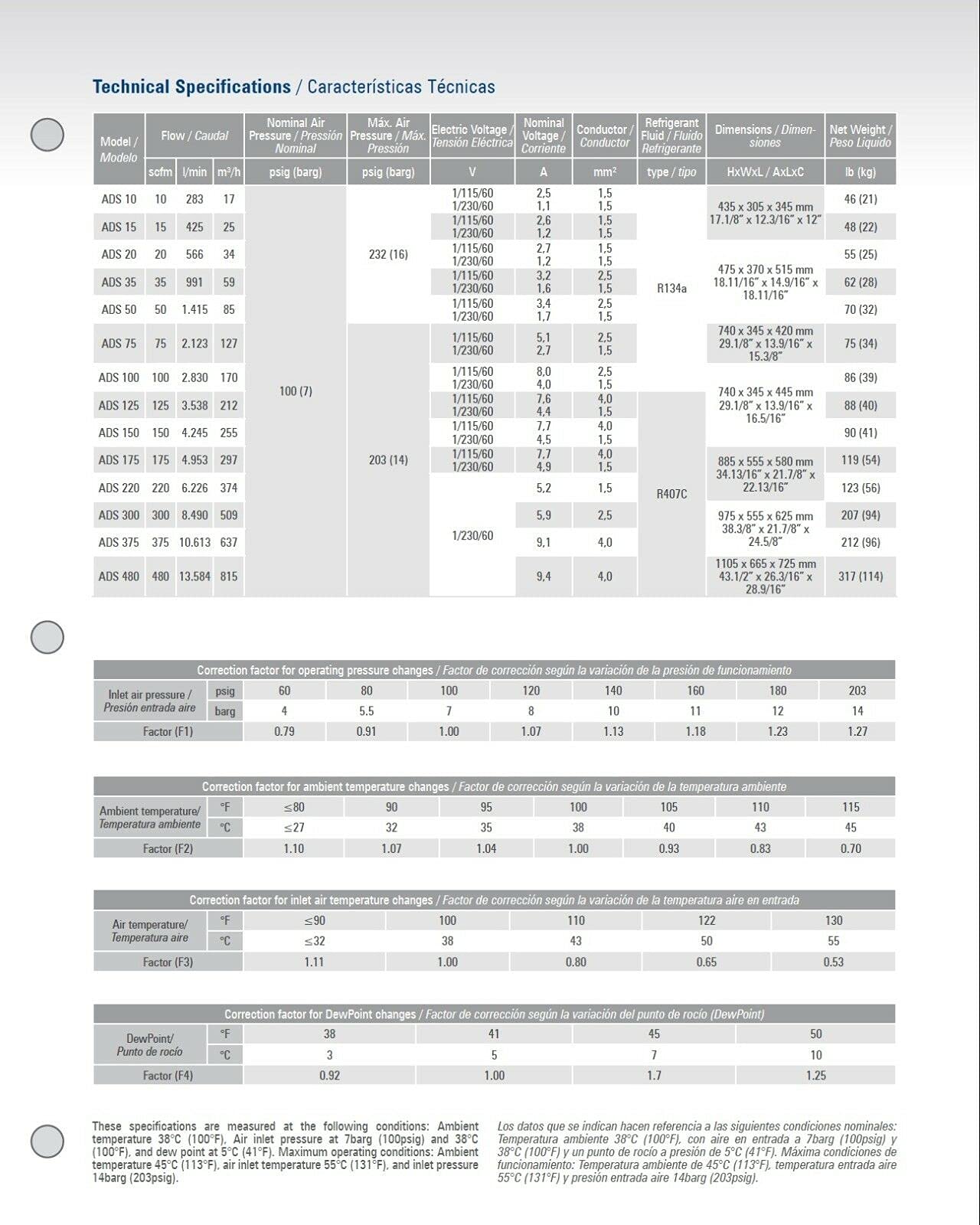

Specifications:
- Flow (CFM): 75
- Rated Pressure (PSI): 175
- Maximum Pressure (PSI): 203
- Connection (in): 1' NPT-F
- Voltage (V): 115
- Frequency (Hz): 60 Hz
- Phase: Single
- Overall Dimensions (HxWxL): 30 x 14 x 16 inches
- Weight: 75 pounds

EAN: 0649812079110
