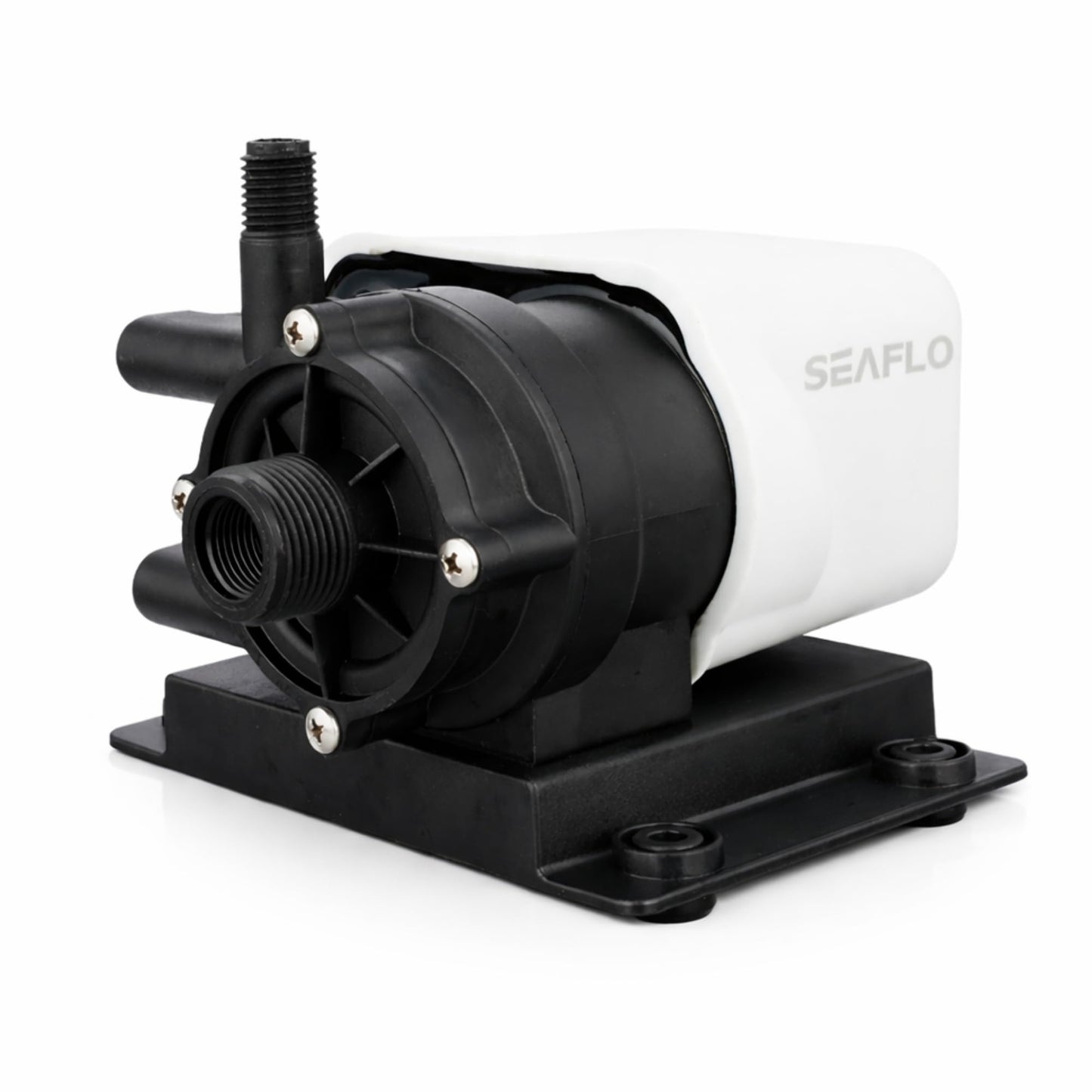

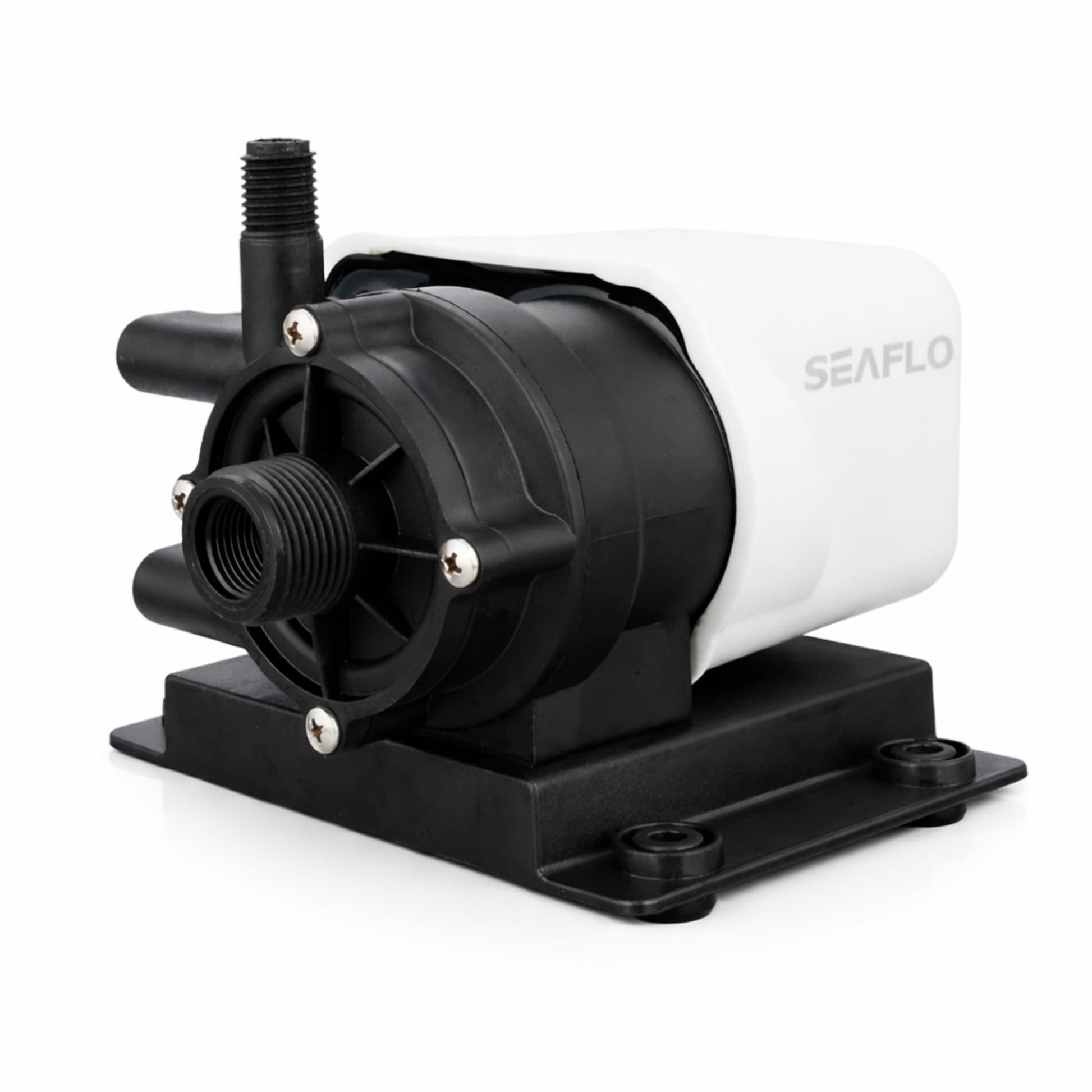

SEAFLO 250 GPH Marine AC Seawater Air Conditioning Pump - 115V AC 5 GPM Magnetic Drive Circulation for Systems up to 12000 BTU 13 ft Head Continuous Duty HVAC 4-Year Warranty

Brand: SEAFLO

Color: White

Features:

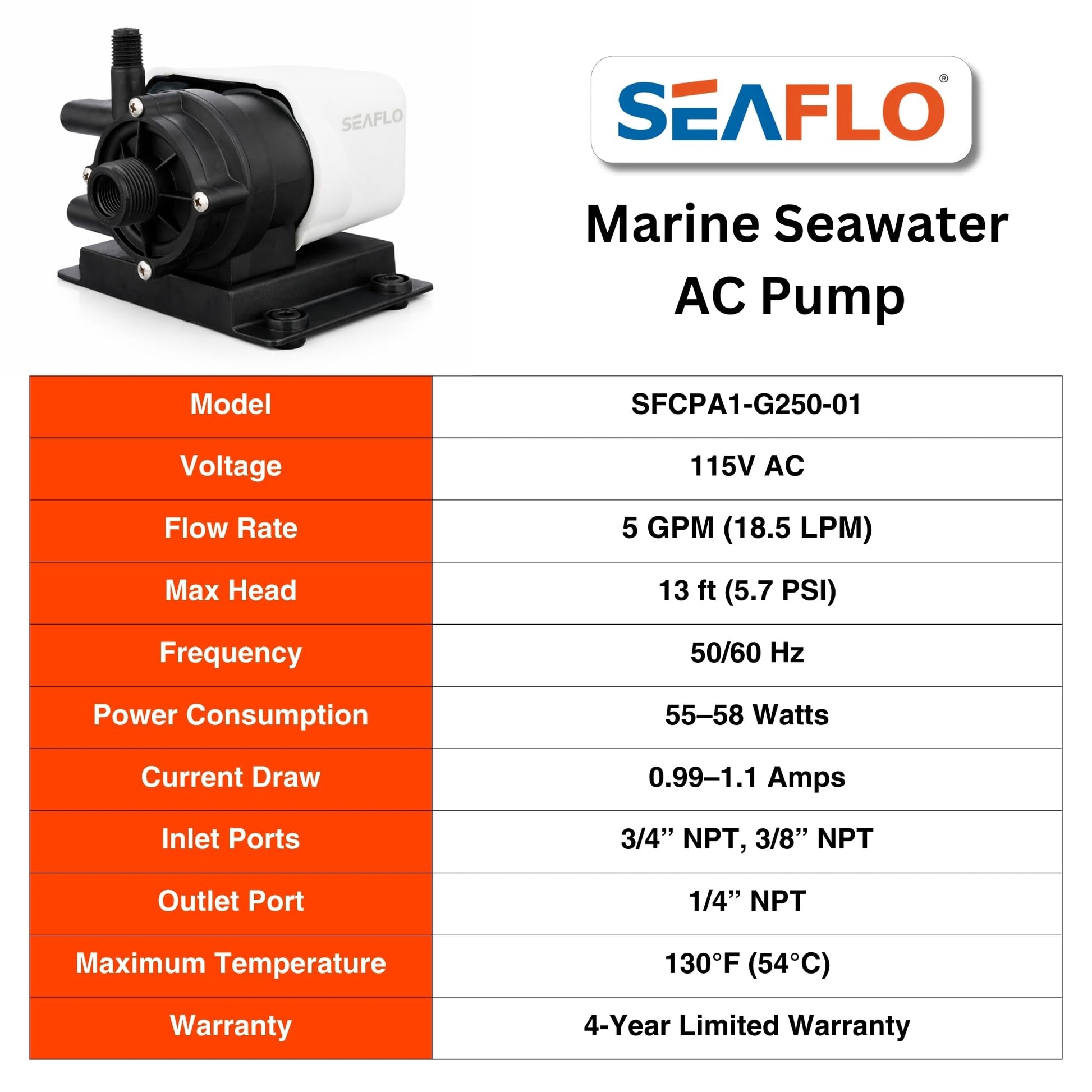

• SPECIFICATIONS: Model: SFCPA1-G250-01 | Voltage: 115V AC | Flow Rate: 5 GPM (18.5 LPM) | Head: 13 ft (5.7 PSI) | Frequency: 50/60 Hz | Power: 5558W | Amps: 0.991.1A | Inlet Ports: 3/4' NPT 3/8' NPT | Outlet Port: 1/4' NPT | Max Temp: 130F (54C) | Warranty: 4 Years
• 4-YEAR WARRANTY: Backed by SEAFLO's industry-leading 4-Year Warranty, this marine air conditioning pump is built for long-term reliability and peace of mind, ensuring dependable performance in harsh marine environments and continuous-duty HVAC application
• DESIGNED FOR SYSTEMS UP TO 12,000 BTU: Specifically engineered for marine air conditioning units up to 12,000 BTU, this pump delivers optimized flow and pressure to maintain efficient seawater circulation, making it a suitable solution for compact and mid-size marine HVAC cooling systems

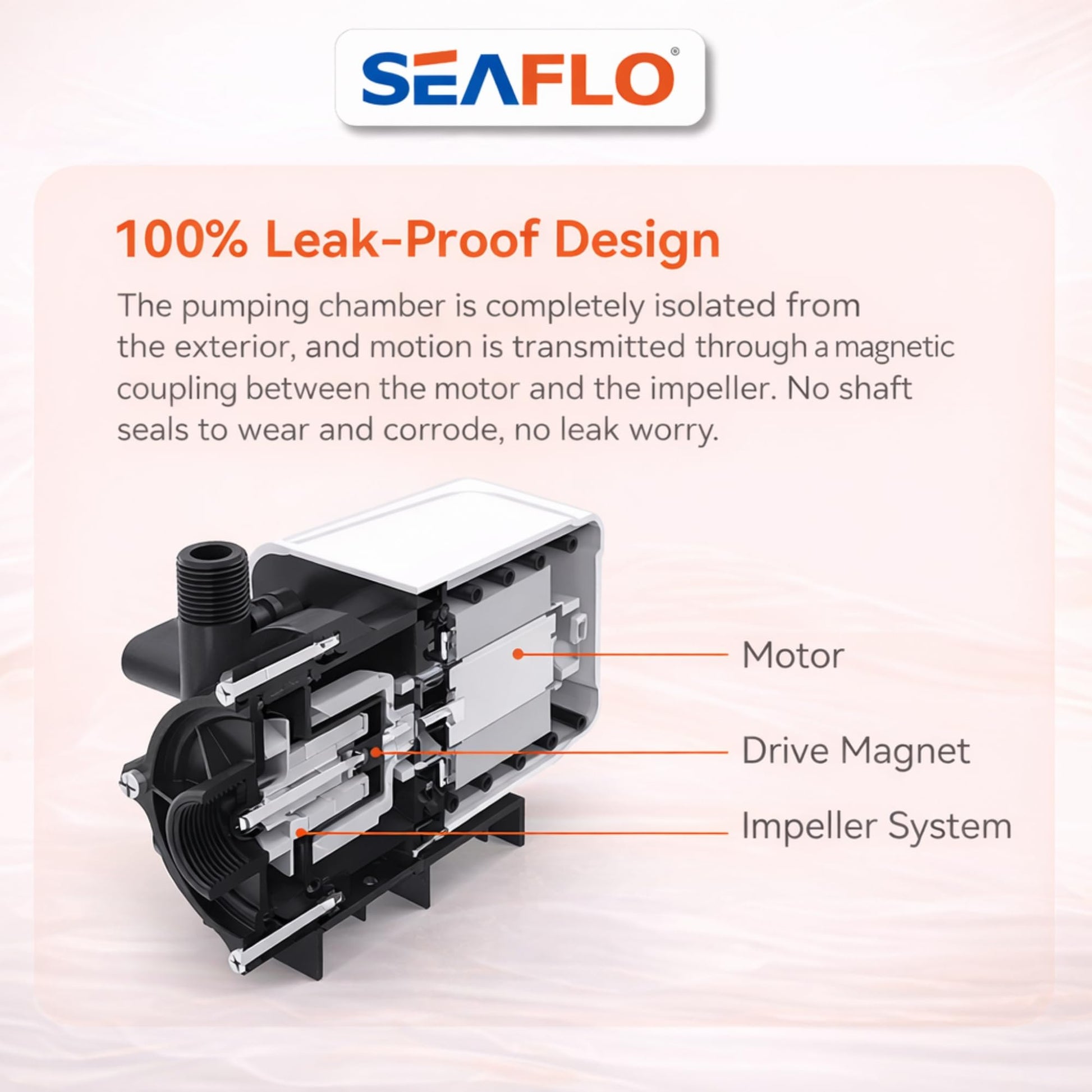

• MAGNETIC DRIVE LEAK-PROOF DESIGN: Advanced seal-less magnetic coupling eliminates shaft seals, preventing leaks and corrosion while fully isolating the motor from the pumping chamber, delivering maintenance-free operation and superior reliability in demanding marine and HVAC systems

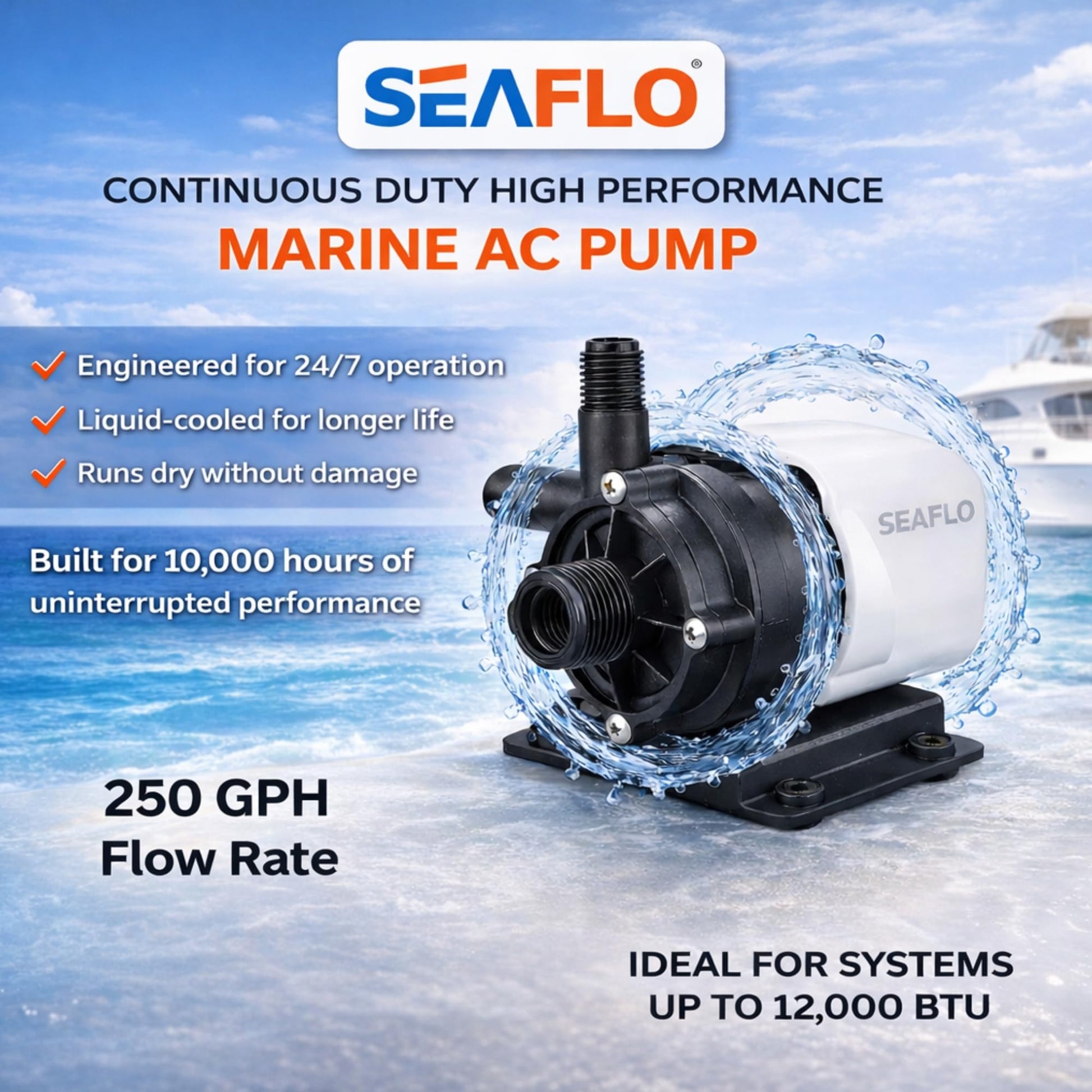

• CONTINUOUS DUTY HIGH PERFORMANCE: Engineered for continuous operation, this 250 GPH AC pump delivers a steady 5 GPM flow with a 13 ft head, ensuring efficient, stable, and quiet performance for marine air conditioning applications

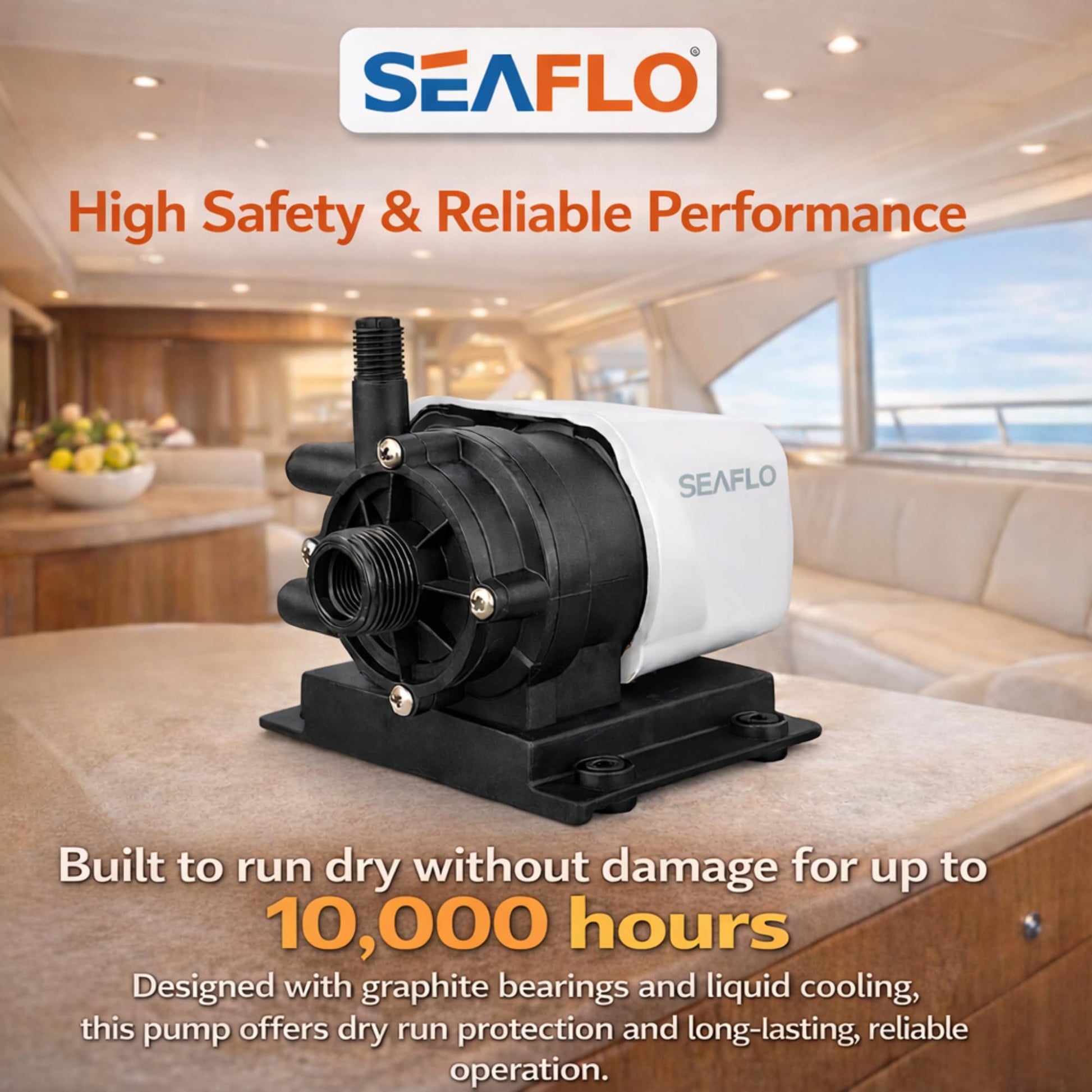

• RUN DRY SAFE AND LONG LIFESPAN: Designed with graphite bearings and liquid cooling, this pump can safely run dry during normal workloads without damage, extending operational life beyond 10,000 hours while reducing wear and maintenance requirements

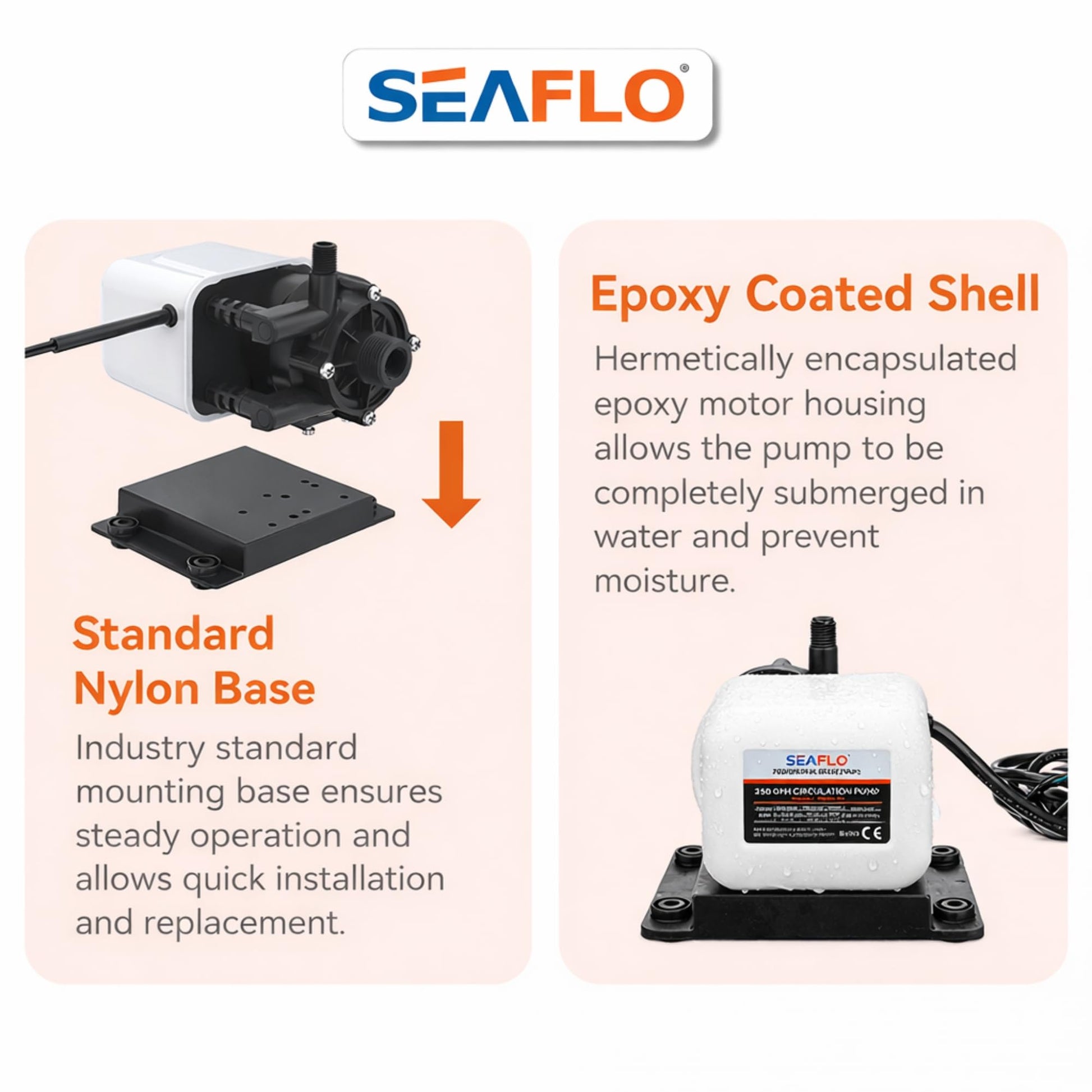

• SUBMERSIBLE EPOXY SEALED MOTOR: Hermetically sealed epoxy-coated motor housing allows full submersion or open-air use, providing complete moisture protection and ensuring reliable operation in wet bilge environments and marine installations

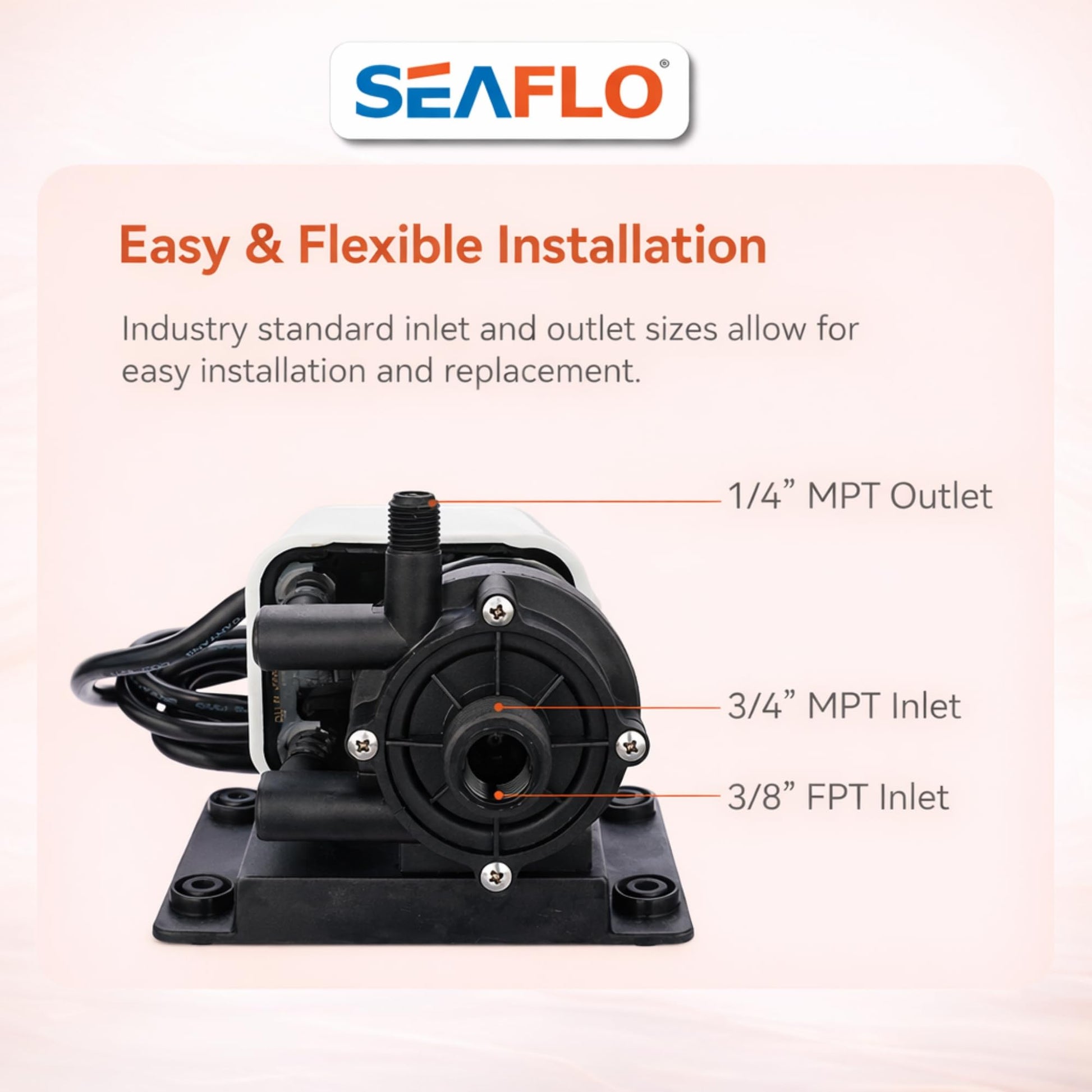

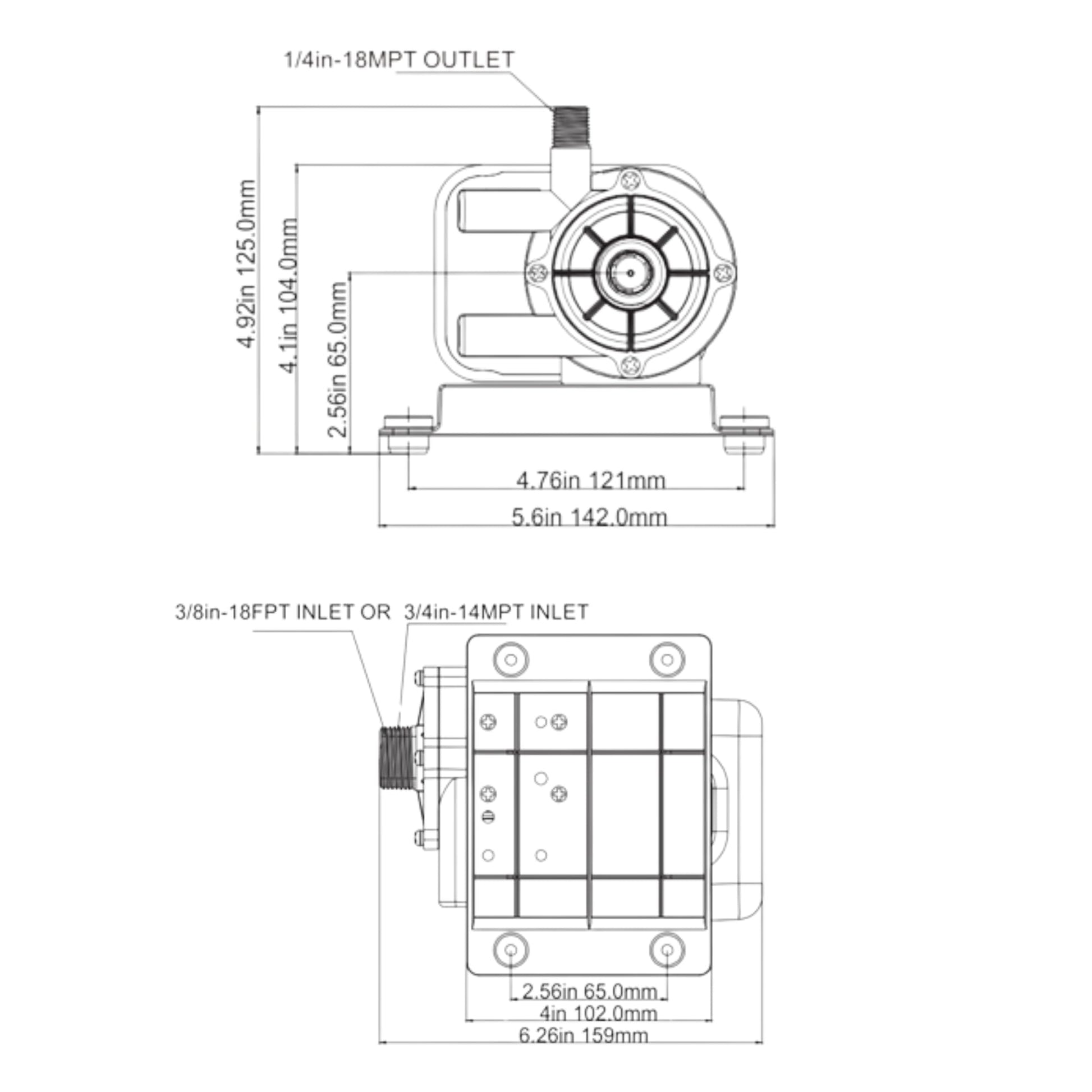

• EASY INSTALLATION UNIVERSAL FIT: Industry-standard 3/4' and 3/8' NPT inlet ports with 1/4' outlet allow for quick integration or replacement of existing pumps, while the included nylon mounting base ensures stable positioning and straightforward installation
• QUIET OPERATION WITH VERSATILE APPLICATION: Designed for low-noise performance, this pump supports marine cabins and HVAC systems, enabling seawater circulation, higher viscosity liquids, and compatibility across multiple marine air conditioning setups

model number: SFCPA1-G250-01

Part Number: SFCPA1-G250-01

Details: The SEAFLO 250 GPH Air Conditioning Pump (115V) is a high-performance magnetic drive circulation pump engineered specifically for marine HVAC and air conditioning systems up to 12,000 BTU, making it an ideal solution for compact and mid-size marine cooling applications. Designed with advanced seal-less magnetic coupling technology, this pump eliminates traditional shaft seals, preventing leaks and significantly increasing reliability in demanding marine environments. With a consistent 5 GPM flow rate and 13 ft head, it delivers efficient seawater circulation for optimal cooling performance. Built for durability and long-term operation, this pump features a hermetically sealed epoxy-coated motor housing, allowing it to run fully submerged or in open-air conditions without risk of moisture intrusion. The continuous duty motor combined with a liquid cooling system ensures stable operation over extended periods, while the graphite bearing design enables safe dry running during normal workloads, reducing wear and extending lifespan beyond 10,000 hours. Installation is simple and flexible thanks to industry-standard inlet and outlet ports, making this pump a direct replacement for most marine AC systems in its class. The included standard nylon mounting base ensures stable operation and quick installation. Whether upgrading or replacing your system, the SEAFLO 250 GPH pump delivers quiet, efficient, and leak-proof performance backed by a 4-Year Warranty, purpose-built for systems up to 12,000 BTU.

Package Dimensions: 7.2 x 6.5 x 5.1 inches
