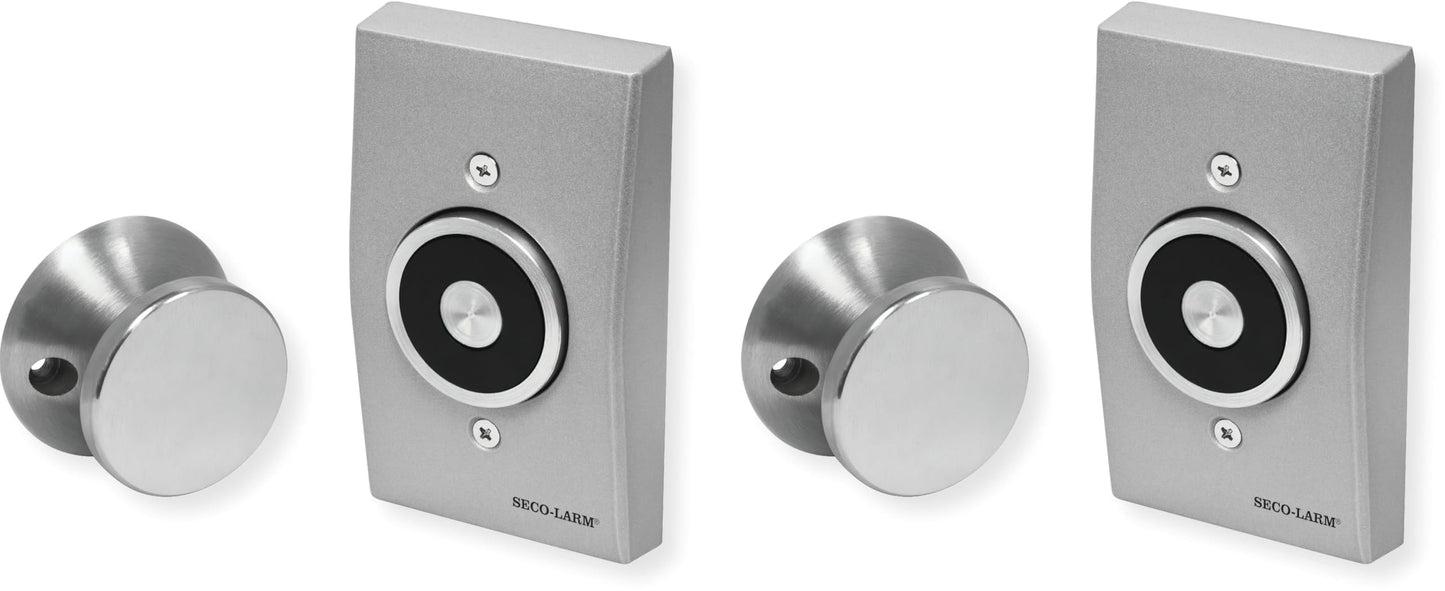

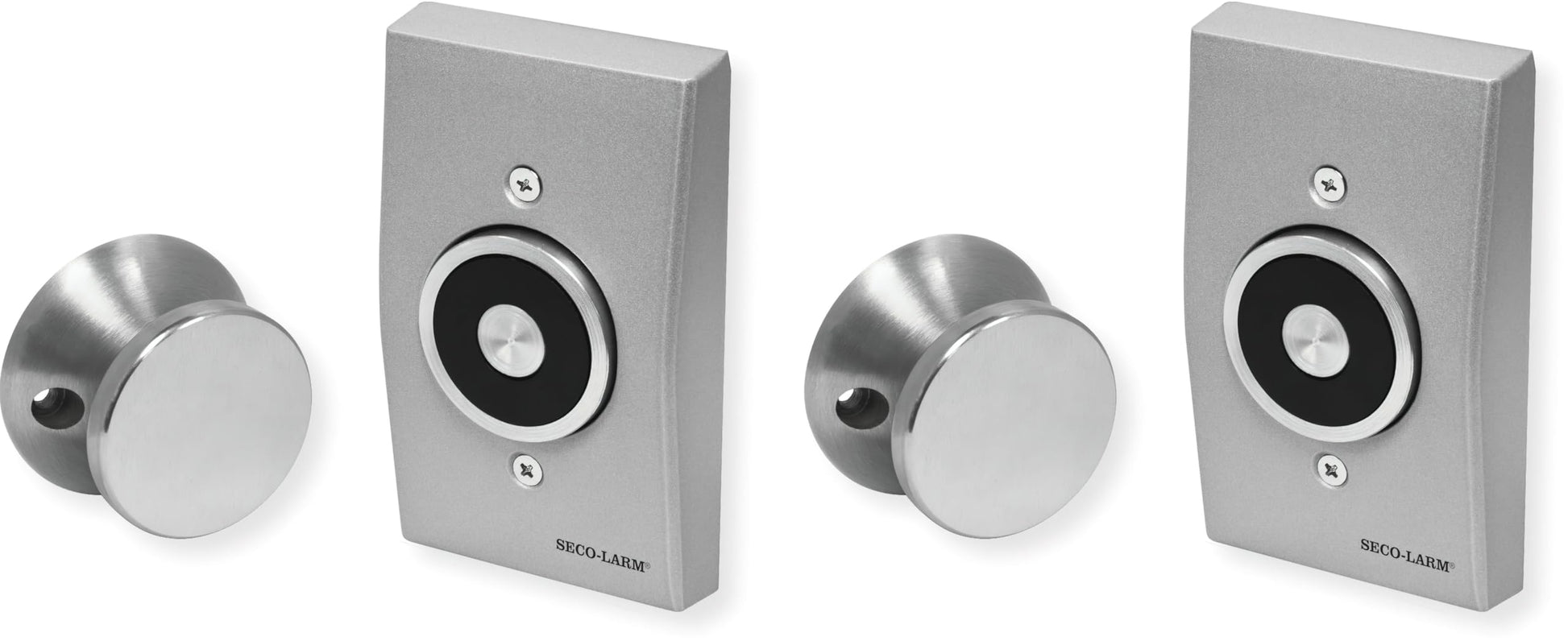

Seco-Larm DH-171SQ Pack of 2 Flush-Mount Magnetic Door Holders, 33 lb Holding Force, Wired Electric Operation, Tri-Volt 12/24 VAC/VDC and 120 VAC, Cast Aluminum Faceplate, Low Profile

Brand: Seco-Larm

Color: Silver

Features:

• Durable: Cast aluminum faceplate provides long-lasting strength and resistance
• Versatile: Tri-volt compatibility (12/24 VAC/VDC, and 120 VAC) ensures flexibility for multiple installations
• Reliable: 33-lb (15 kg) holding force secures doors in commercial or residential environments
• Low-Profile: Flush-mount design blends seamlessly into door frames for a clean, professional look
• 3 voltages: 12/24 VAC/VDC, and 120VAC
• Cast aluminum faceplate
• No residual magnetism for easy release
• Built-in voltage spike suppressor
• Use with SECO-LARM door closers: SD-C121-S, SD-C131-SQ, SD-C101-SGQ, or SD-C101-SBAQ
• Hard Wired Electric Operation

model number: DH-171SQ

Part Number: DH-171SQ

Details: Seco-Larm DH-171SQ Pack of 2 Flush-Mount Magnetic Door Holders, 33 lb Holding Force, Wired Electric Operation, Tri-Volt 12/24 VAC/VDC and 120 VAC, Cast Aluminum Faceplate, Low Profile

The UL Listed SECO-LARM Magnetic Door Holders are designed for virtually any remote door release applications, whether residential or commercial. Fail-safe operation, tri-volt coils, and adjustable armature plate allows for easy and flexible installation.

Key Features:
- For use with door closers to control the release and closing of residential, commercial, and public area doors
- Adjustable armature plate reduces installation time and adjusts to door alignment changes
- Low profile design
- 33-lb (15kg) Holding force
- 3 voltages: 12/24 VAC/VDC, and 120VAC
- Cast aluminum faceplate
- No residual magnetism for easy release
- Built-in voltage spike suppressor
- Use with SECO-LARM door closers: SD-C121-S, SD-C131-SQ, SD-C101-SGQ, or SD-C101-SBAQ

Specifications:
- Holding Force: 33-lb (15kg)
- Installation: Flush-mount
- Operating Voltage: 12/24 VAC/VDC, 120VAC
- Current Draw: 52mA@12VAC, 60mA@12VDC, 27mA@24VAC, 31m@24VDC, 24mA@120VAC
- Magnet Box Weight: 1.03 pouds
- Door Armature Weight: 0.5 pounds
- Electromagnet Dimensions: 2.75 x 4.58 x 2.04 inches
- Armature Dimensions: 2.55 x 2.55 x 1.57 inches

EAN: 0761373844317

Package Dimensions: 10.5 x 10.0 x 5.3 inches
