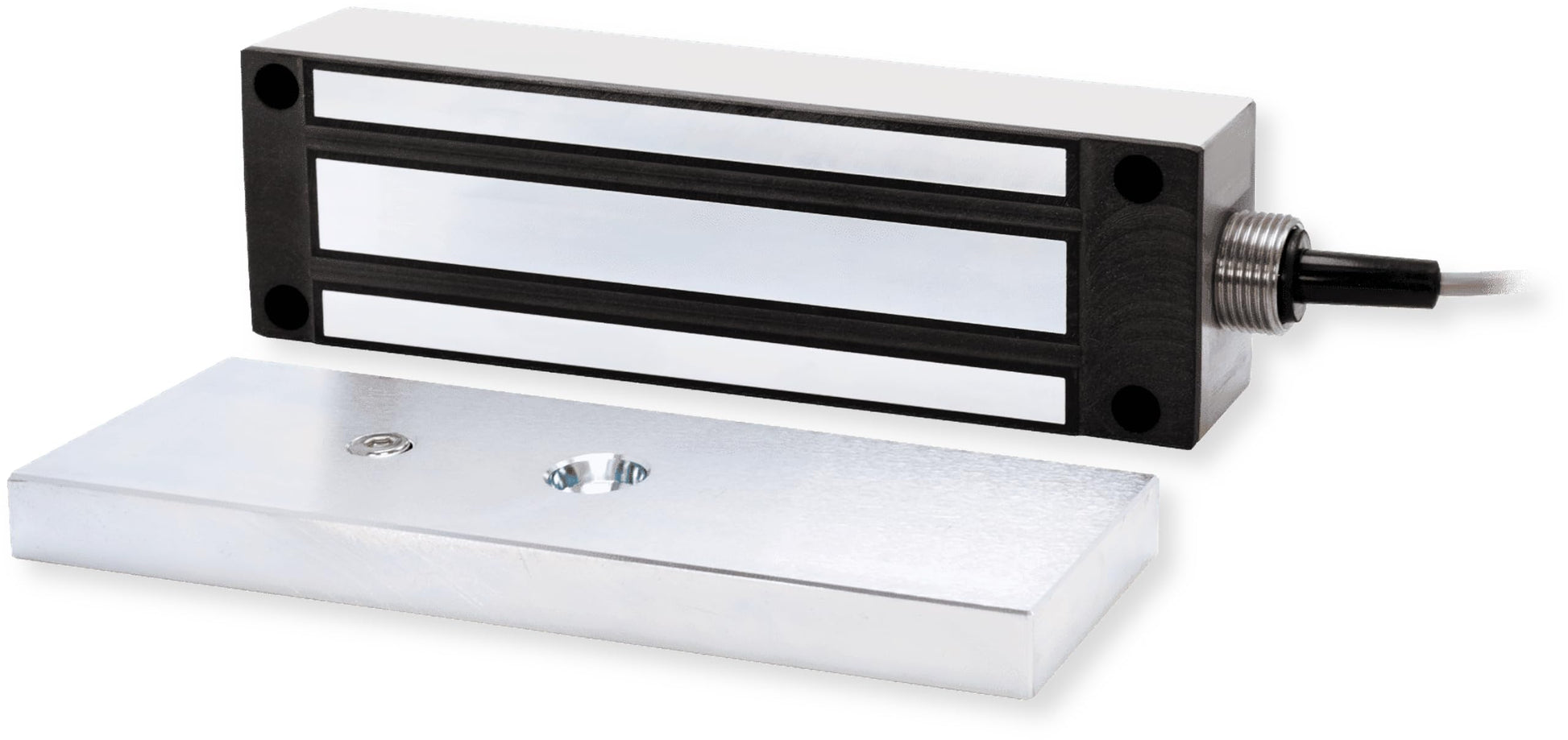

Seco-Larm E-942FC-1300 Electromagnetic Gate Lock, 1200lb Holding Force, Face-Mount, 12V/24VDC Selectable, Stainless Steel, IP67 Waterproof Outdoor Maglock, Access Control

Brand: Seco-Larm

Color: Silver

Features:

• Durable: Stainless-steel housing offers vandal resistance for outdoor installations
• Powerful: Delivers 1,200-lb (545 kg) holding force to secure sliding or swinging gates with confidence
• Versatile: Face-mount design that can be installed horizontally or vertically on indoor or outdoor applications
• Flexible: Selectable 12 V or 24 V DC operating voltage for compatibility with common access systems
• Weatherproof: Rated IP67 waterproof for harsh outdoor environments and minimal maintenance
• Safe: Built-in MOV surge protection and no residual magnetism for reliable release when power is removed
• Complete: Ships with mounting hardware and 6.5-ft (2 m) hookup cord for streamlined installation
• Low-maintenance: Factory-sealed design for minimal upkeep and long service life in commercial security setups
• Secure: Ideal for commercial, industrial, and institutional gates requiring a heavy-duty electromagnetic locking solution

model number: E-942FC-1300

Part Number: E-942FC-1300

Details: Seco-Larm E-942FC-1300 Electromagnetic Gate Lock, 1200lb Holding Force, Face-Mount, 12V/24VDC Selectable, Stainless Steel, IP67 Waterproof Outdoor Maglock, Access Control
The Seco-Larm E-942FC-1300 electromagnetic gate lock provides heavy-duty security for sliding or swinging gates in commercial or industrial settings. With a 1,200-lb (545 kg) holding force, selectable 12/24 VDC input, and rugged stainless-steel construction with IP67 waterproof rating, this face-mount maglock is built for reliability. Whether mounted horizontally or vertically, indoors or out, it's engineered for demanding access control installations. Key Features: 1,200-lb (545 kg) holding force for secure gate locking Selectable 12 VDC or 24 VDC operation for system flexibility Stainless-steel housing with IP67 waterproof rating for outdoor use Face-mount design that supports horizontal or vertical installation No residual magnetism and MOV surge protection enhance safety and performance Maintenance-free factory-sealed design reduces upkeep Includes 6.5-ft (2 m) hookup cord and mounting hardware for efficient installation Suitable for sliding or swinging gates in commercial, industrial, and institutional settings Compatible with optional 'L' and 'Z' mounting brackets for varied installation needs
Specifications: Model: E-942FC-1300 Use case: Face-mount electromagnetic lock for indoor or outdoor sliding or swinging gates Holding force: 1,200 lb (545 kg) approximately Operating voltage: 12 VDC or 24 VDC Current draw: 500 mA @ 12 VDC, 250 mA @ 24 VDC IP rating: IP67 waterproof Operating temperature: 14 °F to 131 °F (-10 °C to 55 °C) Electromagnet dimensions: 8 x 2.5 x 1.56 inches Armature plate dimensions: 7.25' x 2.37 x 0.62 inches

EAN: 0676544000792

Package Dimensions: 11.7 x 3.7 x 3.2 inches
