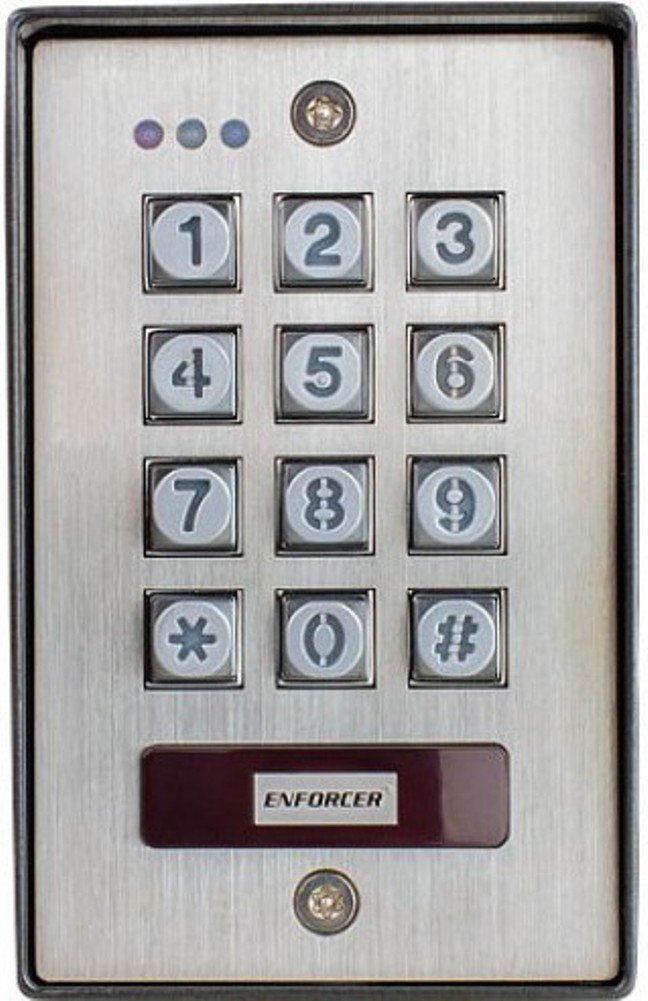

Seco-Larm SK-1123-SPQ Vandal Resistant Outdoor Access Control Keypad with Proximity Reader; 4 Available Programmable Access Modes for All 3 Outputs

Brand: Seco-Larm

Features:

• 1,100 Users over 2 Outputs. Codes may be 4~8 digits: - Output #1 – Form C relay, 1A@30VDC, 1,000 users - Output #2 – Form C relay, 1A@30VDC, 100 users; Outputs can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
• Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours); Programmable egress input with optional warning alarm and delayed egress
• Up to 50 (01~50) duress codes for output #1 and 10 (01~10) for output #2; Duress code signals a silent alarm if an authorized user is forced to open the door under duress
• Keypad illuminates when a button is pressed; backlight can be programmed for FULL, AUTO, or OFF in standby mode; Real-time clock to auto-disable access at specific times
• Door sensor input for anti-tailgating operation, Door-propped-open warning, Door-forced-open warning, Durable and attractive stainless steel faceplate, IP66 Weatherproof Rating

model number: SK-1123-SPQ

Part Number: SK-1123-SPQ

Details: Seco-Larm SK-1123-SPQ Vandal Resistant Outdoor Access Control Keypad with Proximity Reader; 4 Available programmable access modes for all 3 outputs: card only, code only, card and common user code, card and unique user code
SECO-LARM SK-1123-SPQ Vandal Resistant Outdoor Access Control Keypad with Proximity Reader; 4 Available programmable access modes for all 3 outputs: card only, code only, card and common user code, card and unique user code
Key Features
Super user code gives admin access to keypad All features are programmed directly from the keypad: No need for an external programmer Mounts to a standard single-gang back box (surface-mount back box included) Tamper output: N.C. Dry contact, 50mA@24VDC max Mantrap: for a protected area with two doors, this feature allows only one door to be open at a time EEPROM Memory protects programmed information in case of power loss
Specifications
Operating Voltage: 12~24 VDC/VAC Current Draw-Standby: 66mA@12VDC Current Draw-Keypress: 93mA@12VDC Current Draw-1 Relay Active: 99mA@12VDC Current Draw-1 & 2 Relays Active: 126mA@12VDC Current Draw-Total Max: 160mA@12VDC Relay Output-#1: 1A@30VDC, Form C Relay Output-#2: 1A@30VDC, Form C Relay Output-Key Active: 100mA@24VDC Relay Output-Duress: 100mA@24VDC Relay Output-Interlock: 100mA@24VDC Relay Output-Tamper: 50mA@24VDC Egress Inputs: N.O. Ground Door Inhibit Input: N.O. Ground Door Sensor Input: N.C. Ground Operating Temperature: -4°~158°F Operating Humidity: 5~95% Non-condensing Weight: 1-lb, 2-oz Dimensions: 4-15/16”x3-1/8”x2-1/16” Proximity Reader Frequency: 125kHz (EM125) Proximity Reader Distance: 1-1/2” (38mm)

EAN: 0676544017011

Package Dimensions: 5.6 x 4.1 x 2.9 inches
