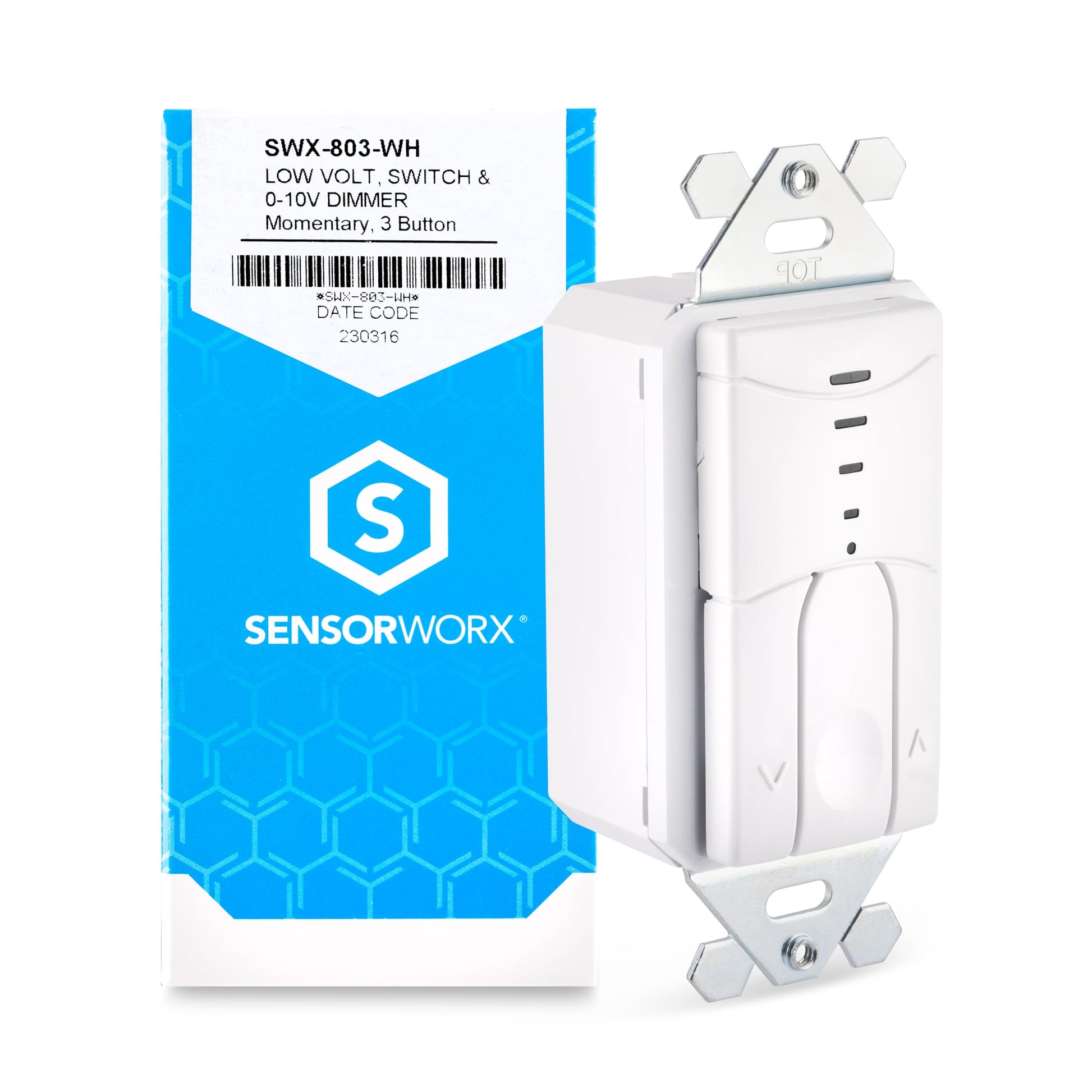

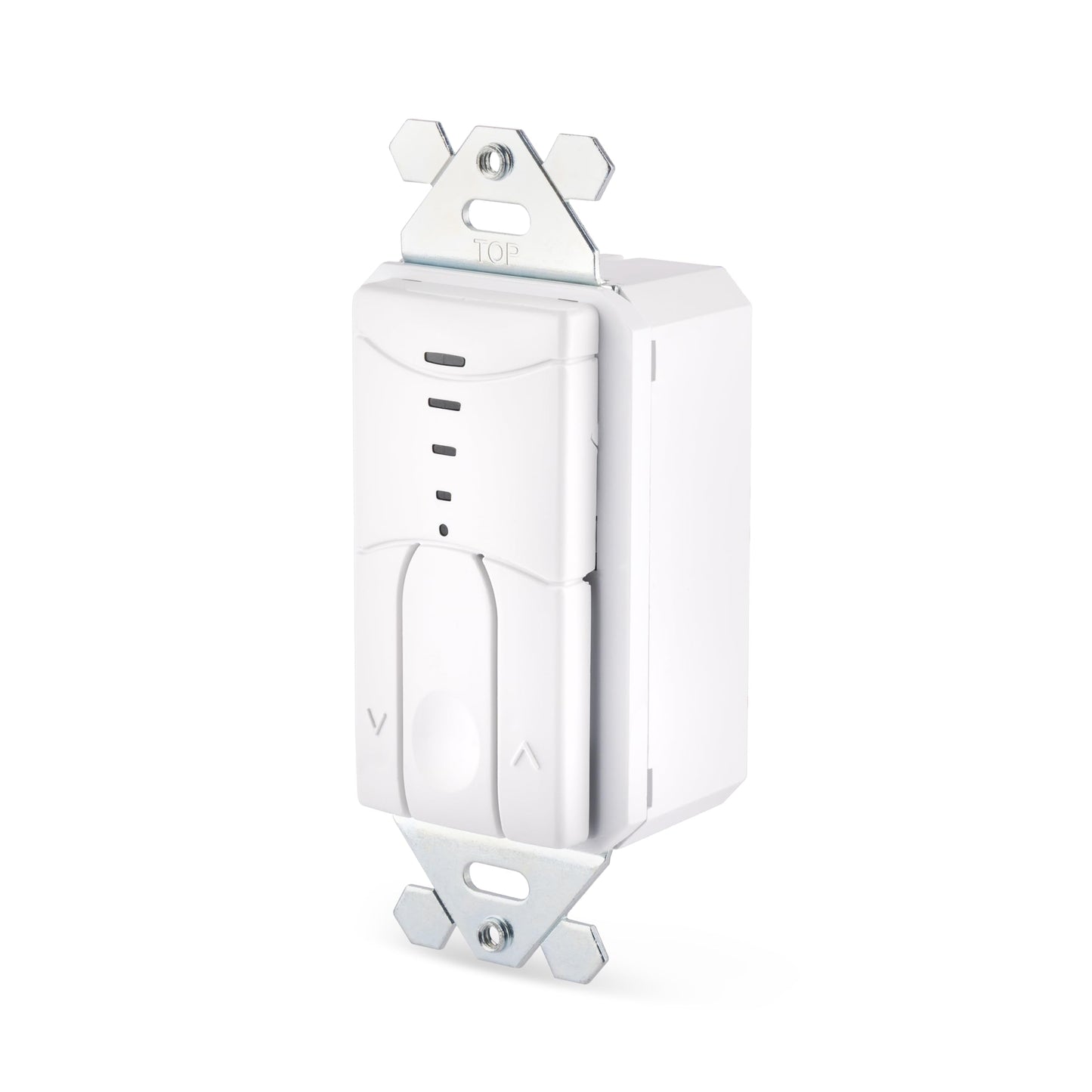

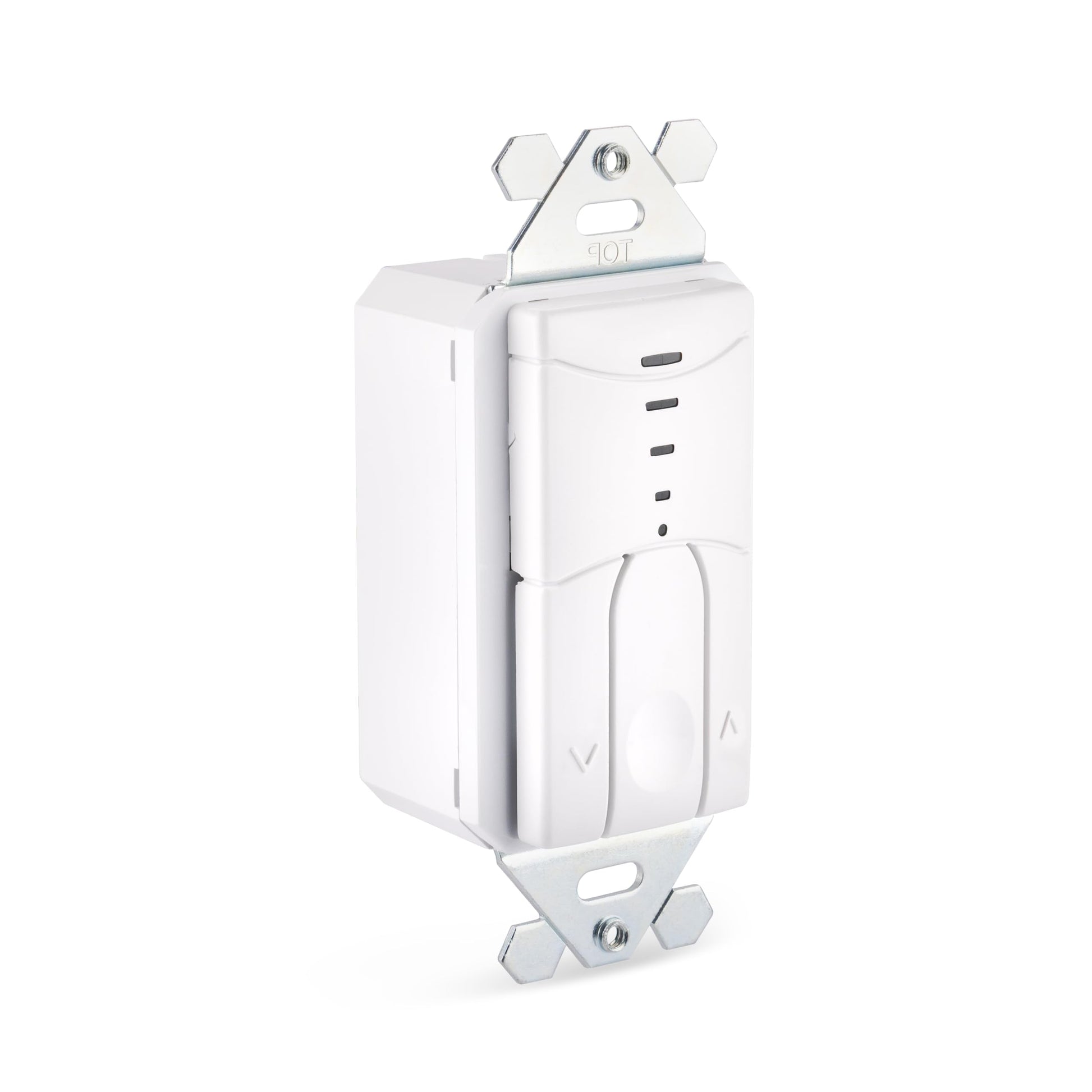

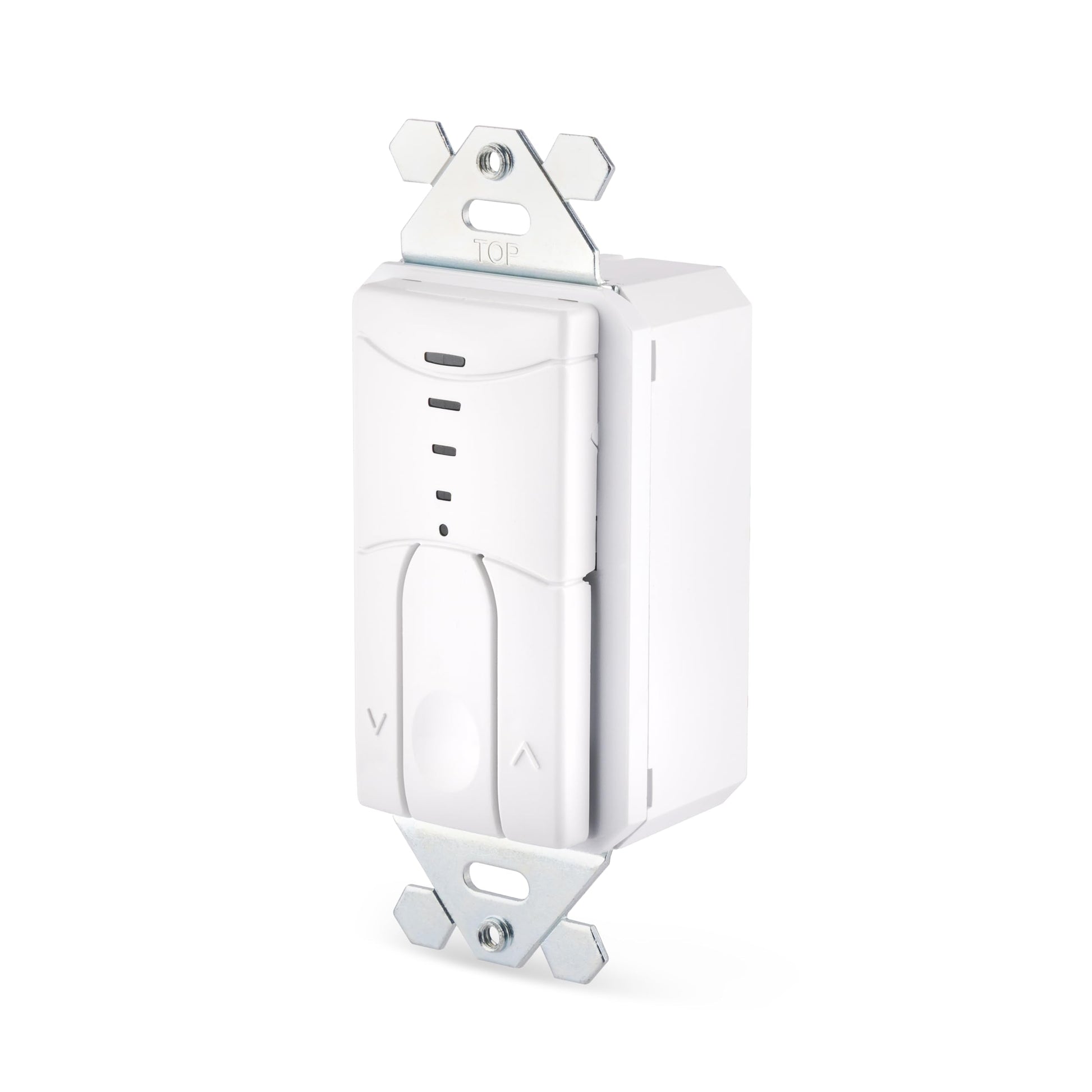

SENSORWORX Dimmer Light Switch, SWX-803-WH, 0-10V Dimming, Low Voltage, 5-24 VDC, White, Made in USA

Brand: SENSORWORX

Color: White

Features:

• Dimming Control: This wallbox device enables manual on/off/raise/lower dimming control of 0-10V lighting when connected to a SWX-900-AX model power pack. Dimming feature also enables Partial On operating mode. Note, controlled lighting must have 0-10VDC dimming wires.
• Low Voltage Operation: Operating at 5-24 VDC, this devices is powered via its connection to a power/relay pack (not included).
• Versatile Installation: Requiring less than 1' of mounting depth in a single gang wallbox, this unit is shallower than other in-wall devices.

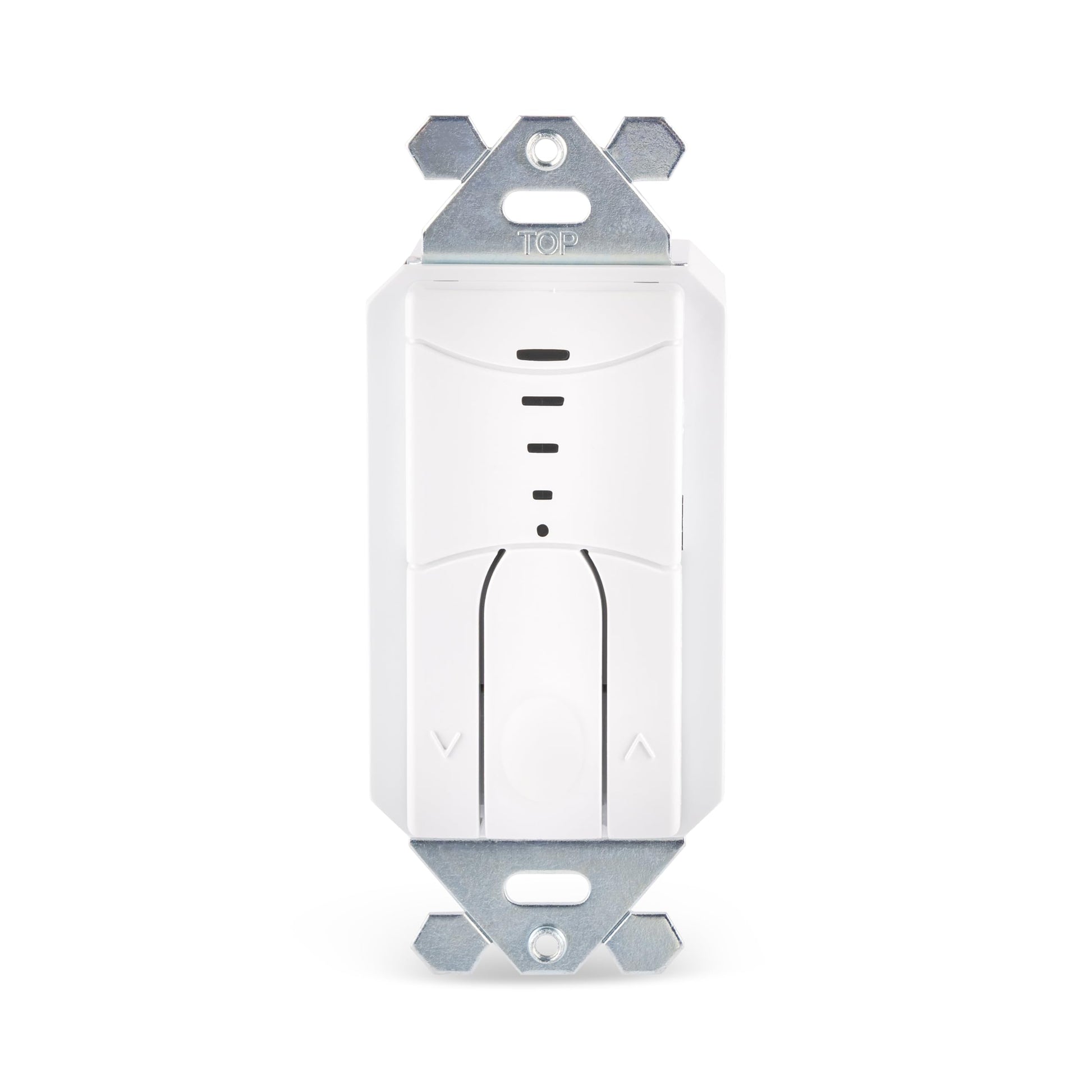

• Intuitive Operation - Unit has a centrally located on/off toggle button, a dim lower button on the left, and a dim higher button on the right. Five stacked LEDs provide a visual indication of the relative dim level.
• Quality and Compliance: Proudly made in the USA, 5-year warranty. UL Listed, RoHS Compliant, BAA Compliant, BABA Compliant, TAA Compliant, Meets ASHRAE 90.1, IECC, and Title 24.

model number: SWX-803-WH

Part Number: SWX-803-WH

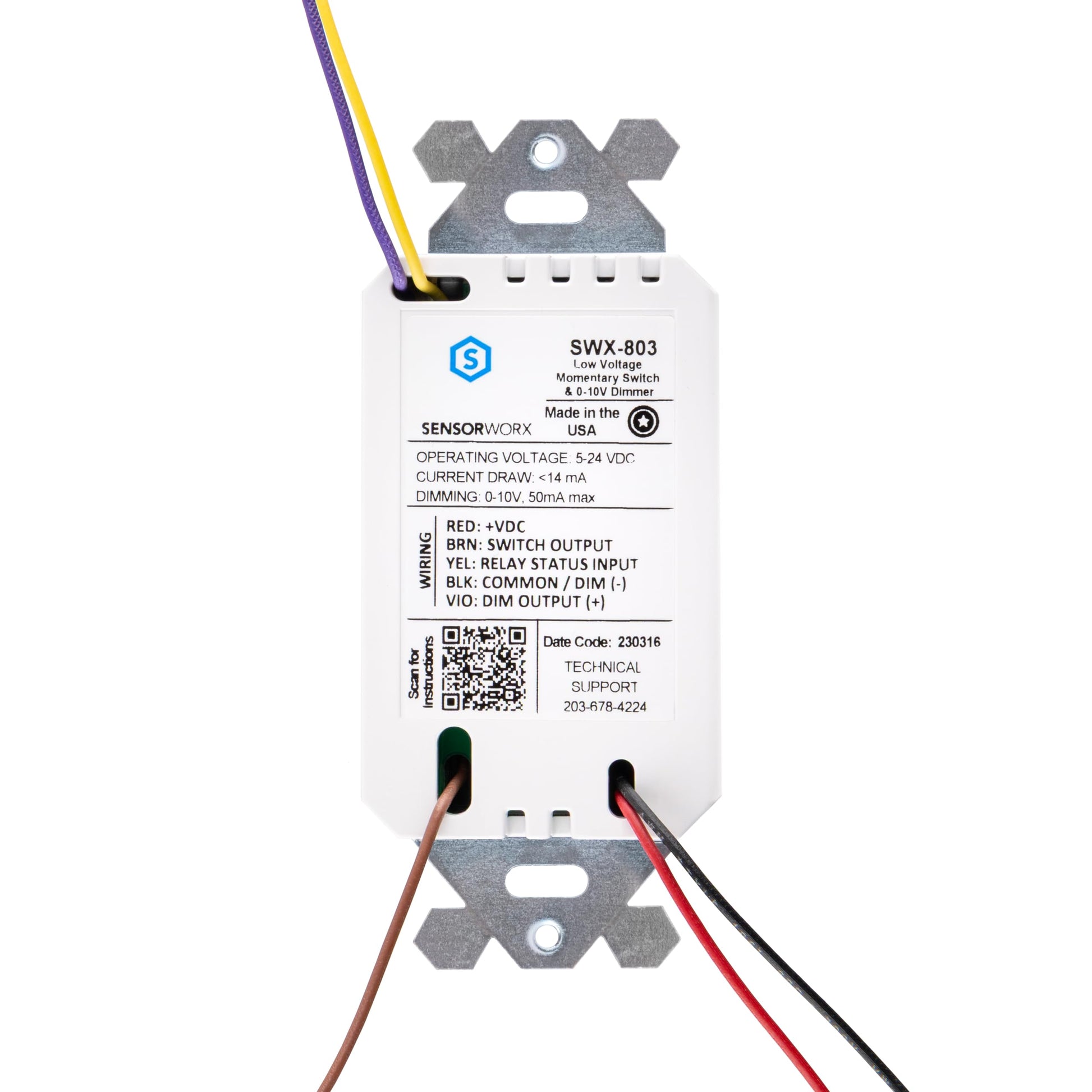

Details: The SENSORWORX low voltage dimmer provides an attractive companion wall station for a low voltage sensor system. Many spaces now require by code (e.g., ASHRAE 90.1, IECC, Title 24) manual on, partial-on, or full range dimming user operation in addition to an occupancy sensor providing automatic off control. The simplest way of achieving this is by adding a low voltage wall station that interfaces with the power pack controlling the rooms lighting. Adding a switch to a low voltage sensor system also enables users to override a space’s lighting off if necessary. The three-button dimming unit has an integrated 0-10V output, intuitive raise/lower buttons, and a five LED level indicator.

Package Dimensions: 4.5 x 2.3 x 1.7 inches
