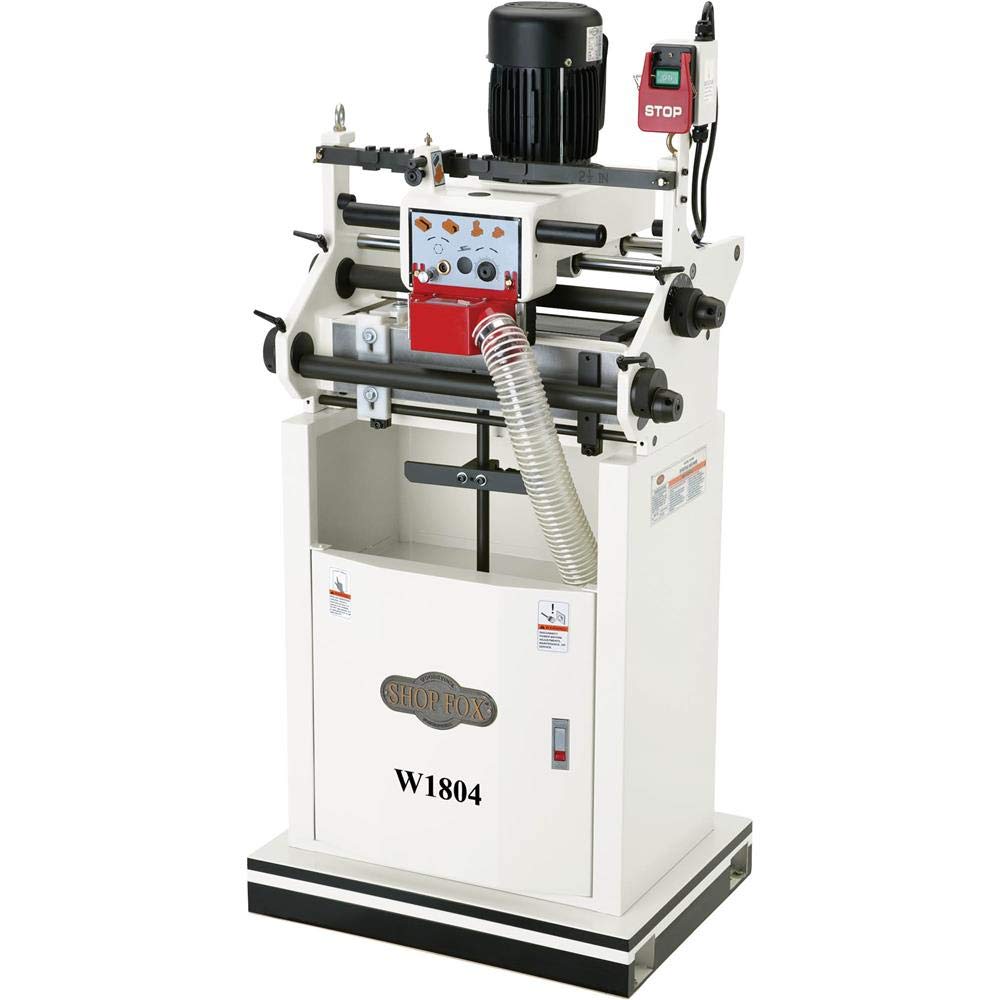

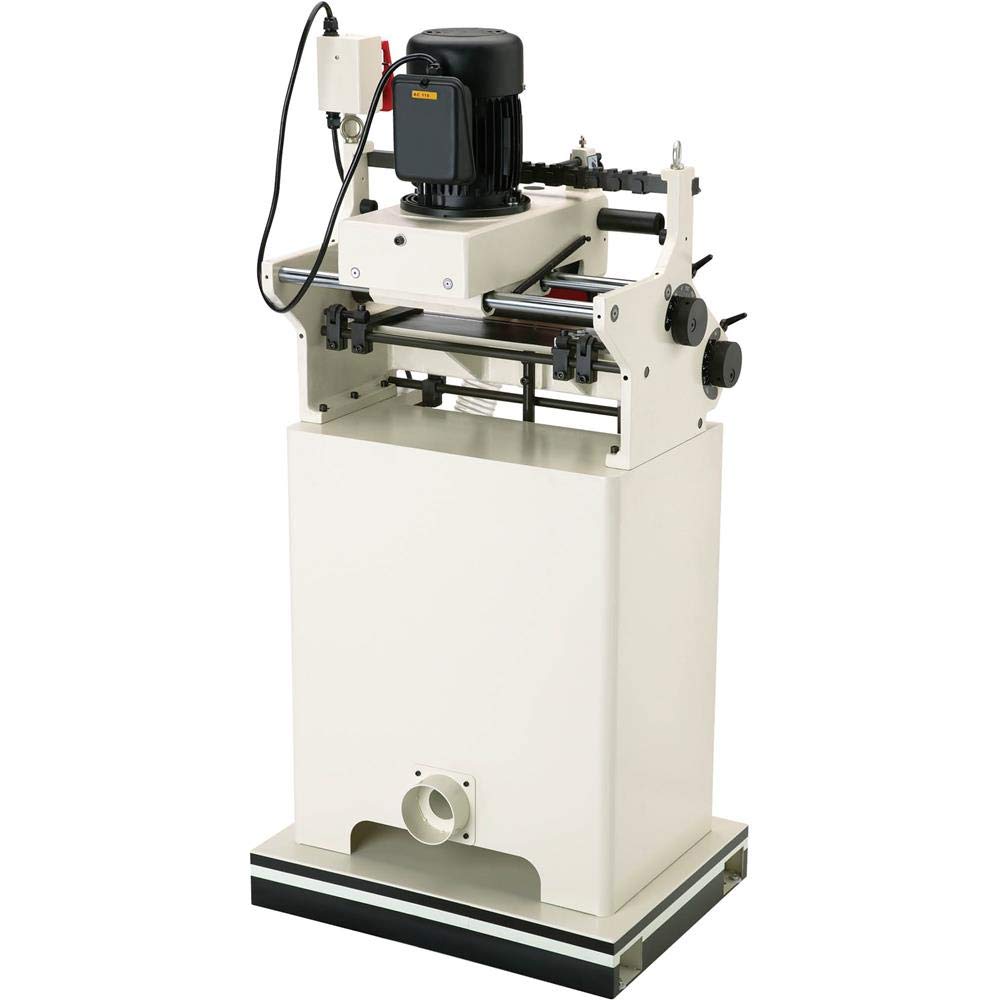

SHOP FOX W1804 11-Inch Dovetail Machine

Brand: Shop Fox

Features:

• Precision milled cast iron table frame
• Cast aluminum carriage
• Steel stand
• Hardened and ground chrome steel slide ways
• Ball bearing linear guides

model number: W1804

Part Number: W1804

Details: At this time, ToolKing.com is not authorized to sell Shop Fox products to customers in the following states - CA, CT, HI, LA, MA, MD, MS, RI and TN. If you reside in one of previous states and would like to purchase Shop Fox products, please visit http://www.woodstockint.com/ShopFoxMachinery and find an authorized dealer in your region. Making dovetail joints has never been so easy! Simply set up the machine to match the stock width and thickness, make a few adjustments to get a glove-like fit, and then crank out dozens of perfect dovetail joints every hour. Accepts workpieces as large as 11-1/4-inches wide x 28-inches long and as small as 2-3/8-inches wide x 7-7/8-inches long. Includes templates for four different dovetail sizes. Features: * Precision milled cast iron table frame * Cast aluminum carriage * Steel stand * Hardened and ground chrome steel slide ways * Ball bearing linear guides * Four sided dovetail template bar * Micro adjustable spindle head * Workpiece stops * Quick cam clamp * 4 and 2-1/2-inch dust ports * Spring loaded carriage for smooth operation * On/Off push button switch with oversized stop paddle * 2 cam-lock bar clamps Specifications: * Motor: 1 HP, 110V/220V, Single-Phase, Prewired 110V * Table Size: 19-1/2 x 7-Inches * Floor to Table Height: 38-5/16-Inches * Overall Size (W x D x H): 28 x 23 x 57-Inches * Number of Spindles: 1 * Spindle Speed: 18,500 RPM * Dovetail Bit: 10° Angle x 5/8-Inch long * Dovetail Shank: 12mm * Dovetail Templates: 1, 1-1/2, 2 & 2-1/2-Inches * Maximum Dovetail Height: 3/4-Inch * Minimum Dovetail Height: 3/16-Inch * Maximum Thickness: 1-3/4-Inch * Minimum Thickness: 13/32-Inch * Maximum Stock Size (W x L): 11-1/4 x 28-Inches * Minimum Stock Size (W x L): 2-3/8 x 7-7/8-Inches What's In The Box: * Shop Fox W1804 11-inch Dovetail Machine

EAN: 0754001008045

Package Dimensions: 64.0 x 29.3 x 25.3 inches
