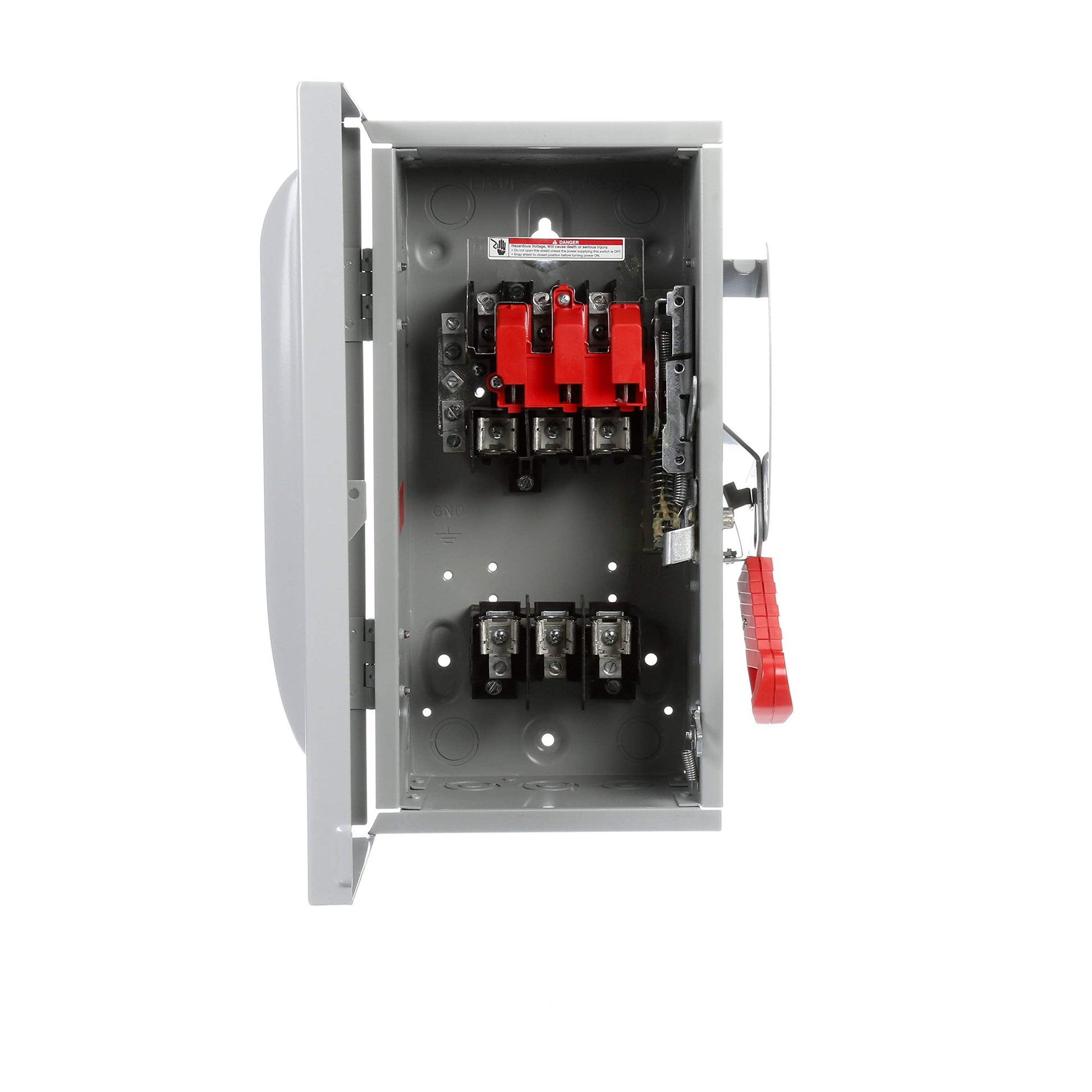

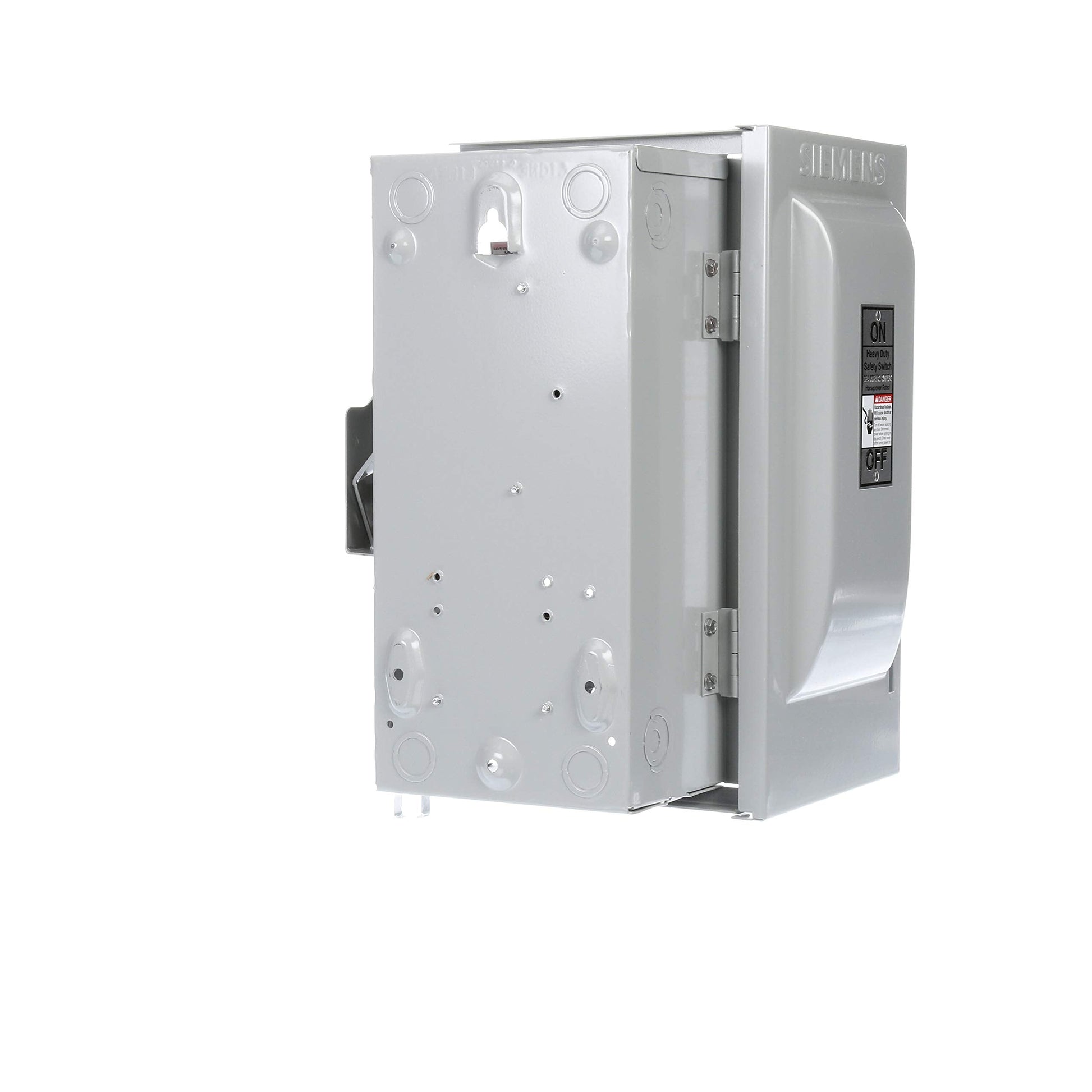

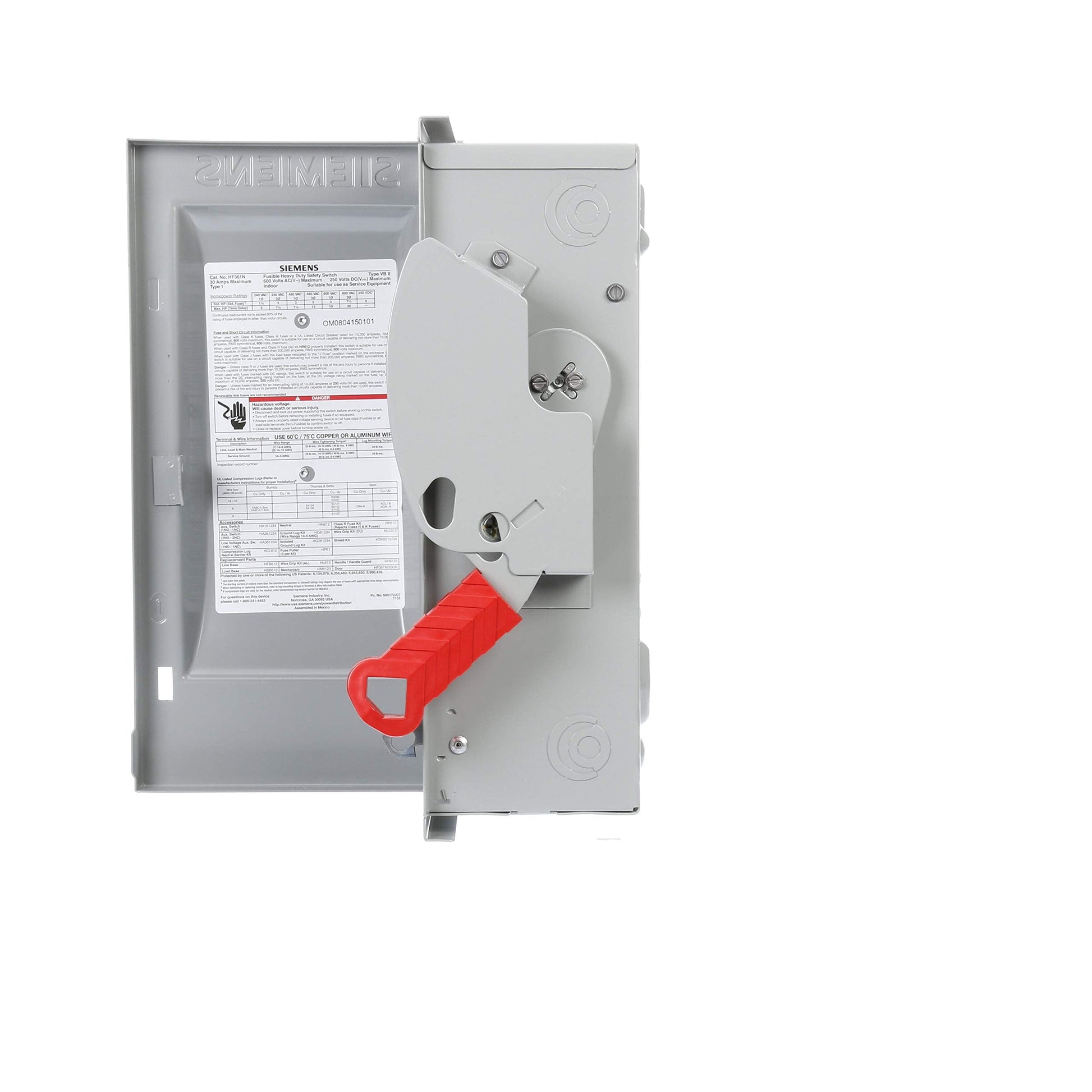

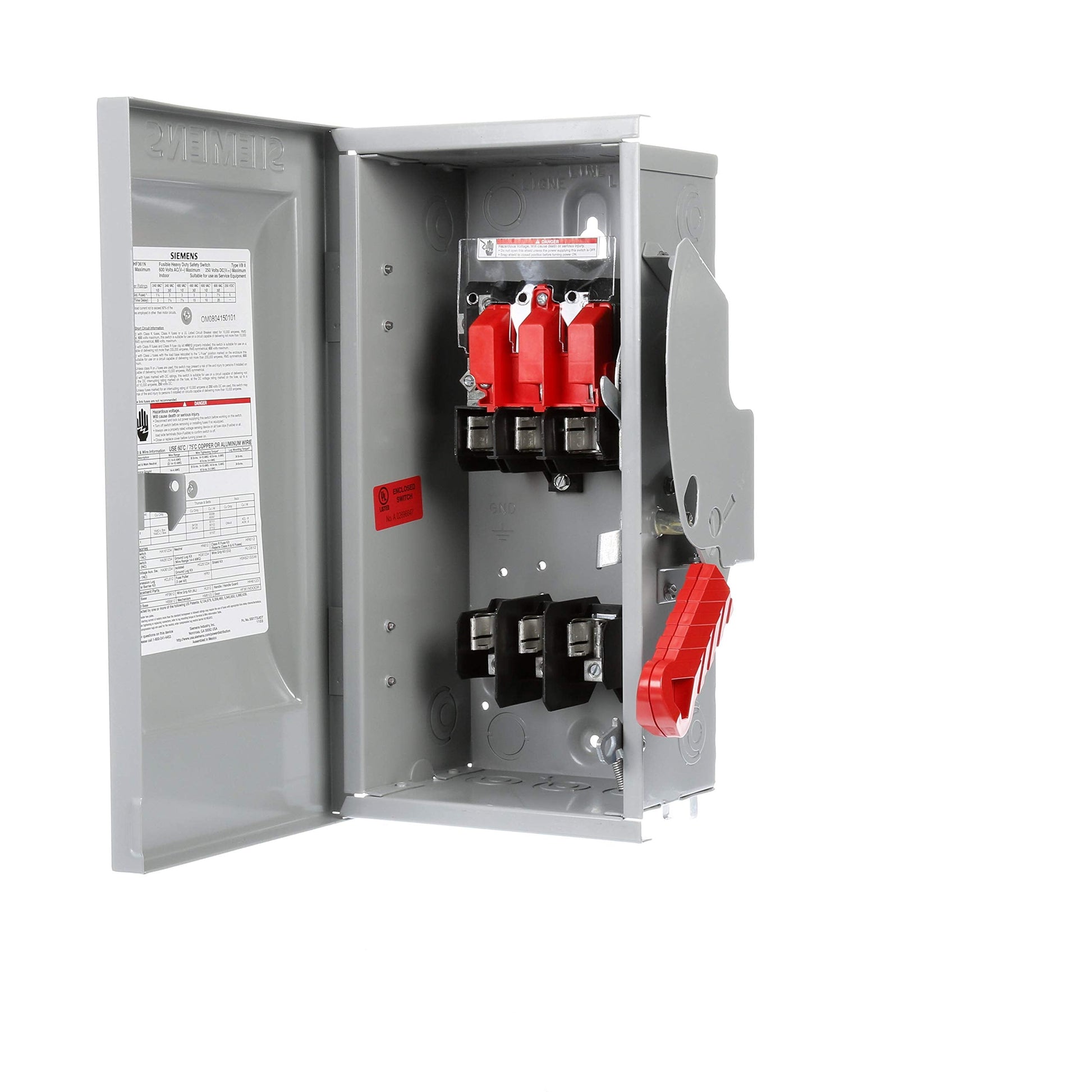

Siemens HF361N 30-Amp 3 Pole 600-volt 4 Wire Fused Heavy Duty Safety Switches

Brand: SIEMENS

Color: COLOR

Features:

• This is a 30 Amp, 3 Pole , 600V, 4 Wire, Fussed HD, Type 1
• Quick-make, quick-break operating mechanism that ensures positive operation
• Arc chutes dissipate heat and prolong switch life
• Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
• This is a 30 Amp, 3 Pole, 600V, 4 Wire, Fussed HD, Type 1
• Quick-make, quick-break operating mechanism that ensures positive operation
• Arc chutes dissipate heat and prolong switch life
• Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals

model number: HF361N

Part Number: HF361N

Details: Siemens heavy duty safety switches are available in 30-1200A ratings and in Type 1, 3R, 12 and 4X enclosures. Both fusible and non-fusible versions are offered. They can be used on circuits that are rated through 200K when protected by or used with Class R or J fuses. They feature quick make and break operation and visible blade construction.

EAN: 0783643151086

Package Dimensions: 16.9 x 11.3 x 7.6 inches
