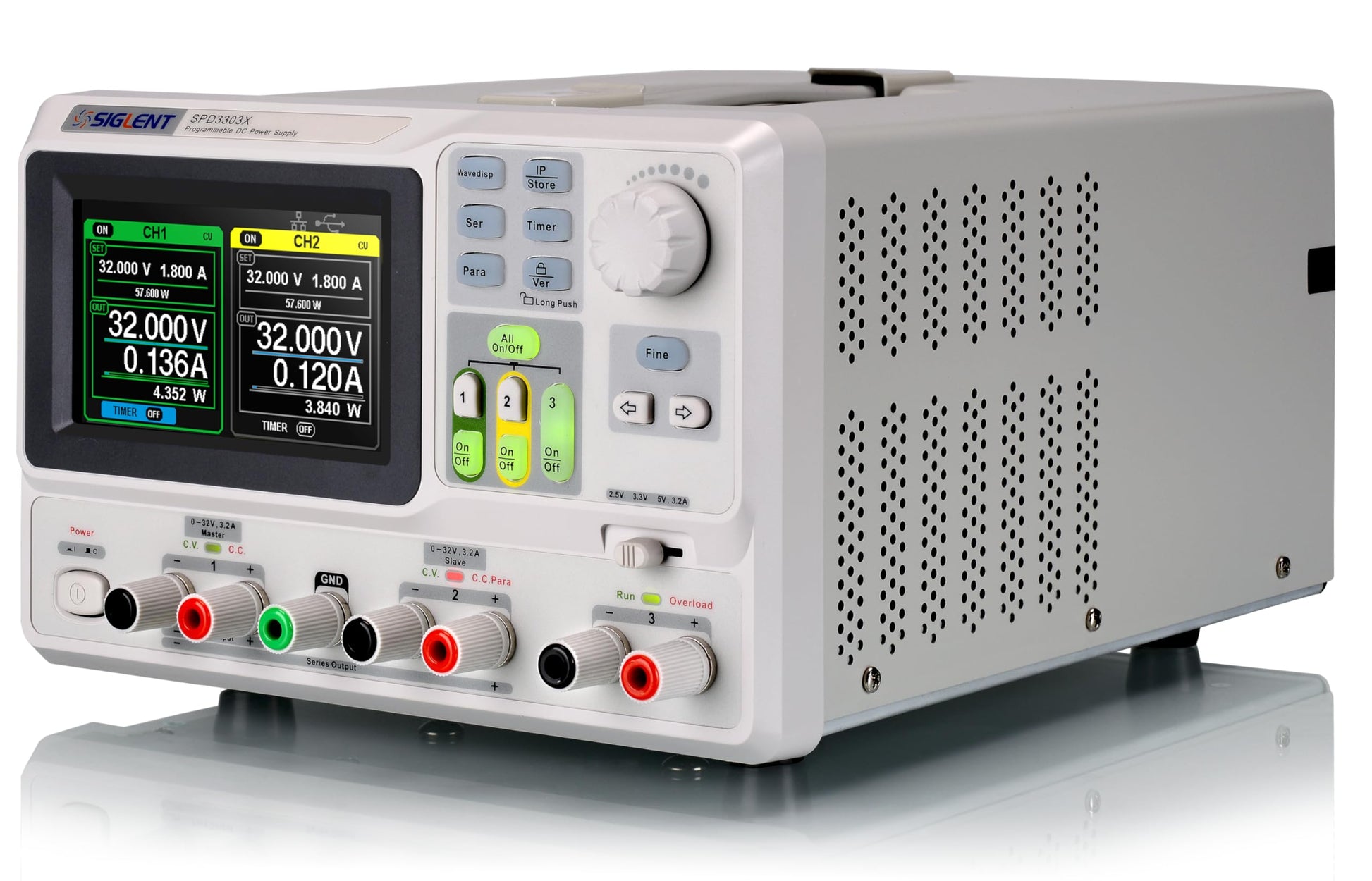

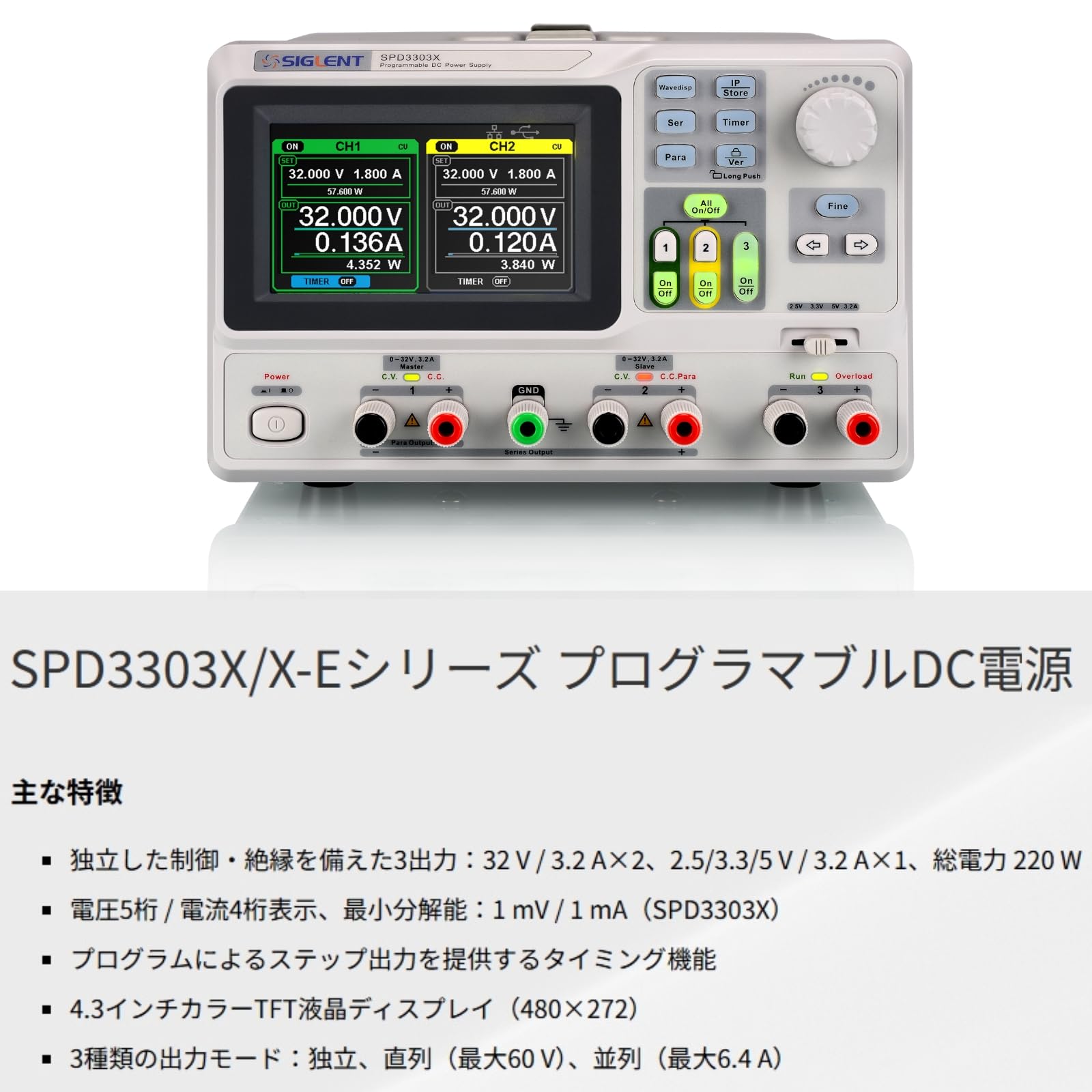

Siglent Technologies SPD3303X-E Triple Output Power Supply

Brand: Siglent

Features:

• 3 Independent Controlled And Isolated Outputs
• 32V/3. 2A X 2, 2. 5V/3. 3V/5V/3. 2A X 1, Total Power: 220W

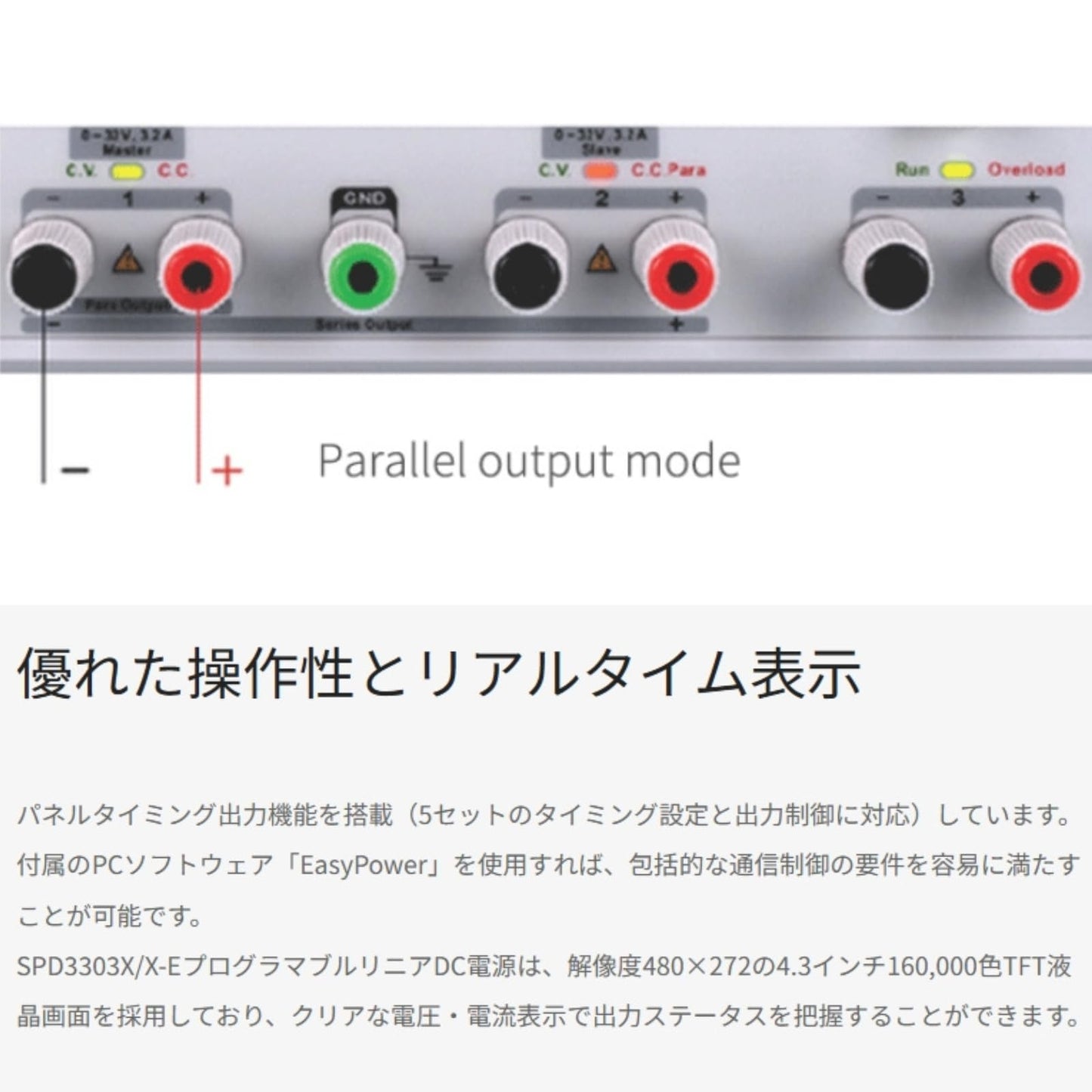

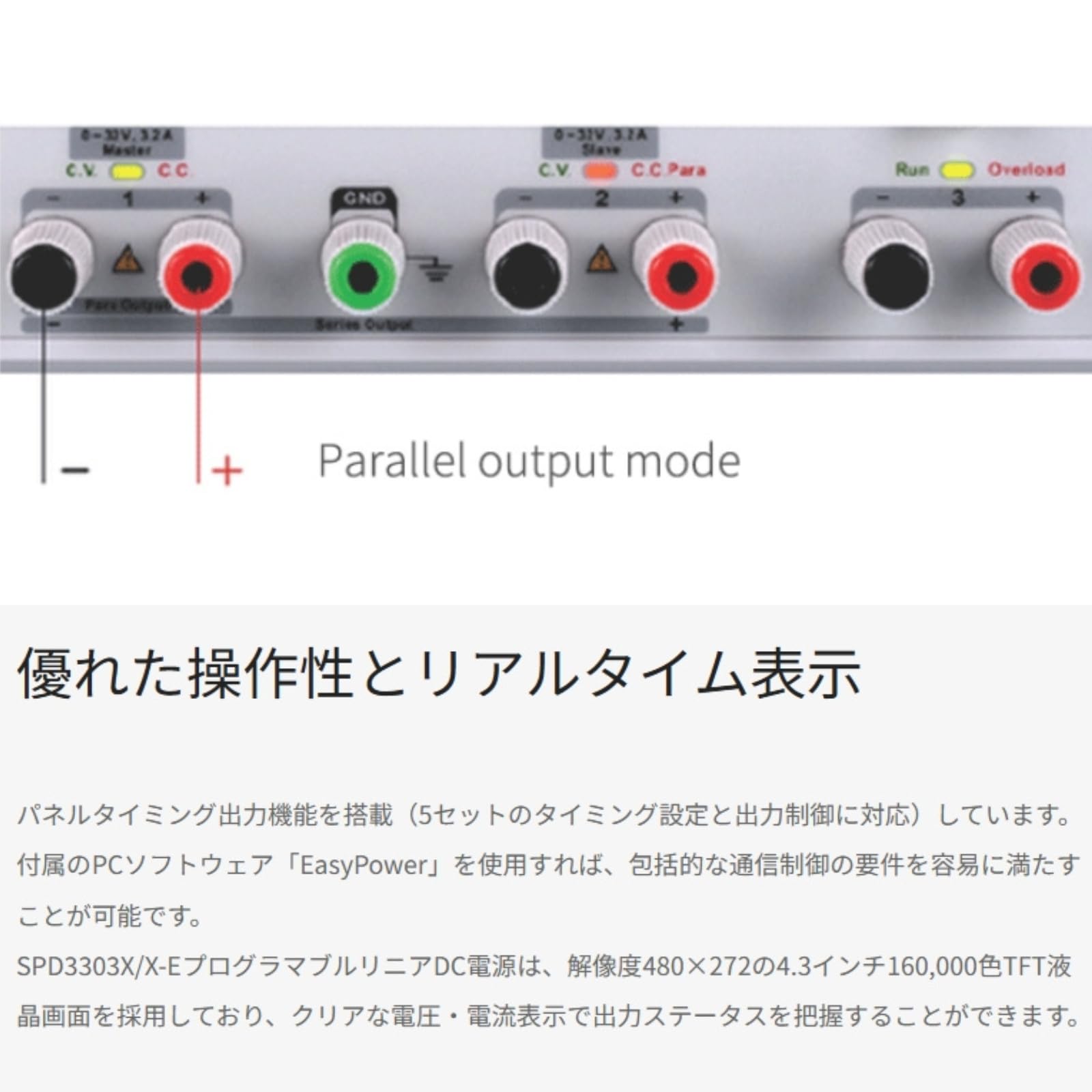

• Output Modes: Independent, Series, Parallel

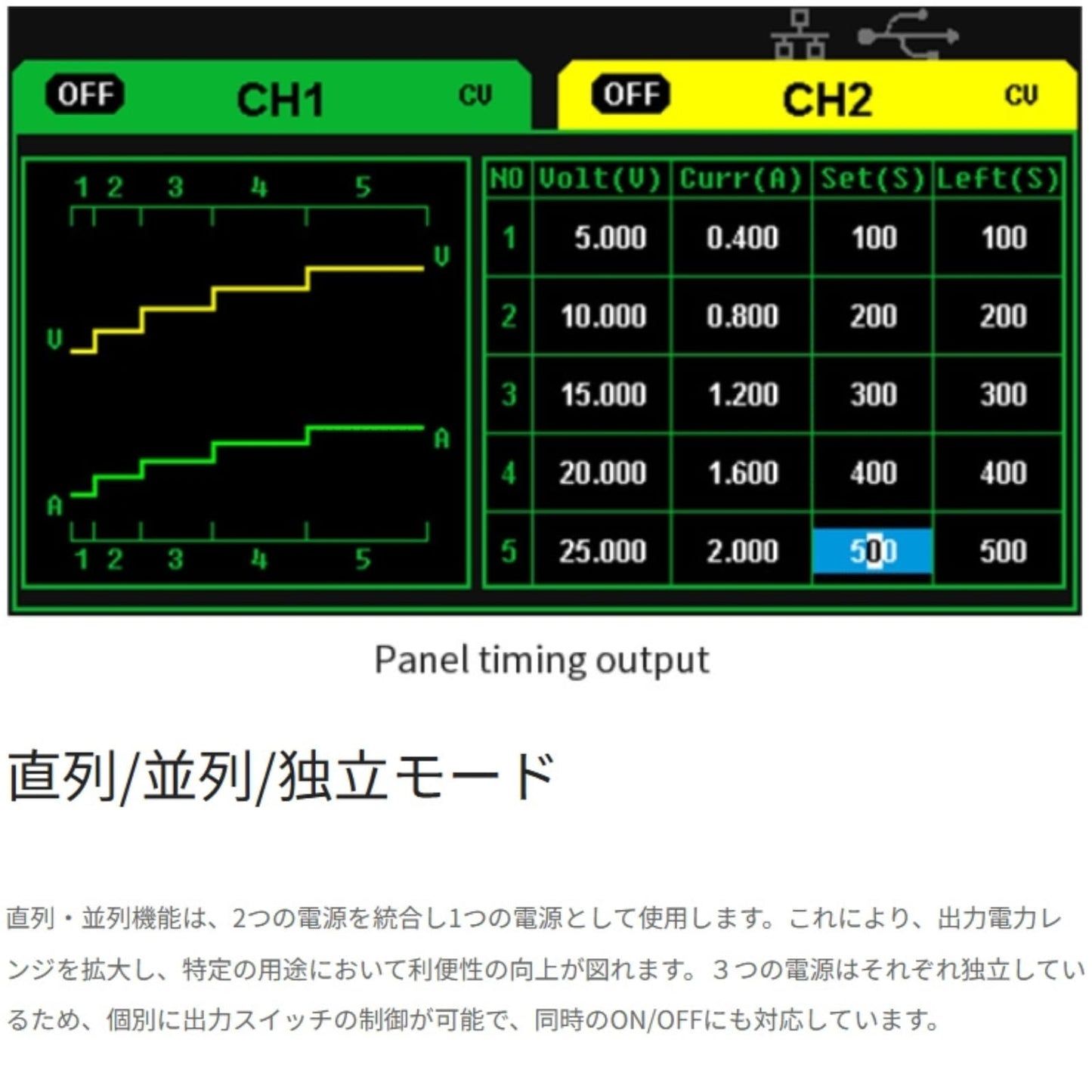

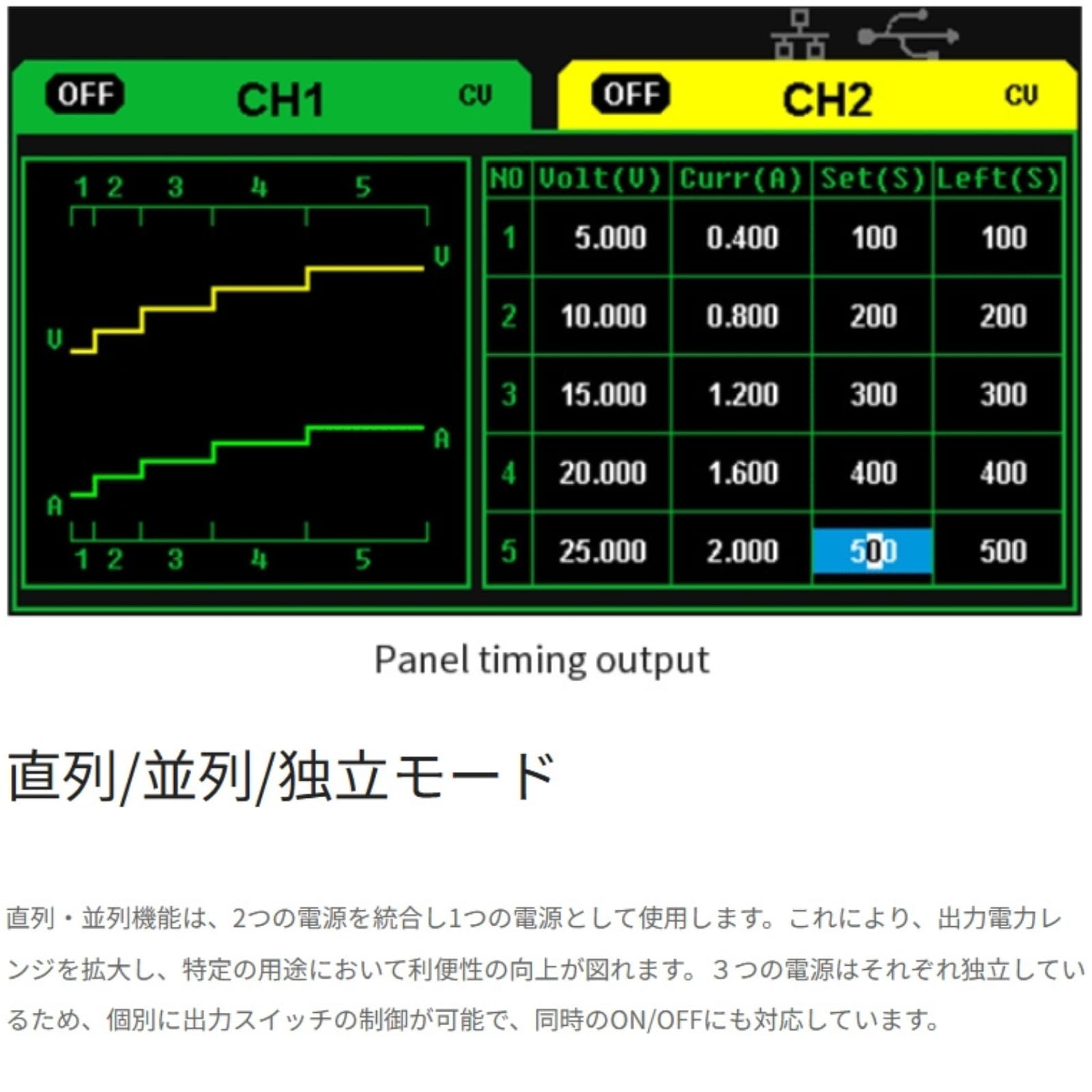

• Timing Output Function.Trending Graphs

Release Date: 17-09-2023

model number: SPD3303X-E

Part Number: SPD3303X-E

Details: The Siglent SPD3303X-E Power Supply contains three independent power supplies in one unit. As a true linear supply, output noise and regulation are excellent. With its intelligent temperature-controlled fan, noise is reduced. Voltage resolution is 10mV / 10mA. The SPD3303X-E Power Supply comes with Easy Power PC software, supports SCPI commands and like all Siglent instruments, has an available LabVIEW driver.

EAN: 0702756092192

Package Dimensions: 16.0 x 13.5 x 10.5 inches
