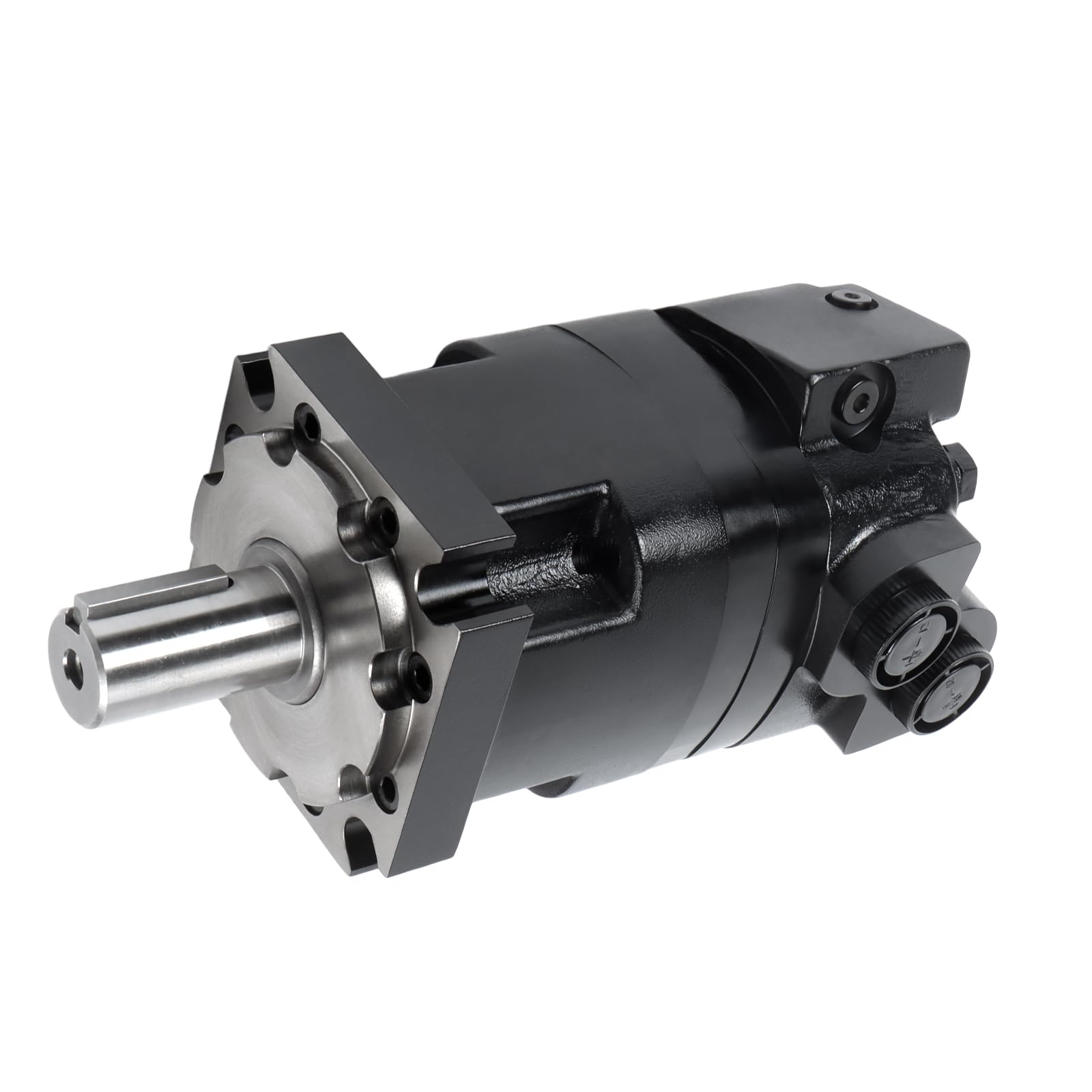

SINOCMP 109-1101-006 Hydraulic Motor Replacement for Eaton Char-Lynn 4000 Series, 7.95 cu in/rev Displacement 4-Bolt SAE-B Mount 1.25 Inch Keyed Shaft, 722 RPM 3000 PSI High Torque Low Speed Motor

Brand: SINOCMP

Features:

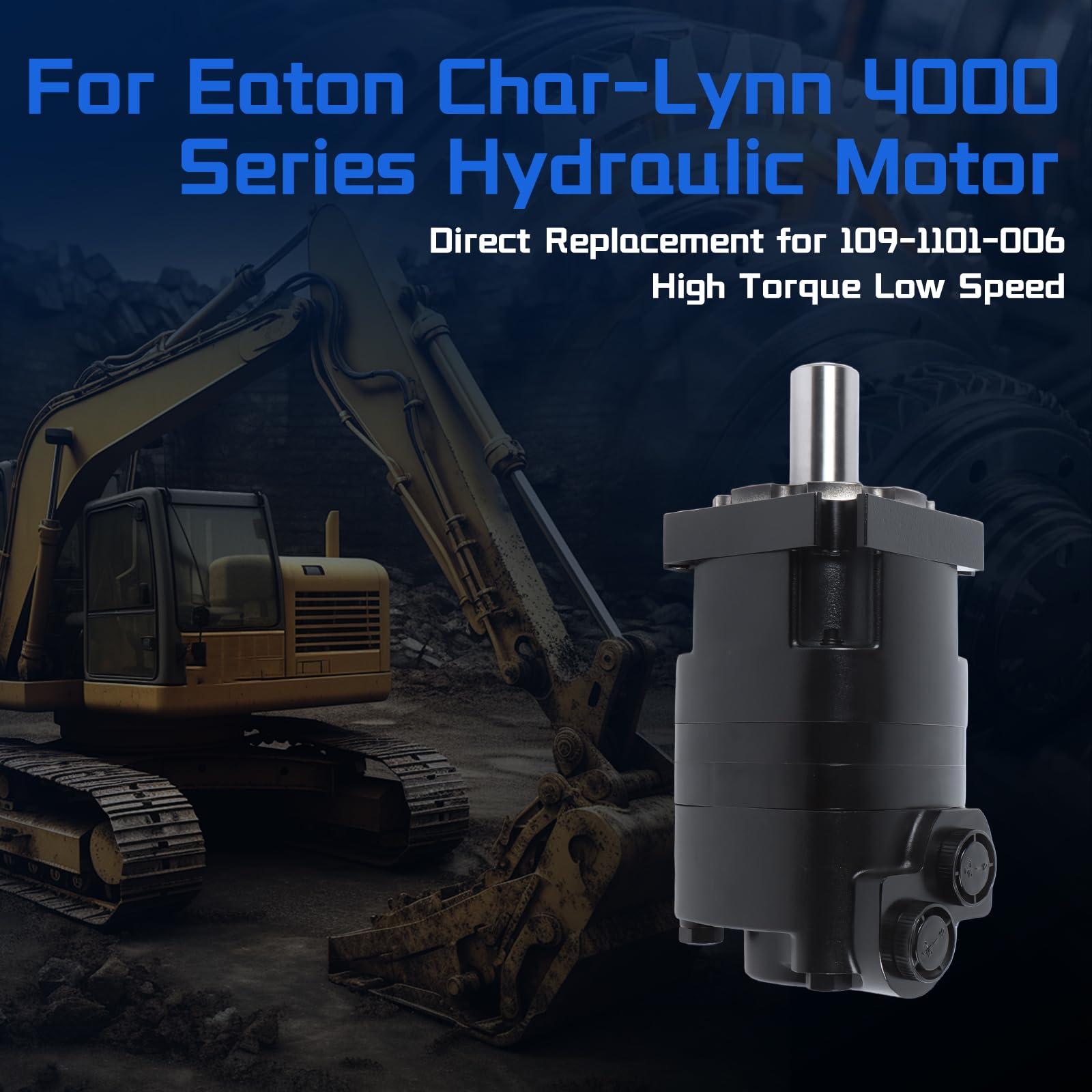

• [🔧] Direct Swap – 7.95 cu/in Displacement: This hydraulic motor 109-1101-006 replaces Eaton Char-Lynn 4000 Series models with 7.95 cu in/rev (130.3 cc/rev) displacement. The 4-bolt SAE-B flange mount with 4 inch pilot diameter and 5 inch bolt circle lets this 109-1101-006 hydraulic motor bolt directly onto mowers, snow blowers, sprayers, and trenchers without modifications.

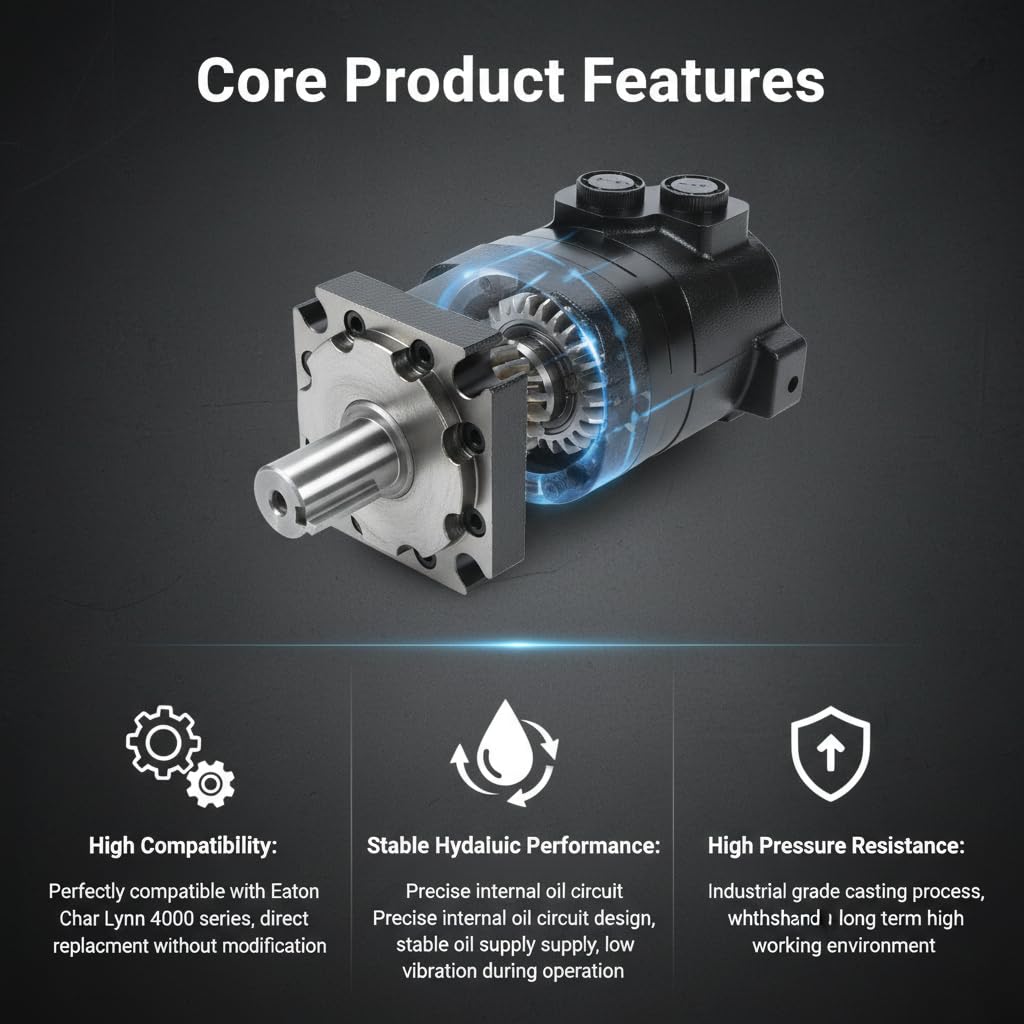

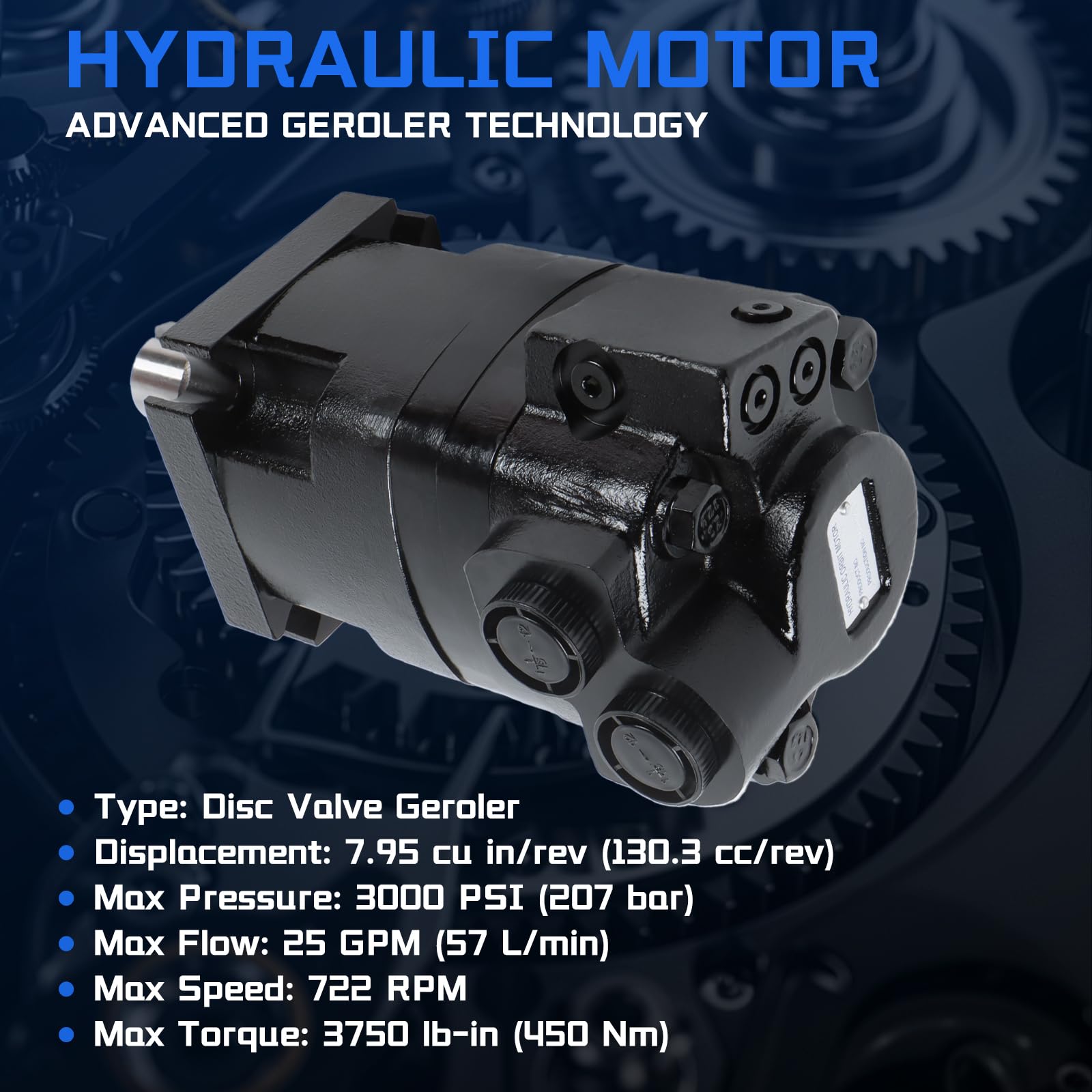

• [⚙️] High Torque – 3319 lb-in at 722 RPM: 4000 series hydraulic motor delivers 3319-3750 lb-in (450 Nm) continuous torque at 722 RPM, with max pressure 3000 PSI and max flow 25 GPM. The disc valve Geroler design with three-zone pressure system helps this 109-1101-006 replacement hydraulic motor achieve the lowest pressure drop in its industry.
• [🛢️] Heavy-Duty Ports – 1-1/16-12 SAE O-Ring: For Eaton Char-Lynn style hydraulic motor features staggered 1-1/16-12 UNF-2B SAE O-ring side ports for reliable leak-free sealing. The staggered configuration on this 109-1101-006 hydraulic motor allows flexible hose routing in tight spaces and includes a .4375-20 UNF-2B SAE O-ring case drain port with check valve.

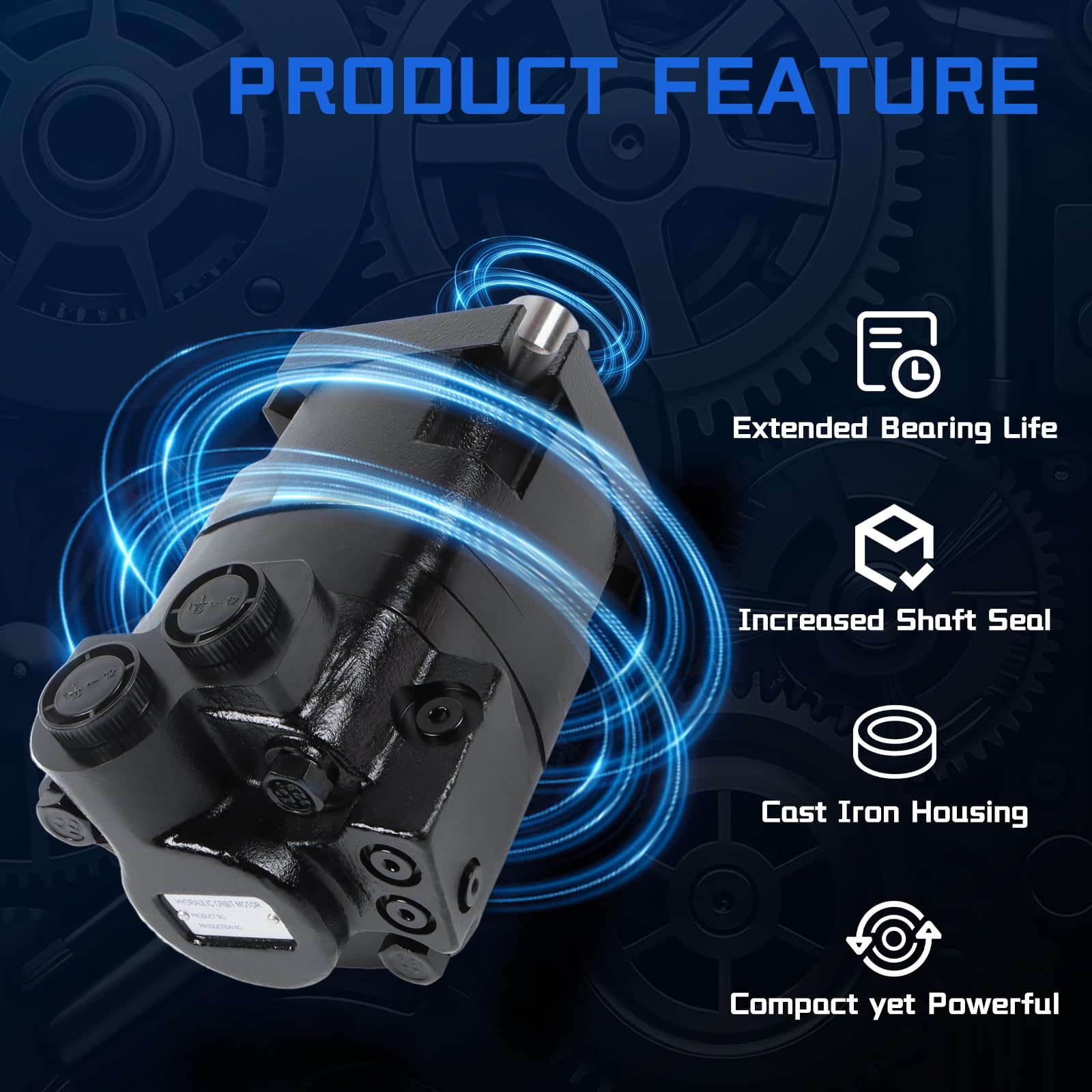

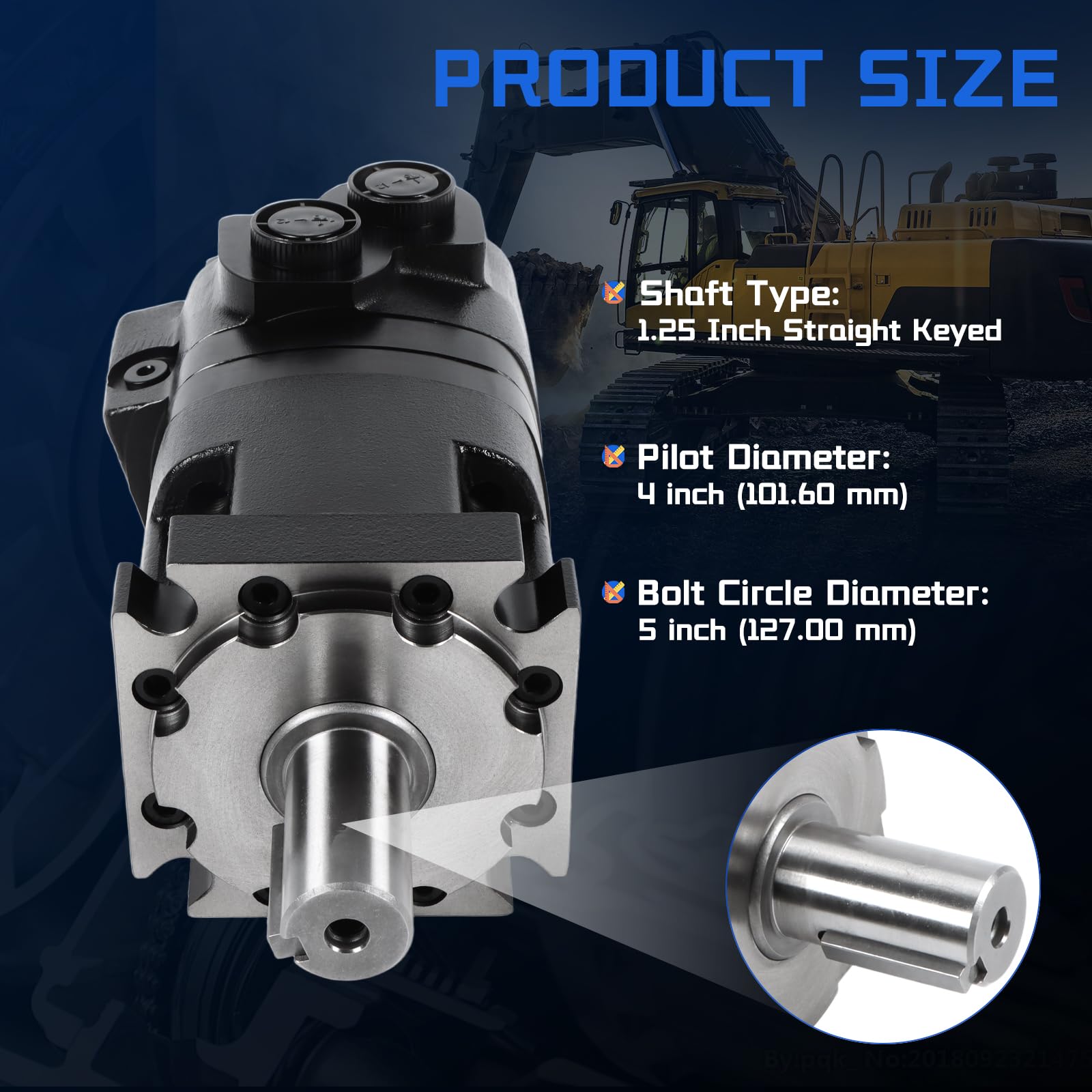

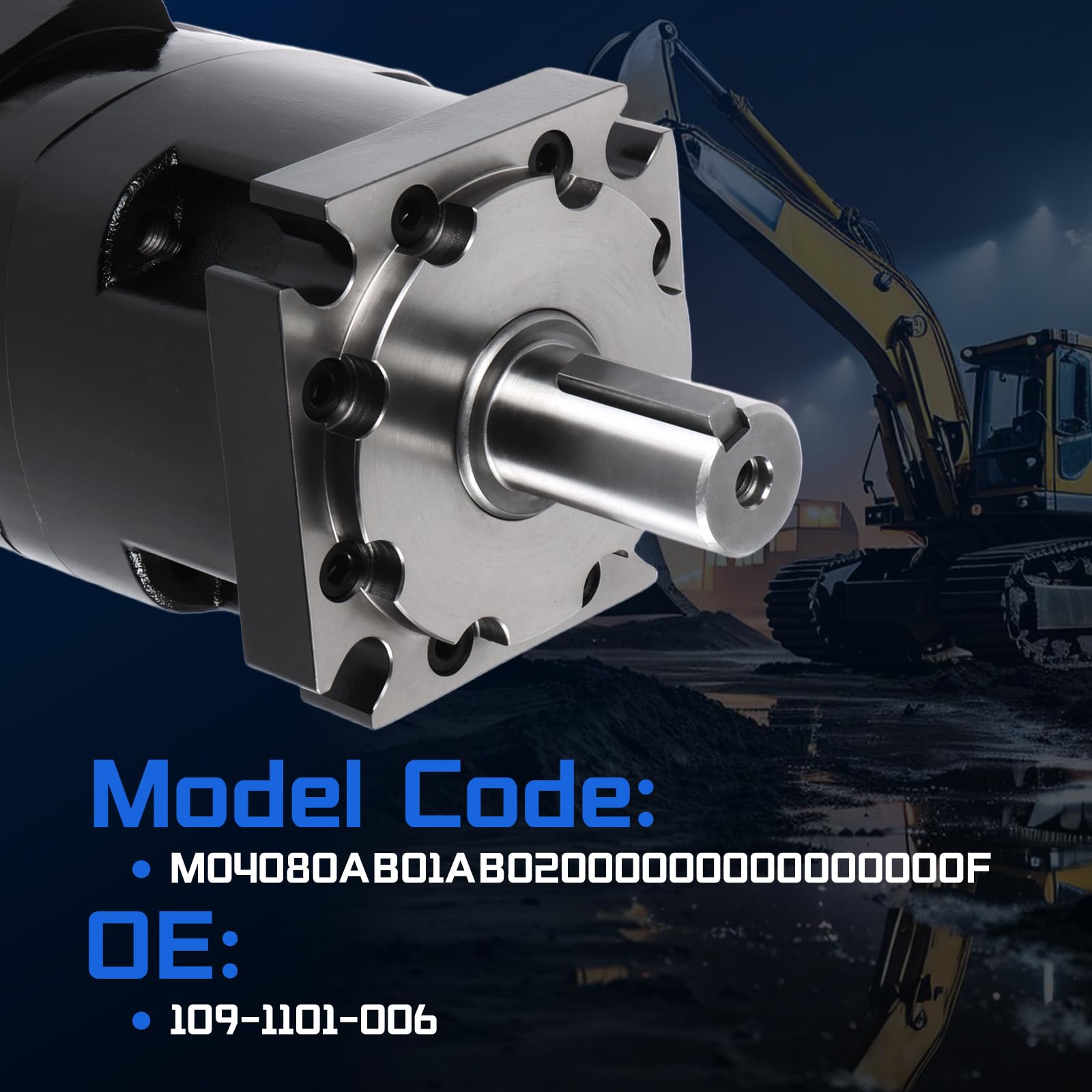

• [🏗️] Keyed Shaft – 1.25 Inch with 5/16 Keyway: This 109-1101-006 replacement hydraulic motor comes with 1.25 inch straight keyed shaft, 5/16 inch keyway, and 3/8-16 UNC-2B threaded end hole. Cast iron SAE-B flange housing with SAE #12 O-ring ports withstands harsh agricultural and municipal environments. Max operating temperature 180°F, minimum -30°F. Weight 37.15-57 lbs.
• [📦] Ready-to-Install – Complete Assembly: Box contains one hydraulic motor 109-1101-006 (4000 Series specification, cast iron housing). Important: Verify 4 inch pilot diameter, 4-bolt pattern (5 inch bolt circle, .58 inch mounting holes), and 1.25 inch keyed shaft before ordering. Flush hydraulic lines prior to installation. Intermittent operation ≤10% of every minute, peak operation ≤1% of every minute.

model number: Char-Lynn Eaton 4000 Series

Part Number: 96417GT

Package Dimensions: 13.0 x 6.5 x 6.5 inches
