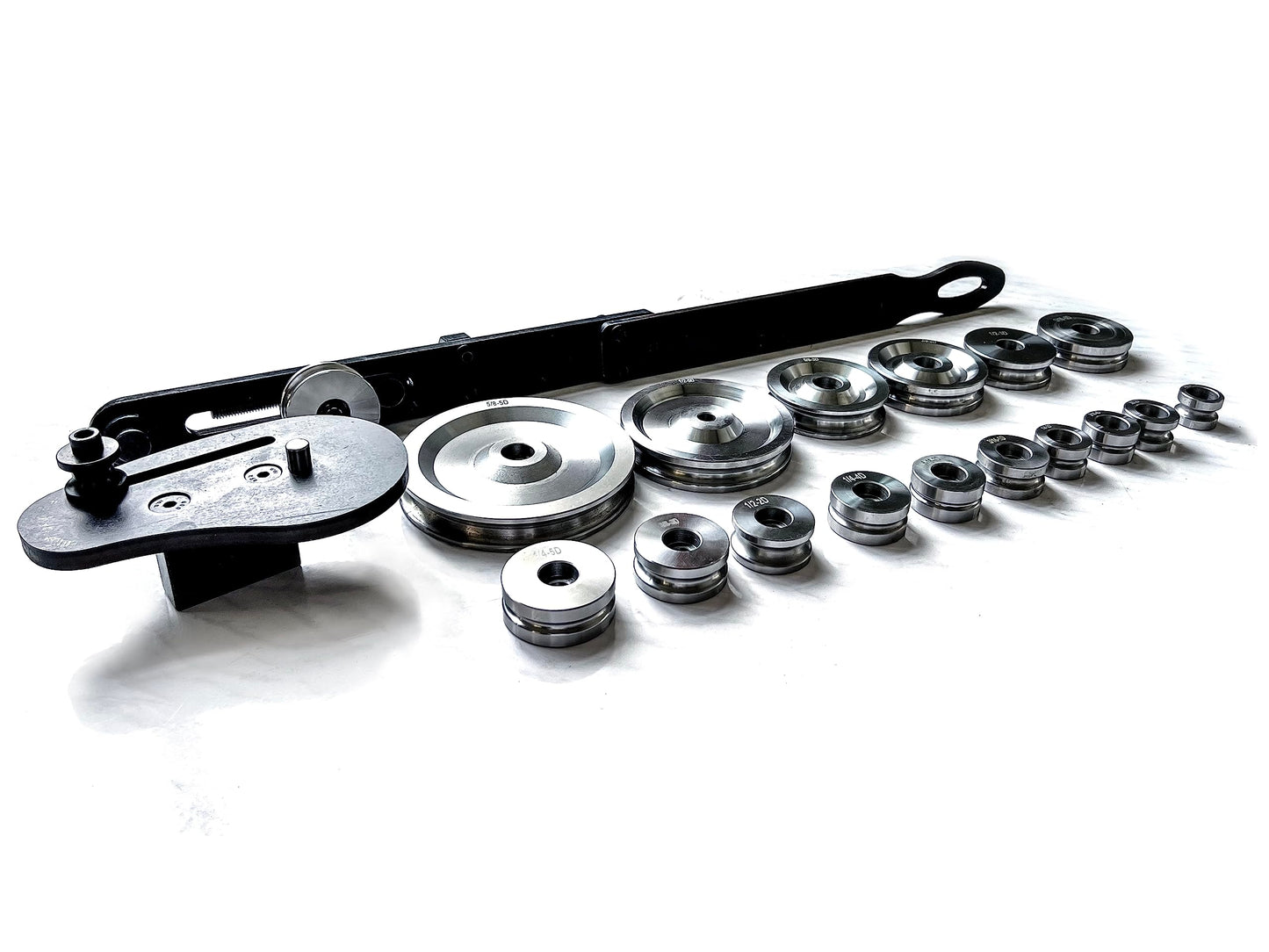

Small Diameter Hand Tubing Bender/Metal Bender Forming Tool/rod bender/rebar bender

Brand: Generic

Features:

• Vice mounted or Bolt straight to workbench
• It can be clamped in a vise or bolted to the optional stand and anchored to the floor
• Each die set is reversible so you have two radius options for each size and the adjustable bend die allows for easy repositioning and removal of the tube
• Mild Steel Capacity (inches): 5/8 x .065
• Round Aluminum Capacity (inches): 5/8 x .065
• Solid Bar Mild Steel Capacity (inches): 3/8
• Minimum OD (inches): 3/16
• Maximum OD (inches): 5/8
• Bending Style: rotary compression
• Max Degree of Bend: 180

model number: 7170003

Details: Min Center Line Radius (inches): 0.62.
Max Center Line Radius (inches): 3.12.

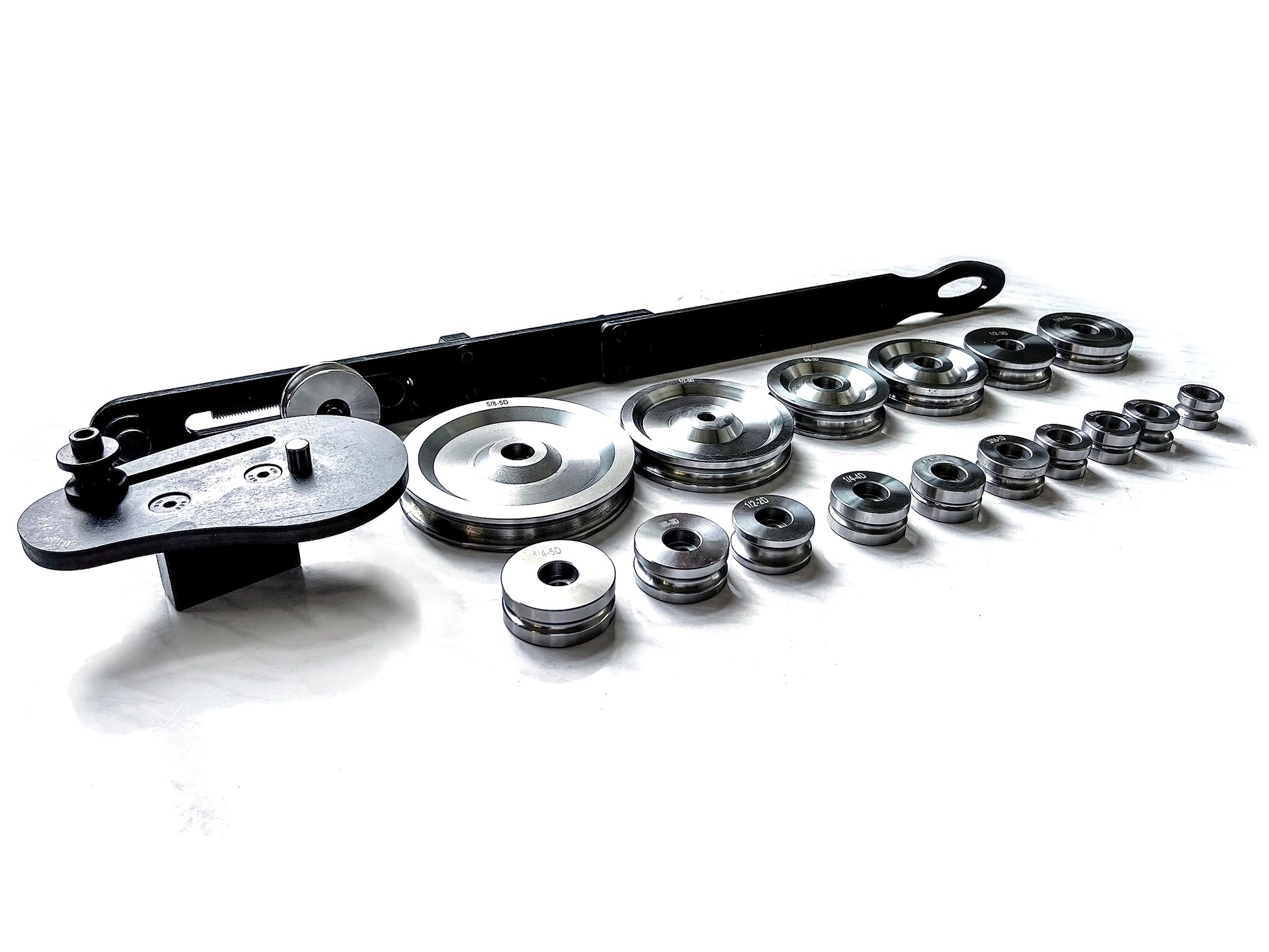

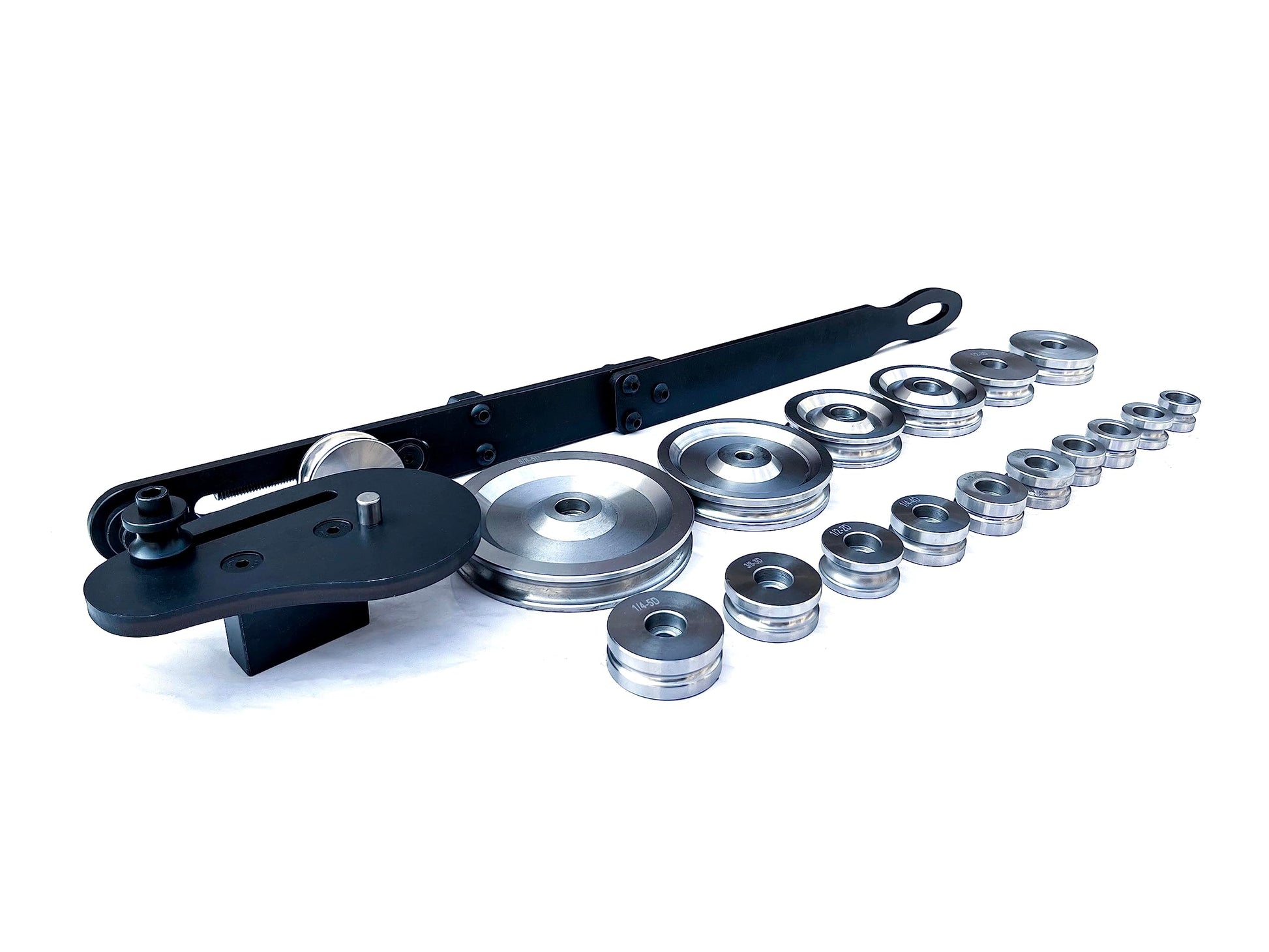

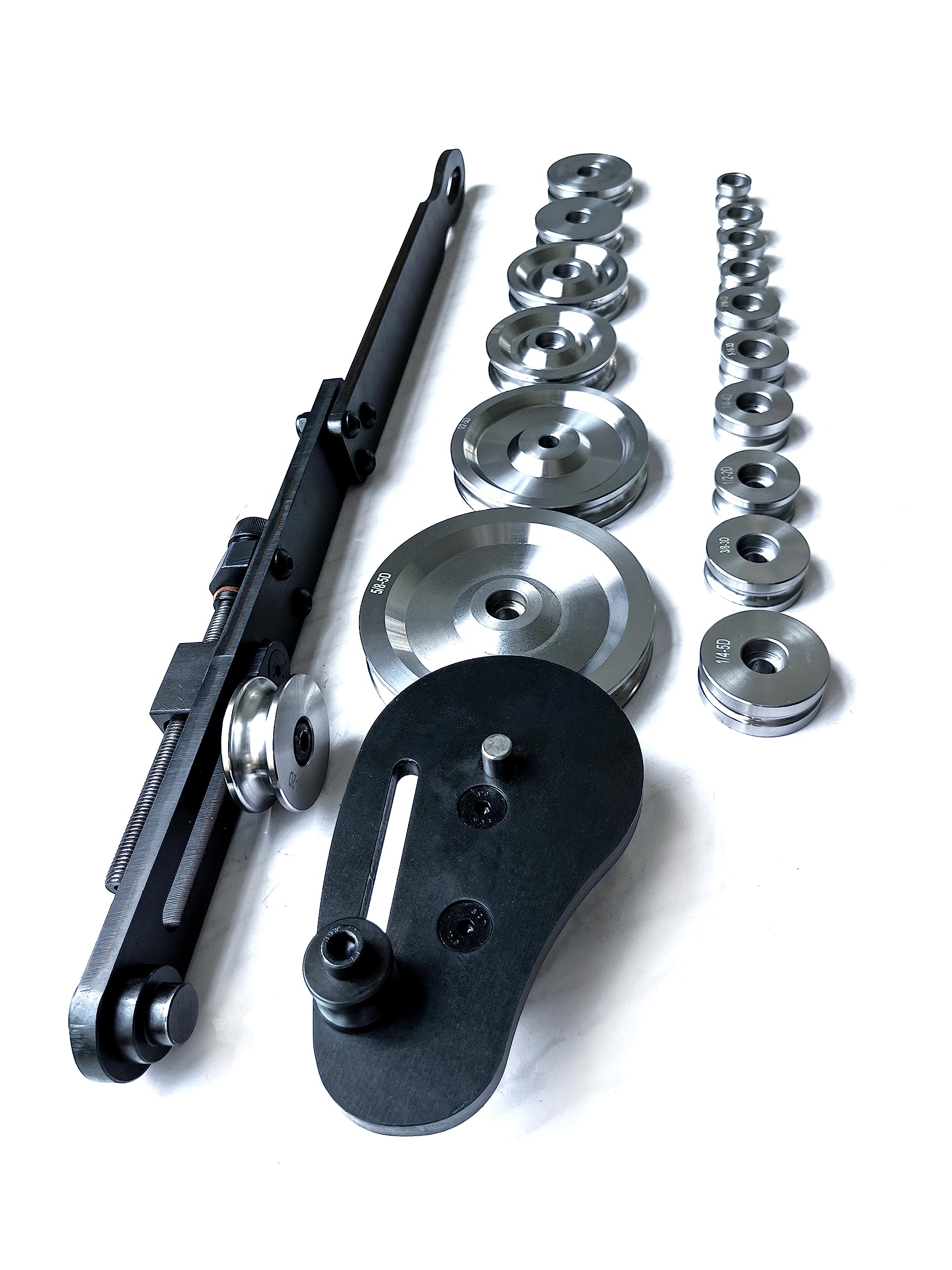

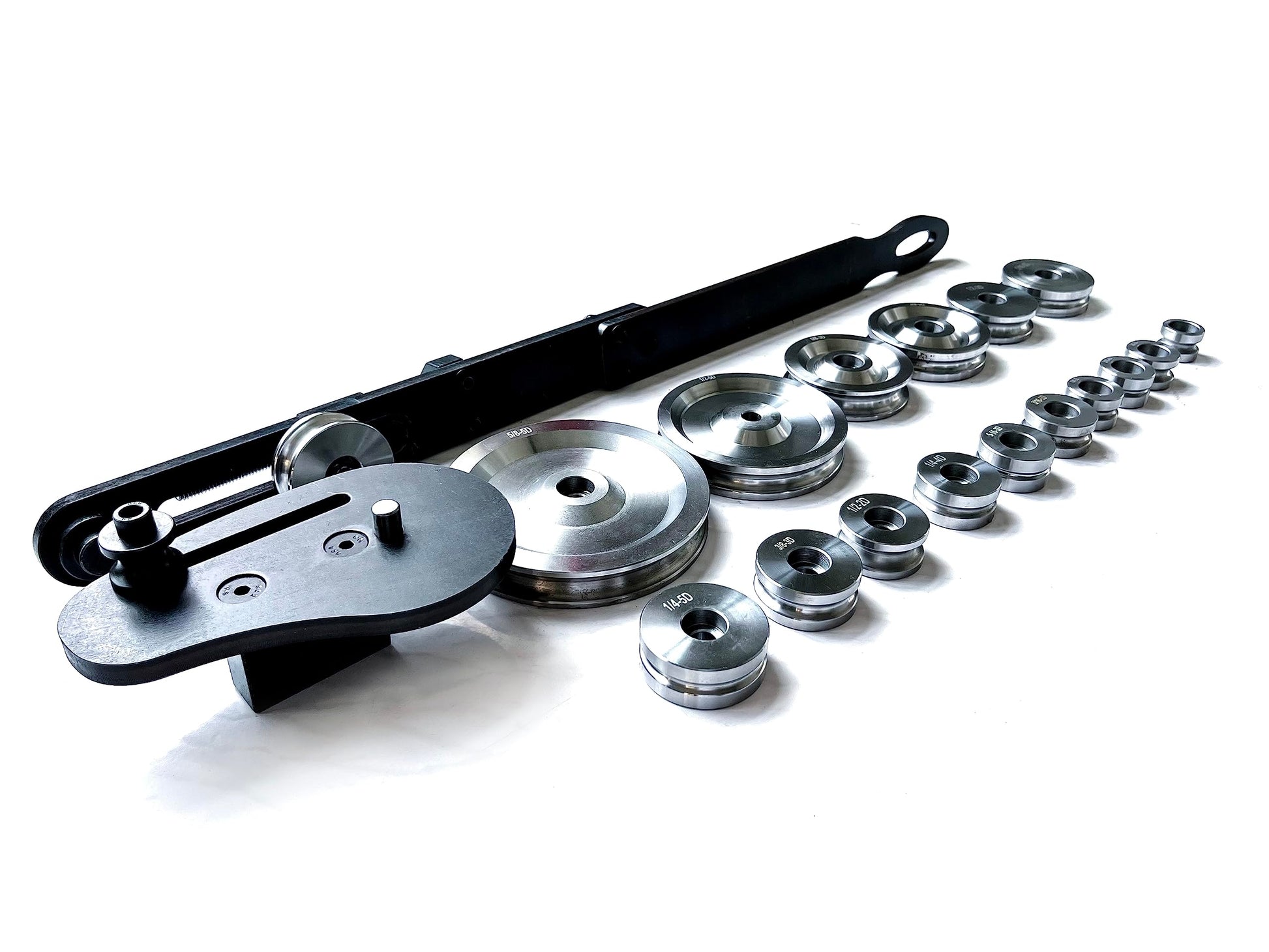

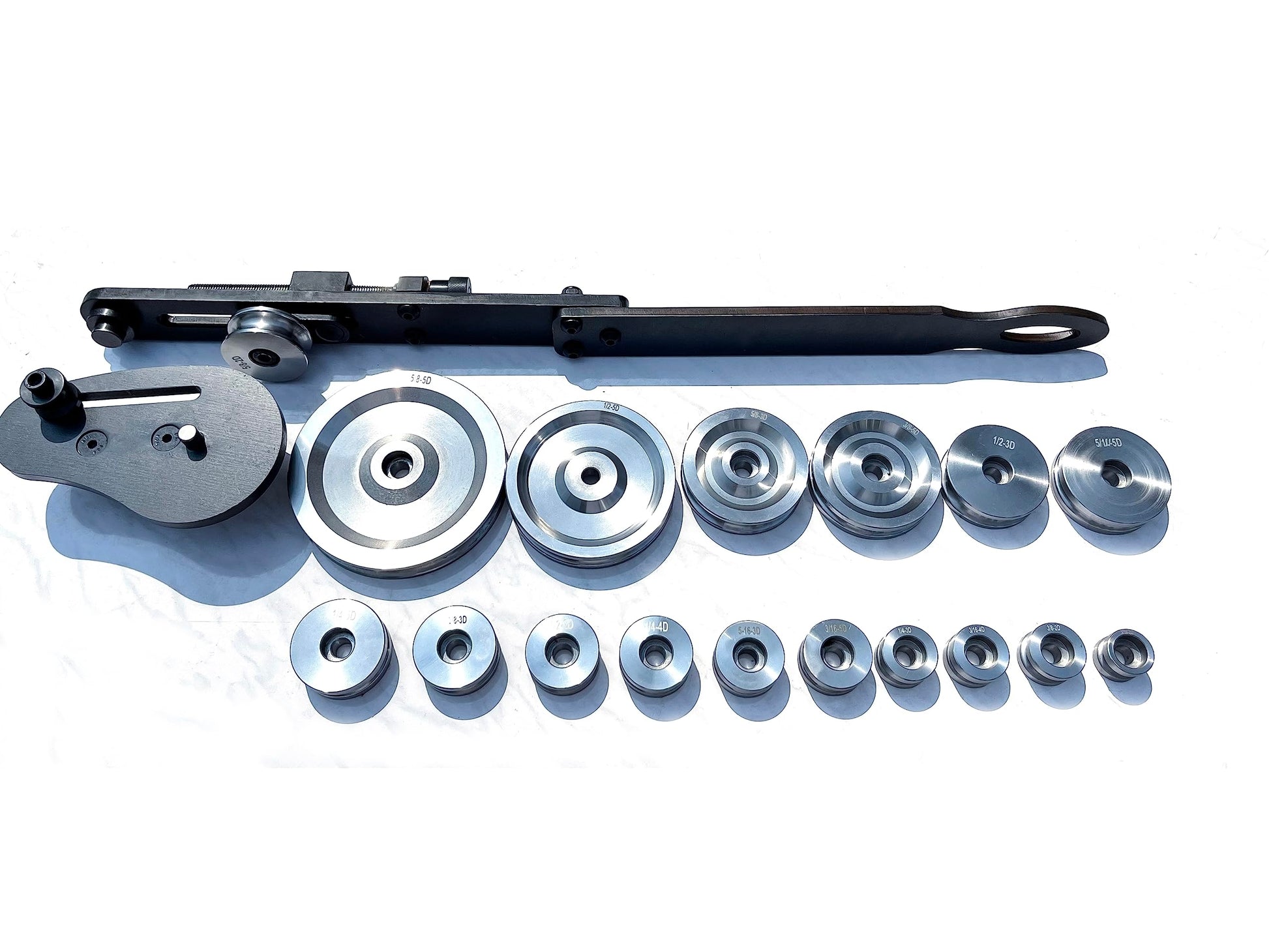

Dies included:
3/16 inch 4D & 5D Radius dies.
1/4 inch 3D，4D & 5D Radius dies.
5/16 inch 2D, 3D & 5D Radius dies.
3/8 inch 2D, 3D & 5D Radius dies.
1/2 inch 2D, 3D & 5D Radius dies.
5/8 inch 2D, 3D & 5D radius dies.
The Hand Tube Bending Machine for up to 5/8 inch OD tubing. Heavy duty steel construction ensures lasting quality for bending custom fuel, brake, and hydraulic lines, even small diameter chassis tubing. Quick setup and simple operation make this the right choice for light production, repair, and prototype work.

EAN: 0768399415507

Package Dimensions: 23.0 x 11.0 x 6.5 inches
