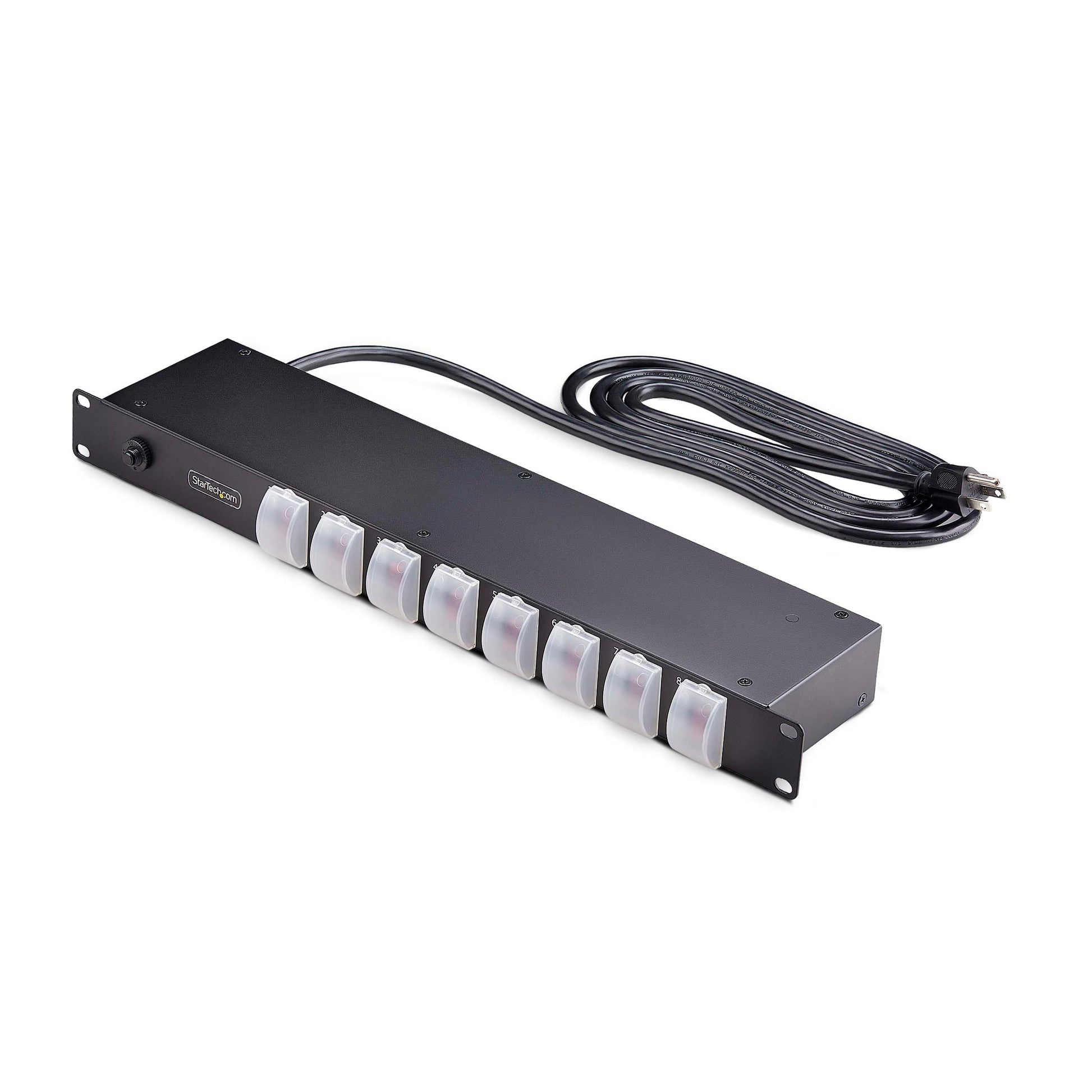

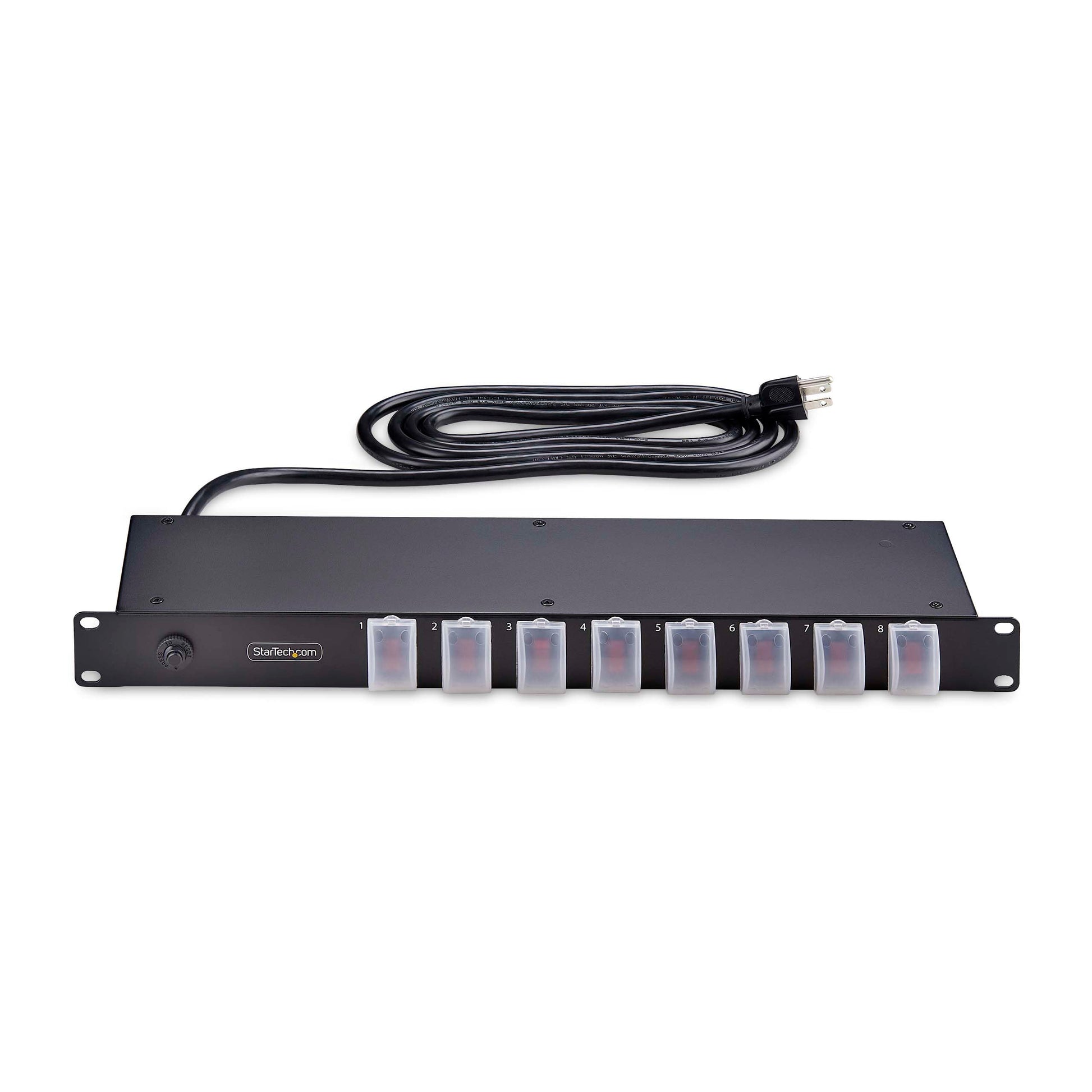

1U 8-OUTLET RACK MOUNT PDU: Built-in 8ft. (2.4m) NEMA 5-15P Power Cord; 8x NEMA 5-15R Outlets; 125V Max. Input/Output; 15A Circuit Breaker; Ideal power supply for server rooms, server closets, small data centers and recording studios

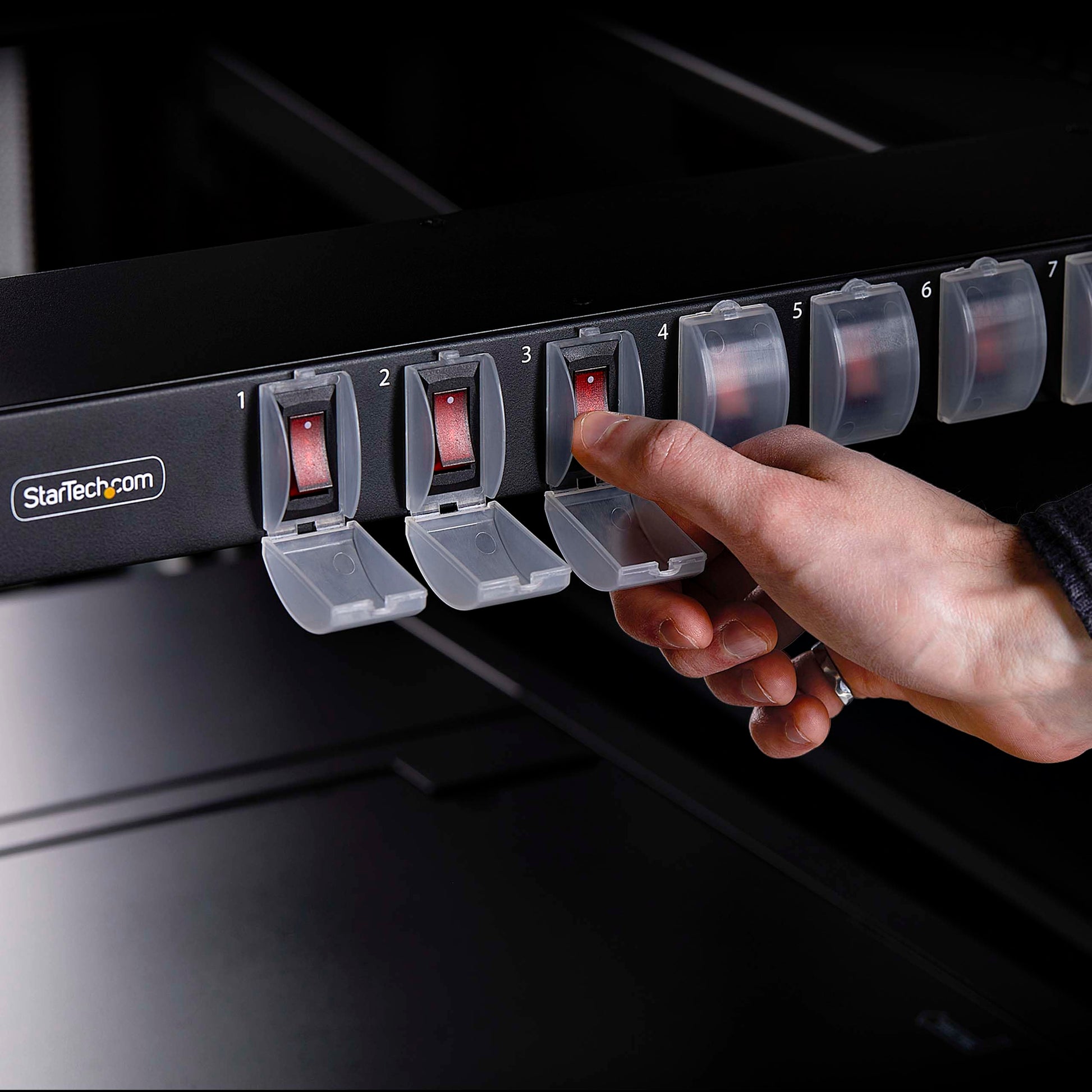

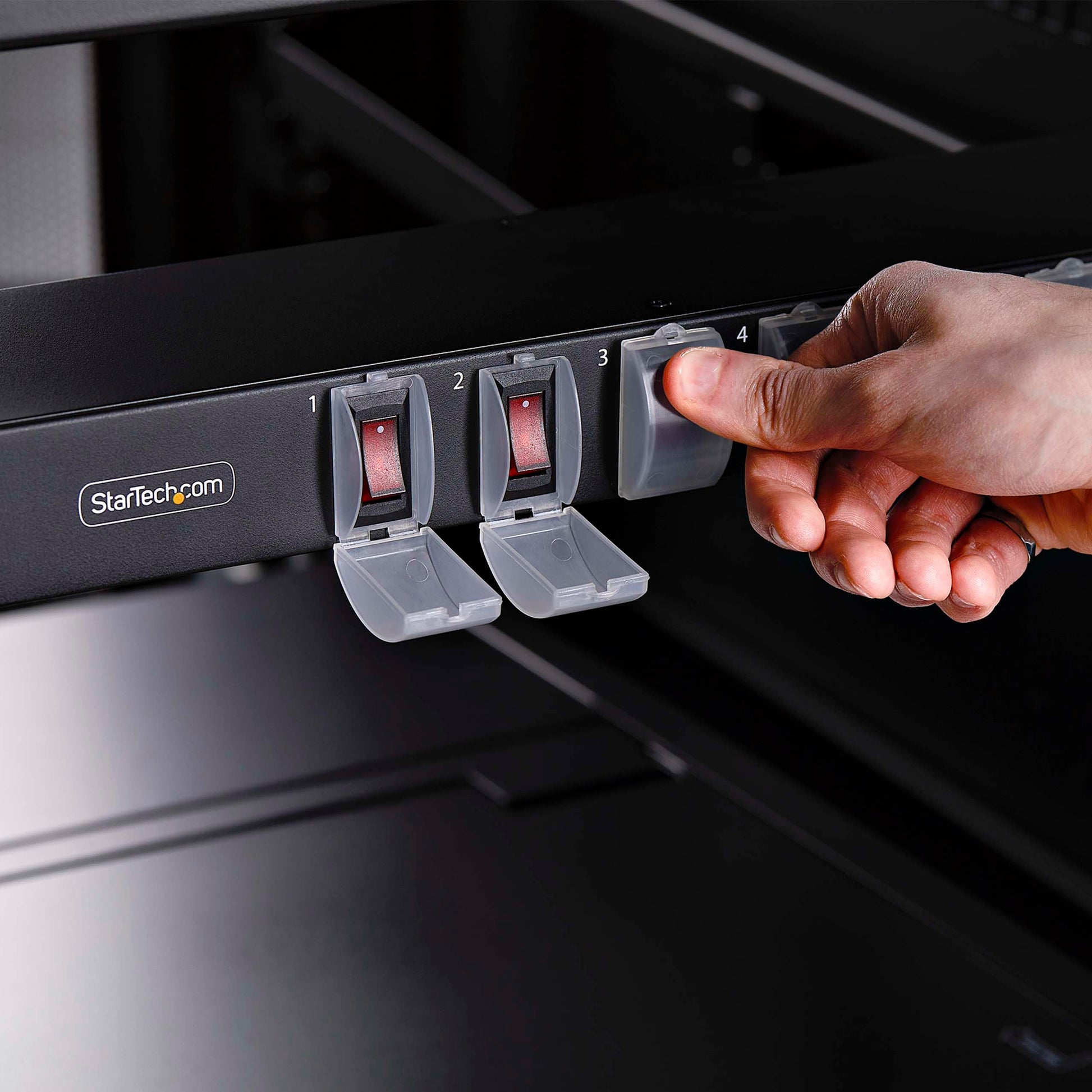

ON/OFF OUTLET SWITCHES: Each outlet features an individual illuminated rocker switch for controlled power management; Enumerated switch labels clearly identify the corresponding outlet; Safety covers prevent accidental power cycling
15 AMP CIRCUIT BREAKER: This 8-port rackmount power distribution unit features a self-tripping and resettable circuit breaker with 15A trip-point to protect connected equipment

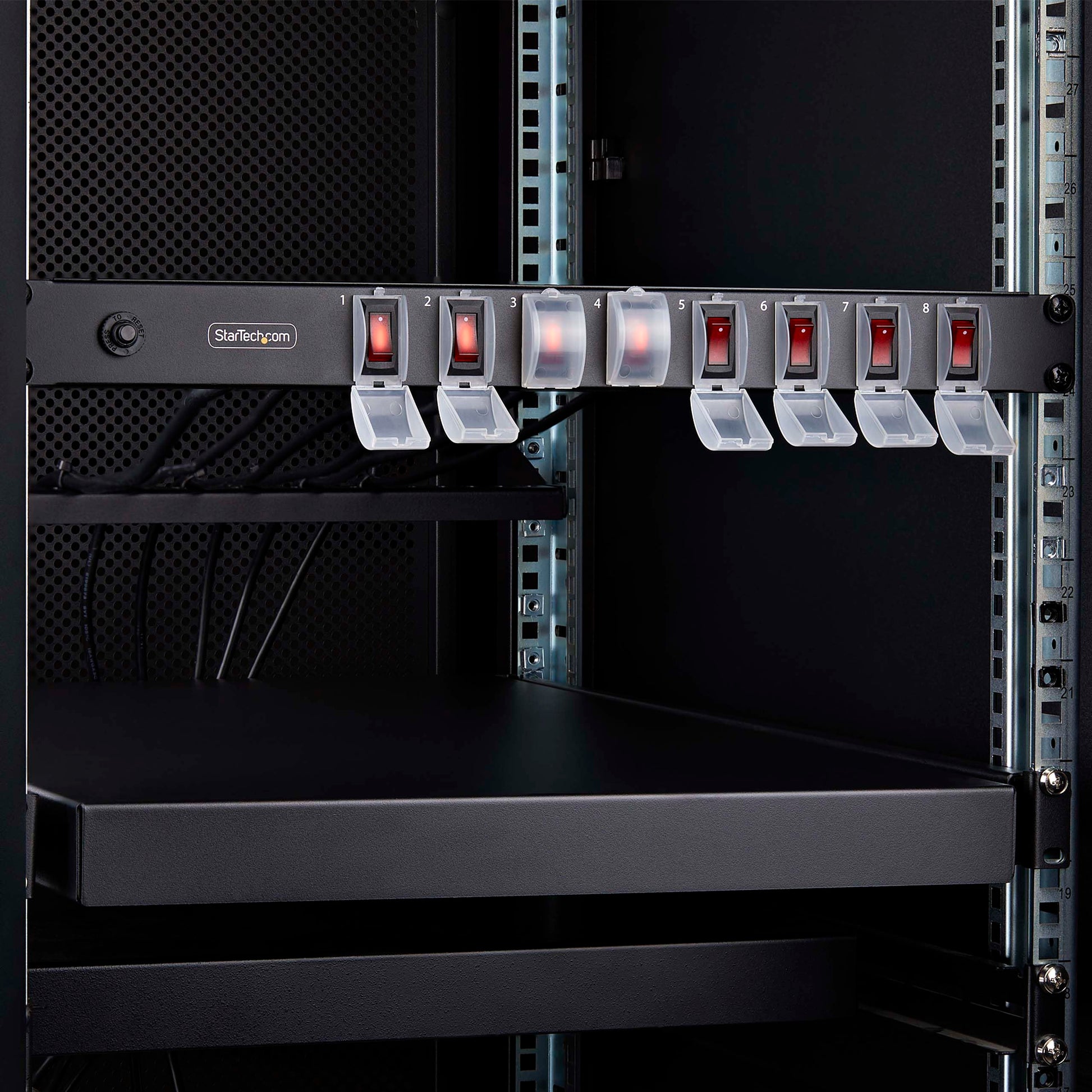

1U RACK DESIGN: This horizontal power distribution unit installs in 1U of rack space on network racks and is compatible with all 19-inch server racks 4' or deeper; Compatible with ANSI/EIA RS-310-D standards

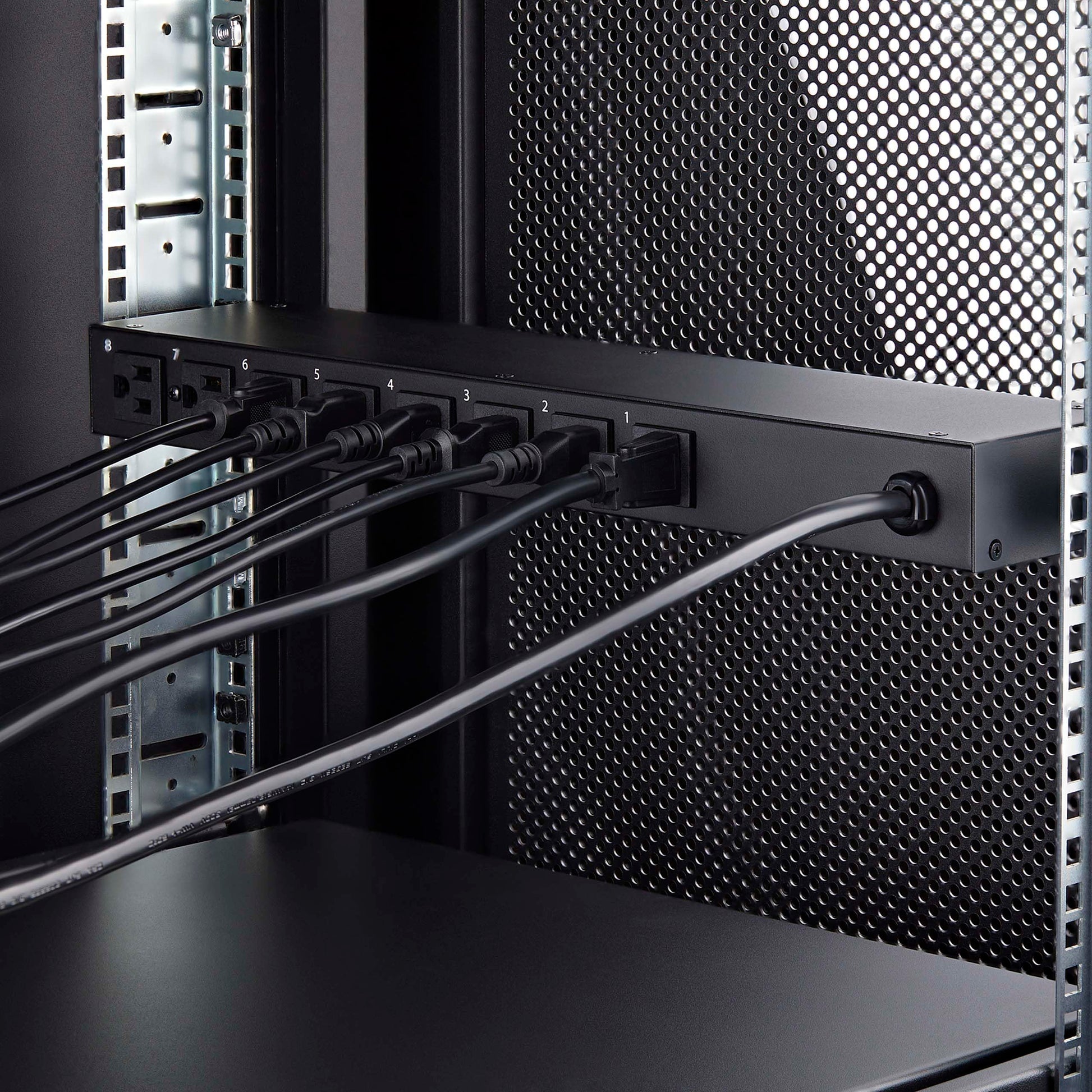

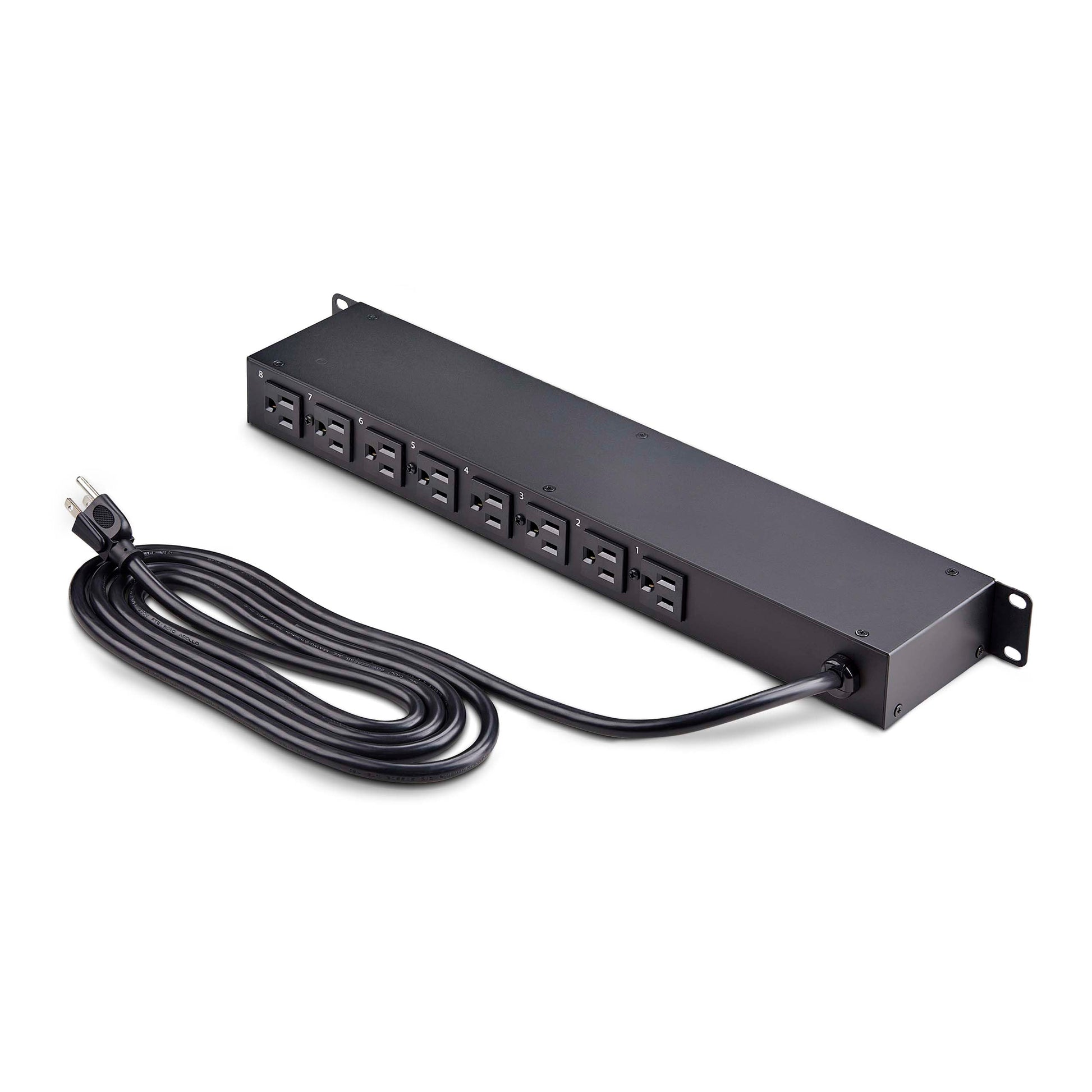

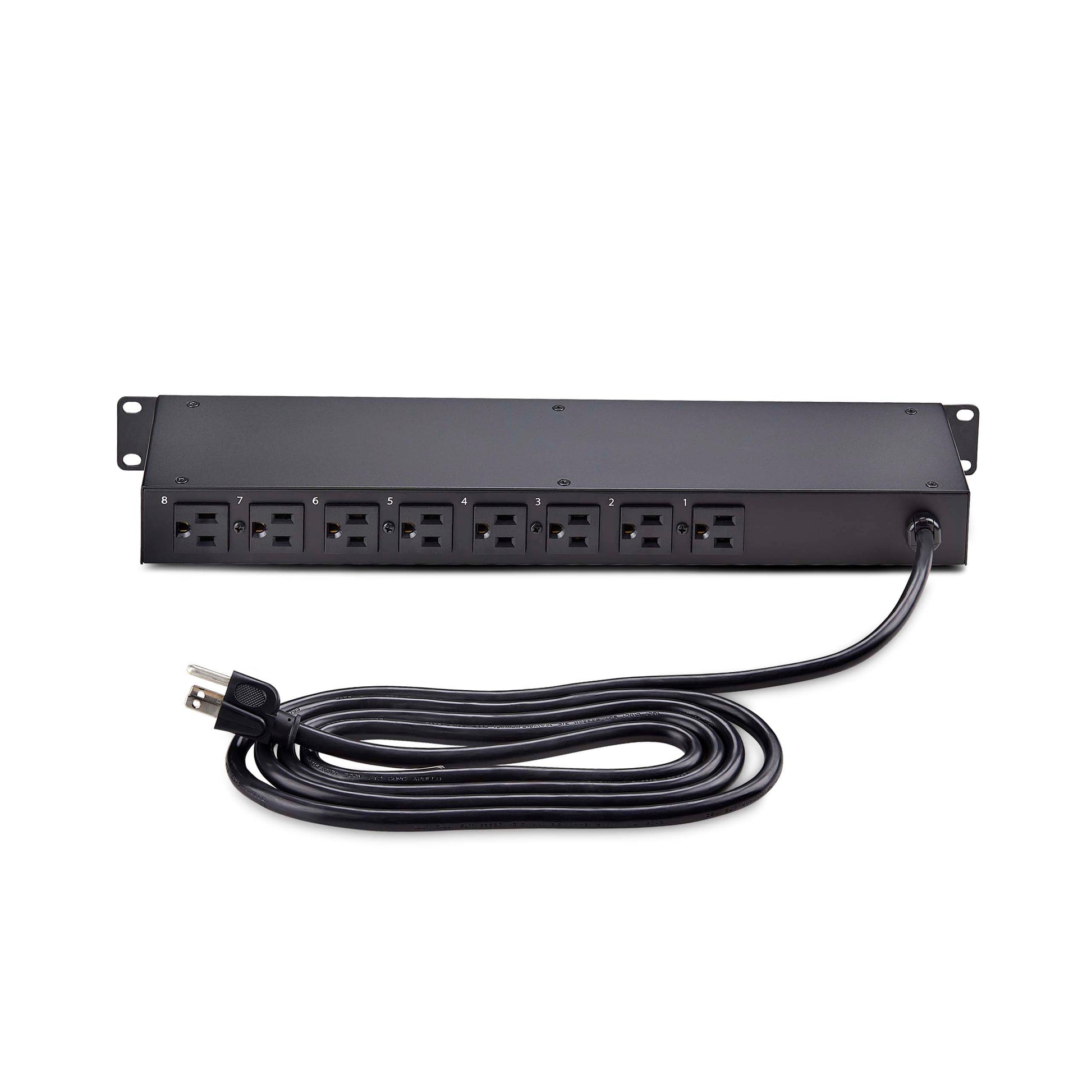

OPTIMIZED DESIGN: Heavy-duty steel housing with rear facing outlets; Attached 8 ft. (2.4m) long power cord
Release Date: 17-07-2024
model number: 8NS8-RACK-MOUNT-PDU
Part Number: 8NS8-RACK-MOUNT-PDU
Details: This 1U 8-Outlet Rack Mount PDU has an 8ft NEMA 5-15P power cord and 8x NEMA 5-15R outlets, delivering 125V max input/output. It includes a 15A circuit breaker for equipment protection, independent/individual illuminated rocker switch with safety covers to prevent accidental power cycling. Designed for 19-inch server racks, the PDU is made of heavy-duty steel with rear-facing outlets for space efficiency. The 8ft power cord offers flexibility in various rack setups.
