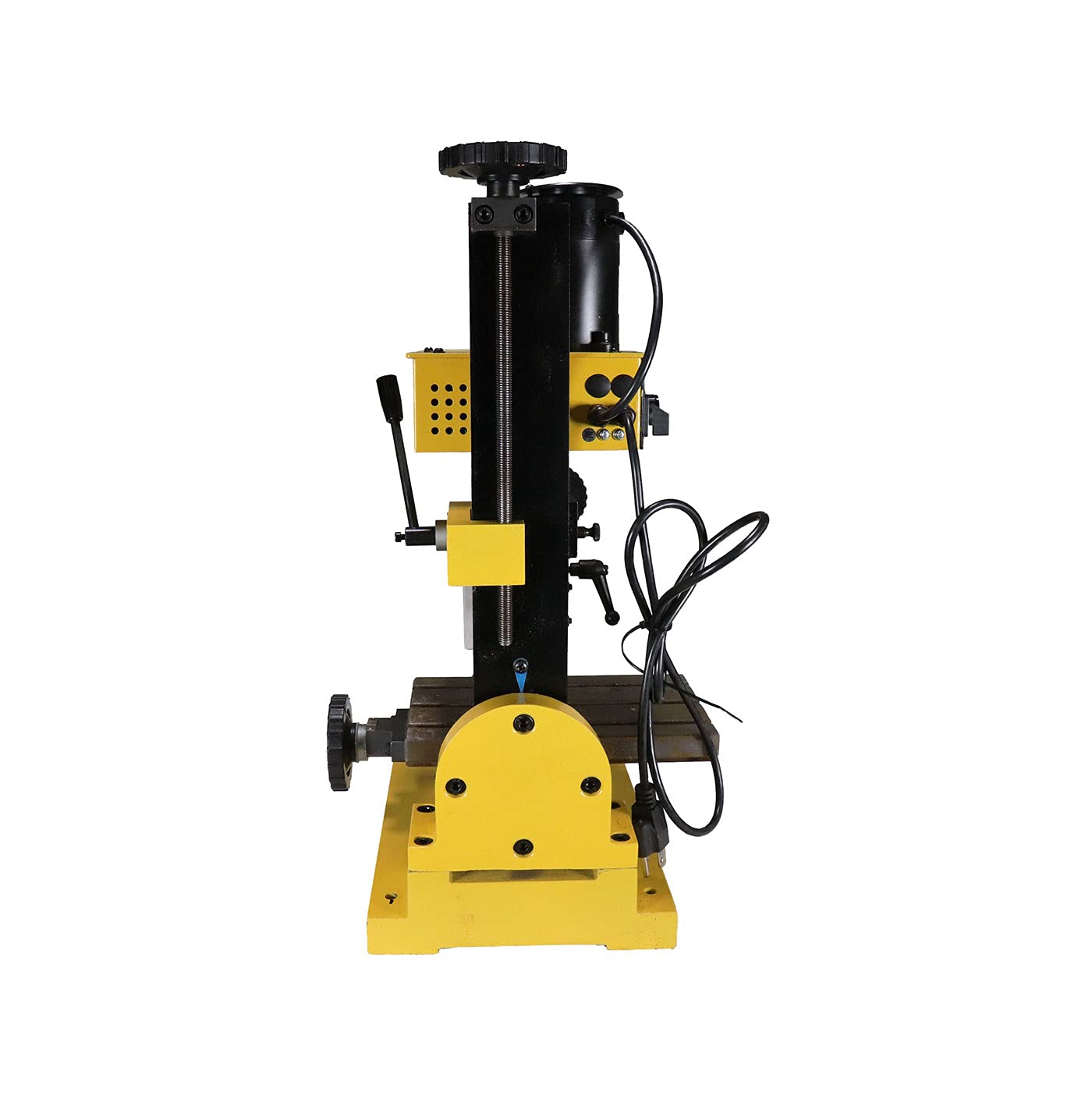

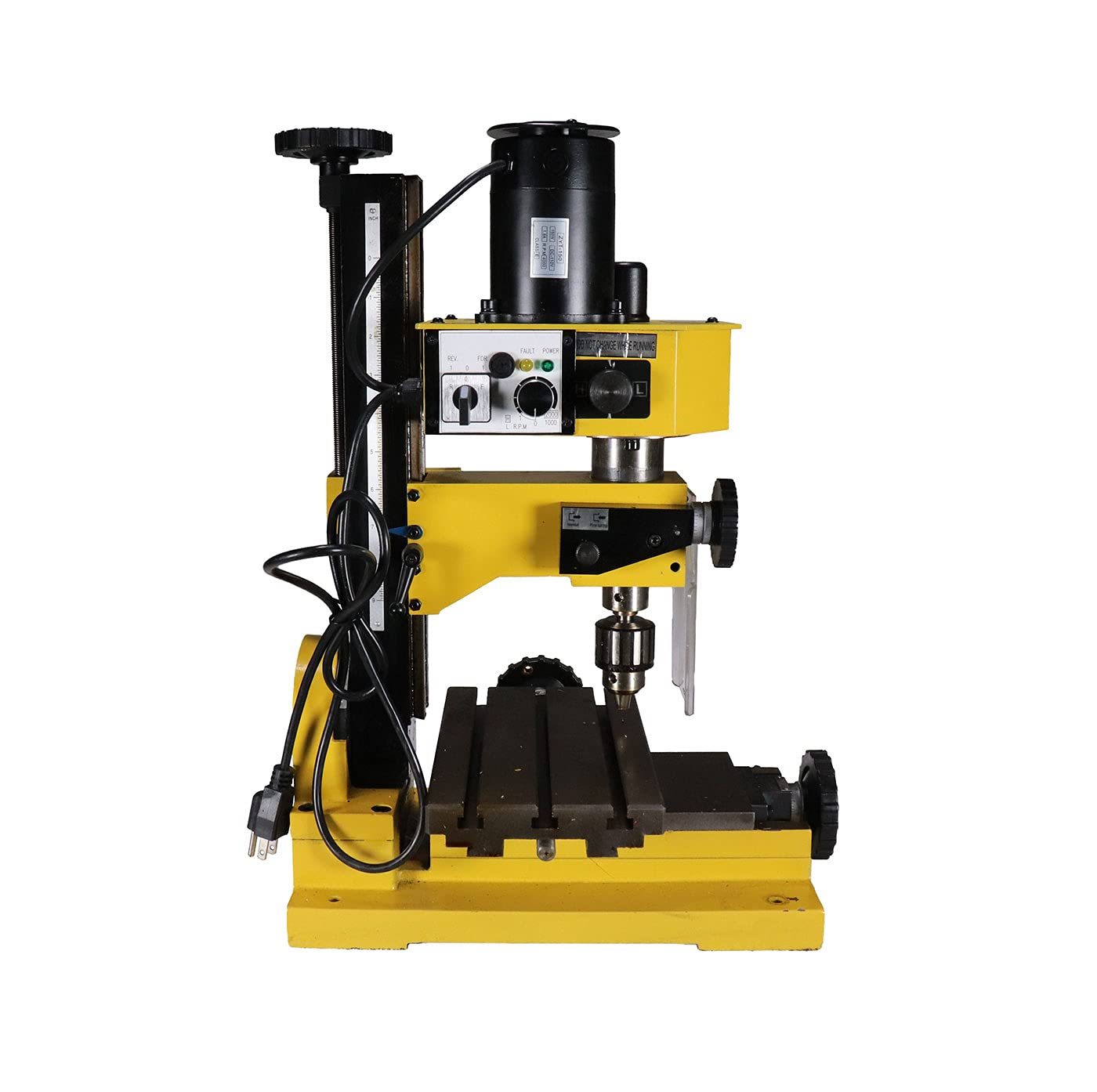

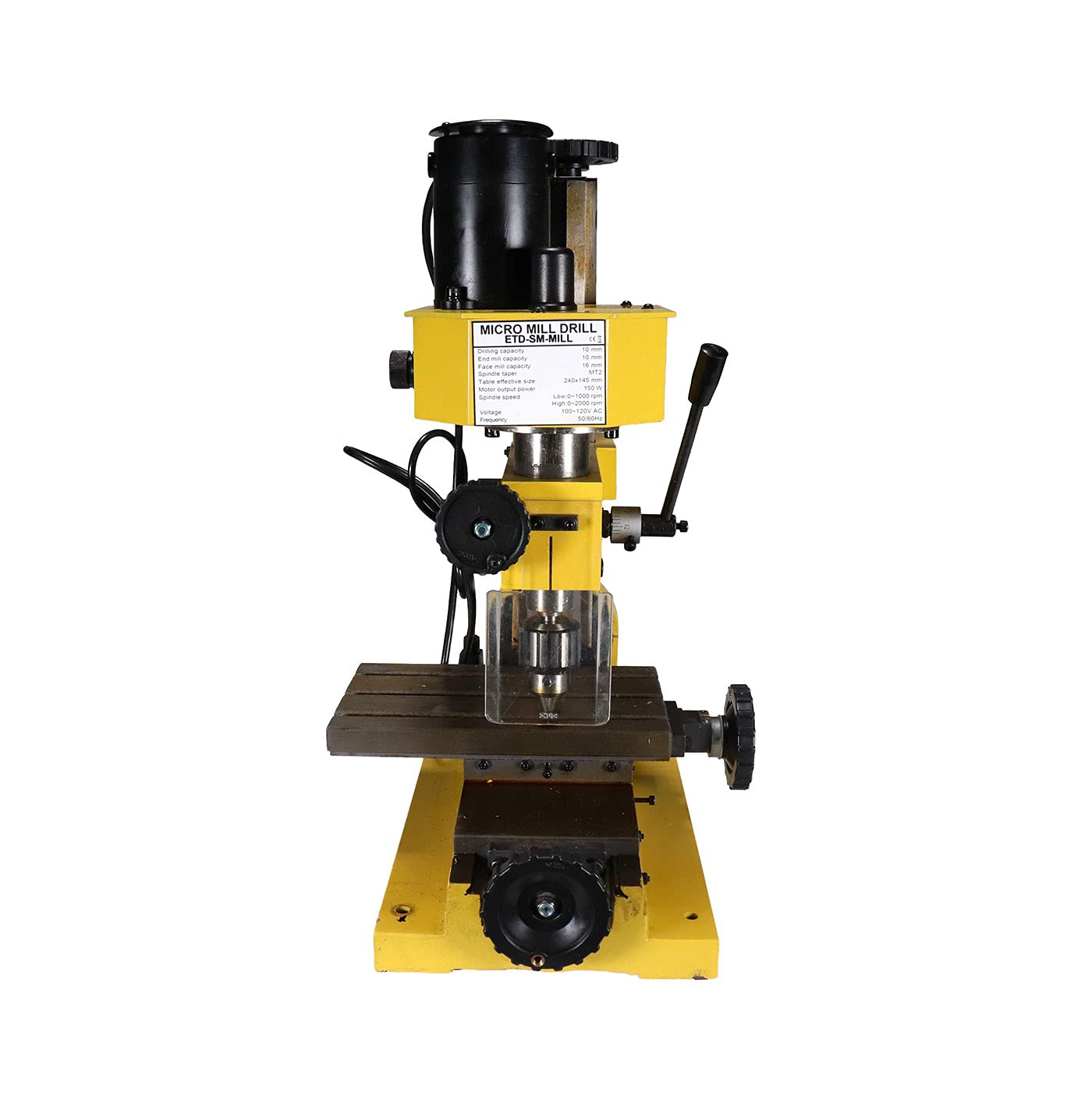

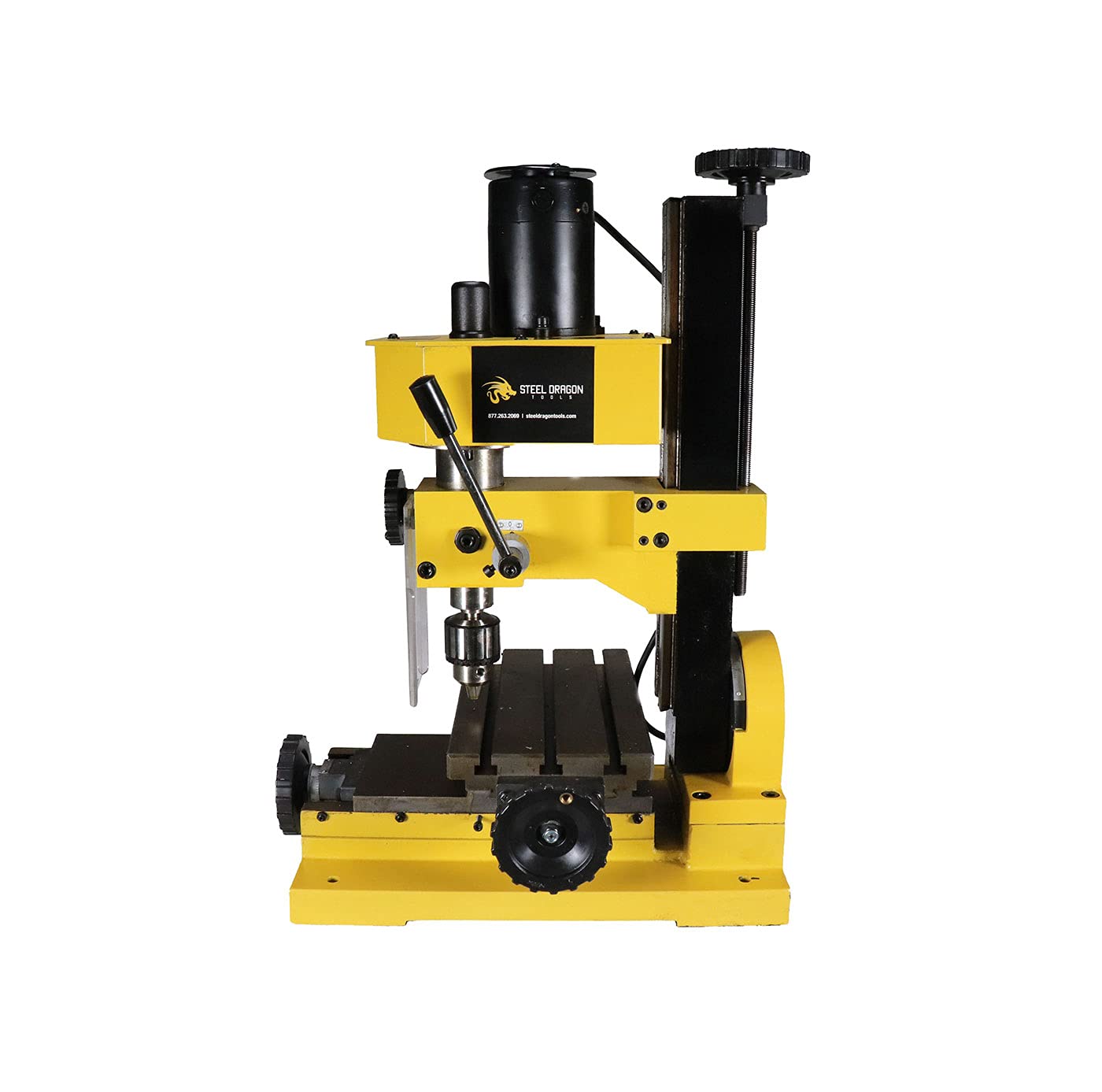

Heavy duty variable speed mini milling and drilling benchtop machine comes standard with a high-speed steel 6-piece 4 Flute with 3/8' Shank cutter set. The set includes 1/8', 3/16', 1/4', 5/16', 3/8' and 5/32' size cutters. This mill has a Drilling and End Mill Capacity of 3/8' along with a Face Mill Capacity of 5/8'.
Specifications:
Drilling Capacity: 3/8'
End Mill Capacity: 3/8'
Face Mill Capacity: 5/8'
Max X-Axis Table Travel: 8.5'
Max Y-Axis Table Travel: 6.5'
Max Z-Axis without collet: 10'
Spindle Taper: MT #2
Spindle Stroke: 1 3/16'
Throat: 5 1/2'
Table Size: 9.45' x 5.70'
Spindle Speed: Low: 0~1000 RPM High: 0~2000 RPM
Motor Output Power: 150W
Features:
Designed for drilling, deep milling and face milling

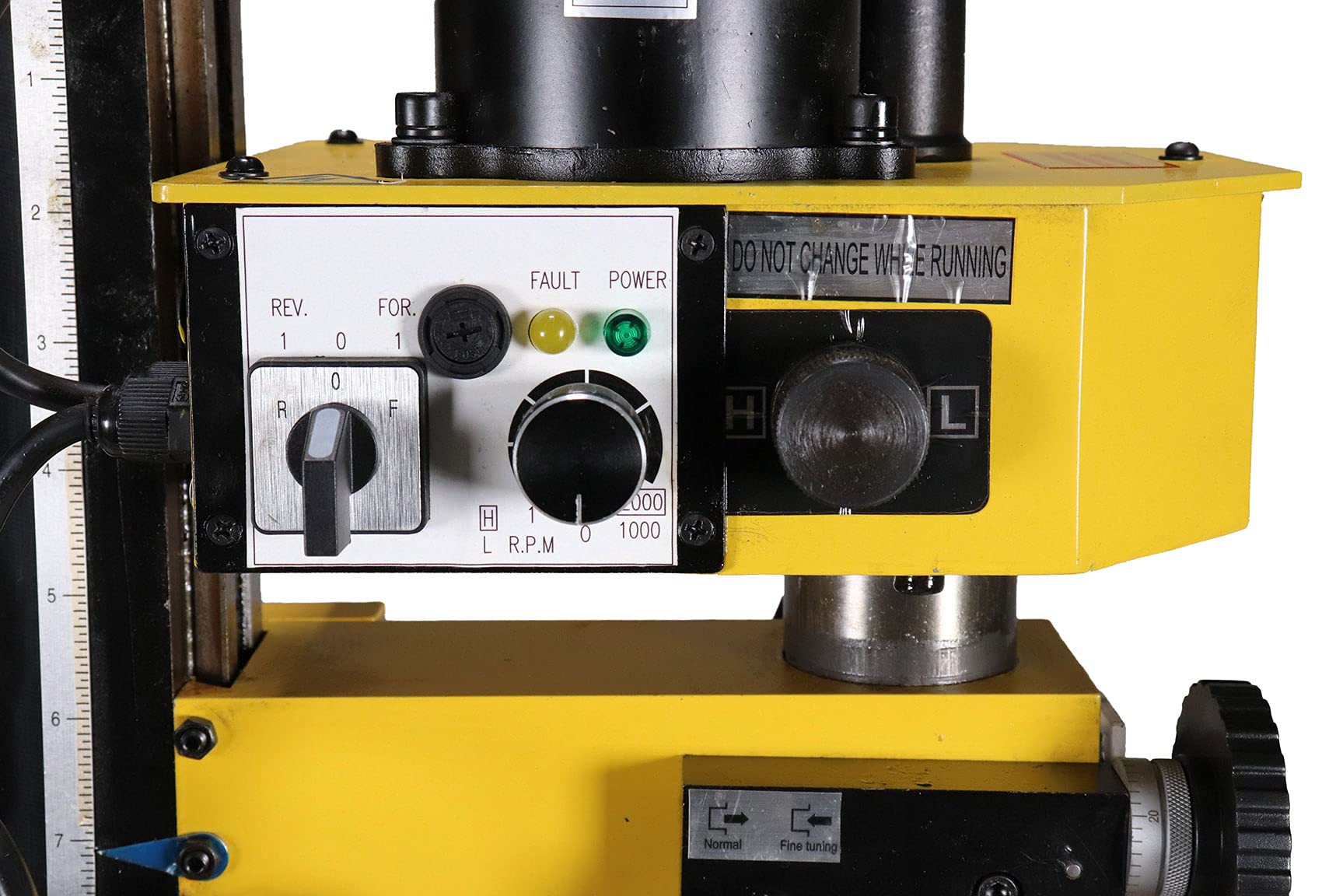

Variable speed control
FWD/REV switch
Safety shut off switch
Adjustable depth stop

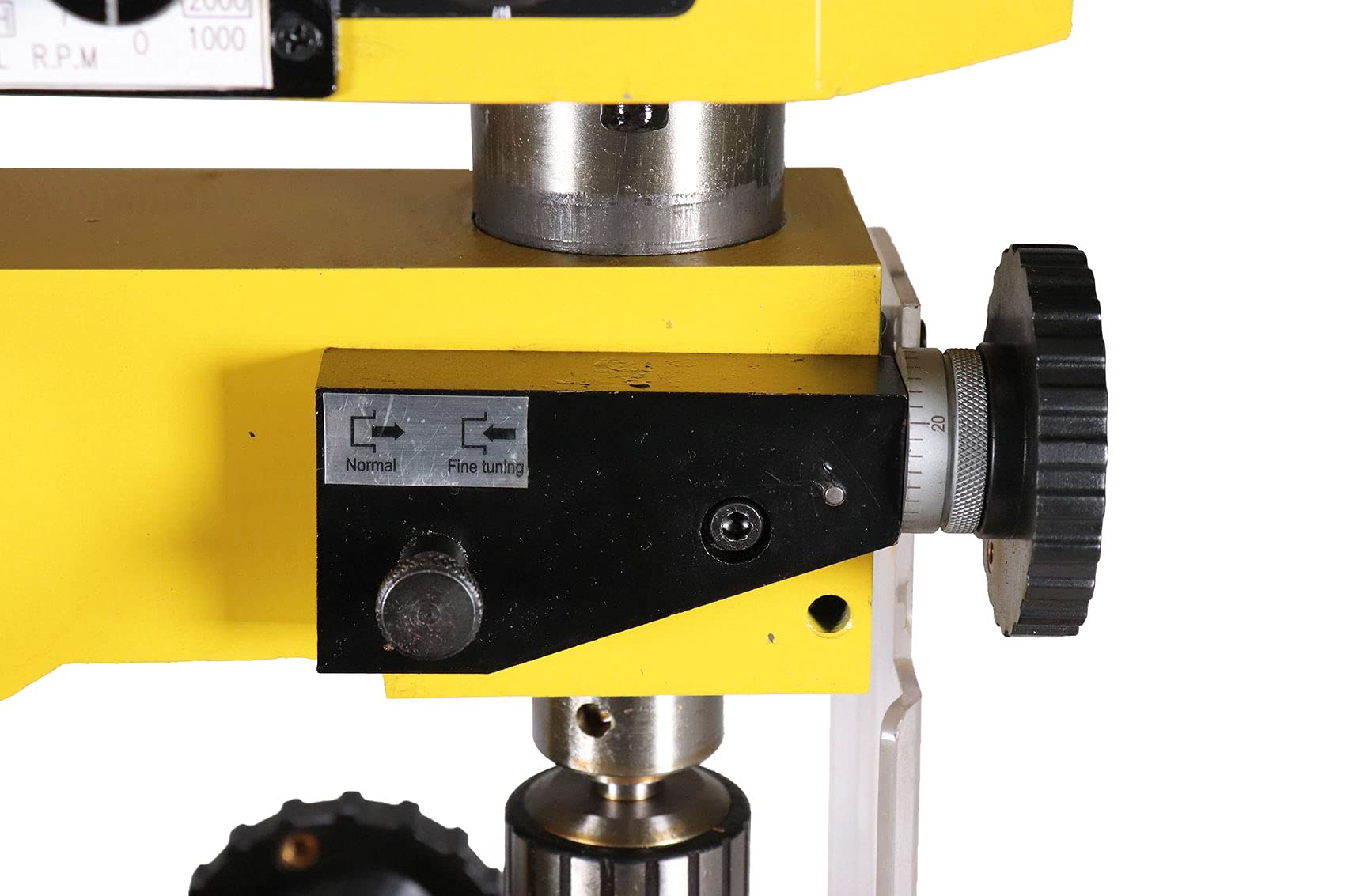

Fine feed hand wheel
Crossfeed hand wheel
Lifting hand wheel
Longitudinal feed hand wheel
Geared drive
A clear guard on the spindle
Zero setting dials read in inches

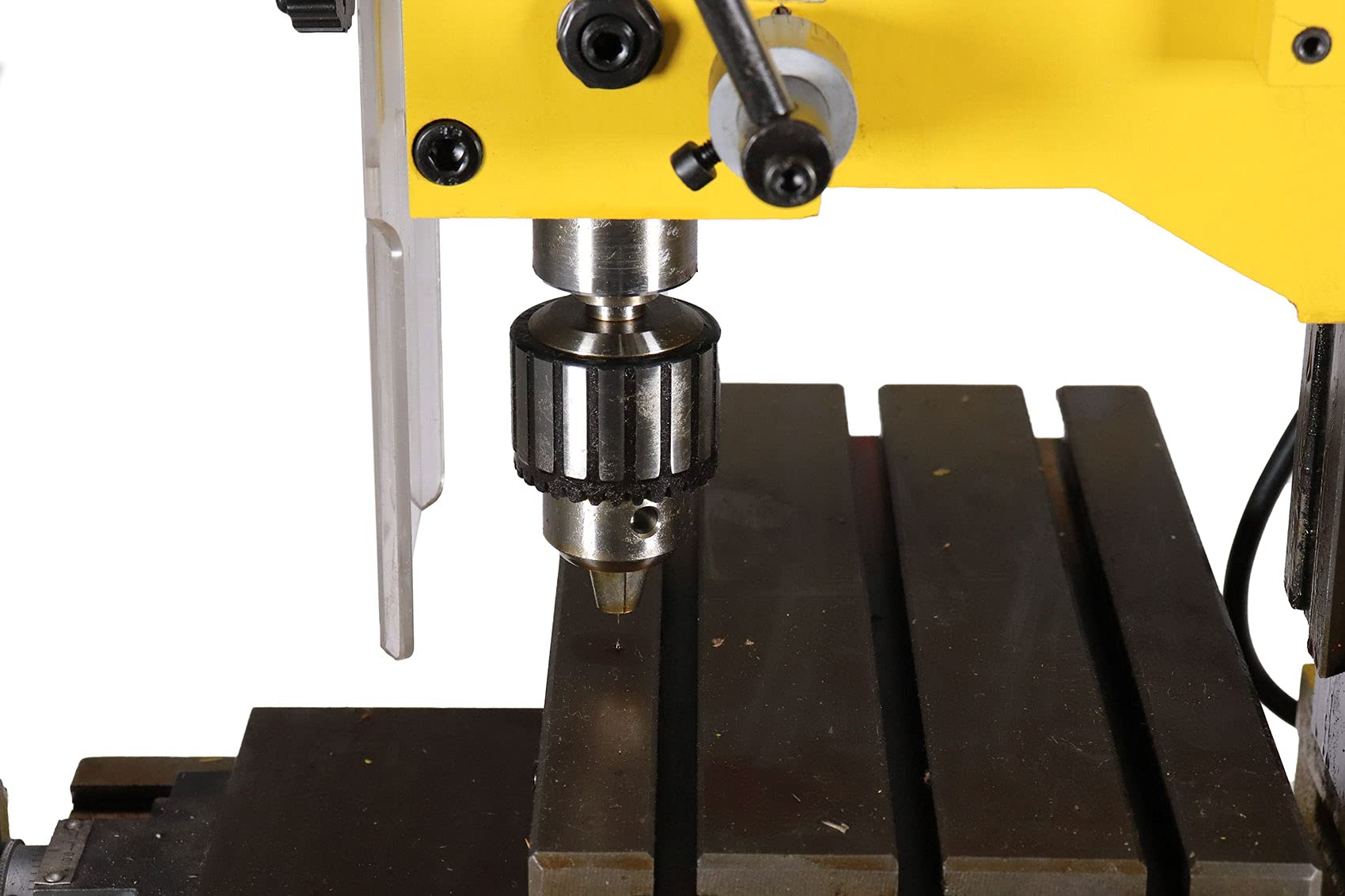

Chuck Capacity: 1/16'-3/8'

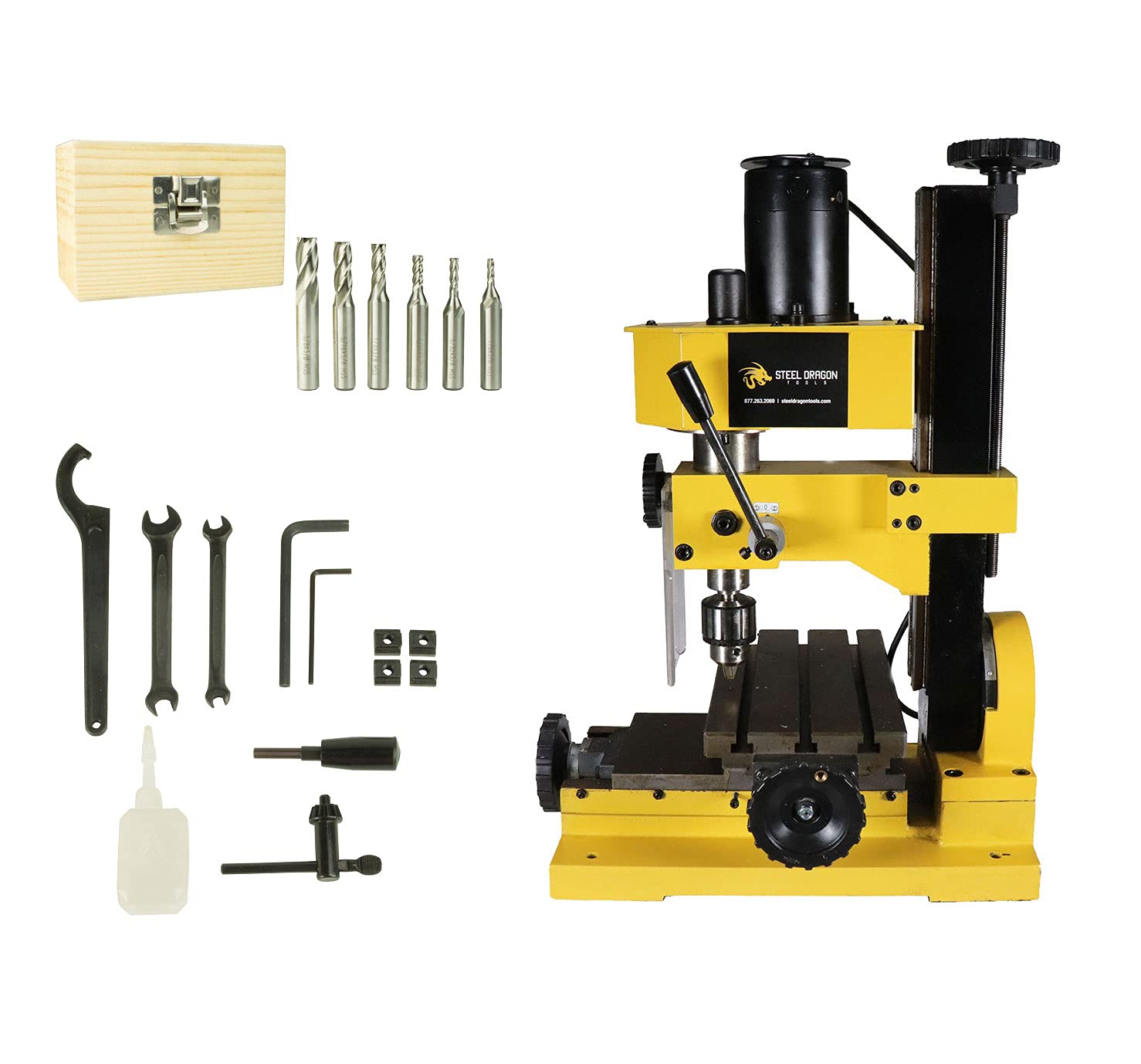

Includes
High-Speed Steel 6-piece 4 Flute with 3/8' Shank set
Includes 1/8', 3/16', 1/4', 5/16', 3/8' and 5/32' sizes
