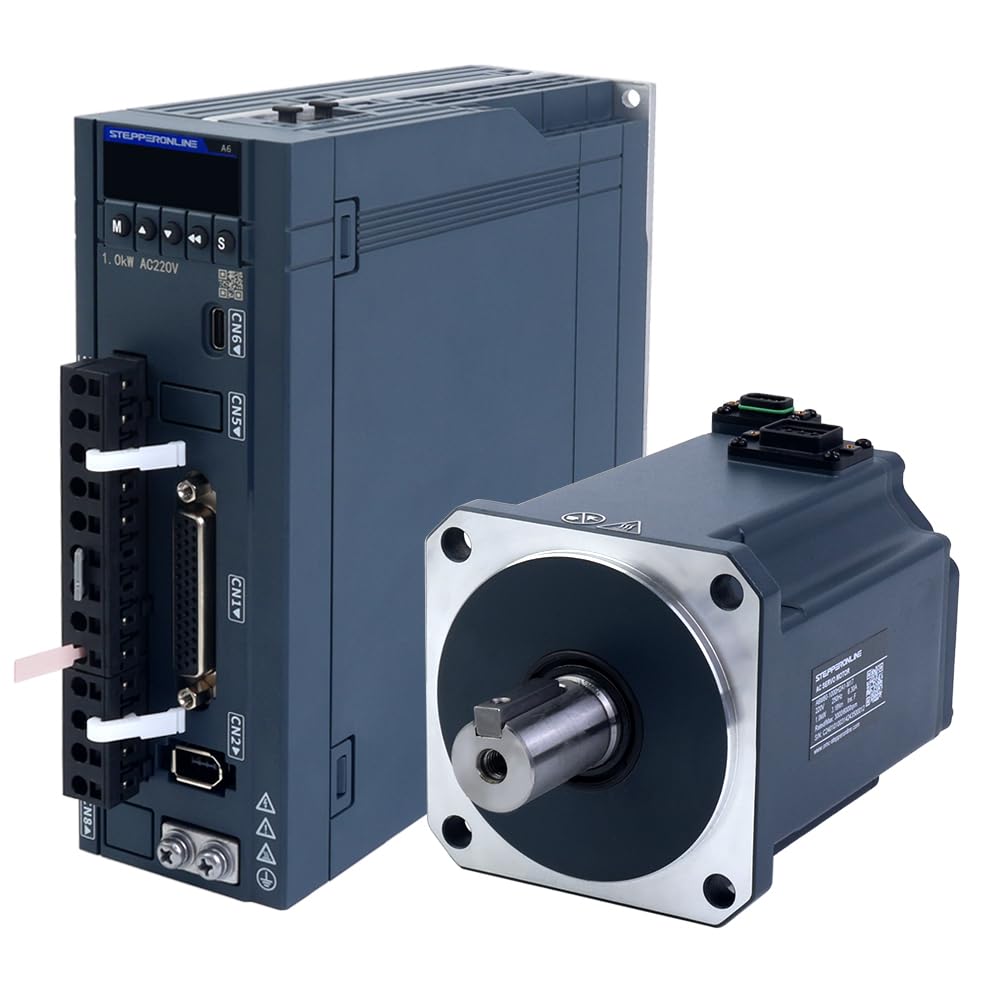

STEPPERONLINE A6 Series 1000W RS485 AC Servo Motor Kit 3000rpm 3.18Nm 17-Bit Absolute Encoder IP67

Brand: STEPPERONLINE

Features:

• This is an A6 series AC servo motor and driver kit that supports Pulse/RS485/Analog communication.
• 1 x A6-1000RS: 1000W Pulse/RS485/Analog AC Servo Motor Driver
• 1 x A6M80-1000H2A1-M17: 1000W AC Servo Motor 3000rpm 3.18Nm 17-Bit Encoder IP67

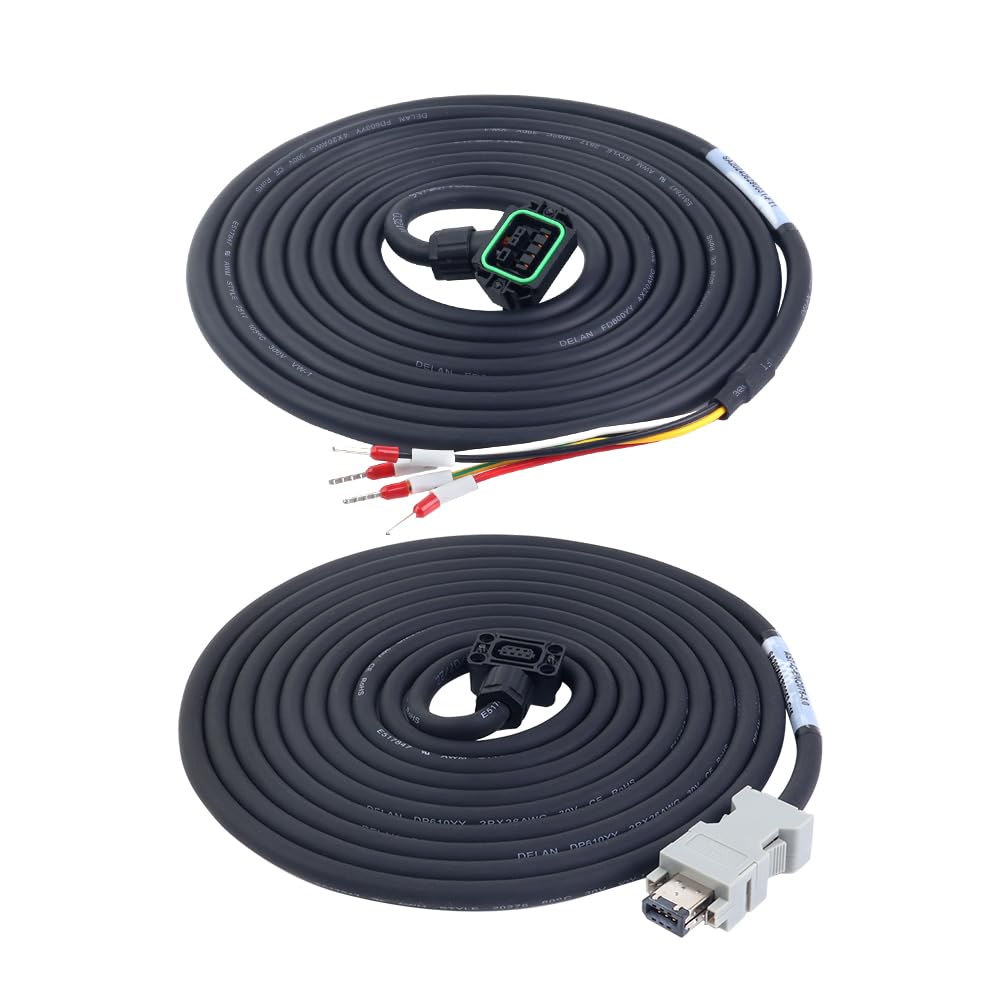

• 1 x AS7-C-PWR075-3.0: 3.0m Motor Cable
• 1 x AS7-C-ENC075-3.0: 3.0m Encoder Cable

model number: A6-RS1000H2A1-M17

Part Number: A6-RS1000H2A1-M17

Details: This is an A6 series AC servo motor and driver kit consisting of a 220VAC 1000W motor and a single/three-phase 220V 1000W servo driver that supports Pulse/RS485/Analog communication. With the built-in 17-bit multiturn absolute encoder, the motor provides excellent servo control performance.
This series of servo products is easy to operate, economical and efficient with optimal balance between performance and costs.
The A6-RS series servo products feature in high response, hight accuracy and cost-efficiency, providing efficient and convenient motion control solutions for various industries.

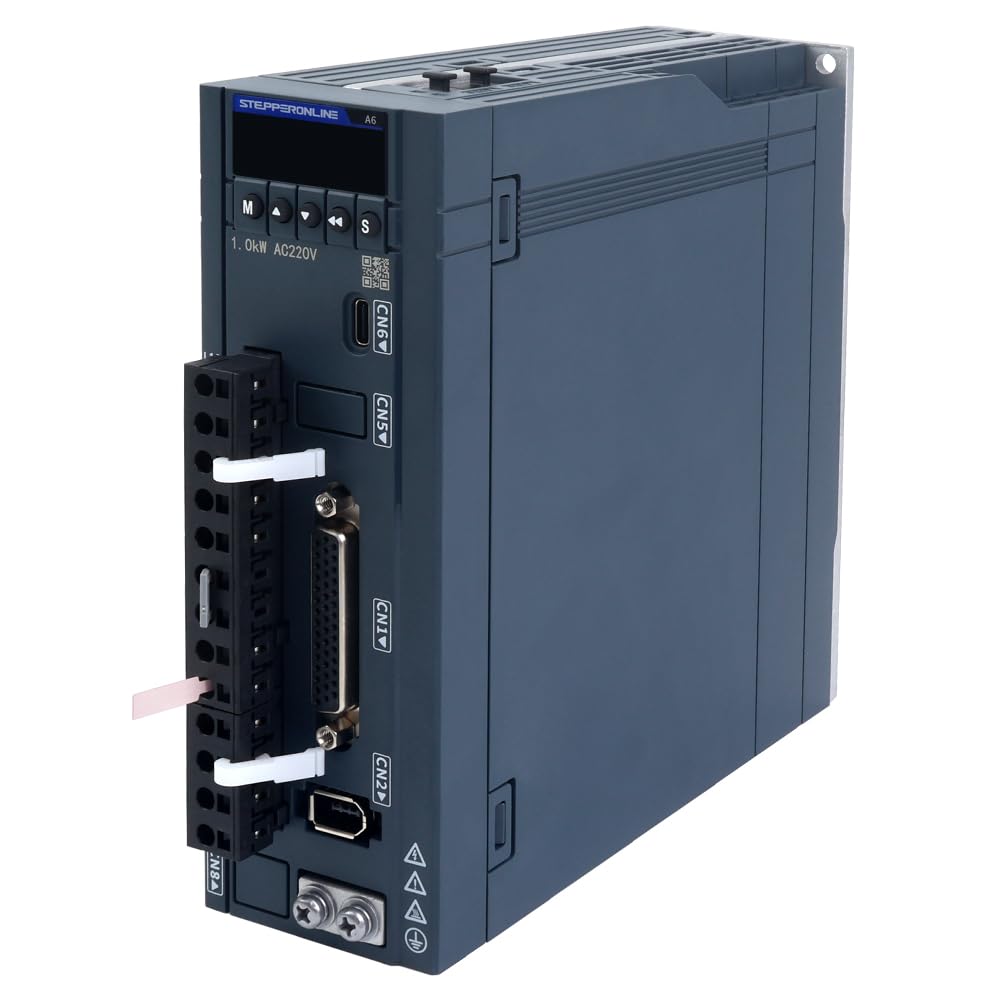

Servo Driver Specification

*Part Number: A6-1000RS
*Pulse/RS485/Analog communication
*2KHz speed loop bandwith
*17-bit absolute encoder

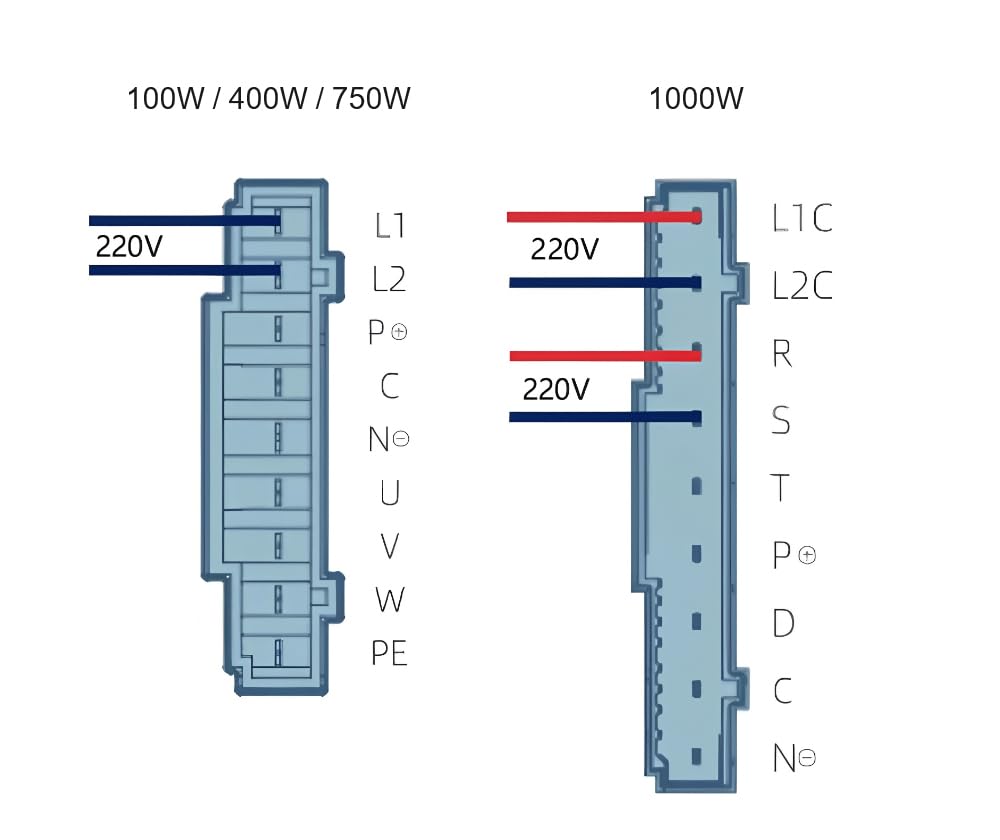

*Rated voltage single/three-phase 220VAC
*Rated power 1000W
*Dimension: 170*174*55mm

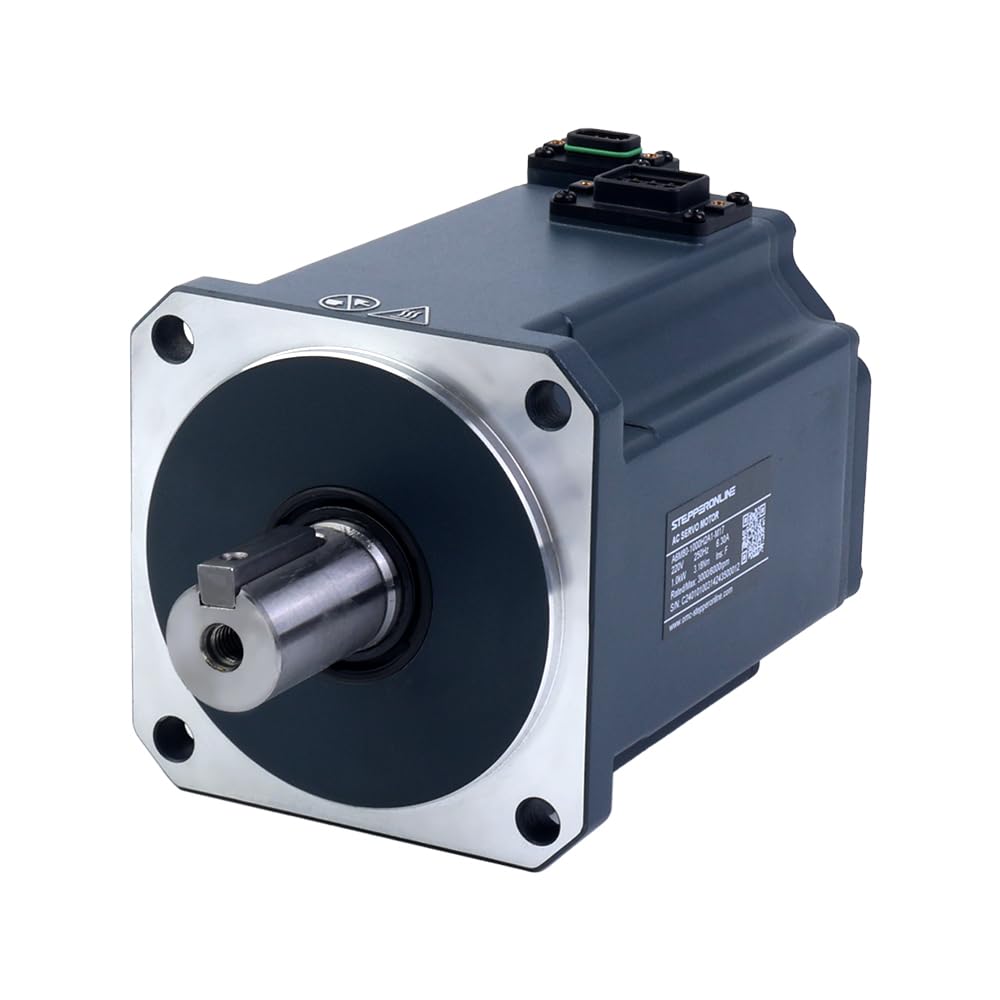

Servo Motor Specification

*Part Number: A6M80-1000H2A1-M17
*Rated Voltage: 220VAC
*Rated Power: 1000W

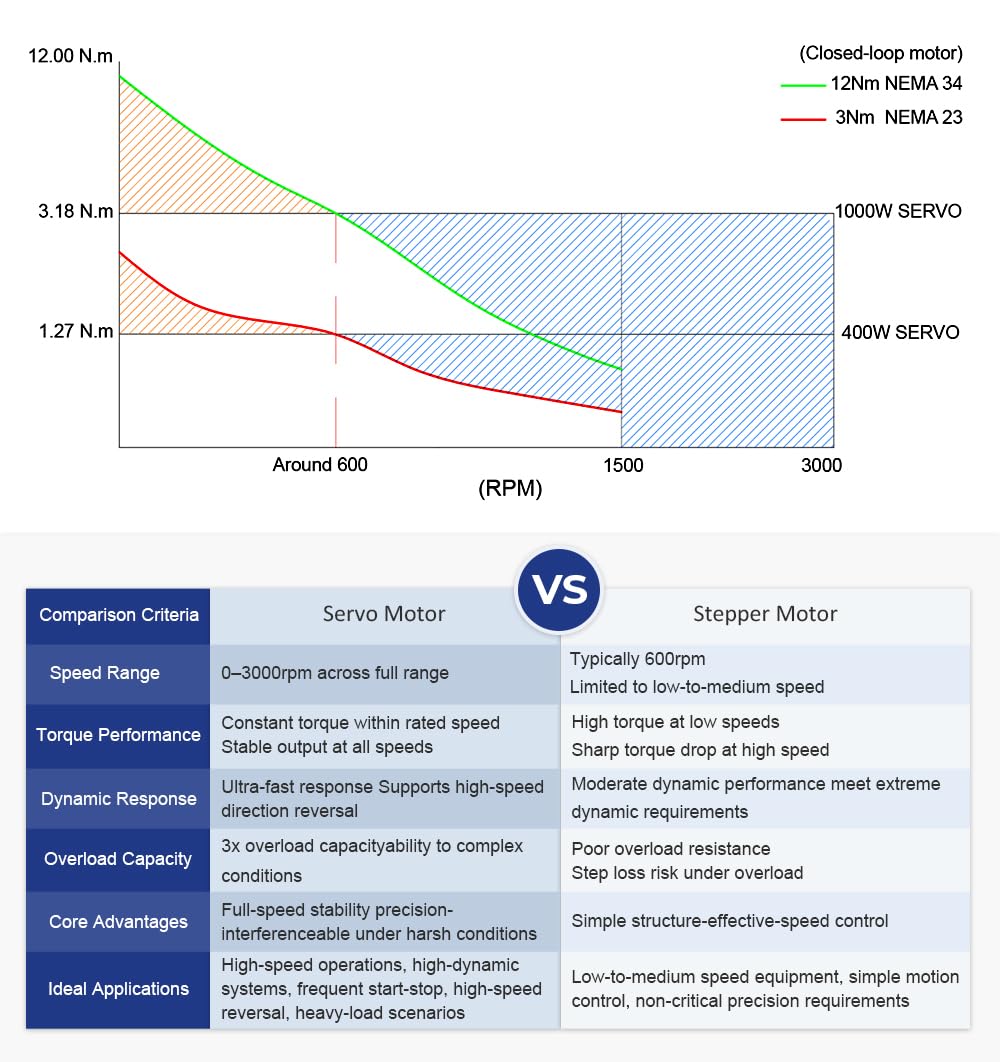

*Rated Torque: 3.18Nm
*Peak Torque: 11.13Nm
*Rated Speed: 3000rpm
*Peak Speed: 6000rpm
*Rated Current: 6.30A
*Peak Current: 20.90A
*Torque Const: 0.50N.m/A
*Back EMF Const: 33.90V/krpm
*Resistance: 0.35ohms
*Inductance: 2.04mH
*Inertia: 2.23kg*m2*10-4
*Poles: 10
*Encoder: 17-bit multi-turn absolute, magnetic encoder(It can only be used as a multi-turn absolute encoder by using the 3m encoder cable with a battery box)
*IP Rating: IP67
*Shaft diameter: 19mm
*Cable Length: 3m

Package Dimensions: 10.2 x 10.2 x 9.1 inches
