STEPPERONLINE AC Servo Motor kit A6 Series 1000W Servo Motor 3000rpm 3.18Nm with Brake 17 Bit Absolute Encoder IP67 + 1000W Impuls/RS485/analoger AC Servo Motor Driver+ 3.0M Cabels

Brand: STEPPERONLINE

Features:

• This is an A6 series AC servo motor and driver kit that supports Pulse/RS485/Analog communication.
• 1 x A6-1000RS: 1000W Pulse/RS485/Analog AC Servo Motor Driver
• 1 x A6M80-1000H2B1-M17: 1000W AC Servo Motor 3000rpm 3.18Nm with Brake 17-Bit Encoder IP67

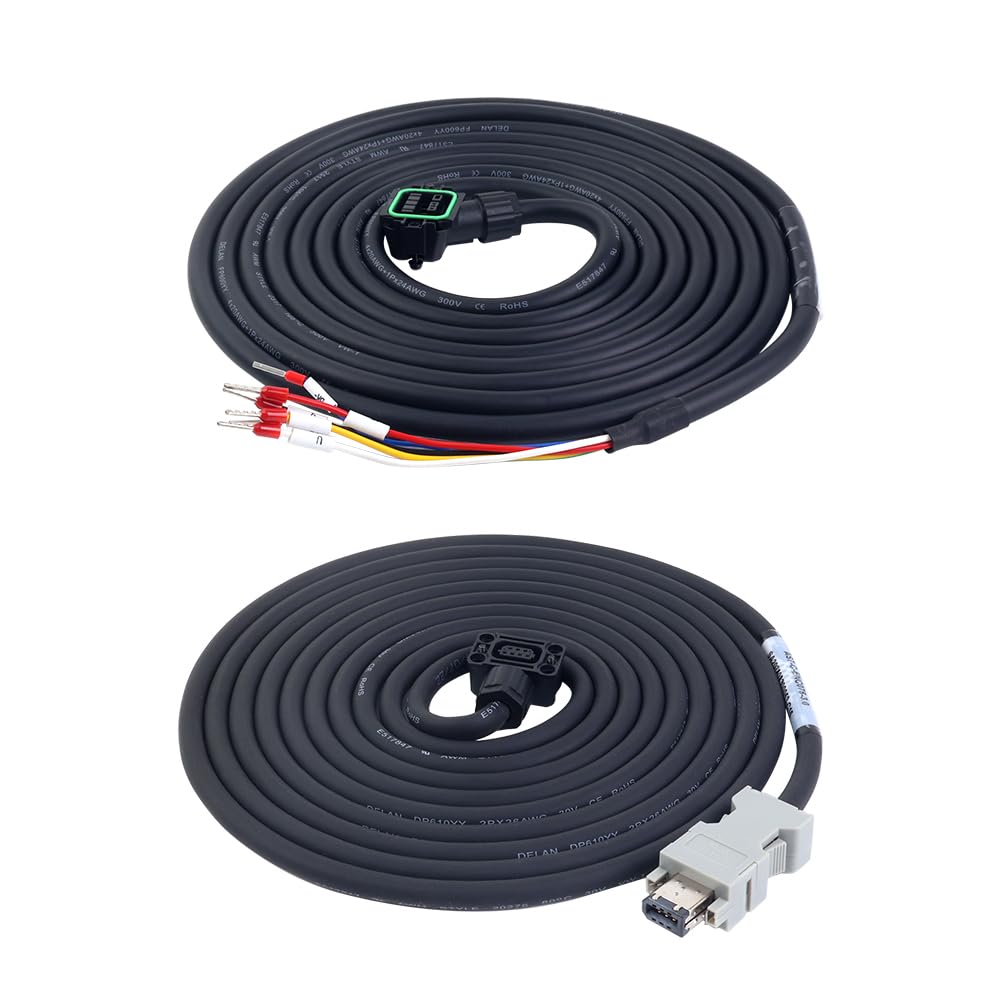

• 1 x AS7-C-PWB075-3.0: 3.0m Motor Cable
• 1 x AS7-C-ENC075-3.0: 3.0m Encoder Cable

model number: A6-RS1000H2B1-M17

Part Number: A6-RS1000H2B1-M17

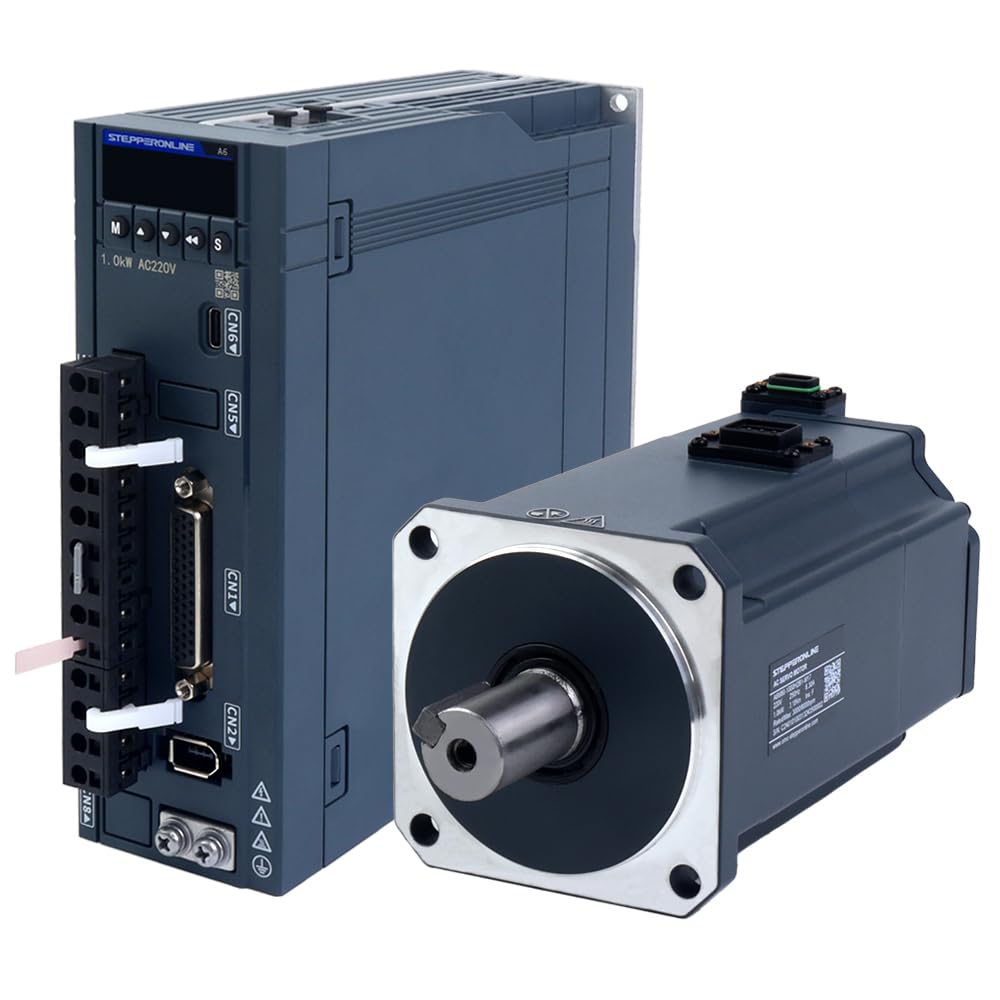

Details: This is an A6 series AC servo motor and driver kit consisting of a 220VAC 1000W motor with the built-in 17-bit multiturn absolute encoder and a 24V 8.5W brake, and a single/three-phase 220V 1000W servo driver that supports Pulse/RS485/Analog communication. The motor provides excellent servo control performance.
This series of servo products is easy to operate, economical and efficient with optimal balance between performance and costs.
The A6-RS series servo products feature in high response, hight accuracy and cost-efficiency, providing efficient and convenient motion control solutions for various industries.

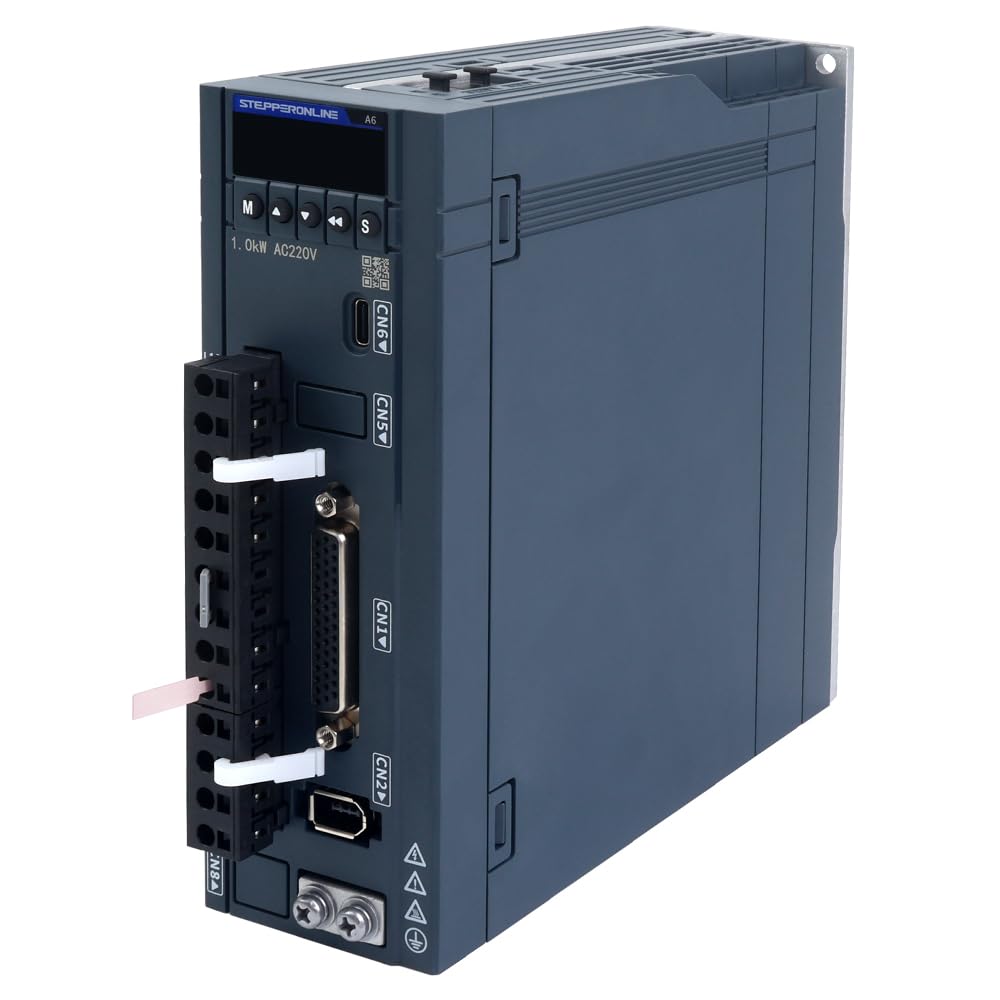

Servo Driver Specification

*Part Number: A6-1000RS
*Pulse/RS485/Analog communication
*2KHz speed loop bandwith
*17-bit absolute encoder

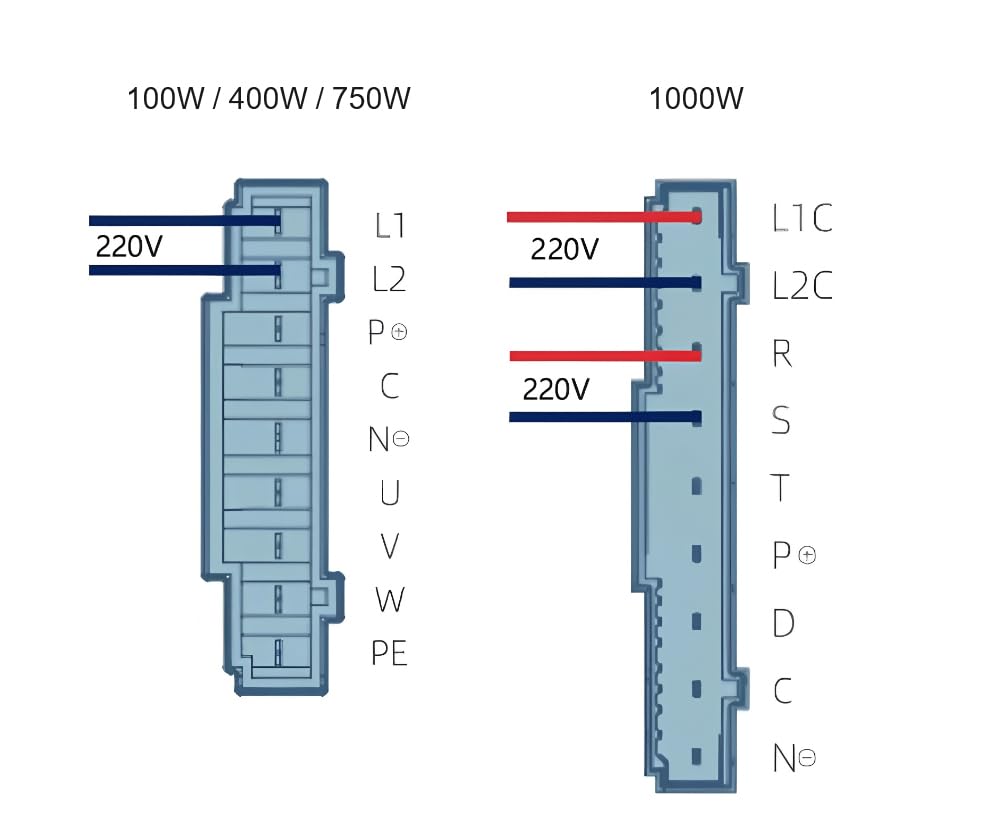

*Rated voltage single/three-phase 220VAC
*Rated power 1000W
*Dimension: 170*174*55mm
*Built-in dynamic brake function

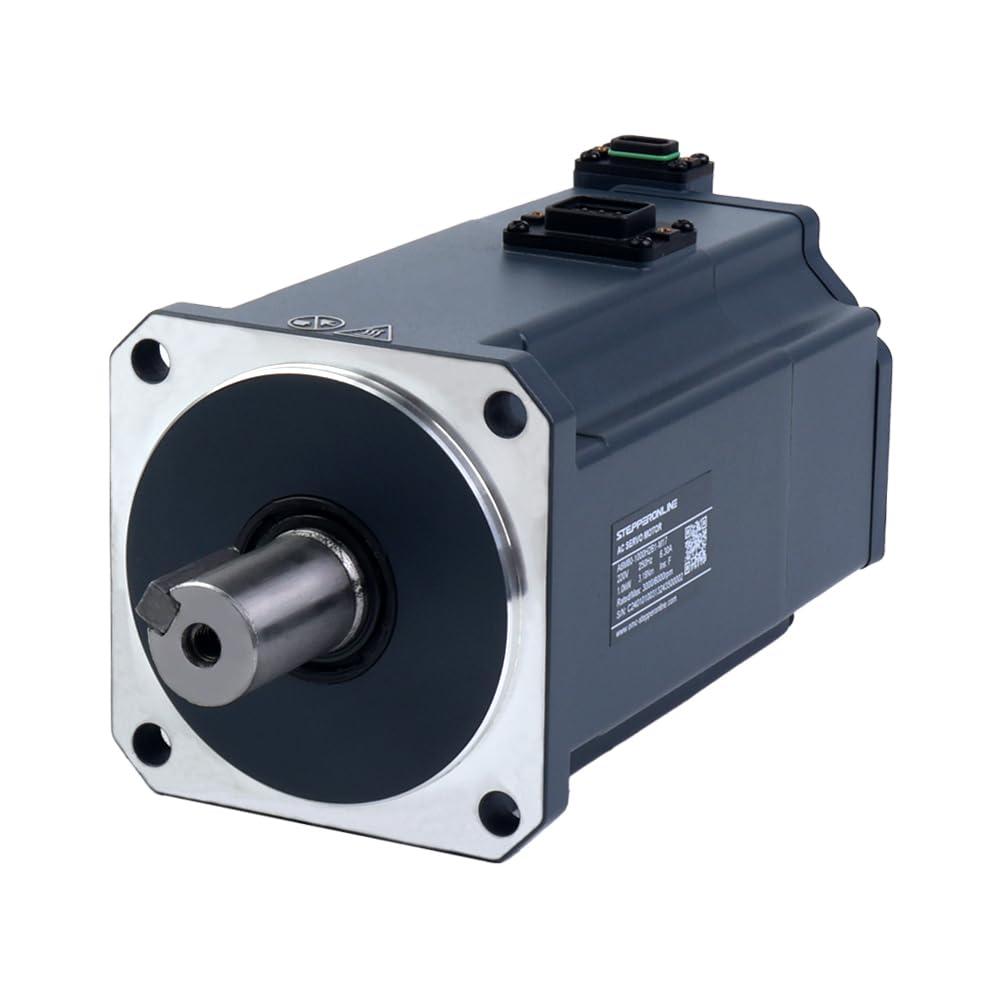

Servo Motor Specification

*Part Number: A6M80-1000H2B1-M17
*Rated Voltage: 220VAC
*Rated Power: 1000W
*Rated Torque: 3.18Nm
*Peak Torque: 11.13Nm
*Rated Speed: 3000rpm
*Peak Speed: 6000rpm
*Rated Current: 6.30A
*Peak Current: 20.90A
*Torque Const: 0.50N.m/A
*Back EMF Const: 33.90V/krpm
*Resistance: 0.35ohms
*Inductance: 2.04mH
*Inertia: 2.28kg*m2*10-4
*Poles: 10
*Encoder: 17-bit multi-turn absolute, magnetic encoder(It can only be used as a multi-turn absolute encoder by using the 3m encoder cable with a battery box)
*IP Rating: IP67
*Shaft diameter: 19mm
*Brake Voltage: 24V DC
*Brake Power: 8.5W
*Brake Holding Torque: 3.20Nm
*Cable Length: 3m

Package Dimensions: 10.2 x 10.2 x 9.1 inches
