STEPPERONLINE AC Servo Motor kit EtherCAT A6 Series 750W Servo Motor 3000rpm 2.39Nm with Brake 17 Bit Absolute Encoder IP67 + 750W EtherCAT AC Servo Motor Driver+ 3.0M Cabels

Brand: STEPPERONLINE

Features:

• This is an A6 series AC servo motor and driver kit that supports EtherCAT communication.
• 1 x A6-750EC: 750W EtherCAT AC Servo Motor Driver
• 1 x A6M80-750H2B1-M17: 750W AC Servo Motor 3000rpm 2.39Nm with Brake 17-Bit Encoder IP67

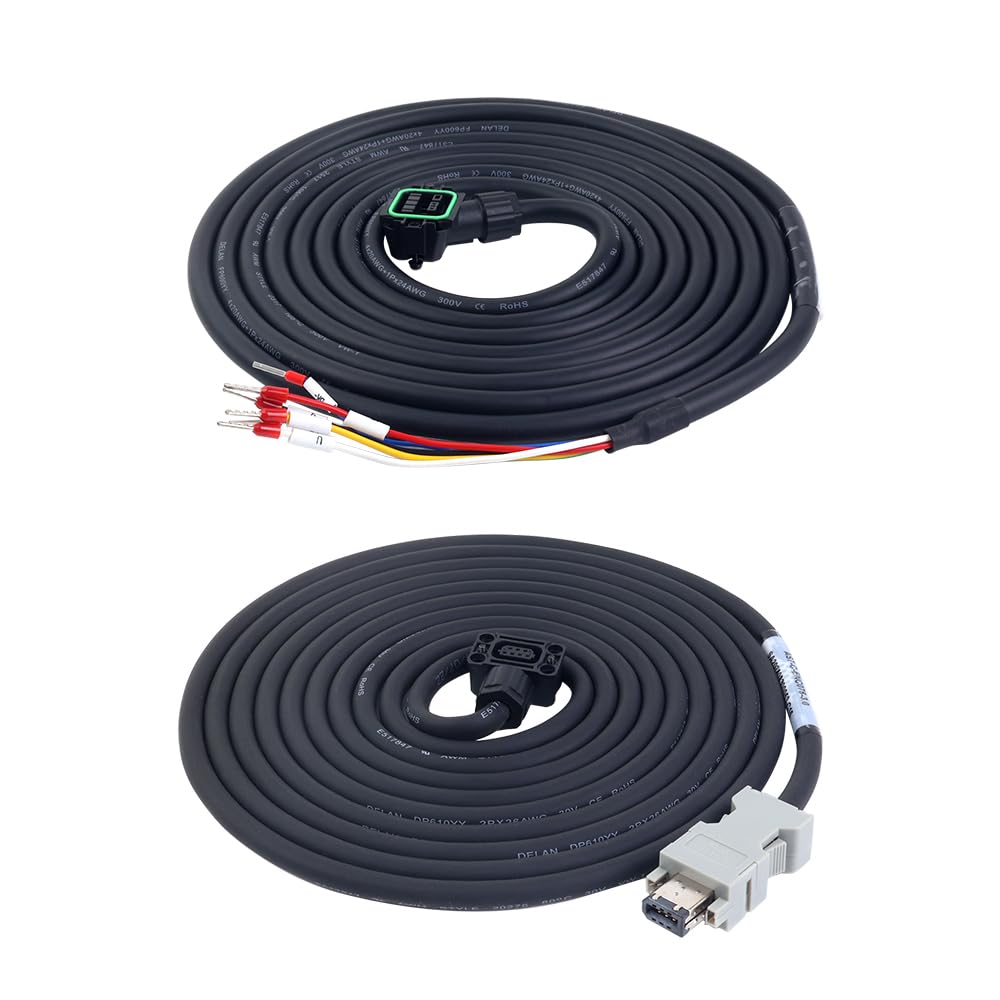

• 1 x AS7-C-PWB075-3.0: 3.0m Motor Cable
• 1 x AS7-C-ENC075-3.0: 3.0m Encoder Cable

model number: A6-EC750H2B1-M17

Part Number: A6-EC750H2B1-M17

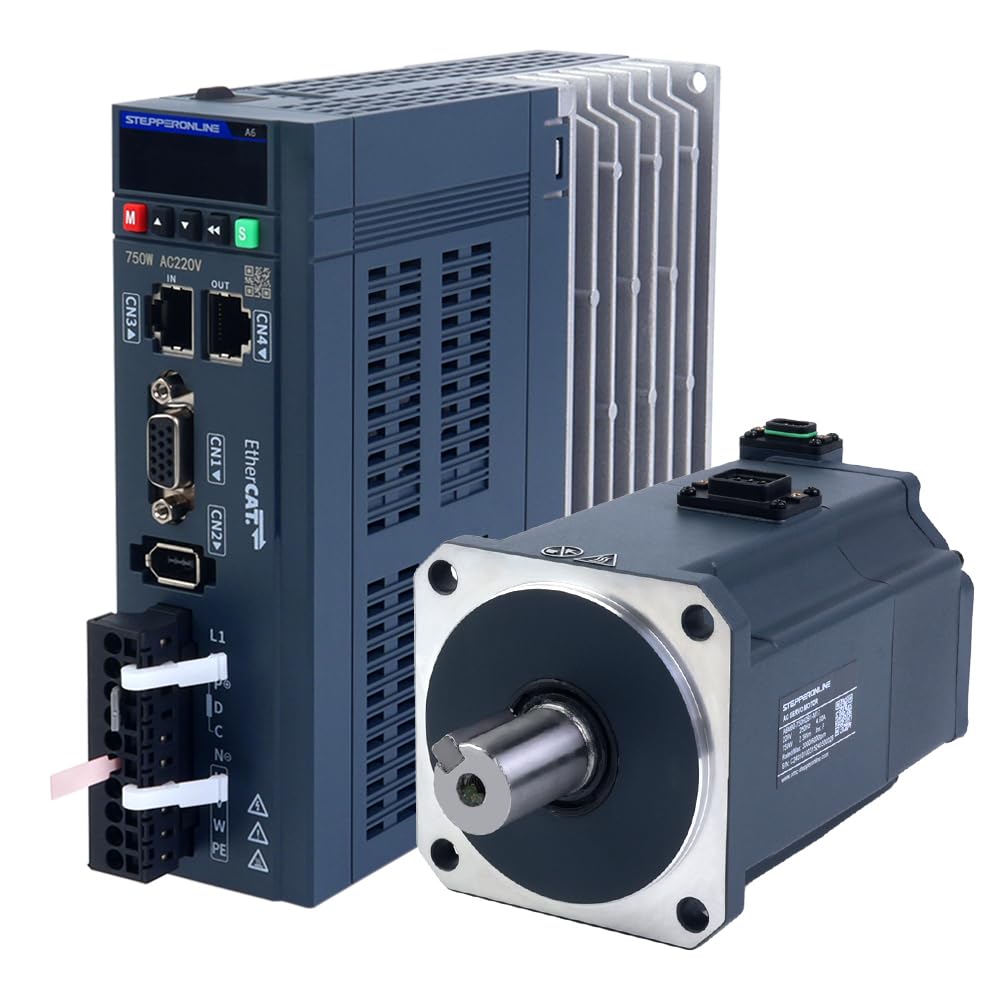

Details: This is an A6 series AC servo motor and driver kit consisting of a 220VAC 750W motor with the built-in 17-bit multiturn absolute encoder and a 24V 8.5W brake, and a single-phase 220V 750W servo driver that supports EtherCAT communication. The motor provides excellent servo control performance.
This series of servo products is easy to operate, economical and efficient. It has the characteristics of high response, high precision, high speed, high synchronization, etc., supporting one-button self-tuning and automatic inertia detectionetc.
The A6-EC series servo products feature in high cost-efficiency and are compatible with popular PLCs from brands such as Beckhoff and Omron, providing efficient and convenient motion control solutions for various industries.

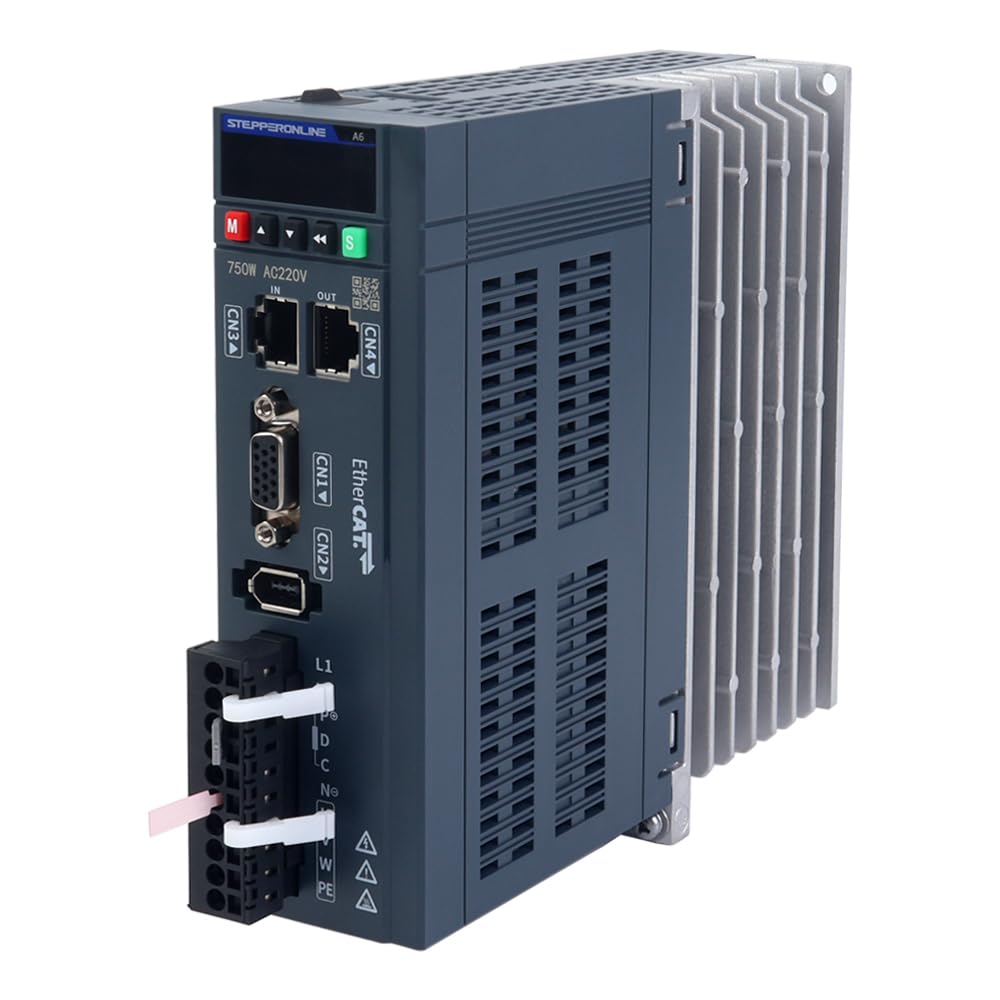

Servo Driver Specification

*Part Number: A6-750EC
*EtherCAT communication
*2KHz speed loop bandwith
*17-bit absolute encoder
*125μs synchronization period
*300 nodes at 120m distance, 15 ns synchronization error, %C2%B120 ns synchronization jitter
*Rated voltage single-phase 220VAC
*Rated power 750W
*Automatic motor identification
*Dimension: 170*174*50mm
*Built-in dynamic brake function

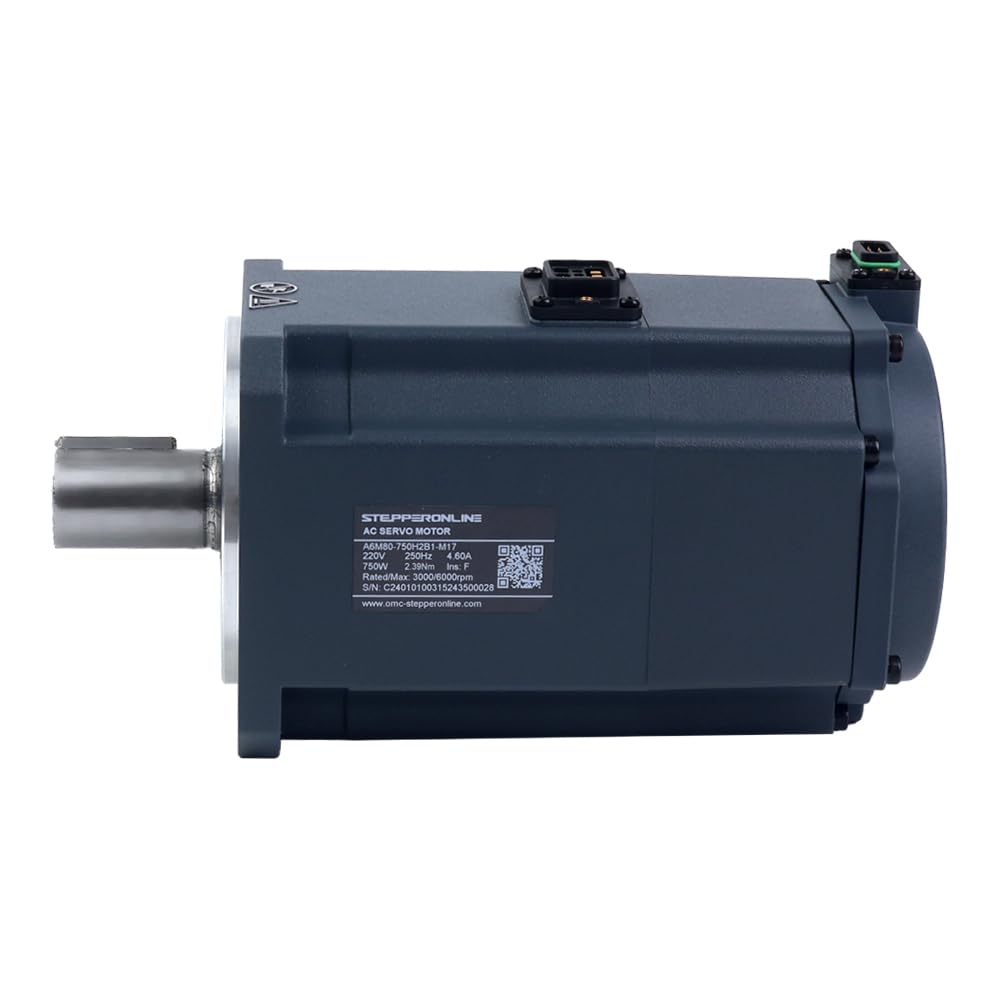

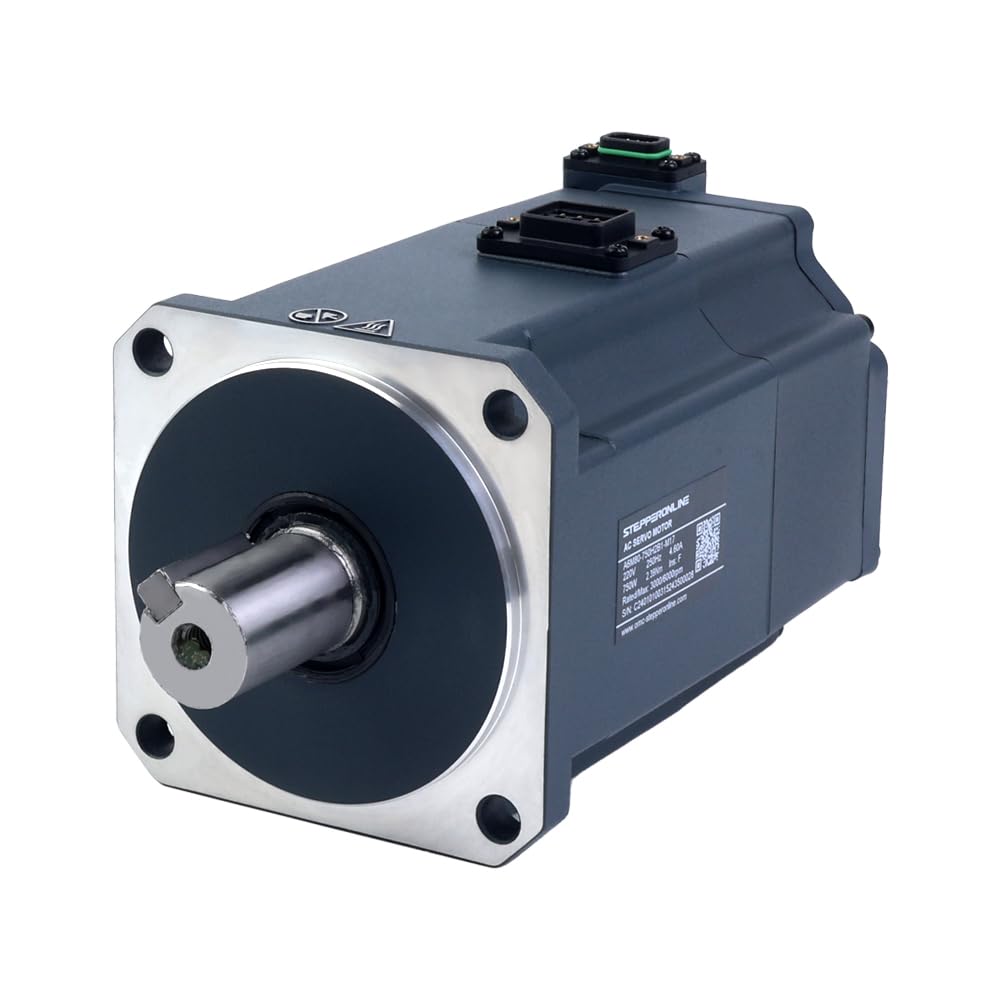

Servo Motor Specification

*Part Number: A6M80-750H2B1-M17
*Rated Voltage: 220VAC
*Rated Power: 750W
*Rated Torque: 2.39Nm
*Peak Torque: 8.36Nm
*Rated Speed: 3000rpm
*Peak Speed: 6000rpm
*Rated Current: 4.60A
*Peak Current: 16.30A
*Torque Const: 0.52N.m/A
*Back EMF Const: 34.40V/krpm
*Resistance: 0.47ohms
*Inductance: 2.80mH
*Inertia: 1.77kg*m2*10-4
*Poles: 10
*Encoder: 17-bit multi-turn absolute, magnetic encoder(It can only be used as a multi-turn absolute encoder by using the3m encoder cable with a battery box)
*IP Rating: IP67
*Shaft diameter: 19mm
*Brake Voltage: 24V DC
*Brake Power: 8.5W
*Brake Holding Torque: 3.20Nm
*Cable Length: 3m

Package Dimensions: 10.2 x 10.2 x 9.1 inches
