SWANSOFT Electric Hydraulic Crimping Tool, 6Ton 6AWG-600MCM Continuously Crimp Hydraulic Wire crimper for Cu/Al Terminal, Crimp 30000 Times Wire Cable Lug Crimping Tool Kit with 11 Dies (600B)

Brand: SWANSOFT

Color: Deep Blue

Features:

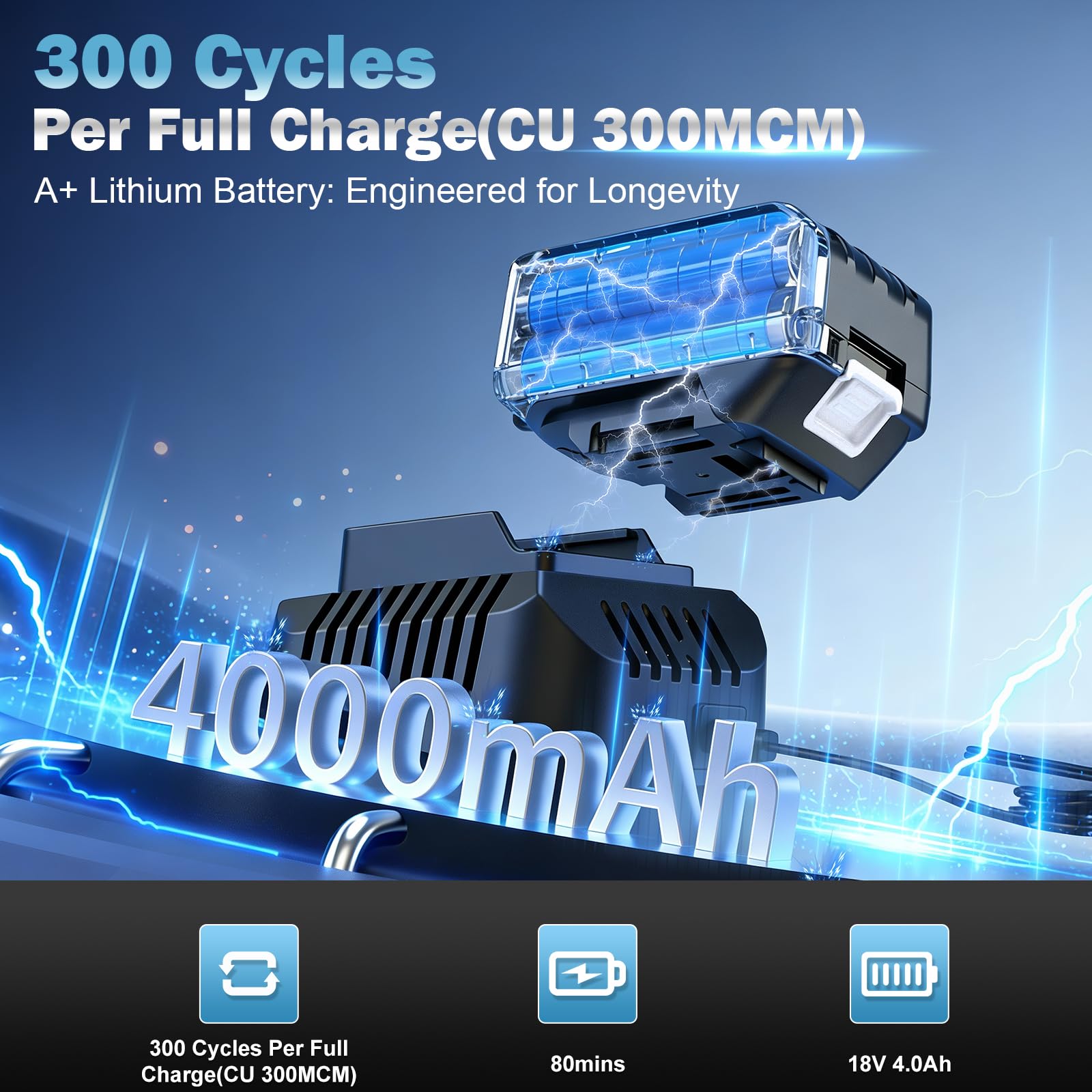

• [2x4AH Large Capacity Battery] Powered by dual A+ grade 4000mAh lithium batteries, this hydraulic crimper supports uninterrupted operation by delivering consistent high pressure throughout the work cycle. It achieves a full charge in just 80 minutes and provides power for up to 300 precise crimps on 300 MCM copper cable per charge.

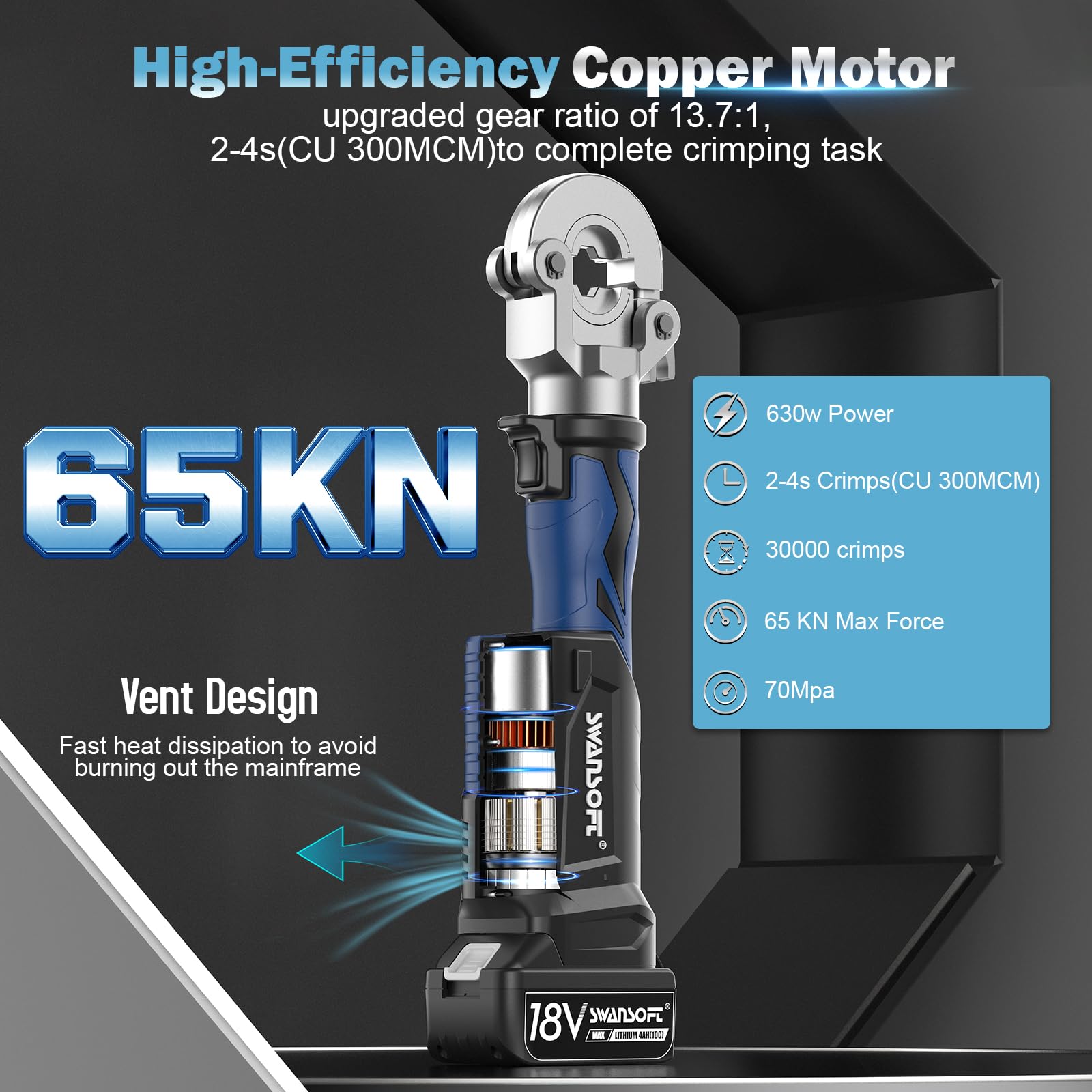

• [65 KN Hydraulic Capacity] This electric crimping tool is built with a durable pure copper-core 650W motor that delivers 65 KN of force, and a 13.7:1 gear ratio enables crimping of 300 MCM copper cable in just 2–4 seconds. Featuring a German oil cylinder with a 1.62 oz capacity and double seals, it is designed to perform 30,000 crimping cycles with only one required maintenance interval, and includes an integrated heat sink to prevent overheating and motor burnout. Do not operate without the die set installed, as this may cause serious damage to the hydraulic system.

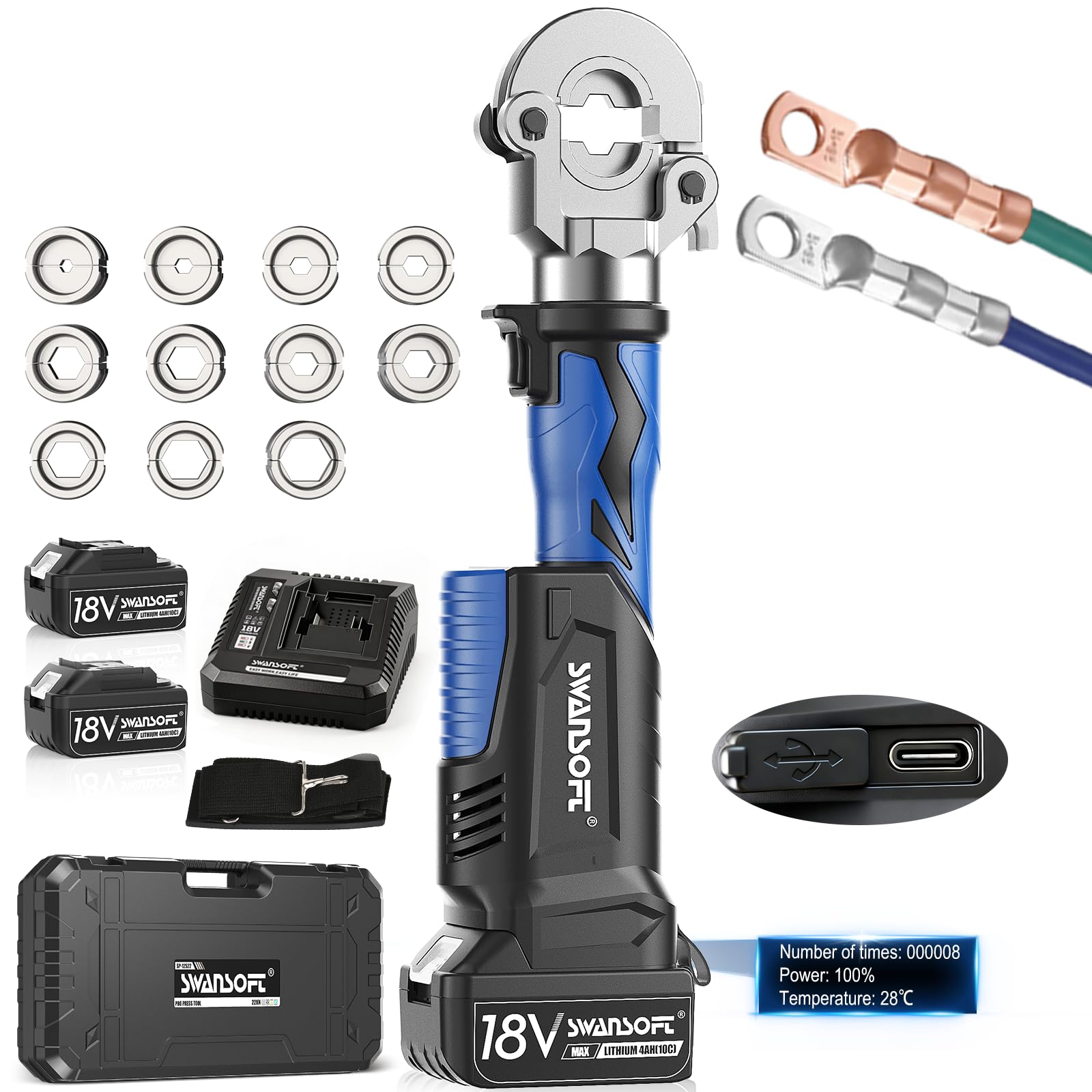

• [11 Pcs Standard American Dies] This complete die set (6AWG–600MCM) ensures full compatibility with industry-standard cable lugs and connectors. Since the dies are calibrated to copper standards, the next larger die size must be used when crimping aluminum cable lugs; a small amount of material overflow in this case is normal and does not affect the mechanical strength or electrical conductivity of the connection.

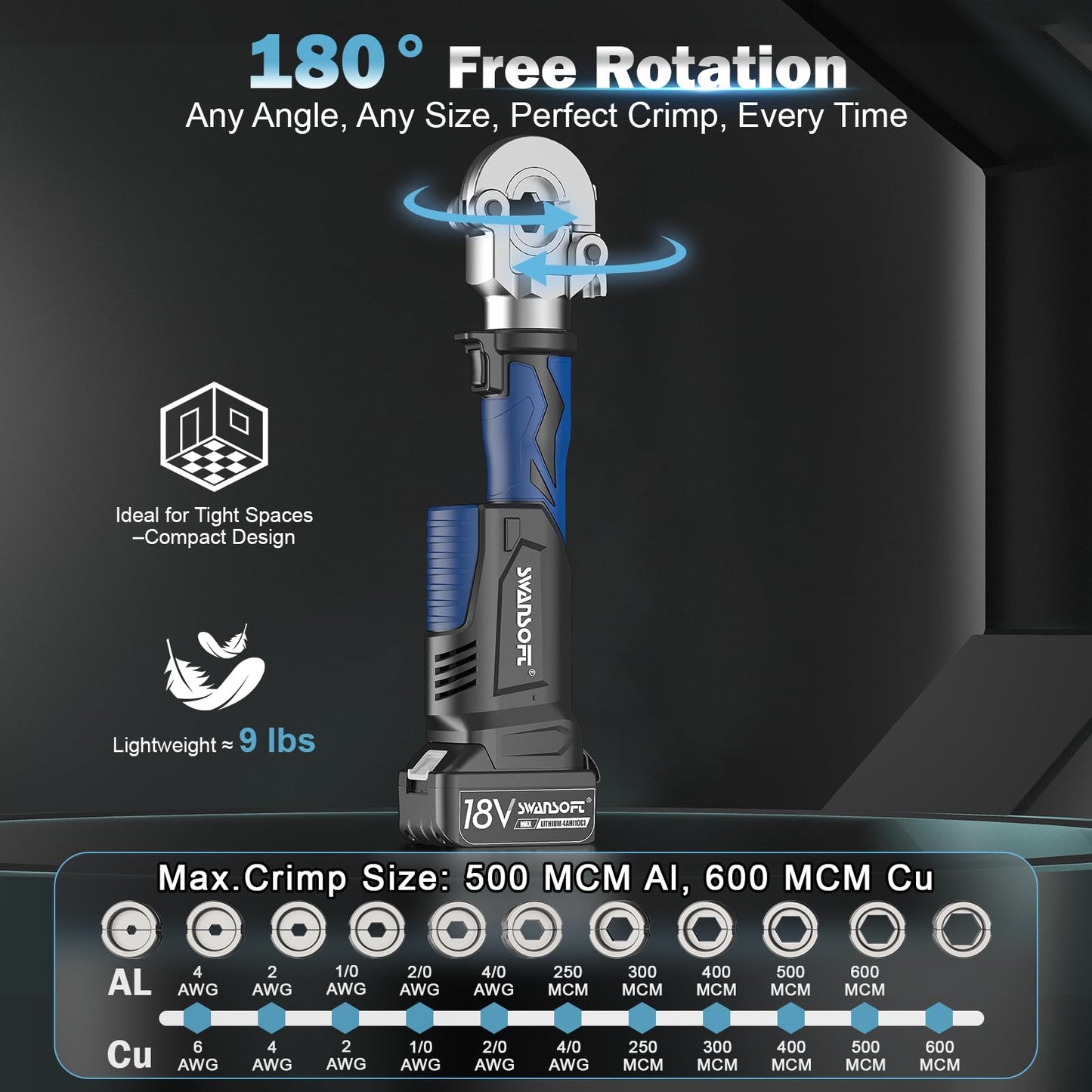

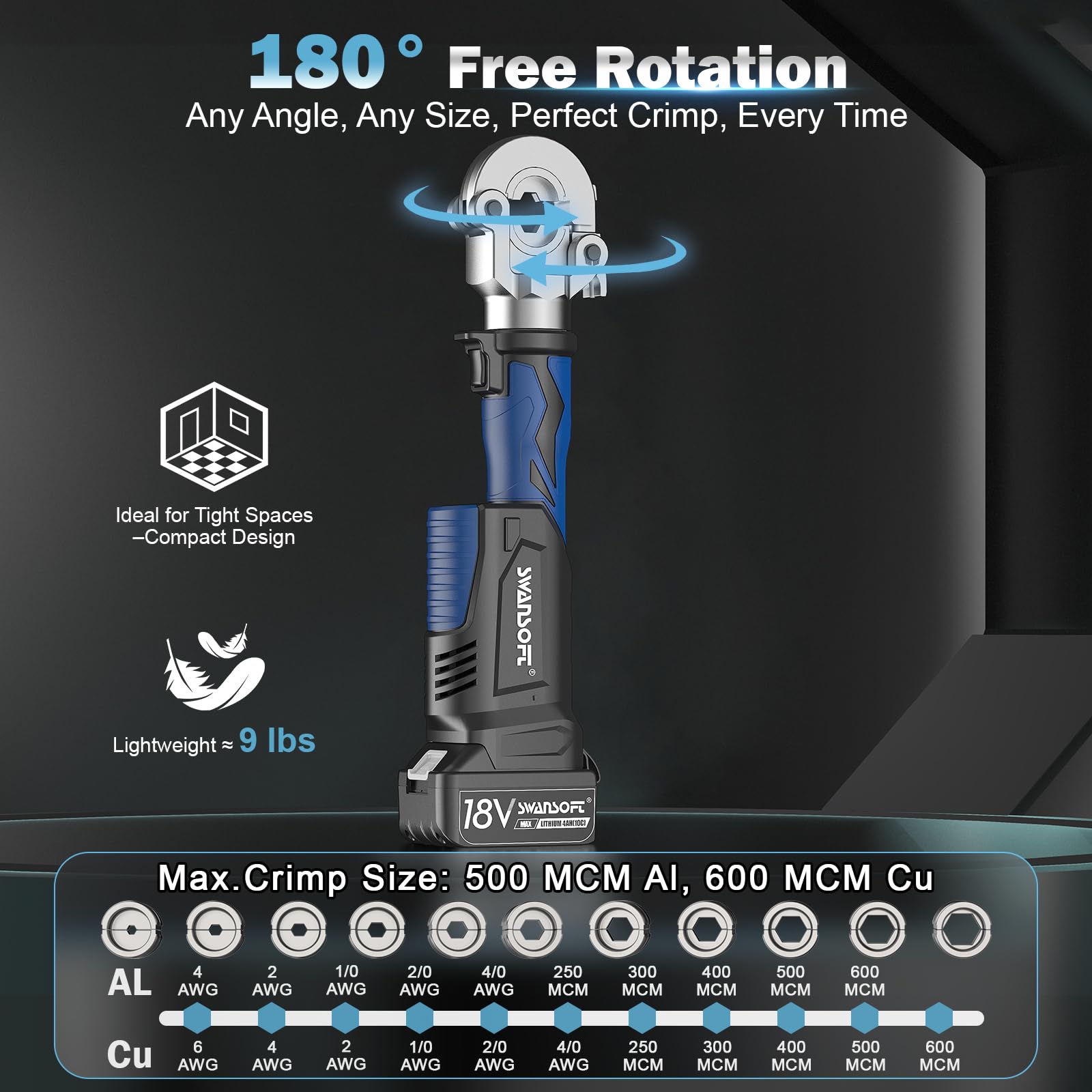

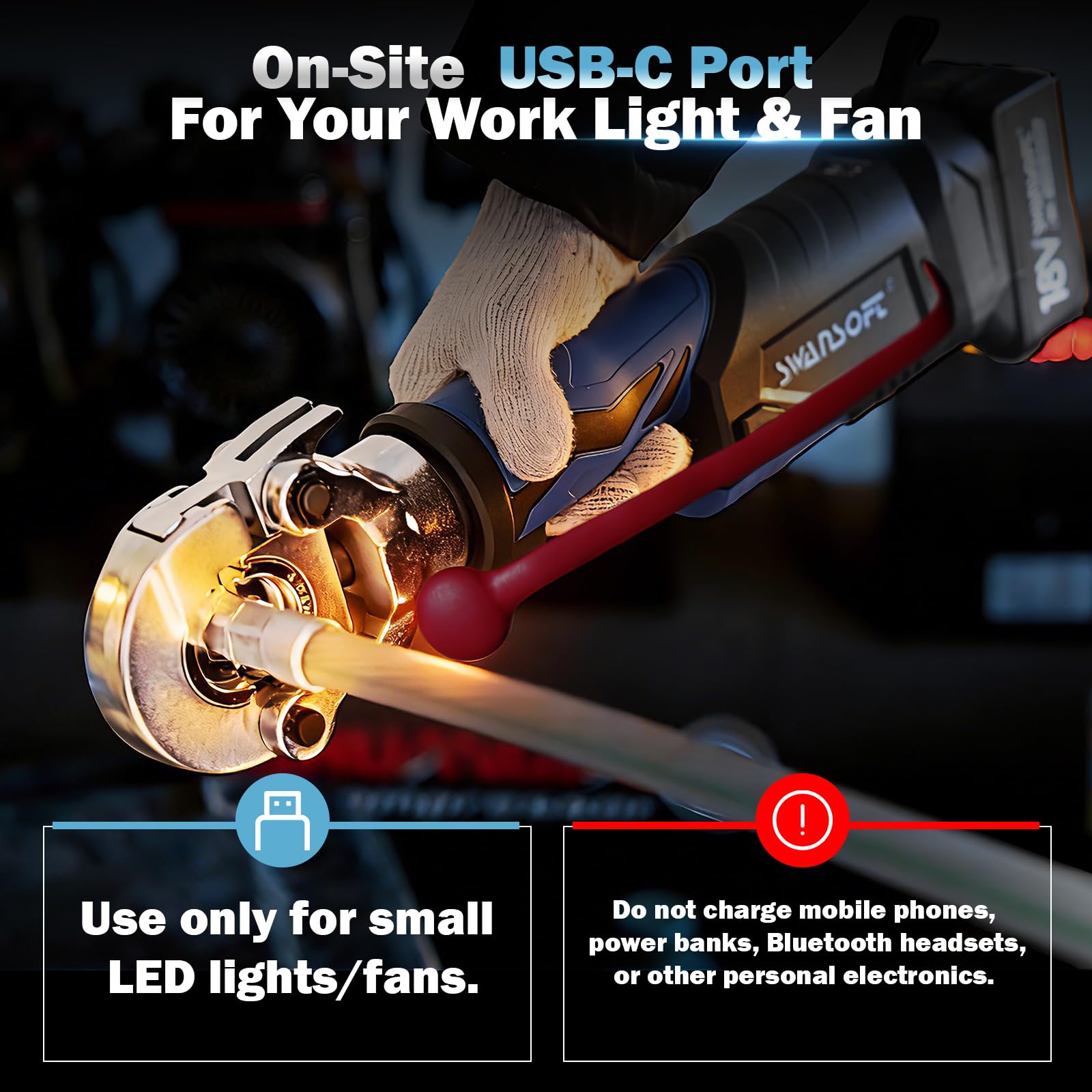

• [Multi-Function Hydraulic Crimper] This hydraulic cable crimper features a 180° rotating head for flexible multi-angle operation and incorporates a user-friendly one-button start/stop/reset design, allowing you to quickly resume work by pressing the reset button even if an operational error occurs. A built-in USB-C interface allows connection of a USB-C LED light, ensuring precise and efficient crimping even in poorly lit environments.
• [Smart Digital Display Electric Hydraulic Crimping Tool] This electric hydraulic cable crimper incorporates an intelligent digital display that provides real-time monitoring of operational data, including working temperature, crimp count, and remaining battery level.

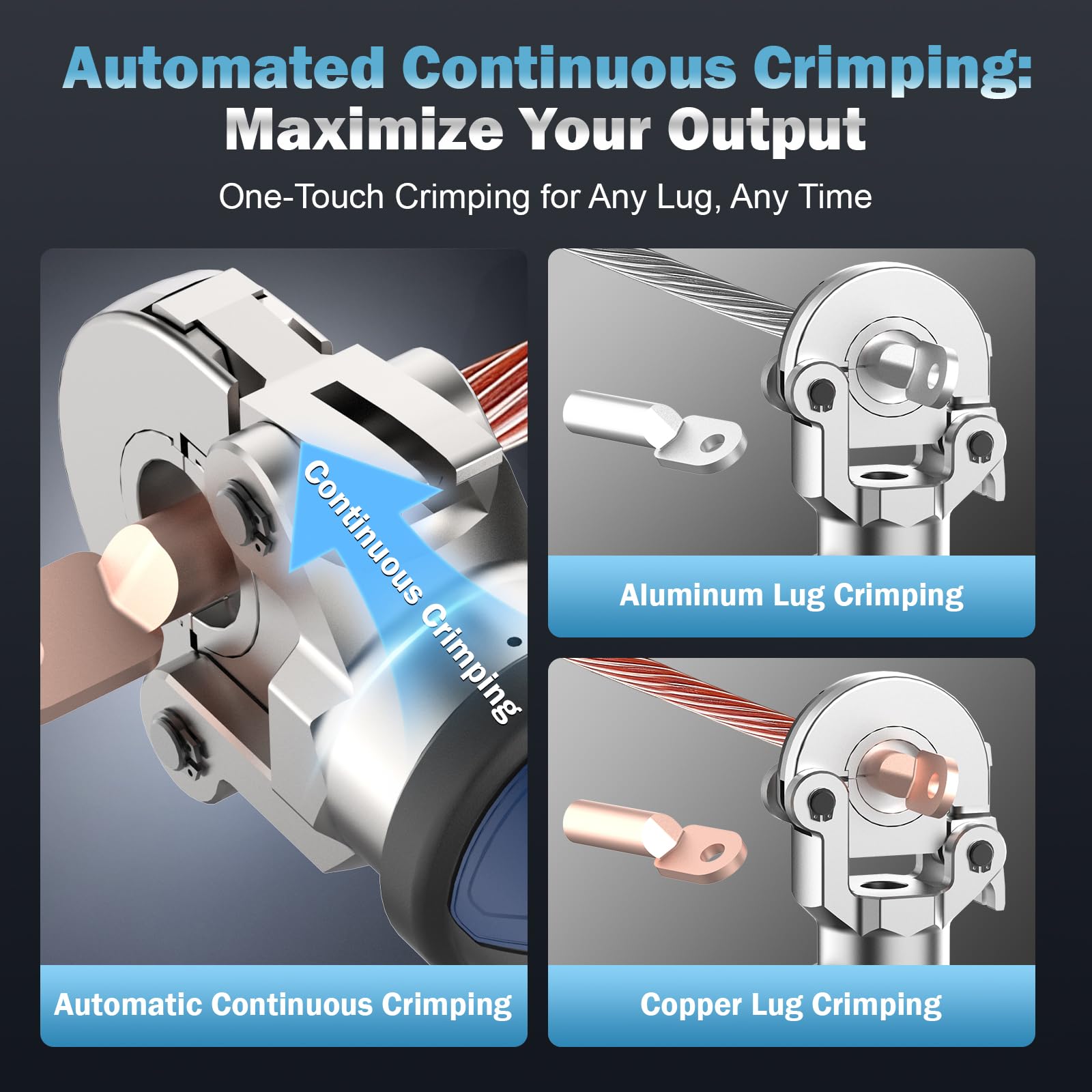

• [Applicable To Various Scenarios] This hydraulic crimper supports termination of both copper (up to 600 MCM) and aluminum (up to 500 MCM) cable lugs. Weighing only 9.7LB, its lightweight design ensures easy portability, making it an ideal tool for industries such as communications, transportation, petrochemical, metallurgy, shipbuilding, and battery installation.

model number: SW-300B/600B

Part Number: SW-TLF-600B Blue

Package Dimensions: 26.5 x 15.8 x 6.8 inches
