TC-V2 Transfer Switch Controller | 125-150 Amps | 2, 3, 4 Poles | Harness Included | Service Replacement

Brand: Cort Power

Features:

• 125-150 Amps, 2, 3 & 4 Pole, 1/3 Phase, 240v Max.

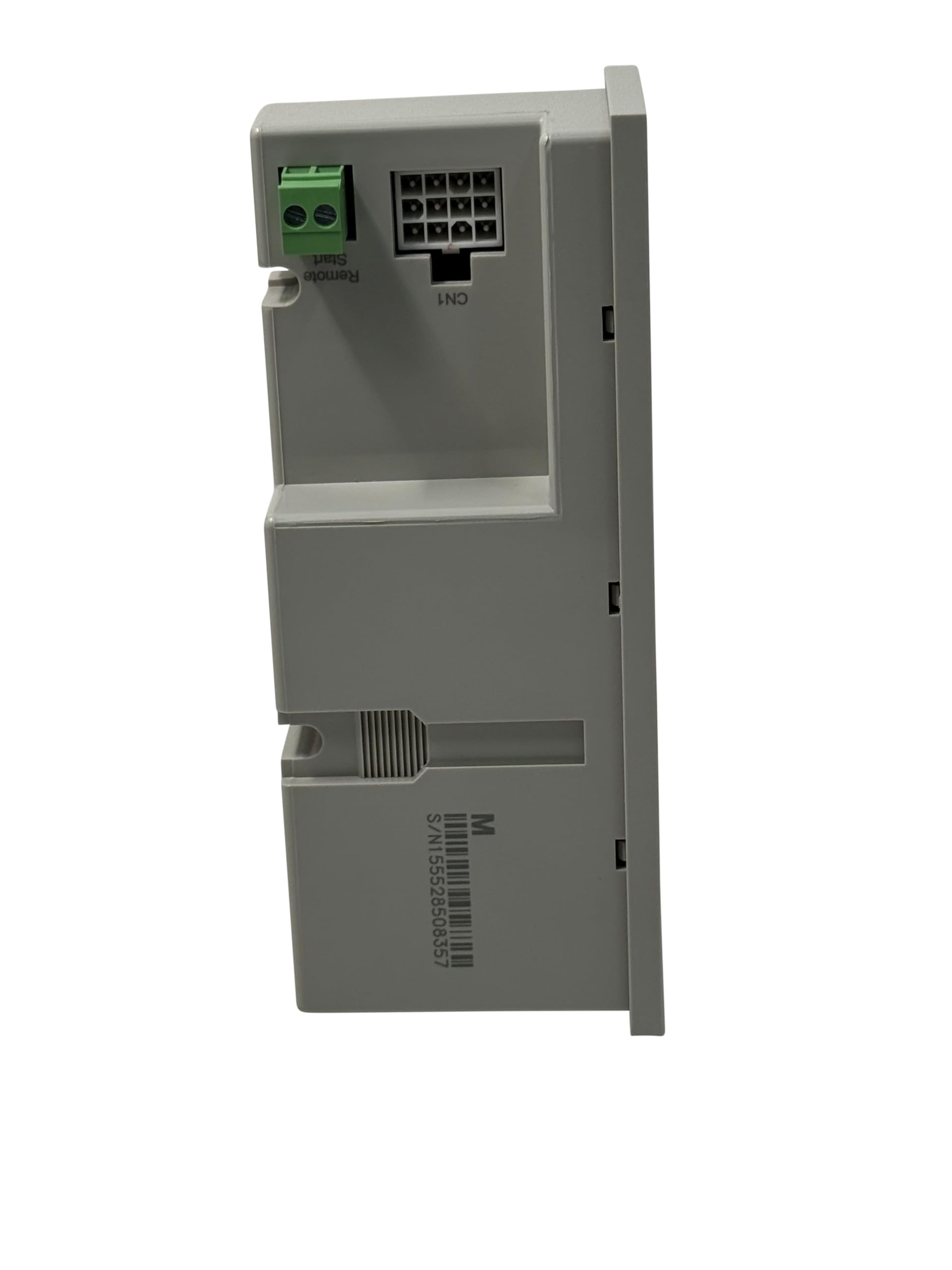

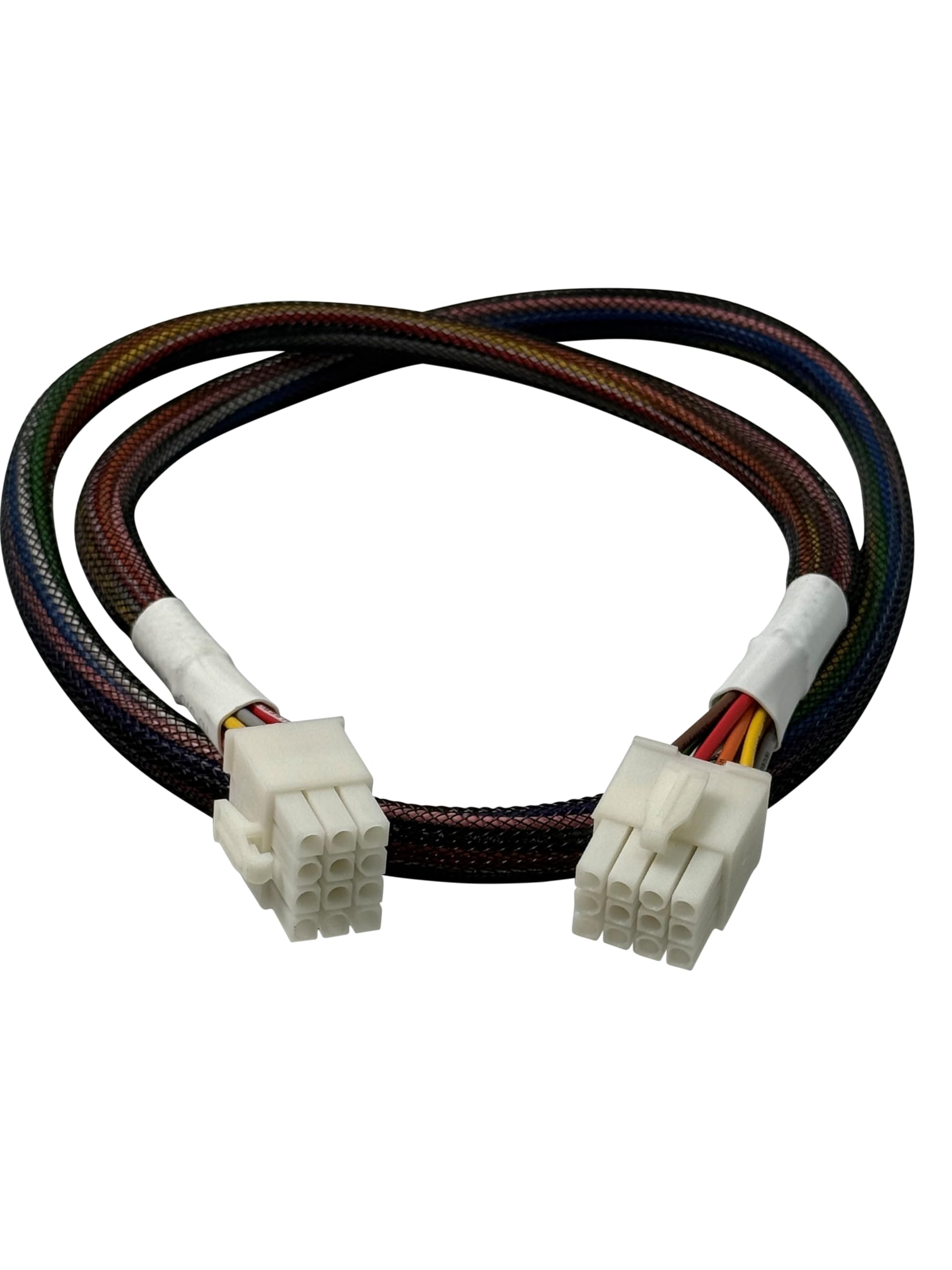

• 12 Pin Connector Harness Included, 30 Inches (Tip to Tip), 240 VAC Max, P/N HU-070-TS-12-1

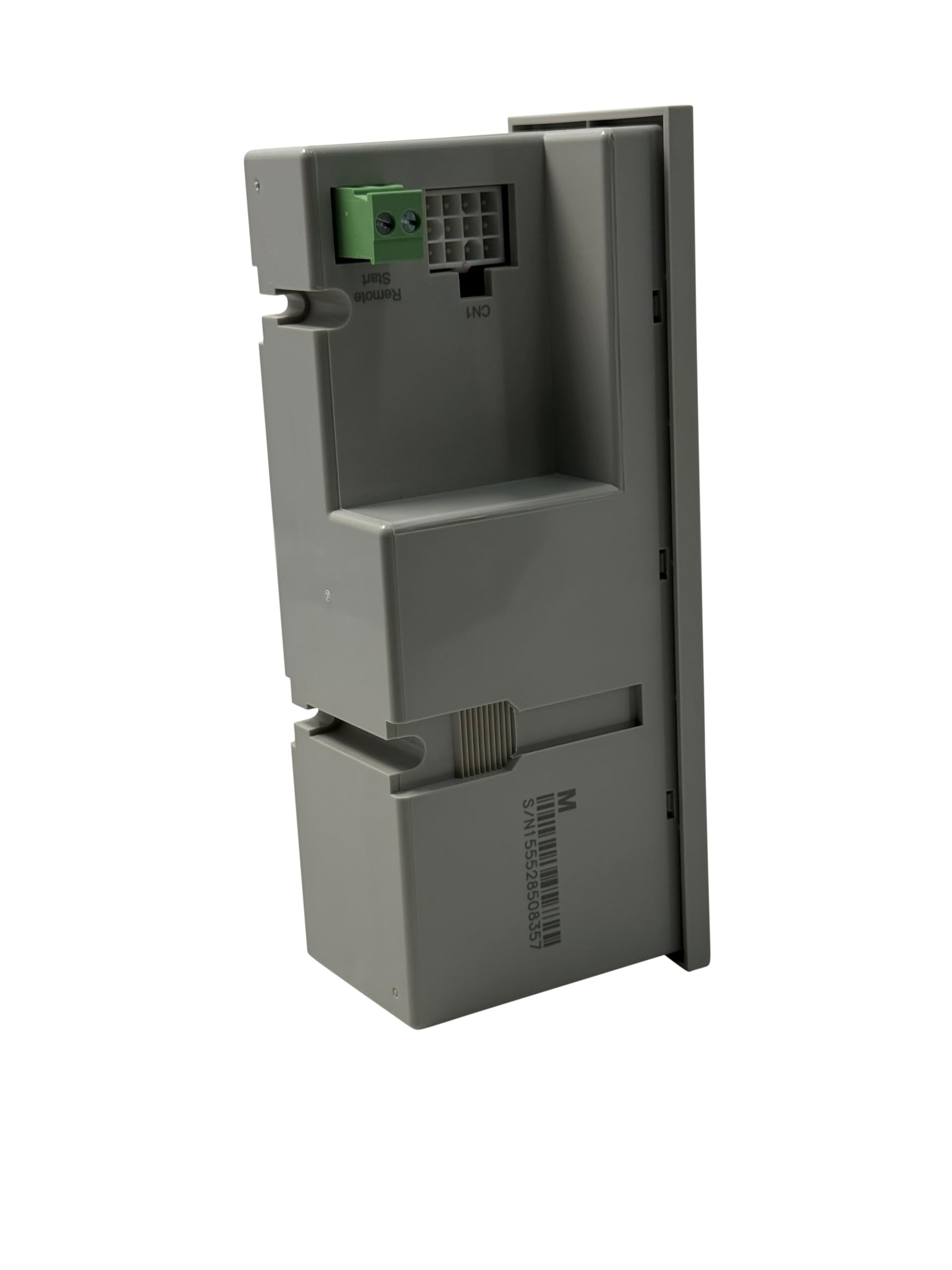

• 2-Wire Dry Contact for Generator Auto-Start
• Built-in 1 to 4 Weeks Exerciser Timer
• Compatible Transfer Switches: TS2P125, TS2P150, TS3P125, TS3P150, TS4P125, TS4P150 TCS2PC125-22M, TCS2PC150-22M, TCS3PC125-22M, TCS3PC150-22M, TCS4PC125-22M, TCS4PC150-22M

model number: TC-V2

Part Number: TC-V2

Details: Brand New Generator Automatic Transfer Switch Controller – TC-V2 | 125A / 150A | 240V Max | Harness Included | Compatible with TS2P, TS3P, and TS4P Series

Upgrade your emergency power reliability with this Brand New Automatic Transfer Switch (ATS) Controller, model TC-V2, specifically engineered as a service replacement for a wide range of Cort Power, MTS McPherson, and Kutai-manufactured transfer switches. Supporting 125A or 150A at up to 240V max, this replacement unit ensures your backup power system runs smoothly and automatically when you need it most.

🟢 Key Features:

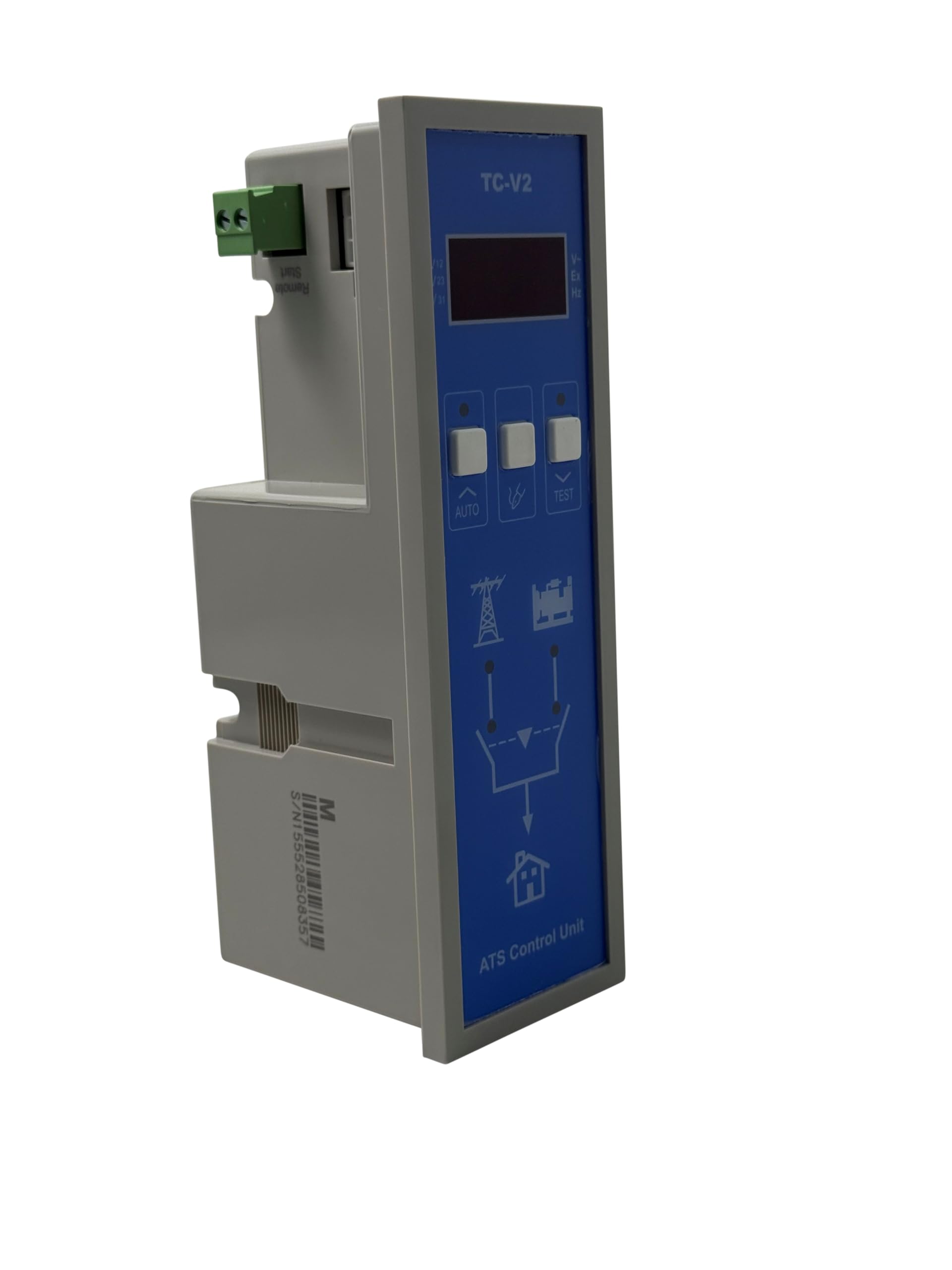

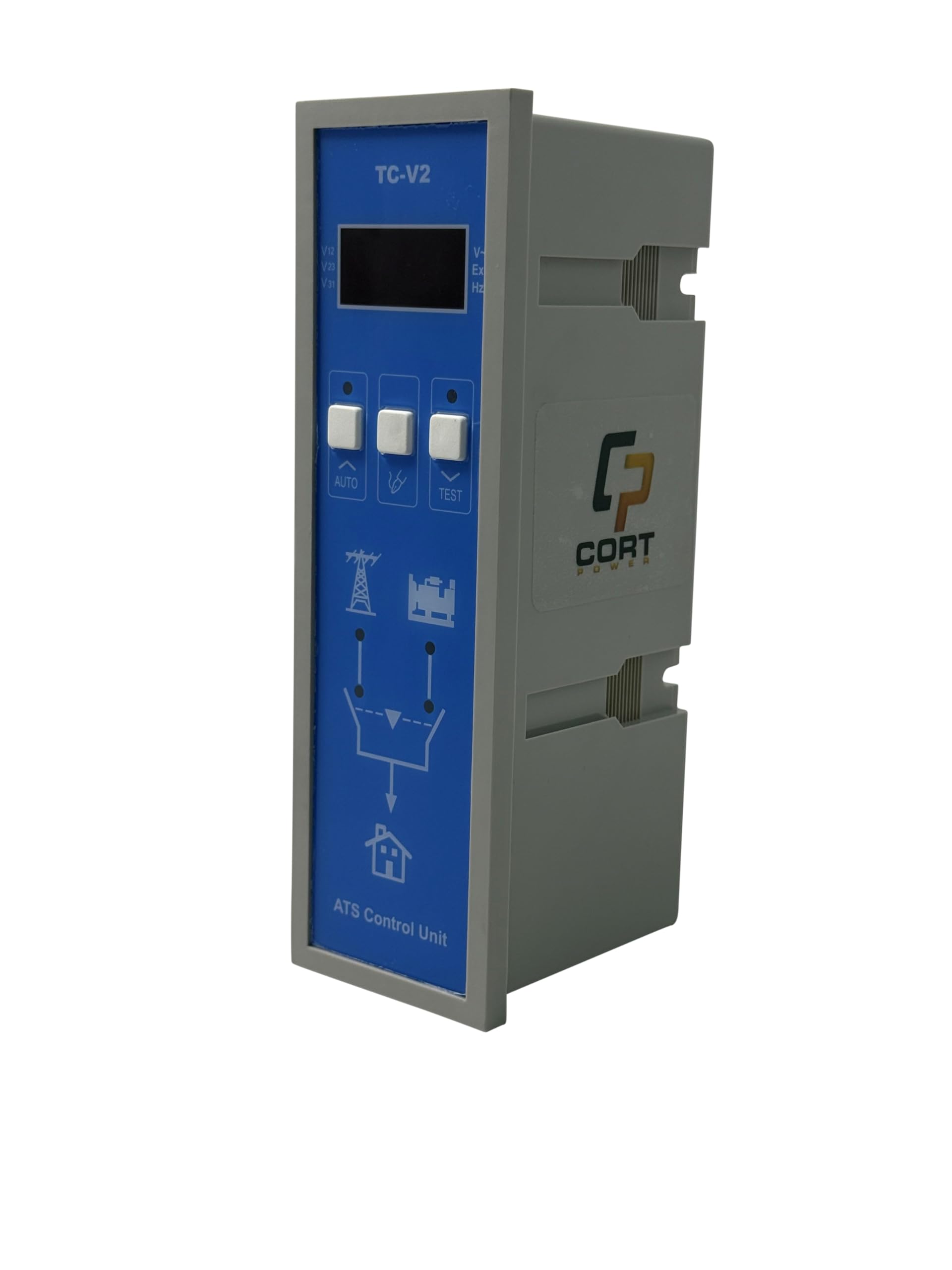

✅ No Computer Required – Fully Programmable from the Front Panel
Quickly and easily configure settings using the built-in display. All programming is done on-site—no PC, special tools, or software required.

✅ Automatic Generator Autostart Capabilities
The controller initiates generator startup during a utility power failure and manages a safe, automatic switchover—ensuring continuous power delivery with minimal interruption.

✅ Customizable Transfer Delays
Fine-tune timing parameters like TDNE (Normal to Emergency), TDEN (Emergency to Normal), TDEC (Engine Cool-down), TDES (Engine Start Delay), and TD-OFF (Neutral Delay) to meet specific load and operational requirements.

✅ Weekly Plant Exerciser – With or Without Load
Schedule automatic generator tests weekly, bi-weekly, or monthly. Exerciser mode can be run with or without electrical load for flexibility and peace of mind.

✅ Integrated Over/Under Voltage Sensing
Constant voltage monitoring of both normal and emergency sources with visual alerts for abnormal conditions—helping you catch problems before they escalate.

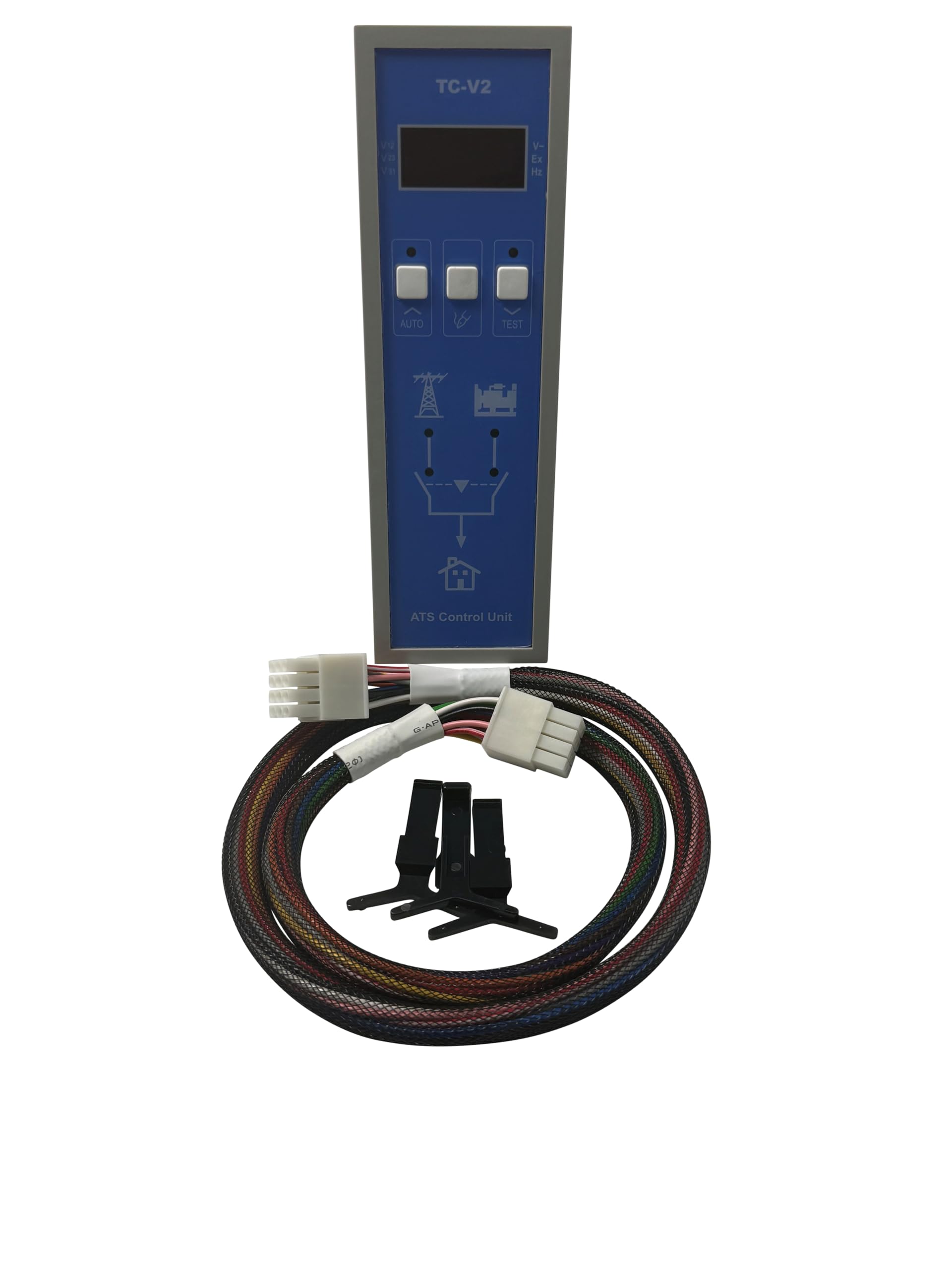

✅ Harness Included for Simple Installation
Comes with the appropriate wiring harness to make replacement fast and straightforward—ideal for service technicians or facility managers performing maintenance.

🛠 Technical Specifications:
Rated Voltage: 240V max
Rated Current: 125A / 150A
Frequency: 50/60 Hz
Poles: 2P, 3P, 4P (Double Throw)
Power Consumption: <1W
Operating Temperature: -10°C to 70°C
Storage Temperature: -20°C to 80°C
Humidity: 0–95% RH (non-condensing)
Controller Weight: Approx. 1 lb

🧩 Compatible Transfer Switches:
TS2P125, TS2P150, TS3P125, TS3P150, TS4P125, TS4P150
TCS2PC125-22M, TCS2PC150-22M, TCS3PC125-22M, TCS3PC150-22M

🔧 Why Choose This Controller?
This TC-V2 digital controller is a factory-spec service replacement, purpose-built to restore original performance in compatible Cort Power, MTS McPherson, and Kutai transfer switch models. Whether your existing unit has failed or is no longer responding reliably, this brand new replacement controller is designed to drop directly into your ATS system—no modifications, rewiring, or guesswork required.

⚠️ This is not a generic or universal controller. It is intended only for use with the models listed above. Using it with incompatible systems may result in improper function or damage. Please verify your ATS model before purchasing.

🛒 Add to Cart Now to get your standby power system back online with confidence—reliable, tested, and ready when it matters most.

EAN: 0687700135517

Package Dimensions: 8.5 x 4.0 x 3.0 inches
