TECHTONGDA Electric Hinge Drilling Machine Portable Puncher Hand-Held Drilling Equipment Woodworking Hole Drilling, Depth 0-40mm 45-9.5

Brand: TECHTONGDA

Color: Onecolor

Features:

• 【Function】The hinged drilling machine is mainly used for cabinet, wardrobe, door processing and manufacturing. Three holes in the vertical position can be processed at one time, including one big hole for hinge head hole and two for assembly screw hole.

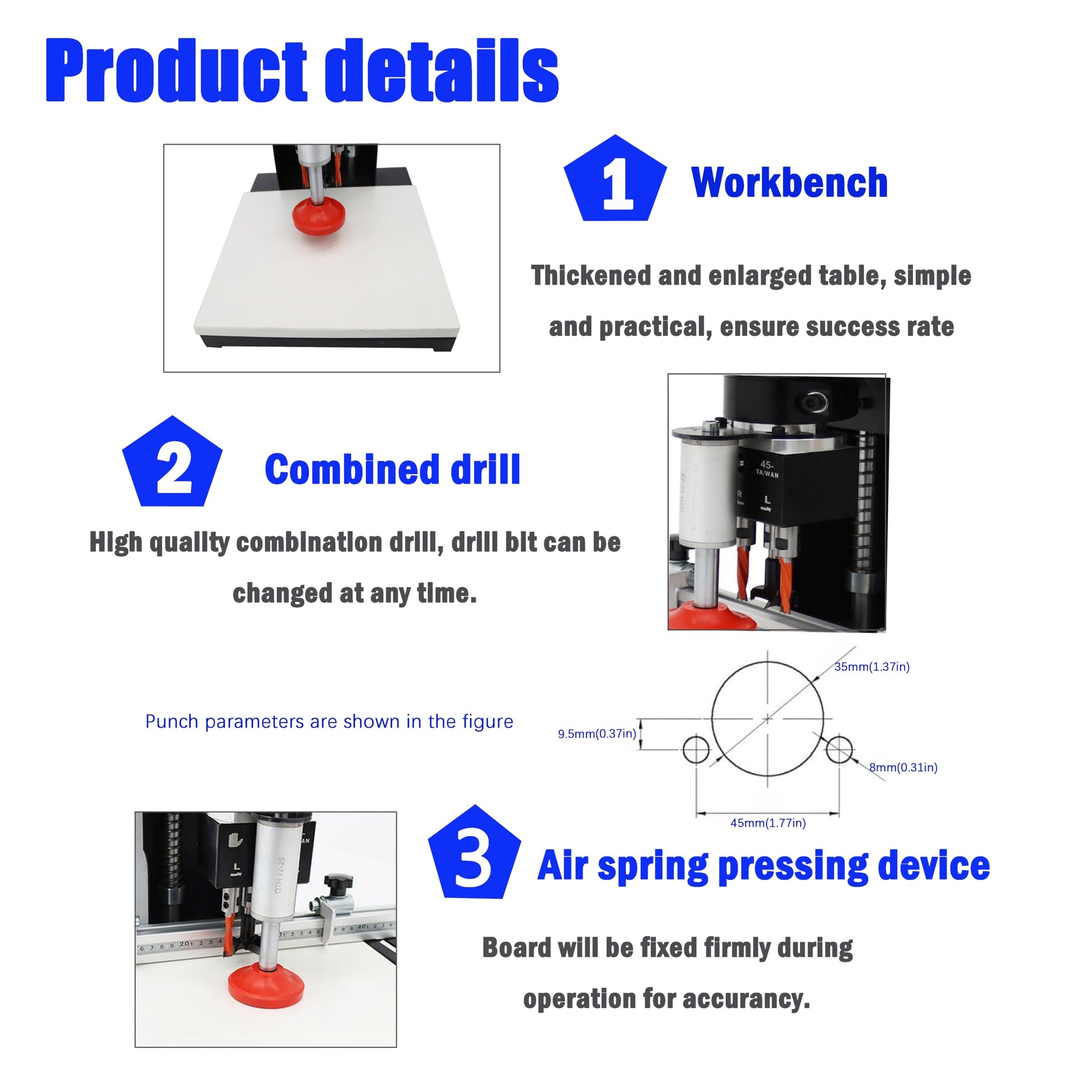

• 【With 49-9.5 drilling bits】 With 49-9.5 combined drilling bit. The dia of the big hole is 1.4inch(35mm). The dia of the small hole is 0.3inch(8mm). The drilling machine uses 1100W pure copper motor with 2840rpm/min rotating speed, powerful and drilling fast.
• 【0-40mm drilling depth】The depth of the hole can be adjusted by rotating the nut on the rear side of the engine.Drilling depth is up to 0-40mm(0-1.57ich).

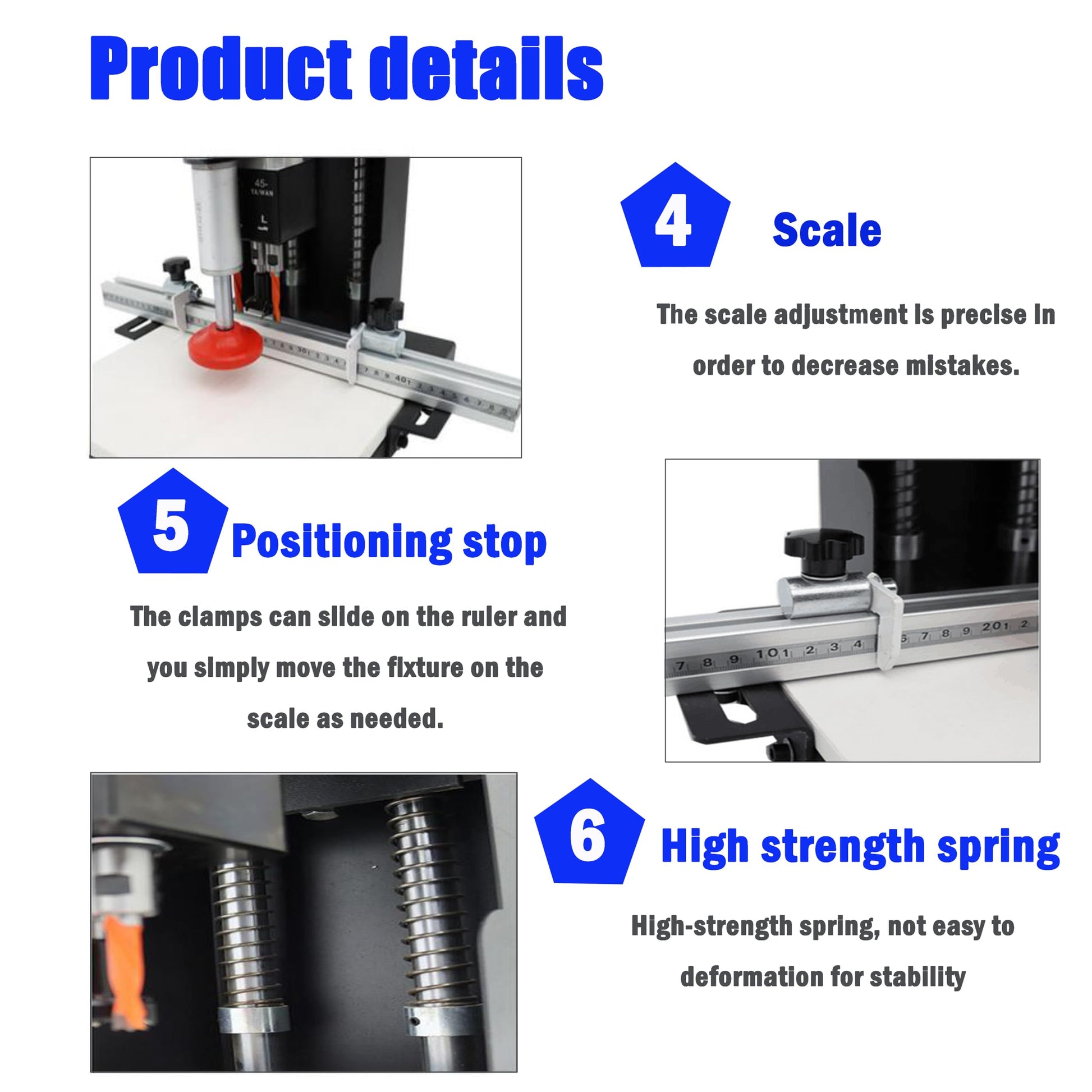

• 【High accurancy】With air spring pressing device and board will be fixed firmly during operation for accurancy. With ruler for accurate drilling and the ruler can be moved front and back.Two clamps are equipped on the ruler to fix the board. The clamps can slide on the ruler and you just need to move the clamps and the boards will also be moved and you can dill holes at different positions. Equipped with a pushdown handle for one-handed operation

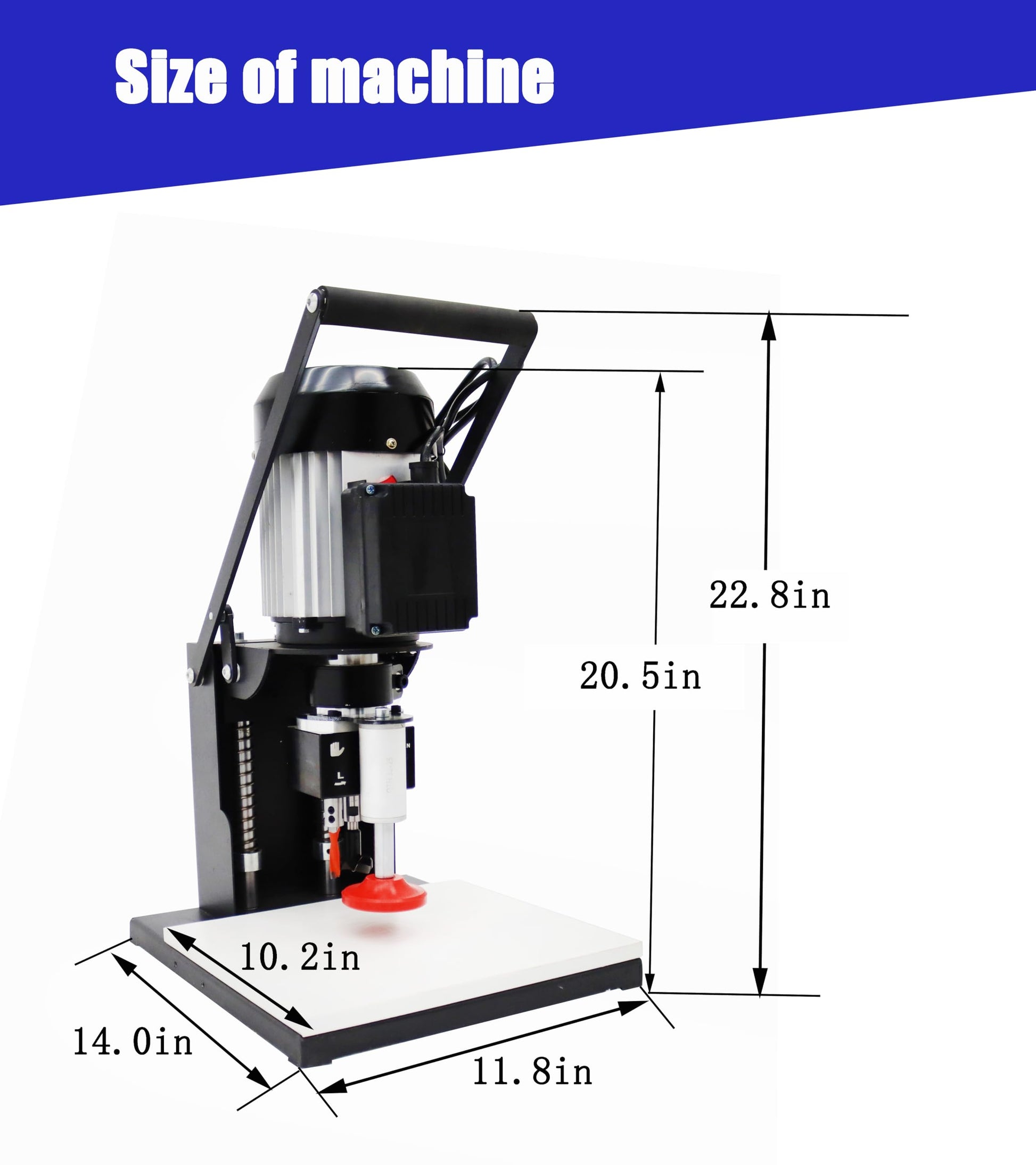

• 【High quality】The portable electric hinge drilling machine is equipped with thickened working table whose size is 10*11.8inch and high quality drill combination, easy to operate. Thickened material of high strength spring, not easy to deformation for stability. Small body, easy to carry and move.

Part Number: L027330

Details: Parameter
Voltage:110V
Power:1100W
Punching Depth:0-40mm(0-1.57inch)
Speed: 2840r/min
Net Weight: 40.7lbs（18.5kg）

EAN: 0840403721436

Package Dimensions: 24.0 x 15.7 x 15.0 inches
