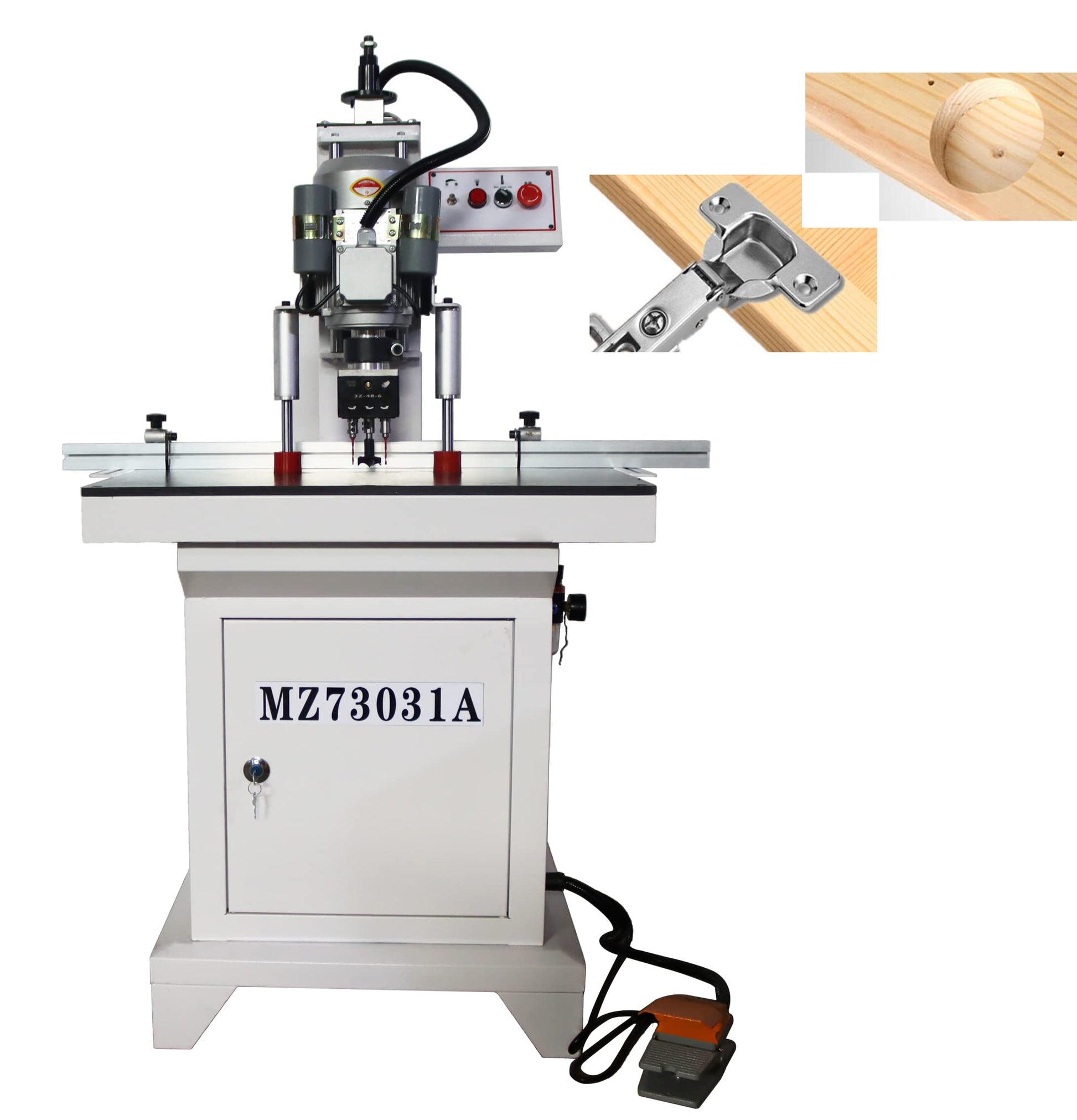

【Application】This is a Hinge Boring Machine. Three holes in the vertical position can be processed at one time, including one big hole for hinge head hole and two for assembly screw hole.

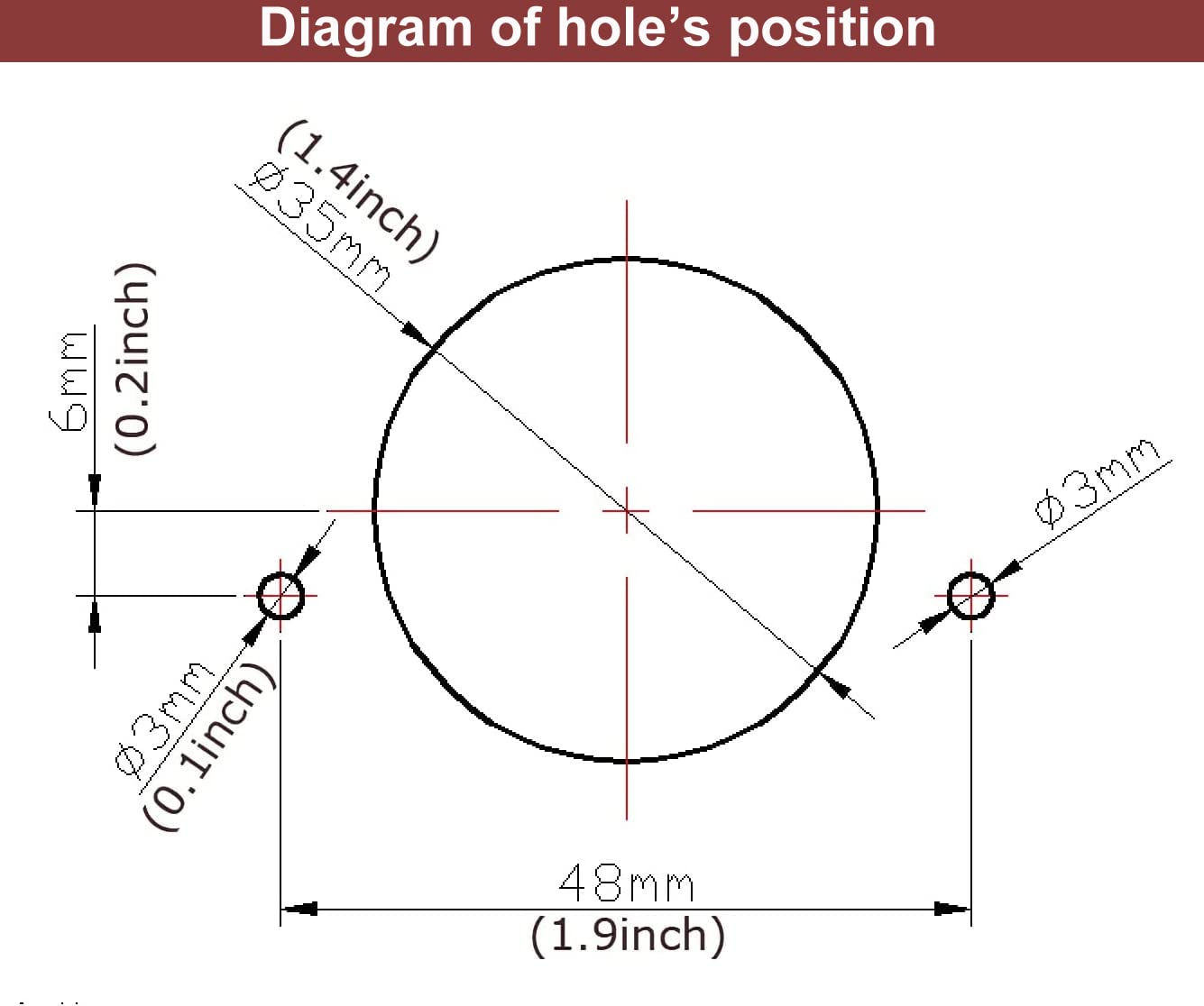

【Parameters】The distance between the centers of the two small holes is 1.9inch(48mm). The dia of the big hole is 1.4inch(35mm). The dia of the small hole is 0.1inch(3mm). Max. depth of hole is 2inch(50mm). Max. work piece length is 39inch(1000mm)
【Powerful Motor】1.5KW copper motor with rotating speed of 2880RPM, which will be powerful and durable.

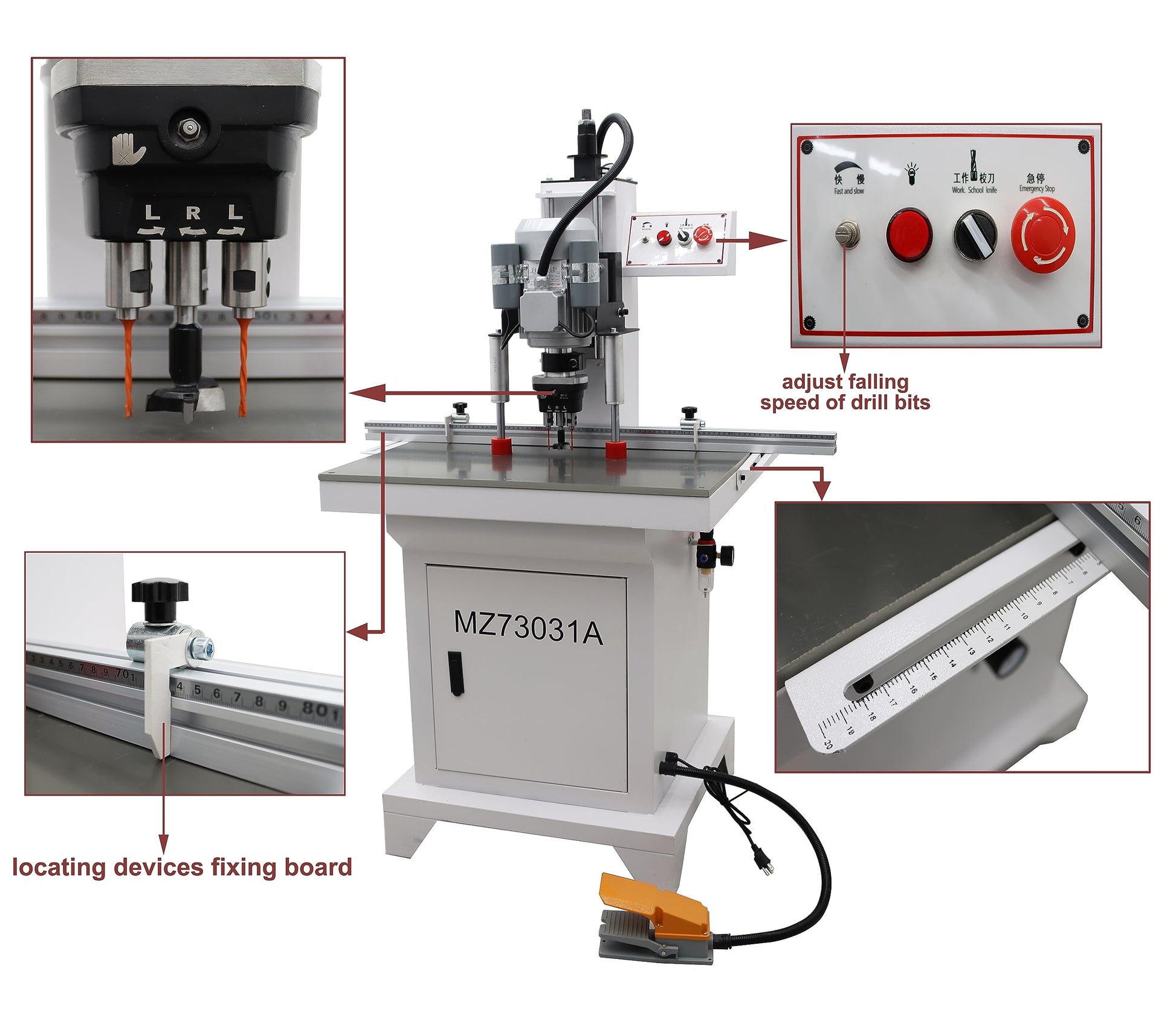

【Precise Drilling】With graduated scale so that the drilling can be presice and convenient.
【With Foot Pedal】This machine need electric source and air source. A foot pedal is equipped for easy control.
