Tilt and Trim Parts 7050 for CMC T-H Marine - ELCT0078 Standard Hydraulic Actuator for Jack Plate and Tilt & Trim Systems, 12V Self-Contained Marine Hydraulic Unit, 5" Stroke

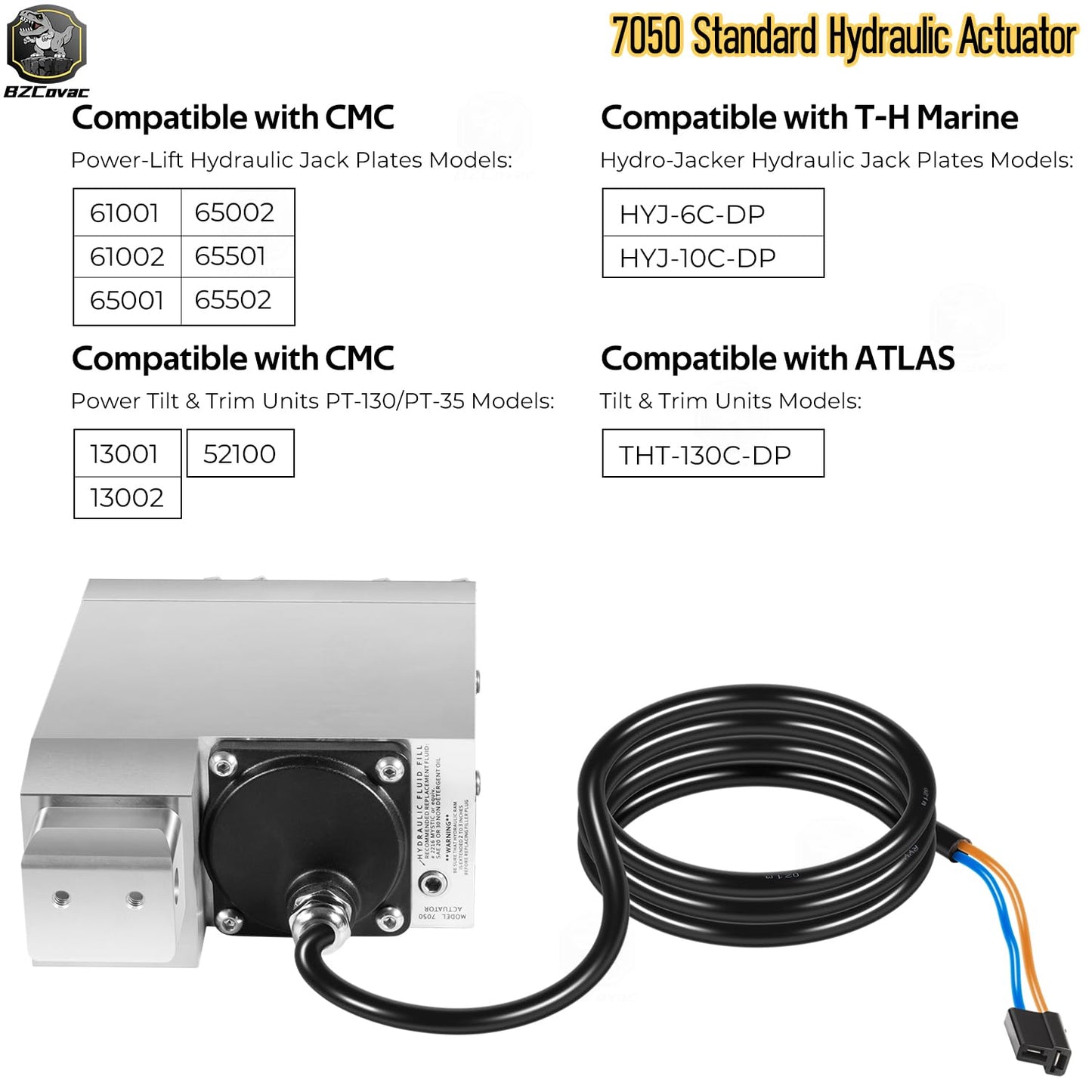

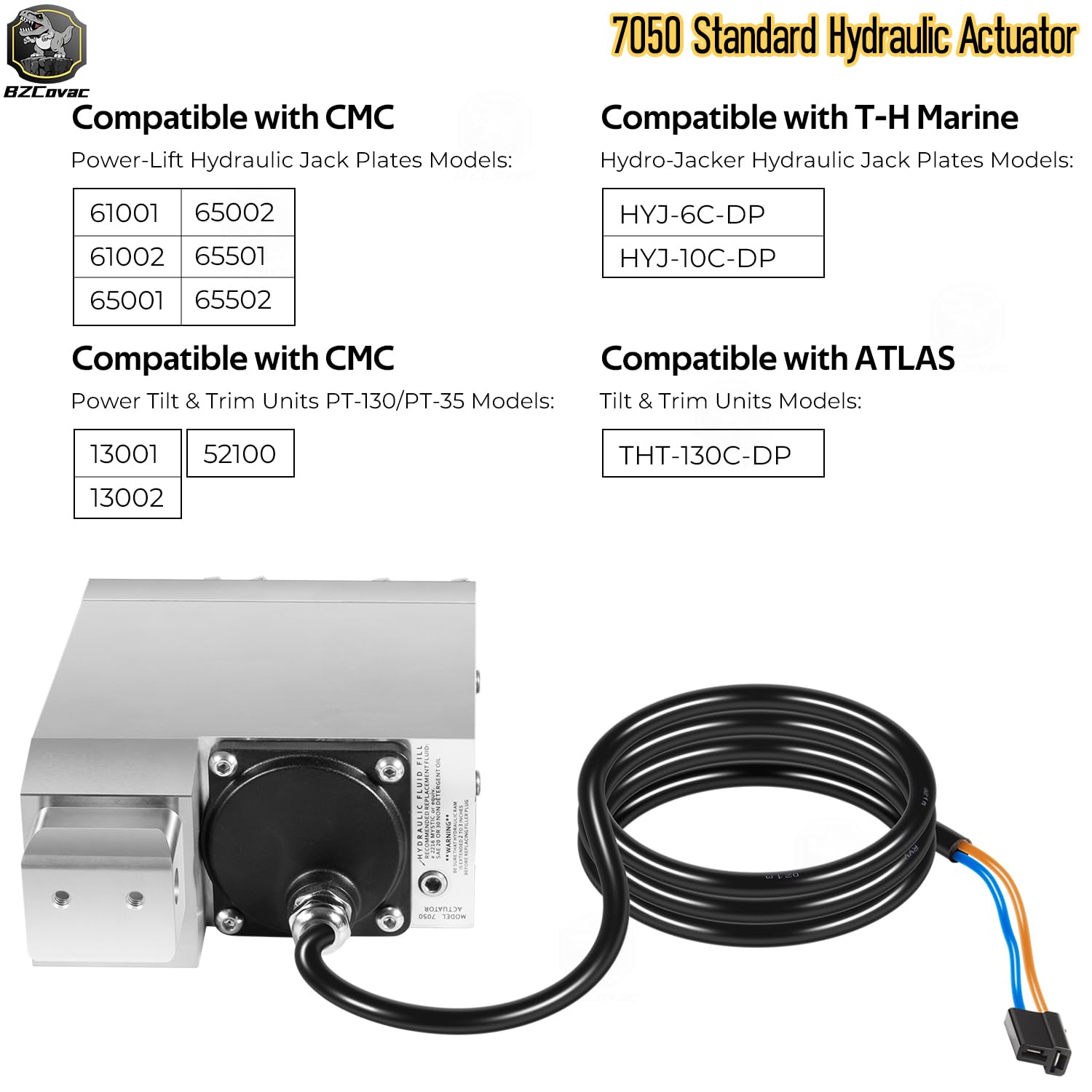

Wide Compatibility - Fits CMC Power-Lift hydraulic jack plates (61001, 61002, 65001, 65002, 65501, 65502), T-H Marine Hydro-Jacker plates (HYJ-6C-DP, HYJ-10C-DP), CMC Power Tilt & Trim units (13001, 13002), and ATLAS Tilt & Trim units (THT-130C-DP). Compatible with late-model systems featuring one-piece motor/hydraulic actuator assemblies

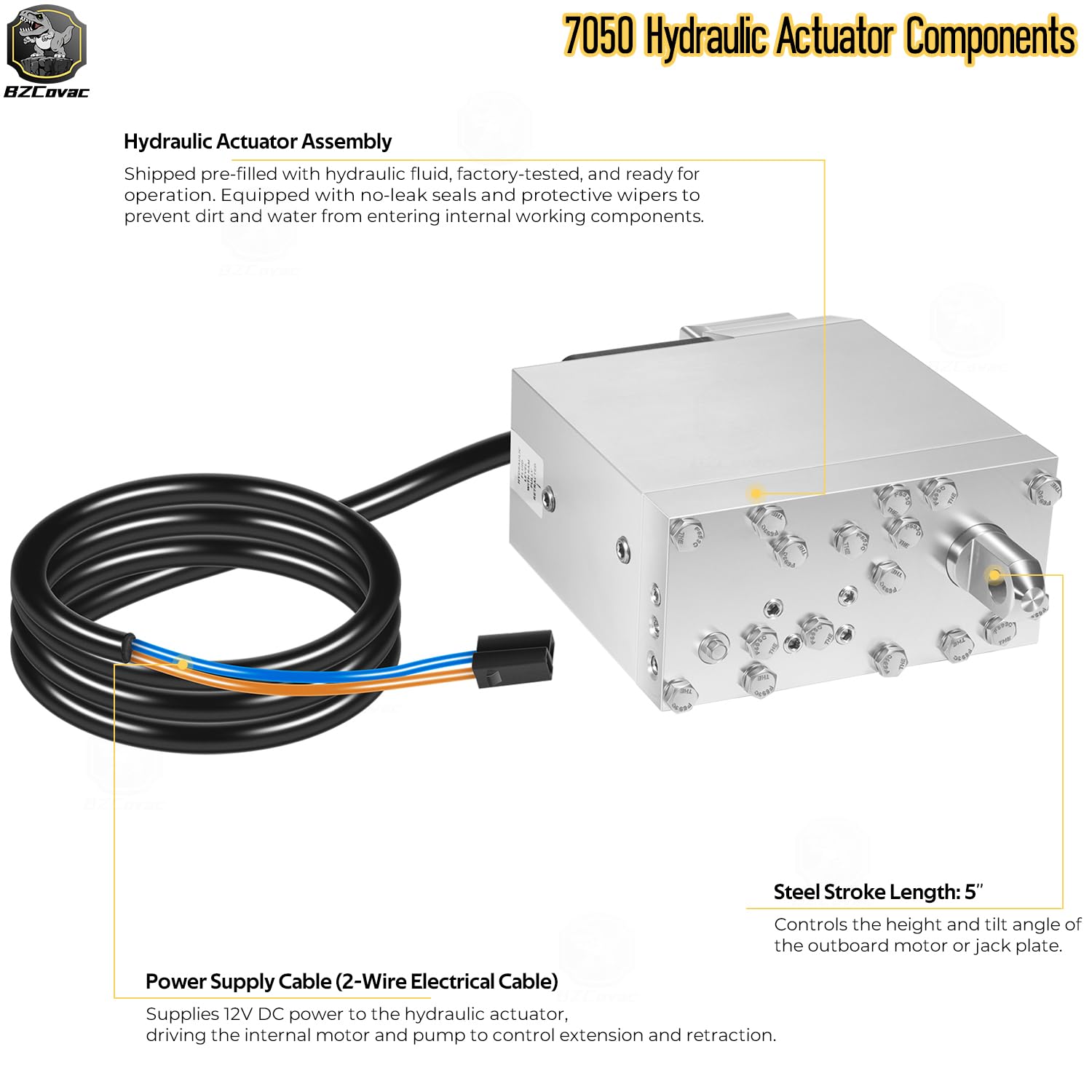

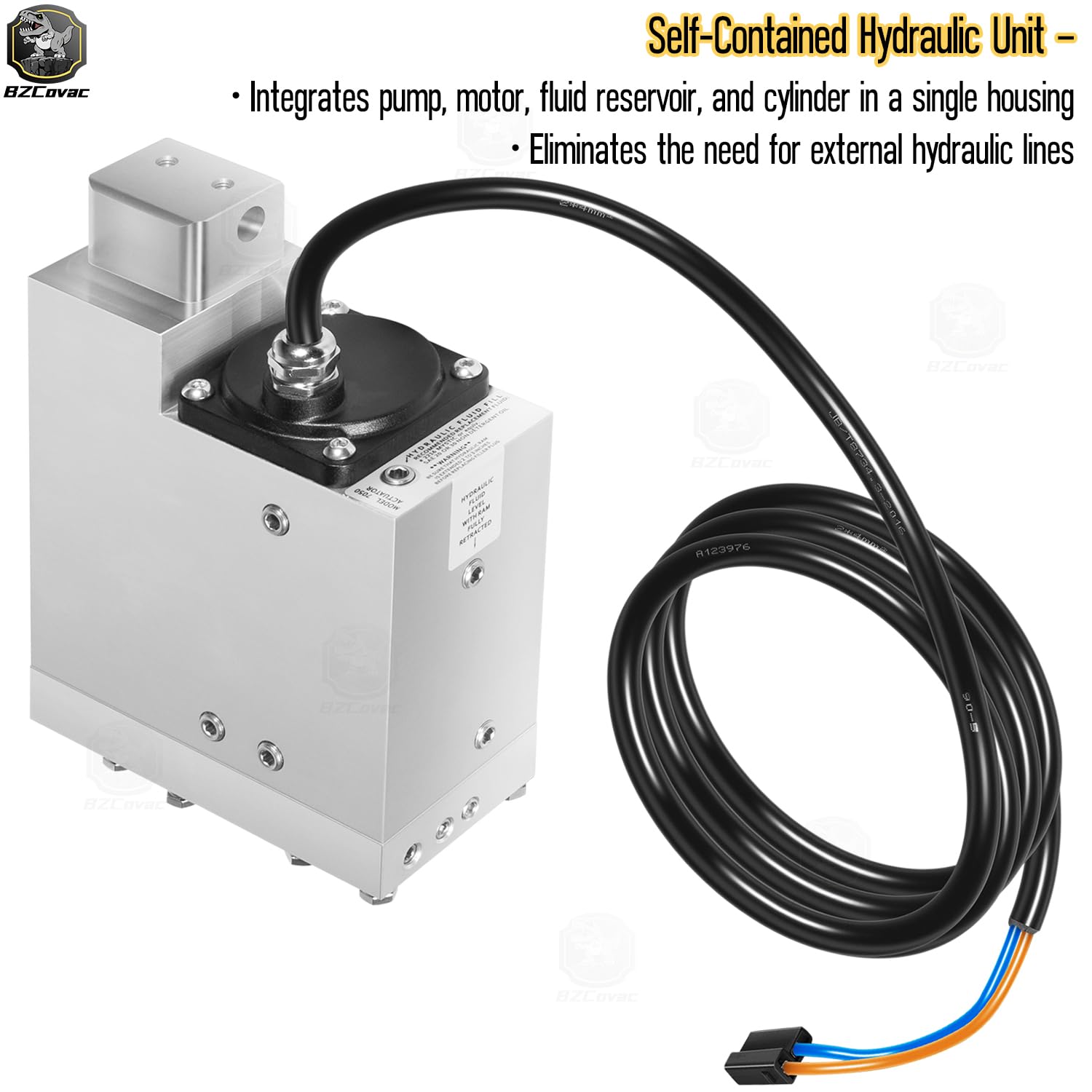

All-in-One Hydraulic Design - Integrates electric motor, hydraulic pump, fluid reservoir, and cylinder in a single unit, eliminating the need for external hoses, separate pumps, or additional hydraulic components, simplifying installation and reducing potential leak points

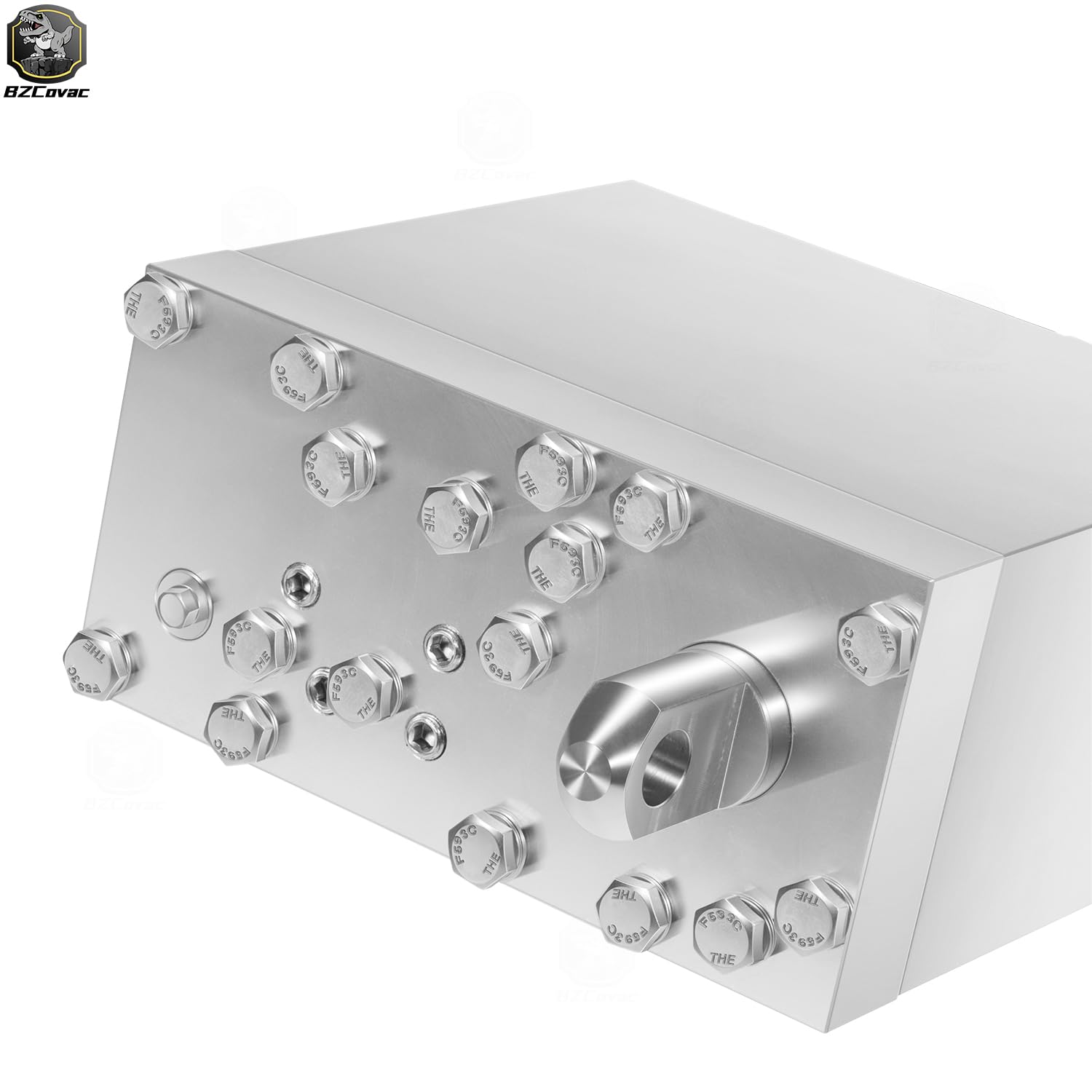

Marine-Grade Construction - Made from 100% non-ferrous materials with a no-leak seal and wiper system to keep dirt and water out, fully submersible for reliable operation in freshwater or saltwater environments

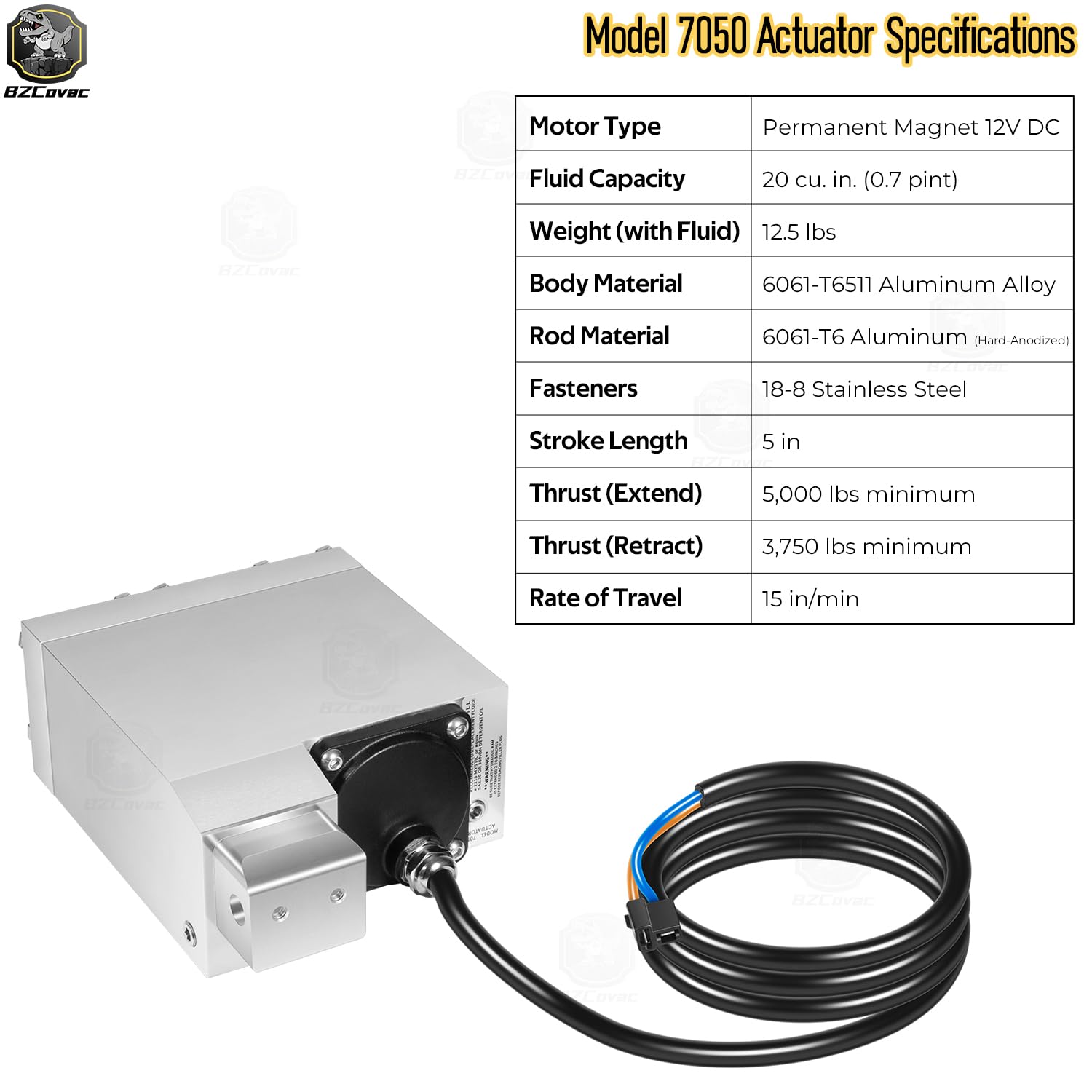

Powerful Hydraulic Performance - Equipped with a permanent magnet 12V DC motor, delivering up to 5,000 lbs thrust when extending and 3,750 lbs when retracting. Features a 5' stroke and smooth, rapid travel for precise lift, trim, and tilt adjustments, ensuring optimal engine and boat performance
Easy Replacement - Direct-fit replacement for standard Power-Lift, Hydro-Jacker, and Tilt & Trim systems with one-piece motor/hydraulic actuator assemblies. Not for high-speed jack plate models
Restores Lift and Trim Function - Ideal solution when your jack plate or tilt & trim unit will not raise or lower due to actuator failure or internal leakage, bringing your tilt and trim system back to optimal operation
