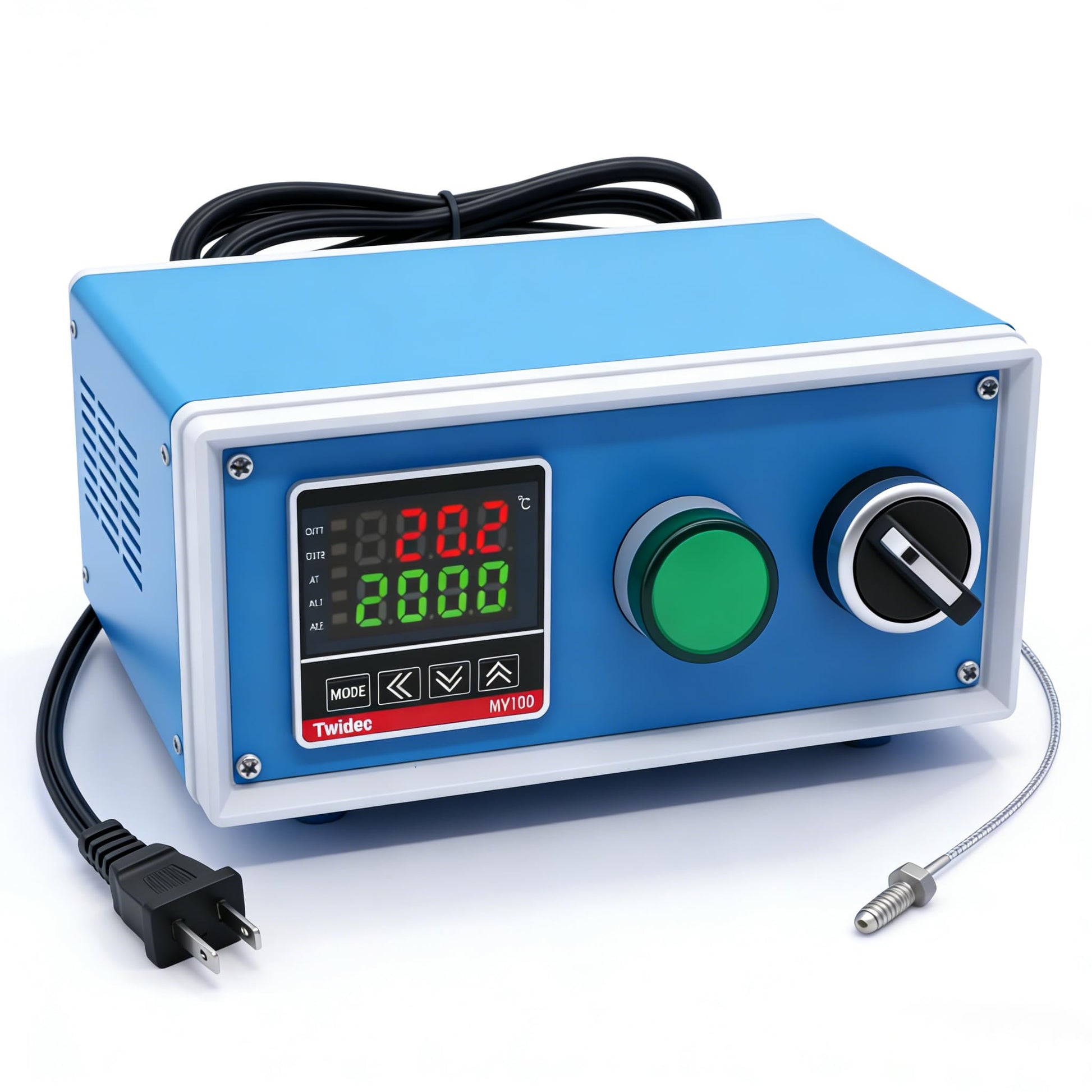

Twidec/Display PID Temperature Controllers Thermostat Box 1000W 10A 110V Temperature Temp Control Box with Solid State Relay SSR 40DA Oven Thermostatic Control Box

Brand: Twidec

Color: black

Features:

• Product name: Temperature Controller MV100-B10 + solid state module relay SSR-40DA, 3-32VDC/24-380VAC Temperature Controller Box；Special note: After the temperature controller is turned on, the default is degree Fahrenheit

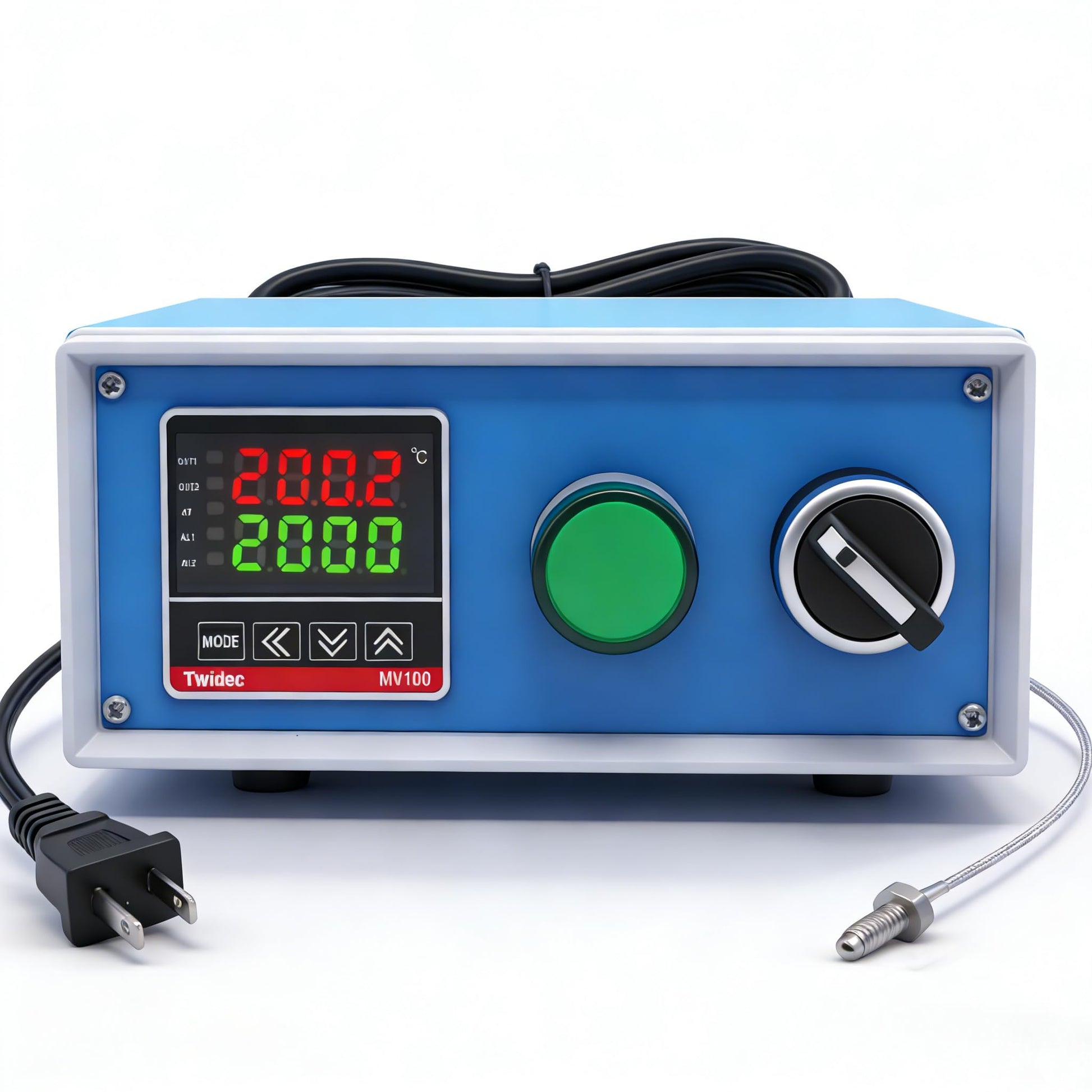

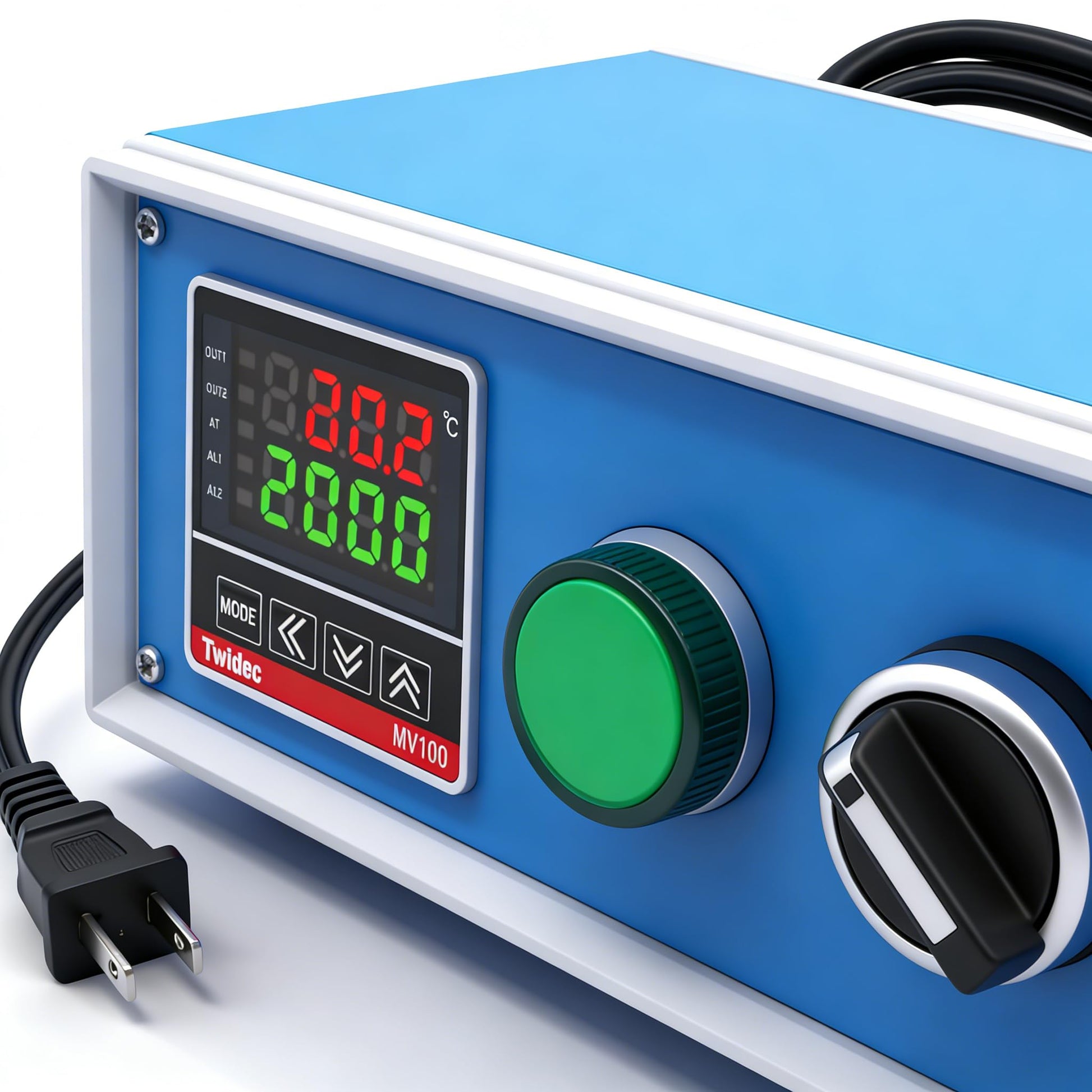

• Digital Display PID : Support reading with Centigrade or Fahrenheit unit （factory default to Fahrenheit unit）; be able to display measured and Controller temperature ；Display Character: PV: 4 digital 9.9mm height Red LED Letters；SV: 4 digital 8mm height Green LED Letters

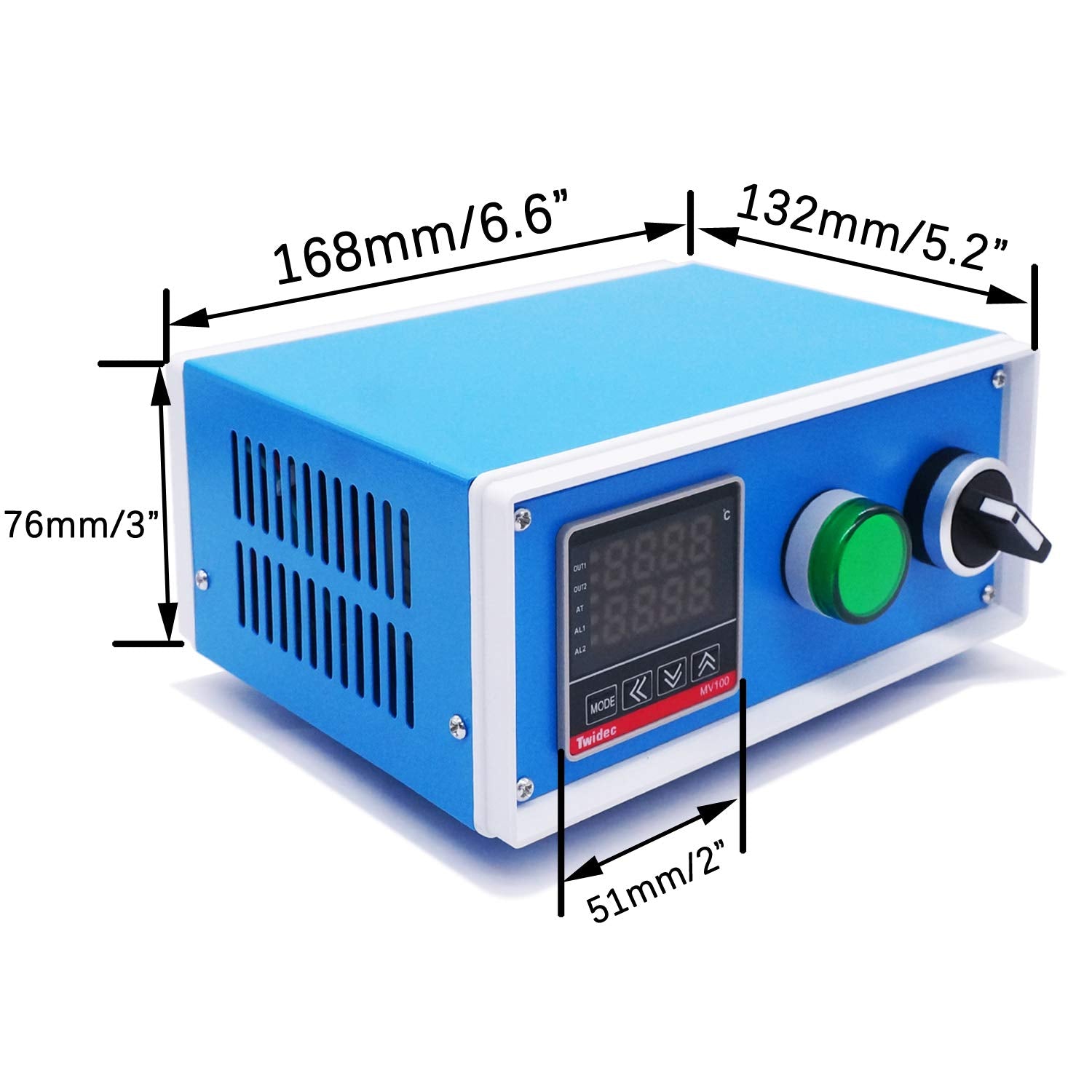

• Total size:170mm x 155mm x 90mm/6.7'*5.9'*3.5'(L*W*H);Controller Front Panel Dimension: DIN 51mm(W)X51mm(L)/2'*2'
• Power Supply Voltage: AC 85-265V 50/60Hz ；Input: K，factory default to K type ; Output: Solid state relay SSR ; Alarm mode: factory default to 1 way High deviation alarm（can choose）

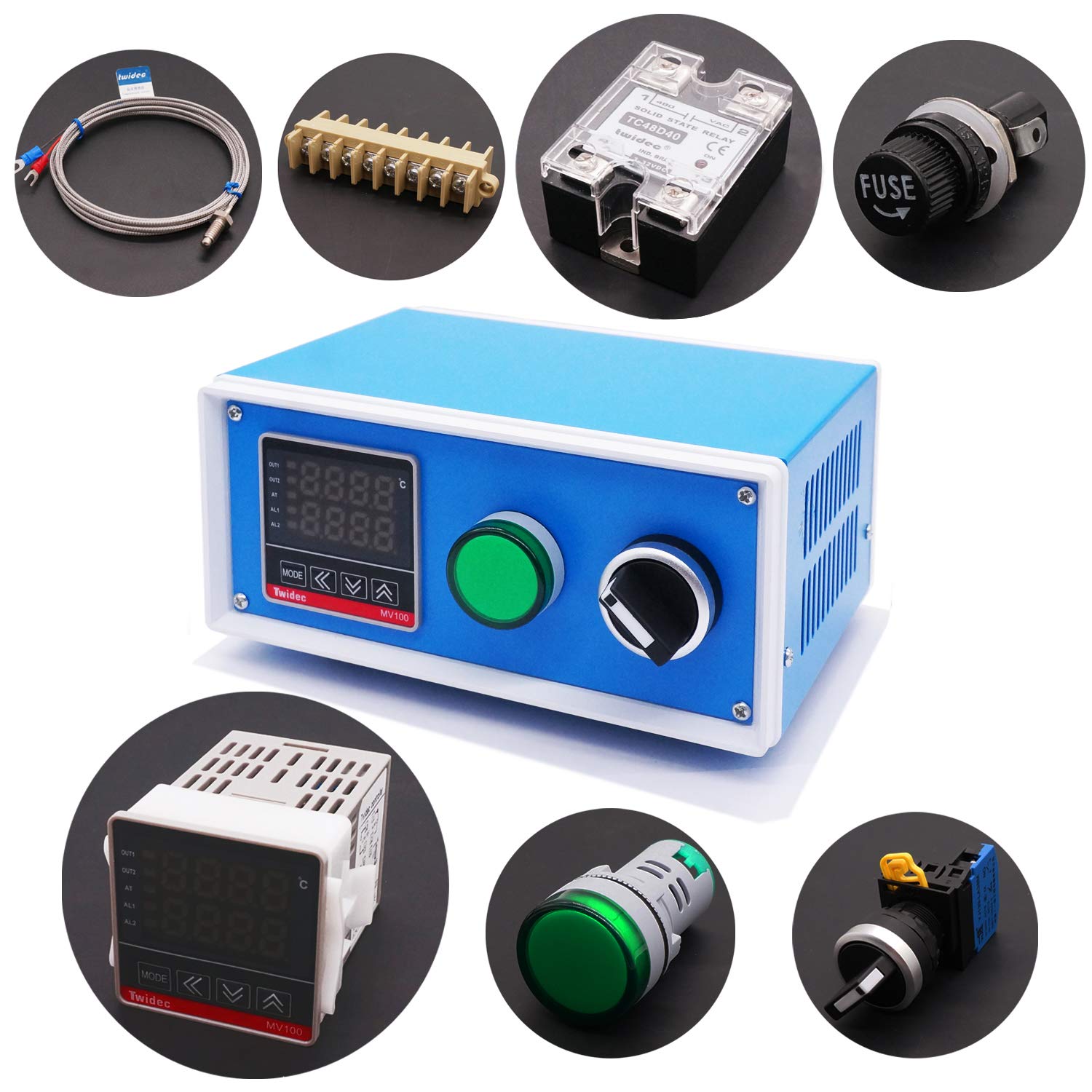

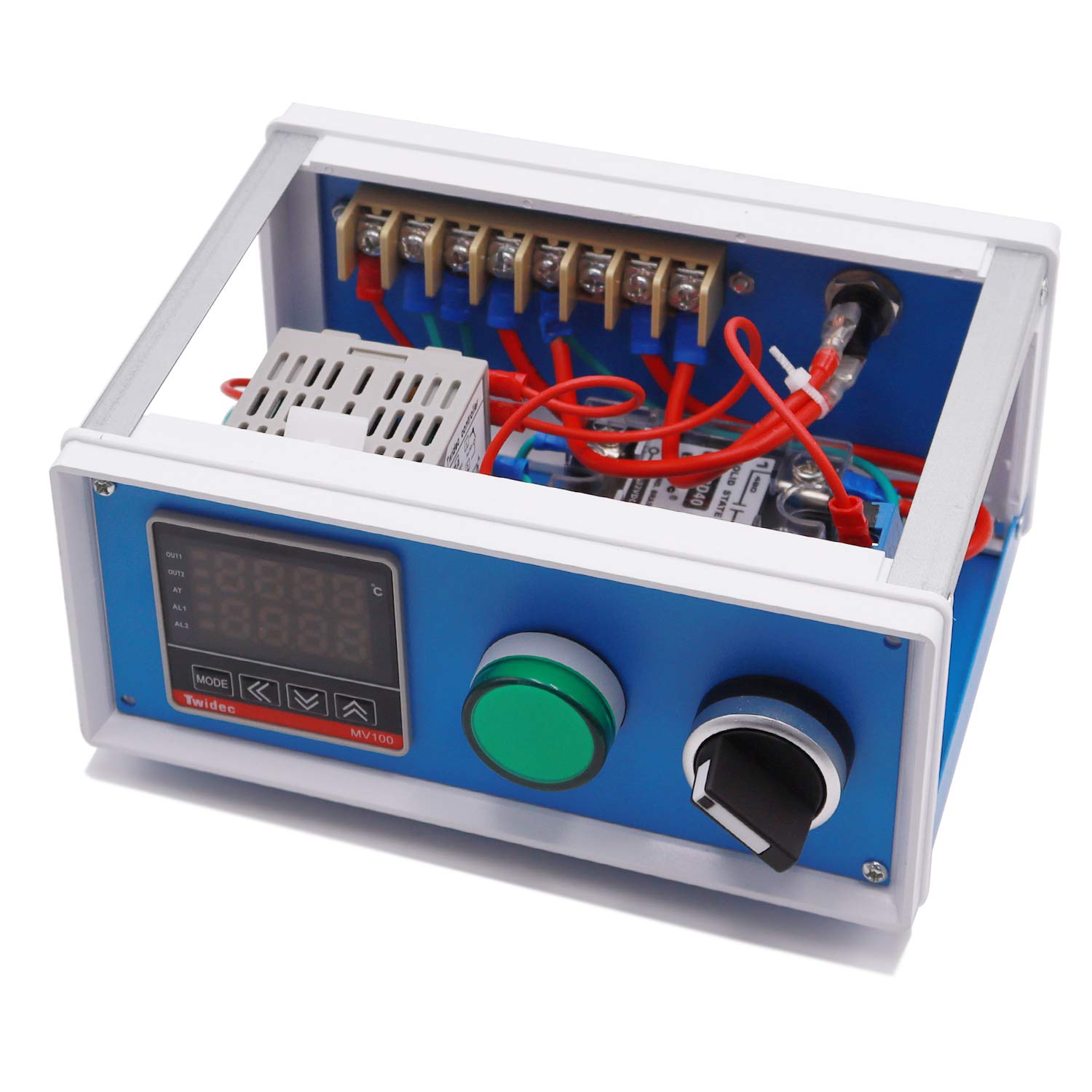

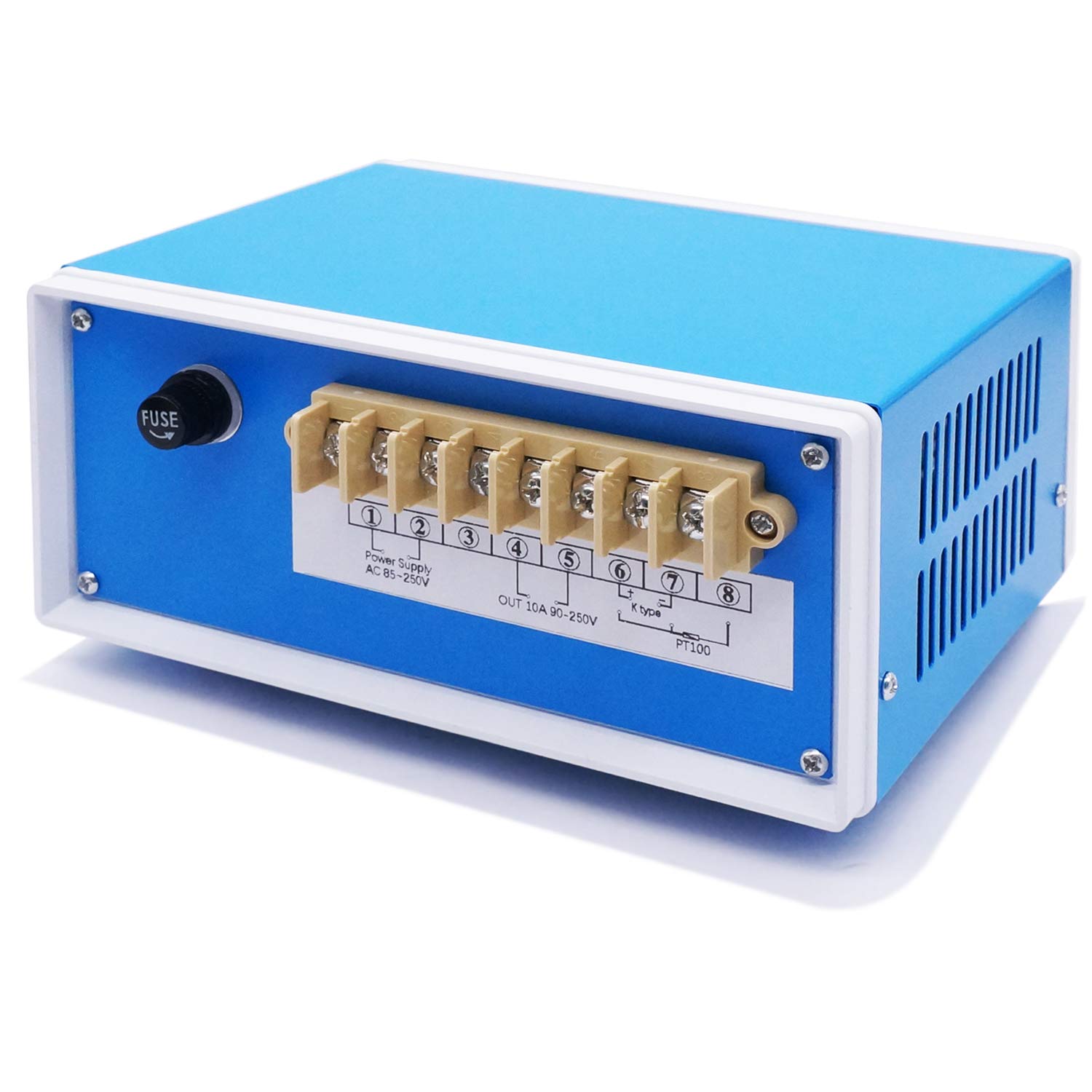

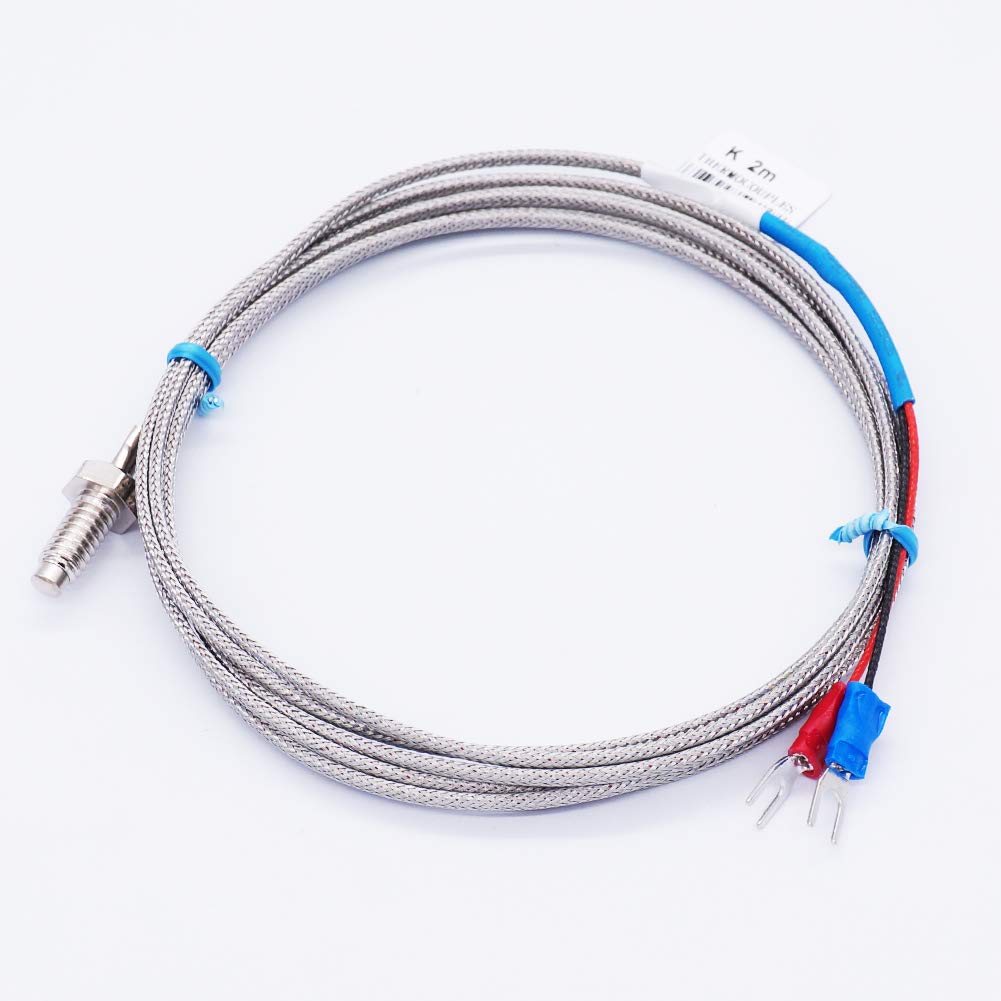

• Box Including：MV100 Controller；SSR 40DA solid state relay ;Rotary switch；Indicator light；Knob type safety tube；Wiring board；Temperature sensor

model number: WENKBOX

Part Number: WENKBOX

Package Dimensions: 8.1 x 7.2 x 4.4 inches
