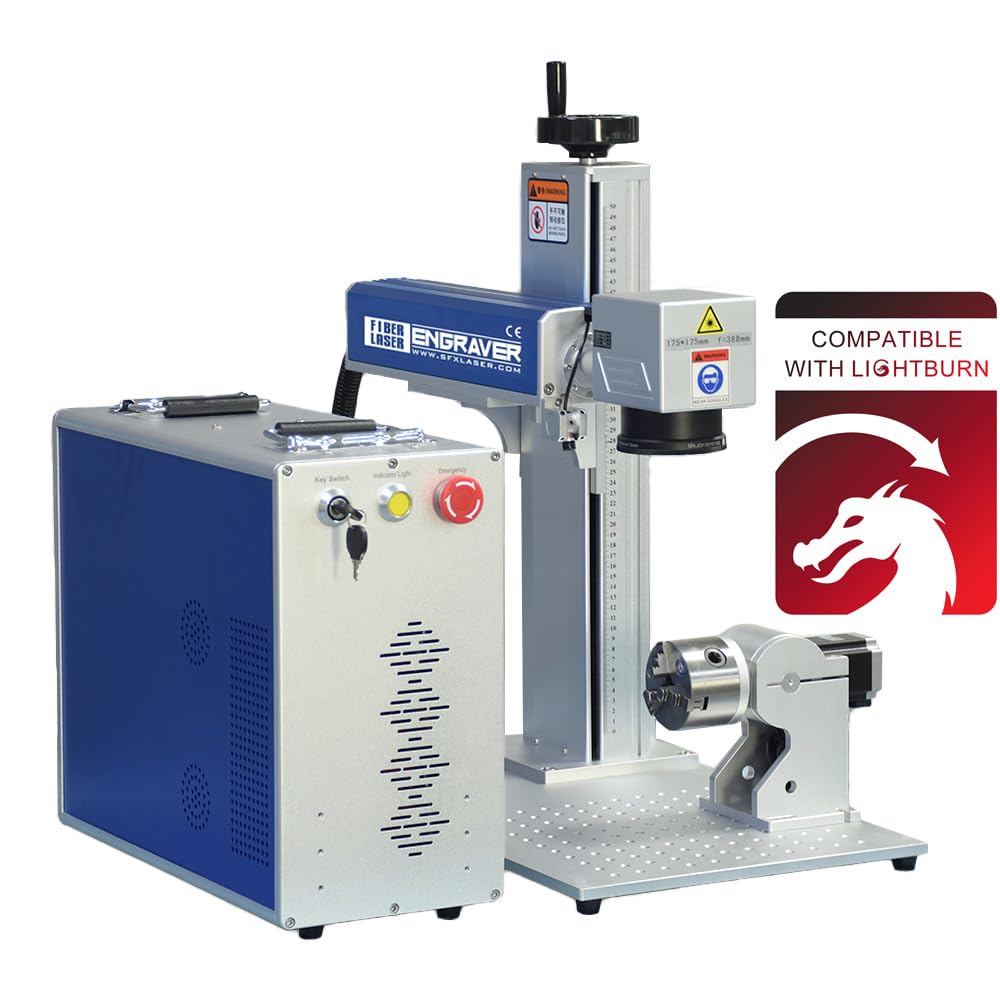

US Stock 60W JPT MOPA M7 Fiber Laser Marking Machine Fiber Laser Engraver Laser Marker 175×175mm with 80mm Rotary Axis Compatible with Lightburn

Brand: SFX

Features:

• JPT MOPA M7 60W+Marking Field(Lens): 175*175mm+Engraving Depth:≤1.0mm+80mm Rotary Axis+EZCAD2.0(Compatible with Lightburn) Class 1 Laser Output Power 0.39mW

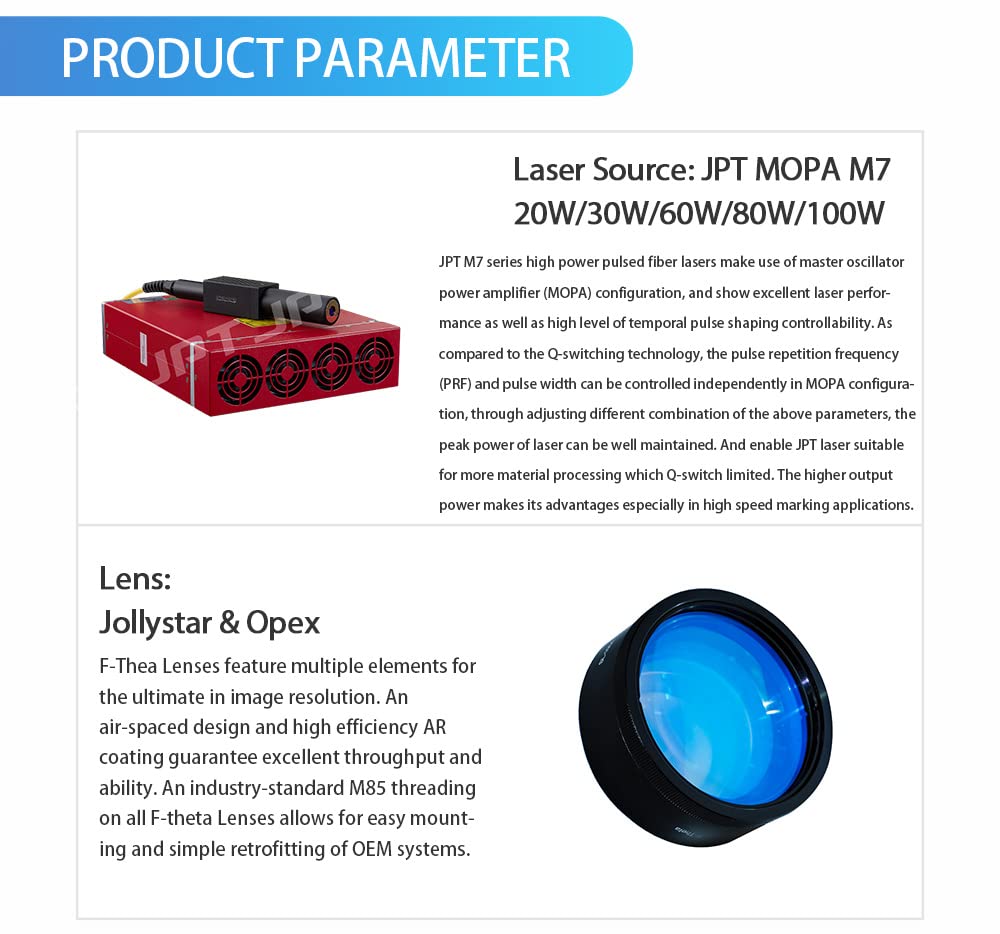

• Laser Source: JPT MOPA M7; Maximum Pulse Energy: 2.0mJ; Repetition Rate Frequency : 1-4000kHZ; Pulse Duration: 2-500ns
• Application Advantage: Metal surface processing, peeling coating; Aluminum black marking; Semi-conductor&electronics industry applications; Large area engraving; Excellent marking effect on plastic or other sensitive material; Black and color marking on stainless steel.
• High-Rate of Electrical-Optical Conversion: up to 70%; Imported laser scanning system makes the marking speed up to 7m/s. Re-position precision is 0.002mm

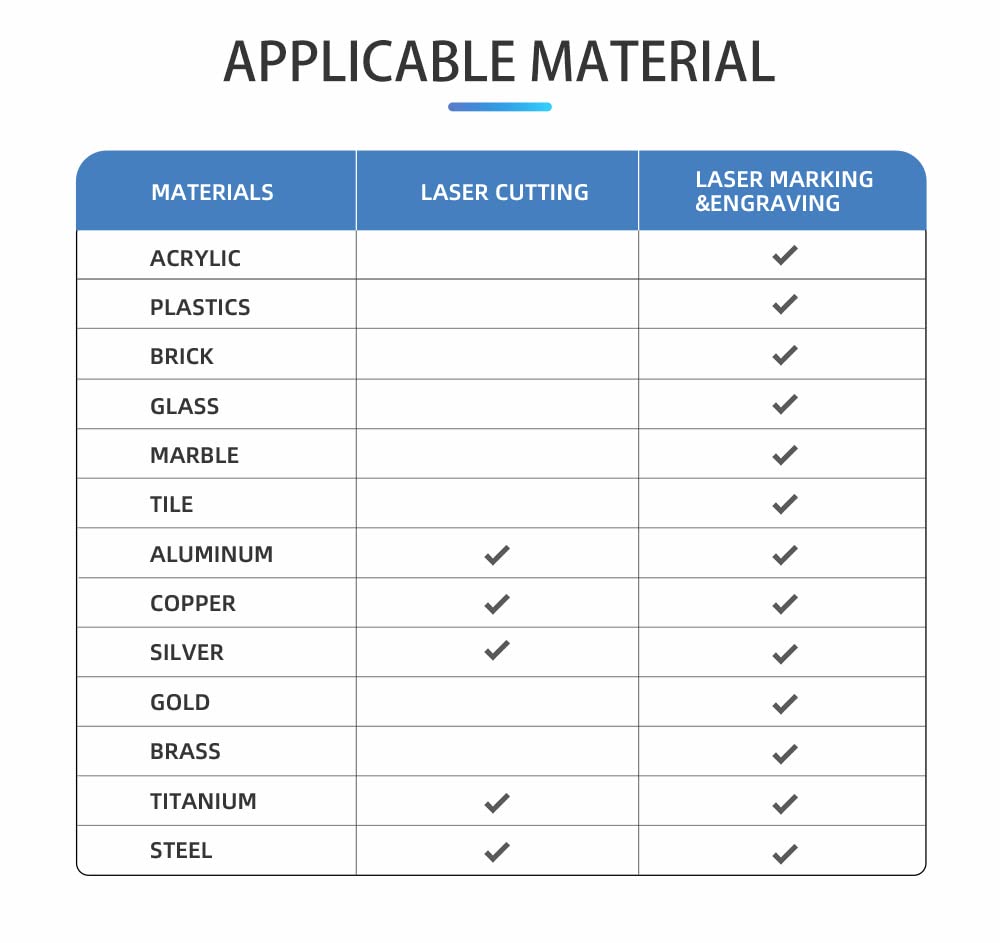

• Applicable Material: Carbon Steel, Aluminum, Stainless Steel, Brass, Copper,Gold, Silver, etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.

model number: BY-50GS-175-MOPA

Part Number: BY-50GS-175-MOPA

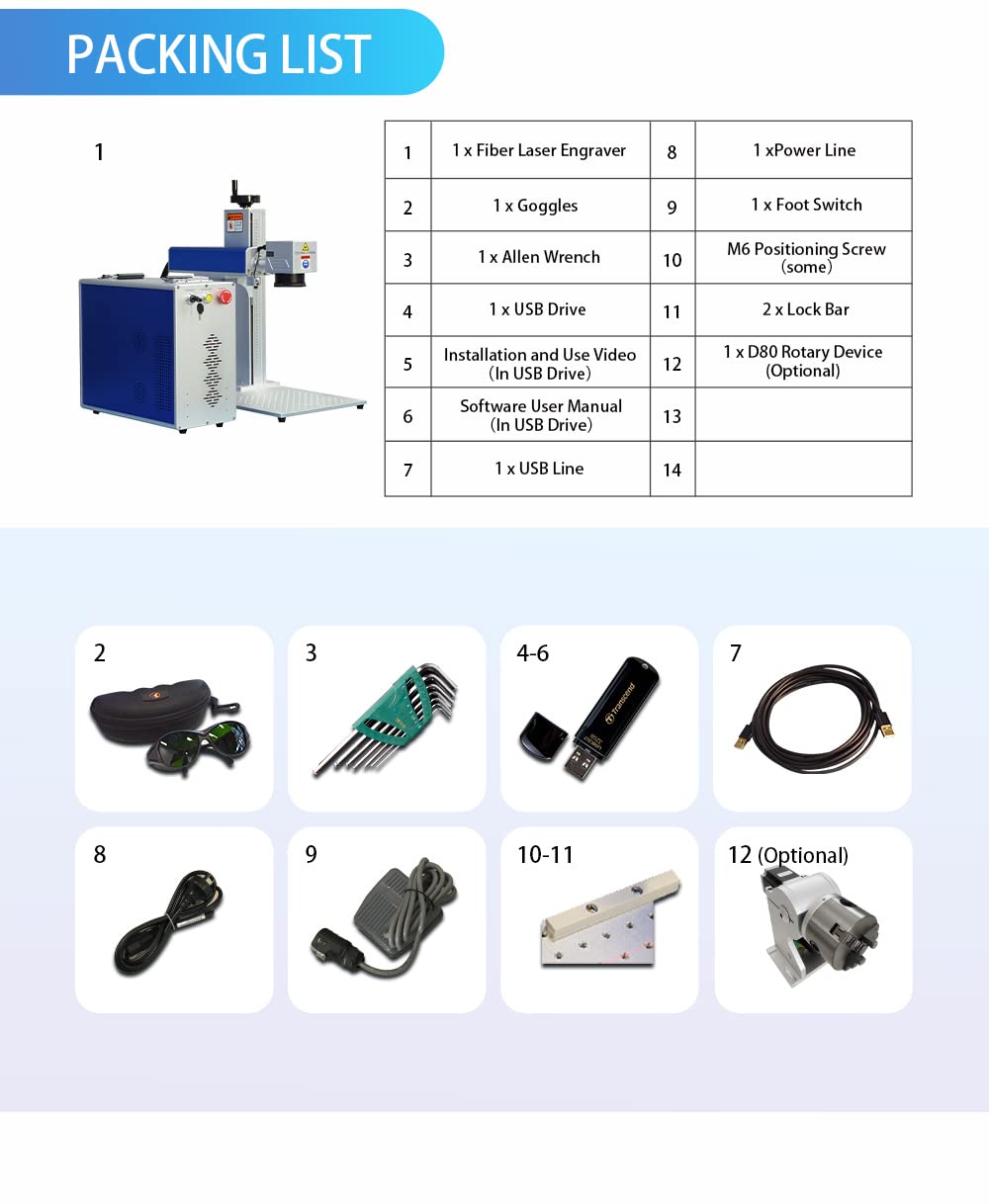

Details: Packaging Details:

60W JPT MOPA M7 Laser Engraver+175*175mm Lens+80mm Rotary Axis

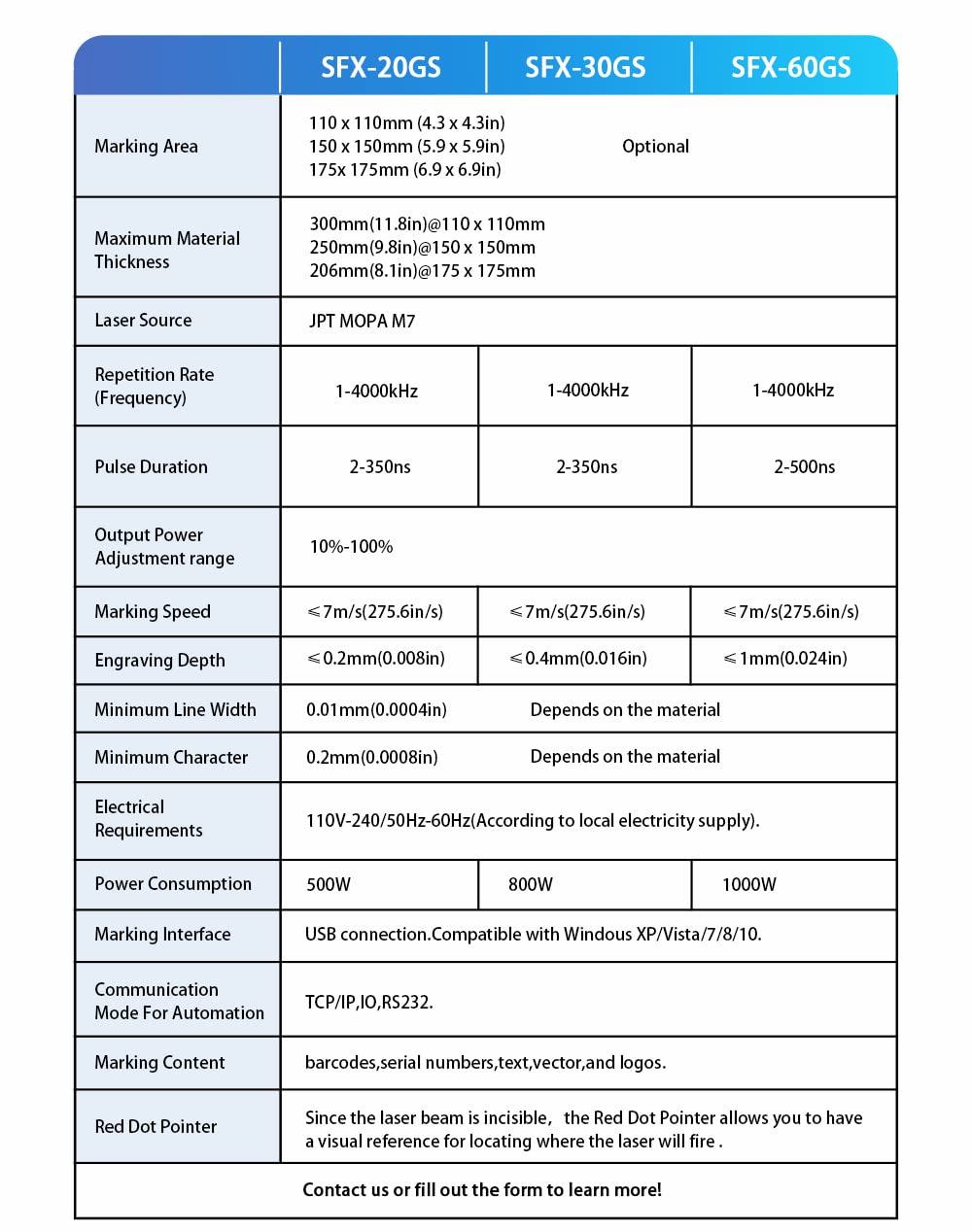

Technical Parameters:





Laser Power: 60W Marking Area: 175*175mm Max. Material Thinkness: 206mm Laster Source: JPT MOPA M7 Maximum Pulse Energy: 2.0mJ Repetition Rate Frequency : 1-4000kHZ@JPT Pulse Duration: 2-500ns Output power adjustment range 10%-100% Marking Speed: 7m/s Engraving Depth:≤1.0mm Min. Line Width: ≤0.01mm（Depends on the material) Min. Character: 0.2mm（Depends on the material) Input Voltage: 110V-240V/50-60Hz Complete Power Consumption: 1000W Communication Mode for Automation TCP/IP, IO,RS232



Application Advantages:


Metal surface processing, peeling coating; Aluminum black marking; Semi-conductor&electronics industry applications; Large area engraving; Excellent marking effect on plastic or other sensitive material; Black and color marking on stainless steel.

EAN: 0782902352172

Package Dimensions: 30.7 x 28.3 x 19.0 inches
