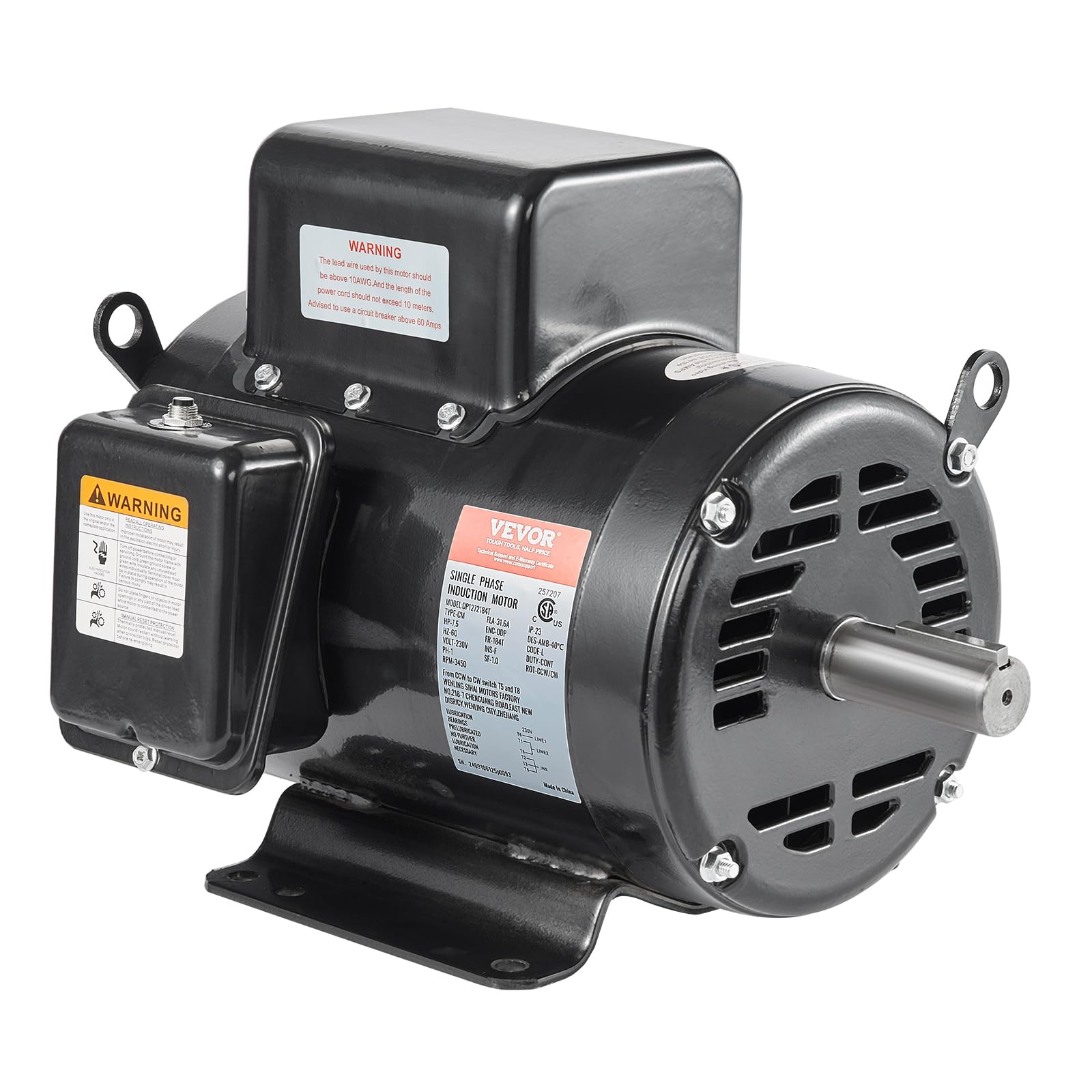

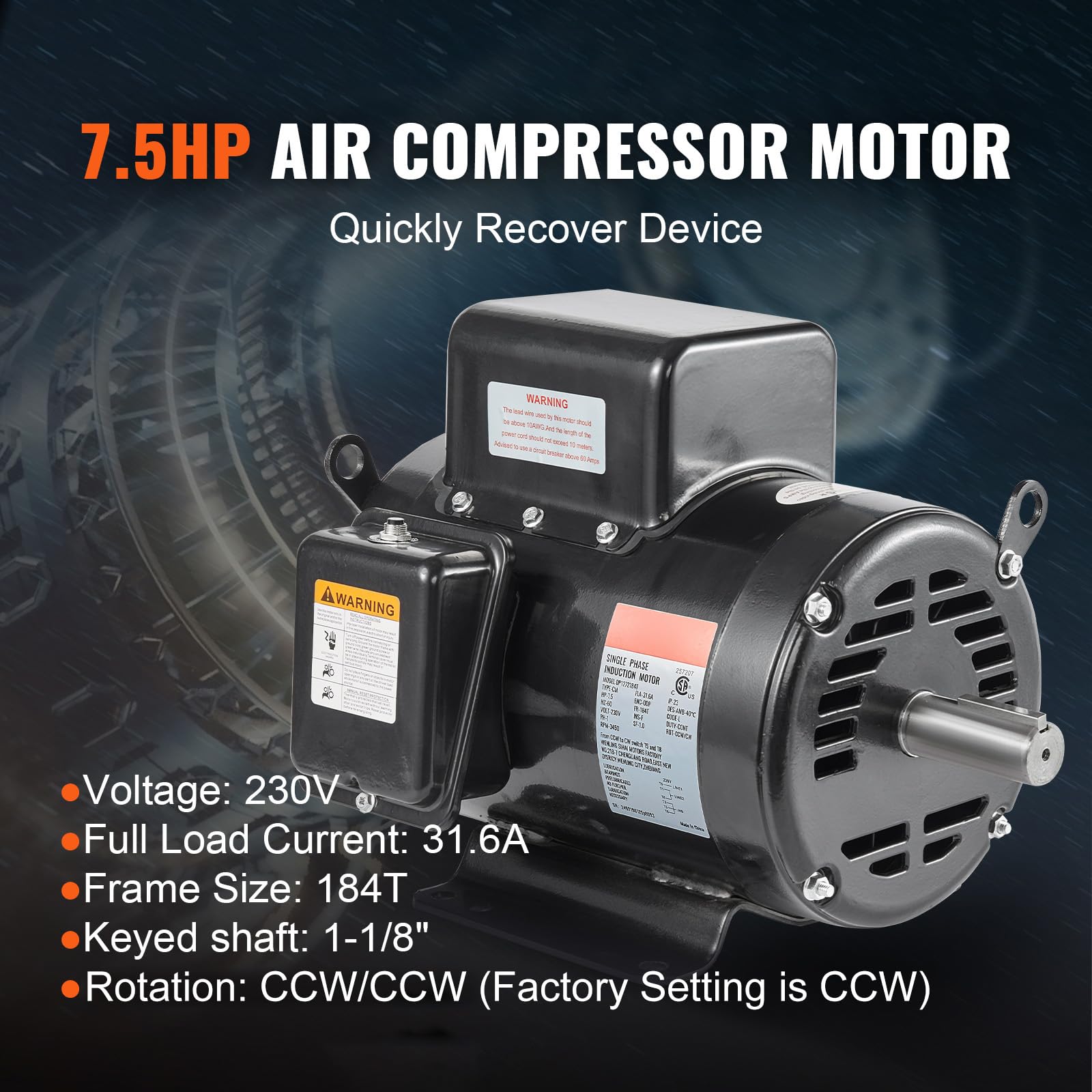

VEVOR 7.5HP Air Compressor Motor, 230V 31.6 Amps Electric Motor, 3450RPM 184T Frame, 1-1/8" Keyed Shaft, 2.75" Shaft Length for Air Compressors, Single Phase, CCW/CCW (Factory Setting is CCW)

Brand: VEVOR

Color: Silver

Features:

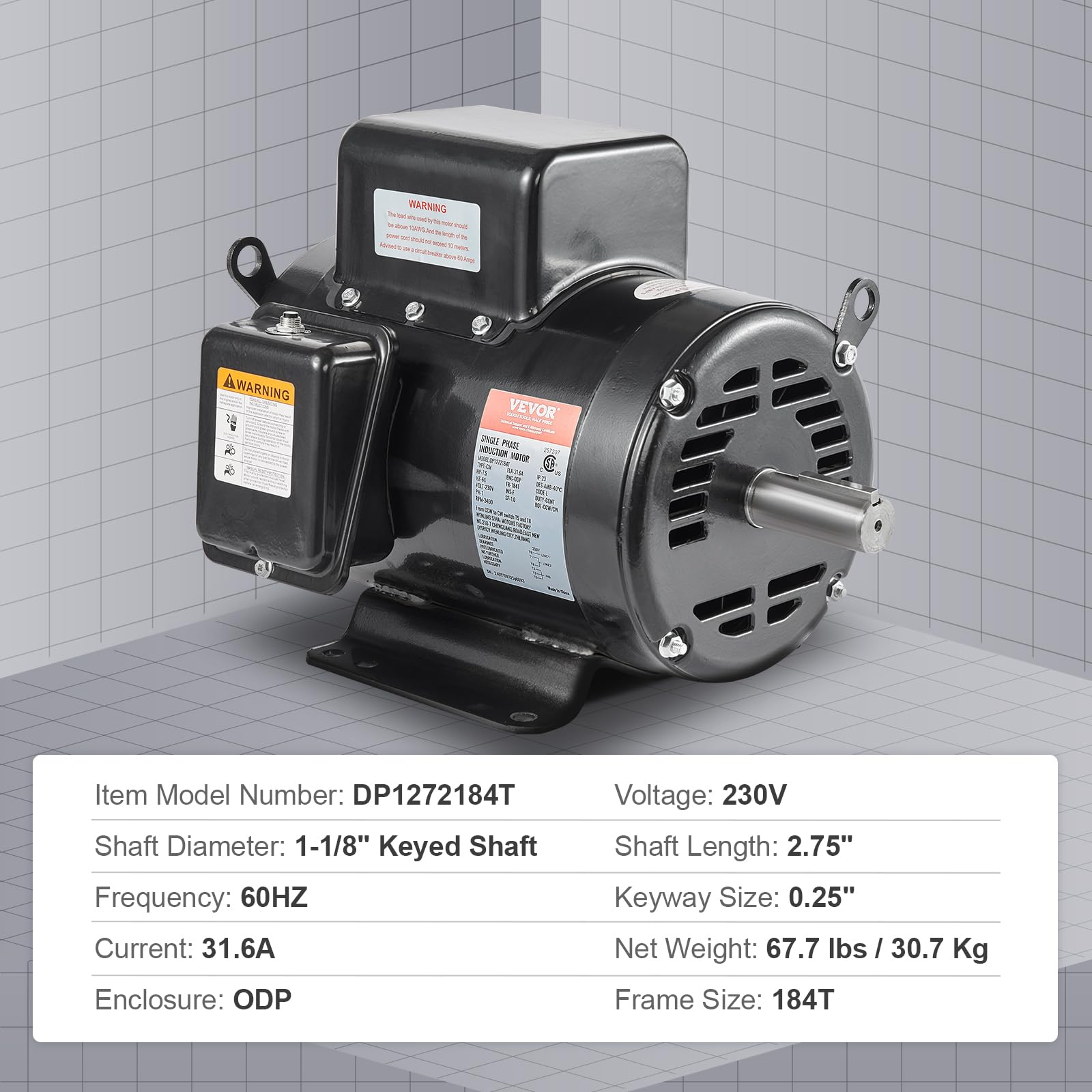

• High Performance: 7.5HP, 3450 RPM, Single Phase, Full Load Amps: 31.6Amp, 230V 60Hz, SF: 1.0.

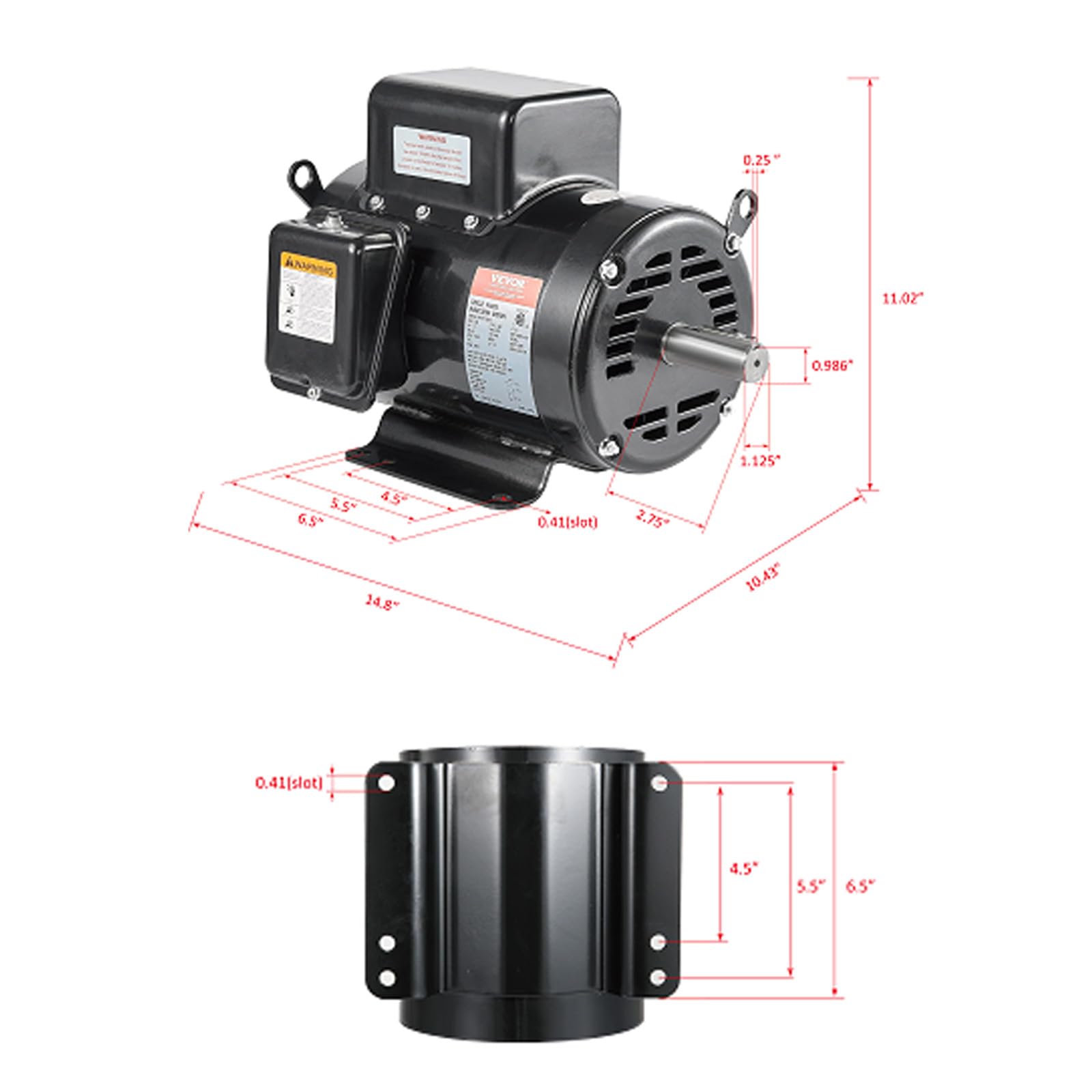

• Frame Type: 184T Frame, 1-1/8' Keyed shaft, 2.75' Shaft length, 0.25' Keyway Size.

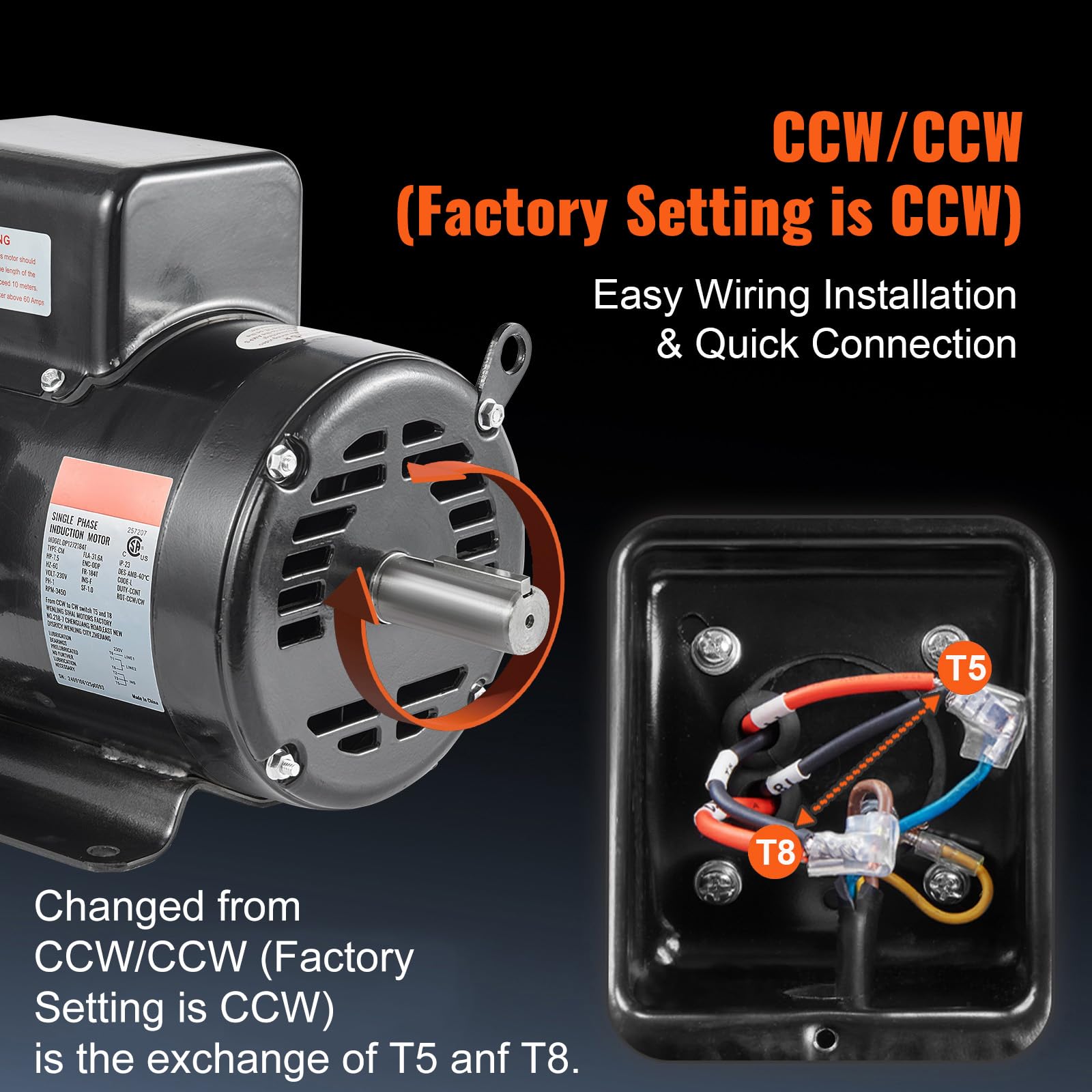

• Dual Rotation Direction: Motor is Reversible for CCW/CCW rotation (Factory Setting is CCW), provides easier wiring operations.
• Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.

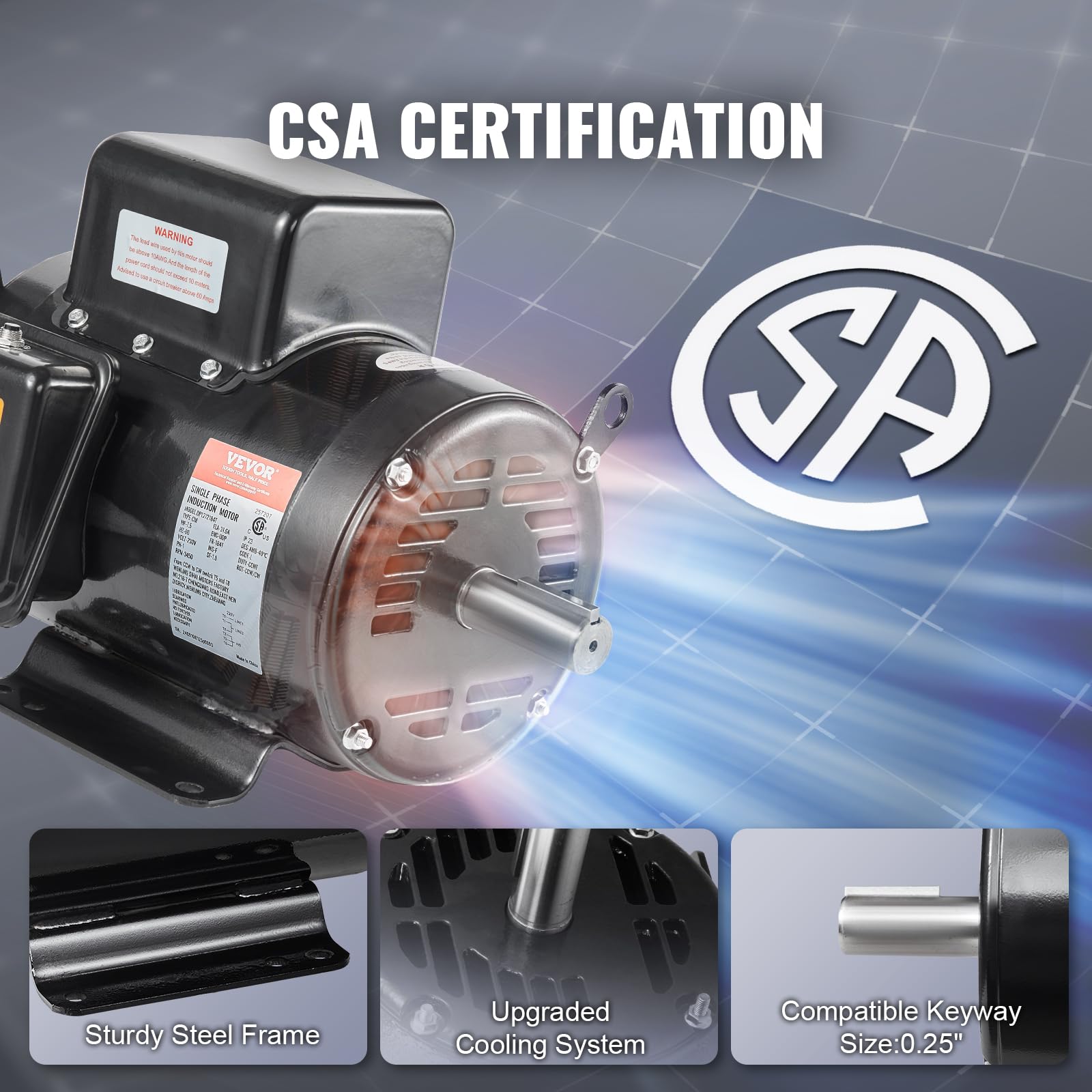

• Safe & Durable: Tested with CSA certification. A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage.
• PLEASE NOTE: The circuit breaker supplied by the customer should be 60.0 amps.

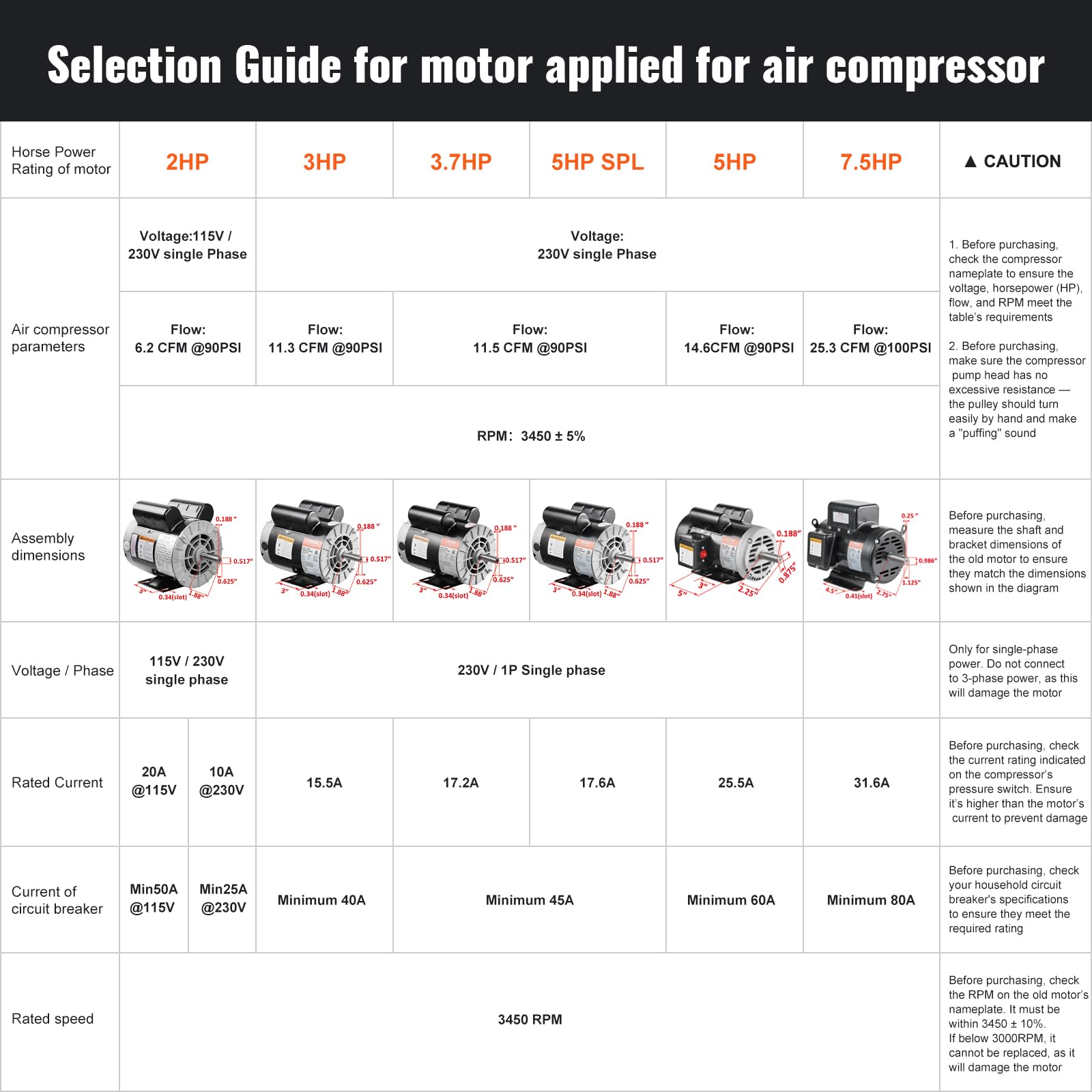

• Friendly Reminder: We have added one purchase guide image for your reference. You can click on the image details to view it.

model number: 7.5HP Air Compressor Motor

Part Number: 7.5HP Air Compressor Motor

EAN: 0197988989028

Package Dimensions: 18.9 x 14.6 x 14.6 inches
