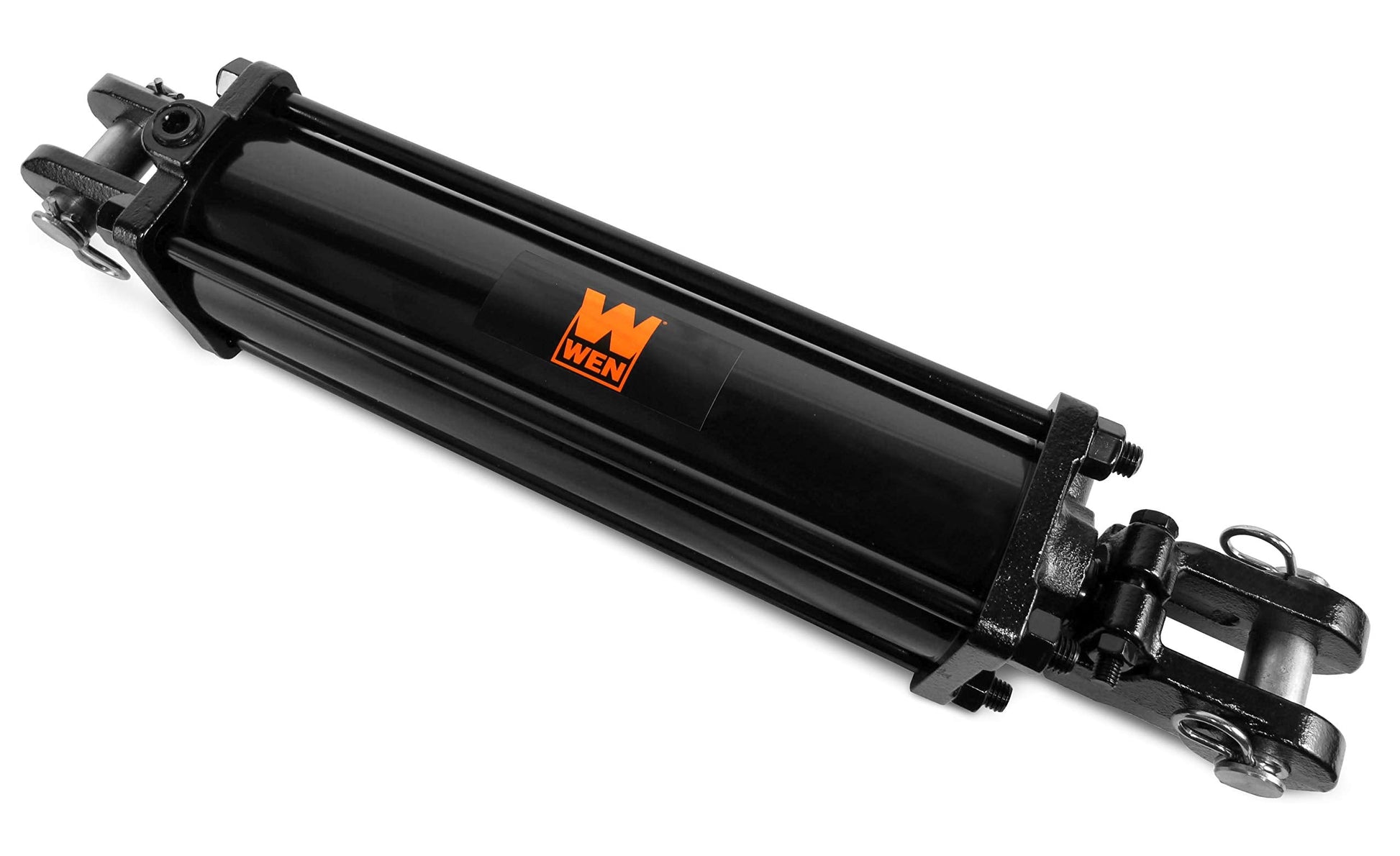

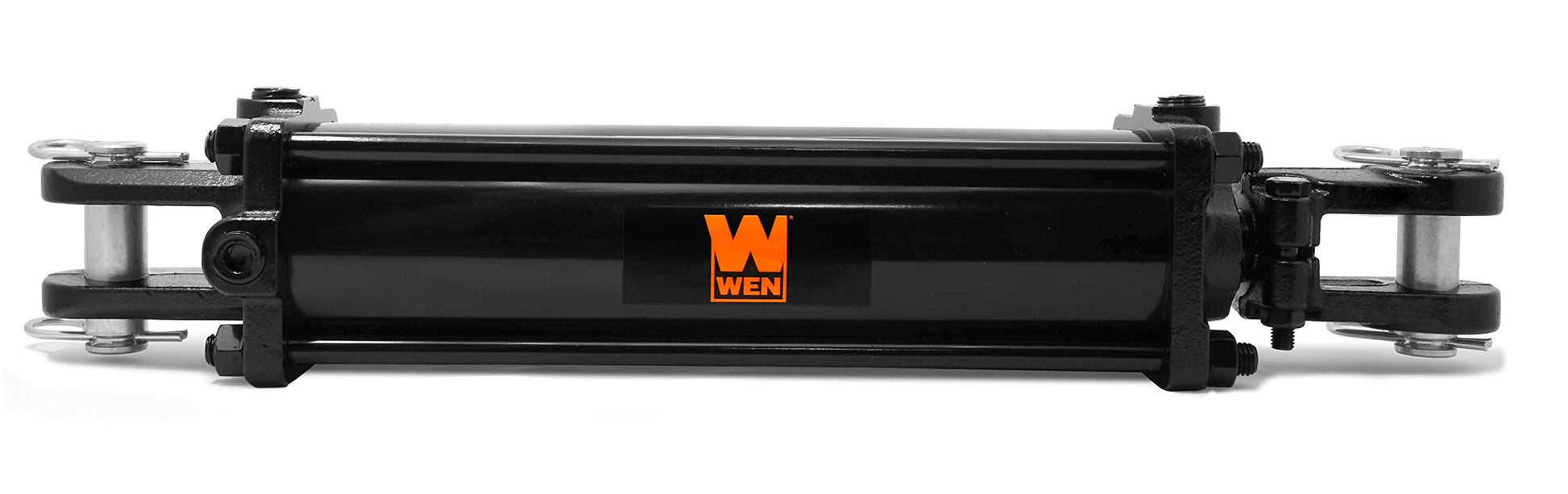

WEN TR3512 2500 PSI Tie Rod Hydraulic Cylinder with 3.5 in. Bore and 12 in. Stroke

Brand: WEN

Color: Black

Features:

• Double-acting steel-welded design creates pressure up to 2500 PSI
• Features a 3.5-inch bore, a 12-inch stroke, and a 1.25-inch rod diameter
• 1/2-inch NPT port connects to any standard hydraulic hose

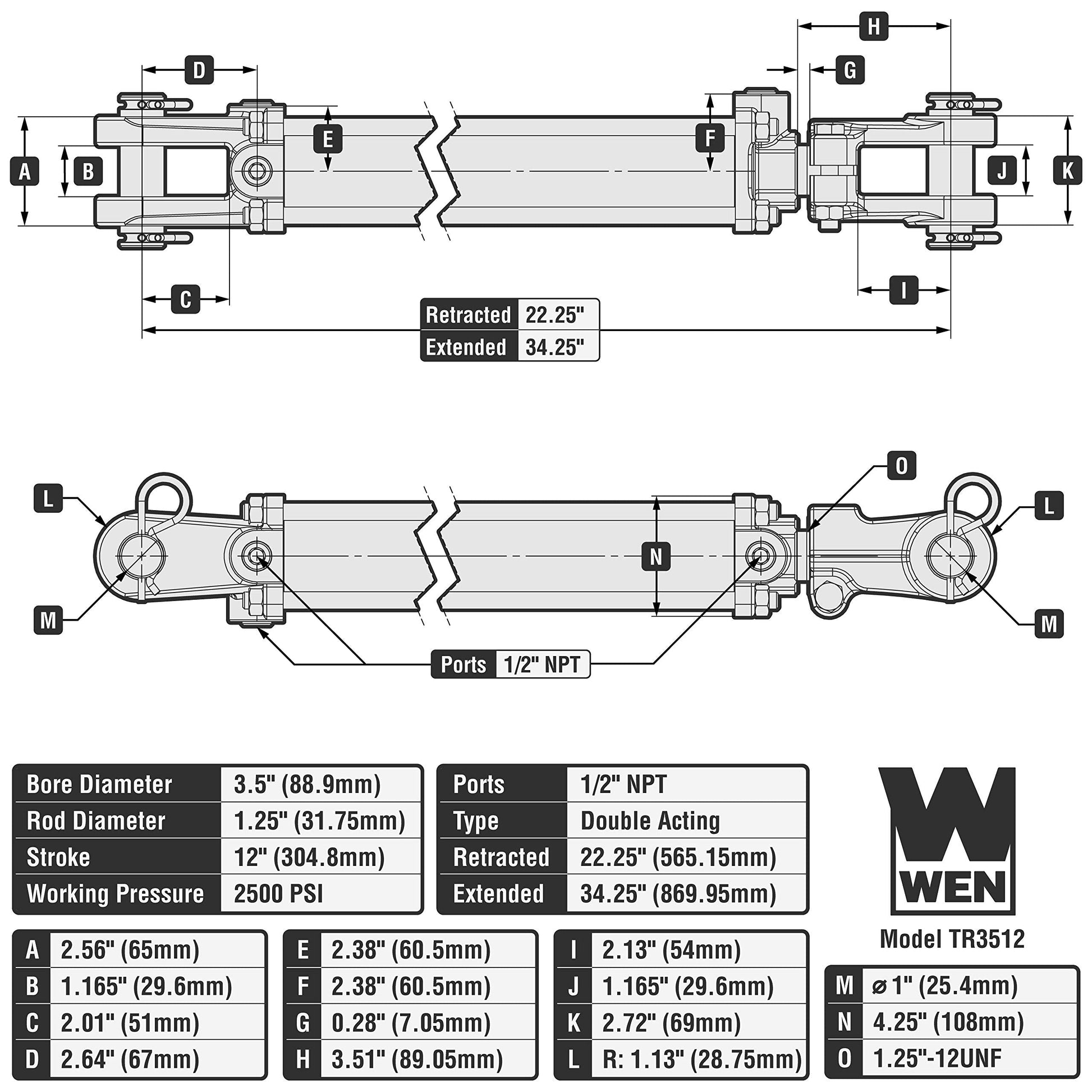

• Retracted 22.25-inch cylinder extends out to 34.25 inches in length

model number: TR3512

Part Number: TR3512

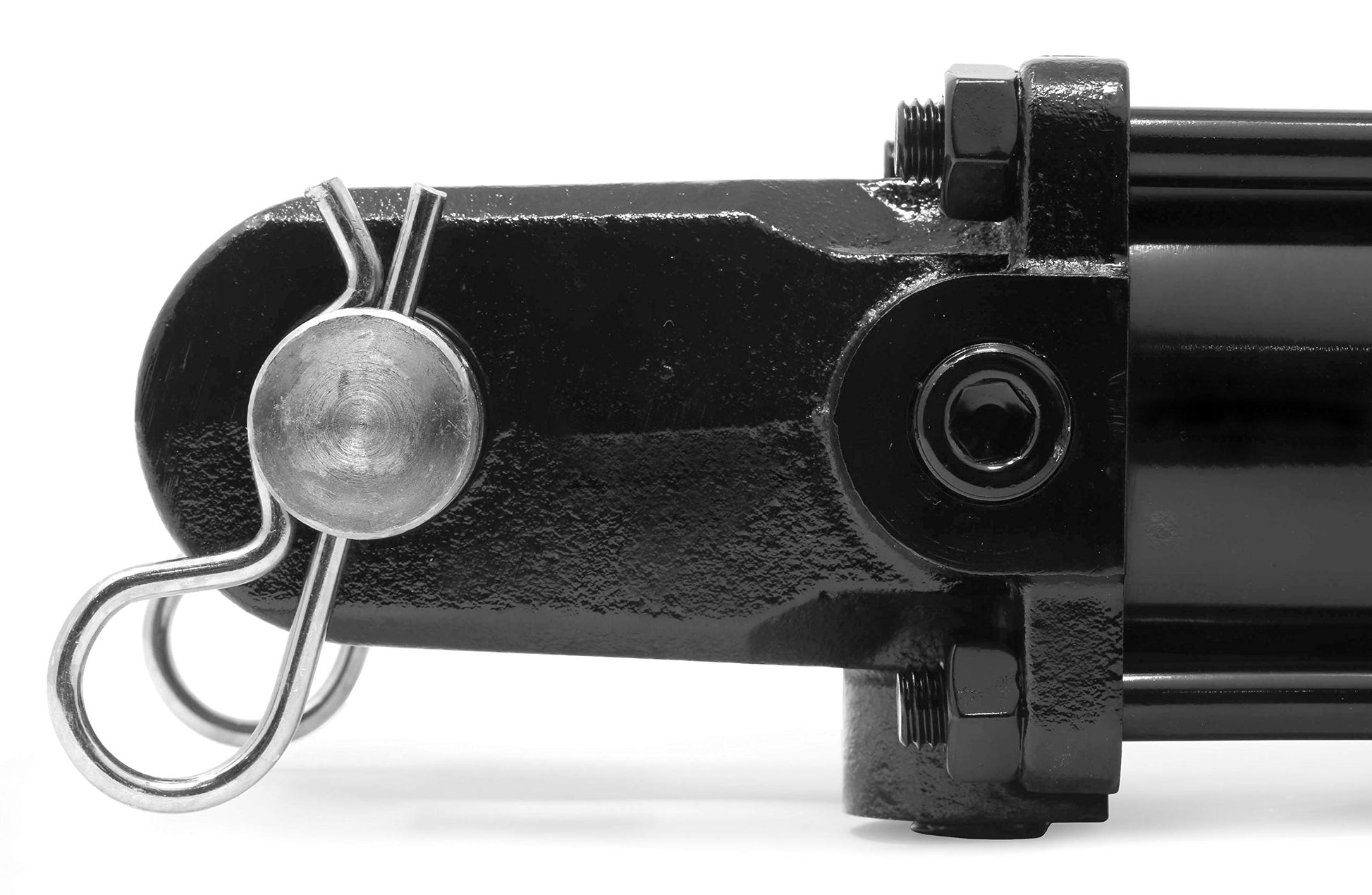

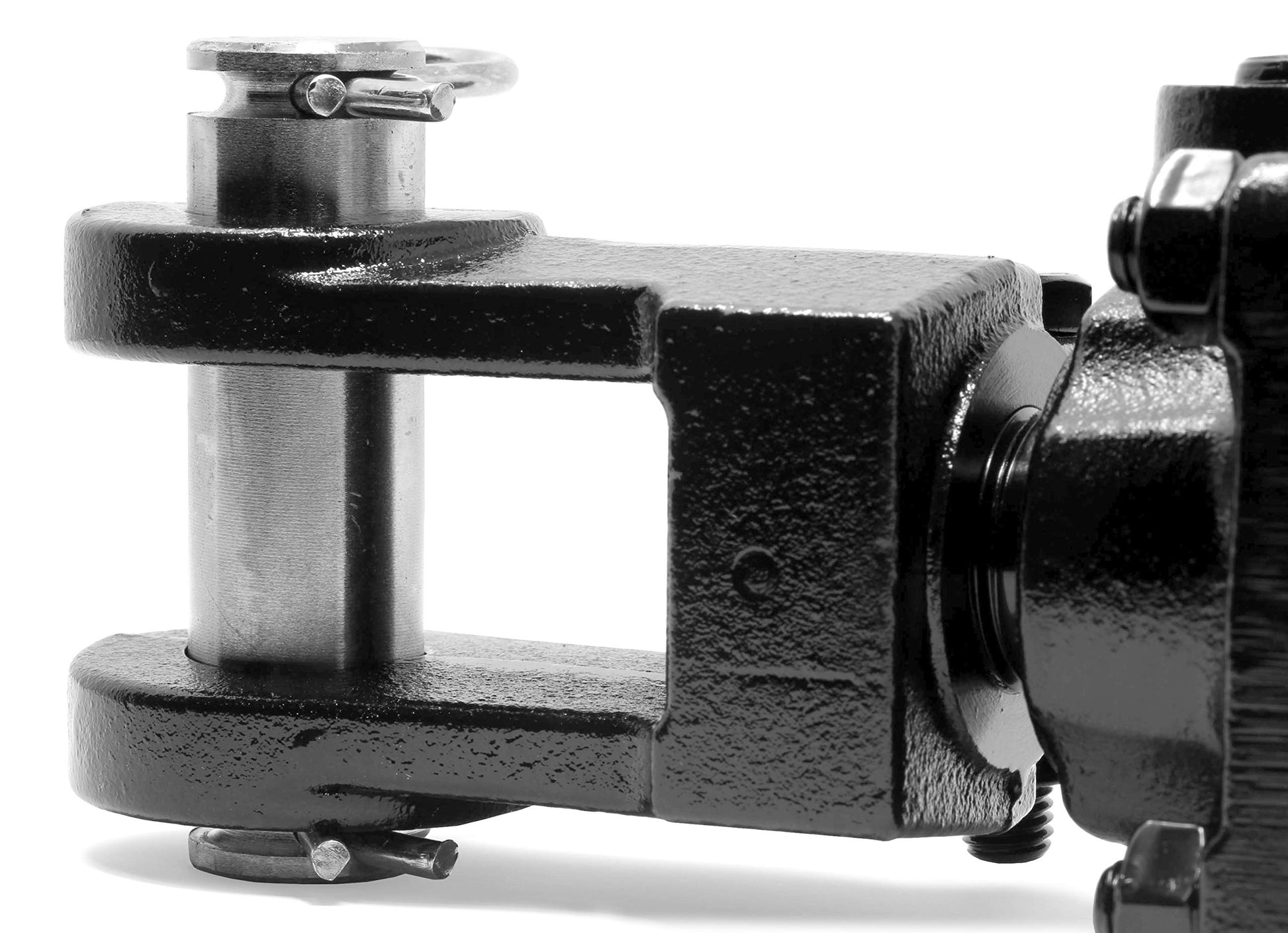

Details: Remember when you had a cylinder that lasted? Maximize reliability in agriculture, construction, manufacturing, machinery, and more with a WEN Tie-Rod Hydraulic Cylinder. This double-acting steel-welded tie-rod hydraulic cylinder creates operating pressures of 2500 PSI. The 1/2-inch NPT port size attaches easily to any standard hydraulic hose. With a 3.5-inch bore and a 12-inch stroke, this durable cylinder goes from a retracted length of 22.25 inches all the way out to an extended length of 34.25 inches. This cylinder also includes a reinforced O-ring tube seal, a cold-drawn tube to maximize seal life, a 1-inch diameter zinc-plated steel pin, a high-tensile ground and polished chrome-plated rod, an ASTM A536 65-45-12 ductile iron piston, and ductile iron female clevises with grade 8 clamp nuts. And because it’s a WEN product. all to make sure you remember WEN.

EAN: 0044459991502

Package Dimensions: 29.0 x 6.6 x 6.3 inches
