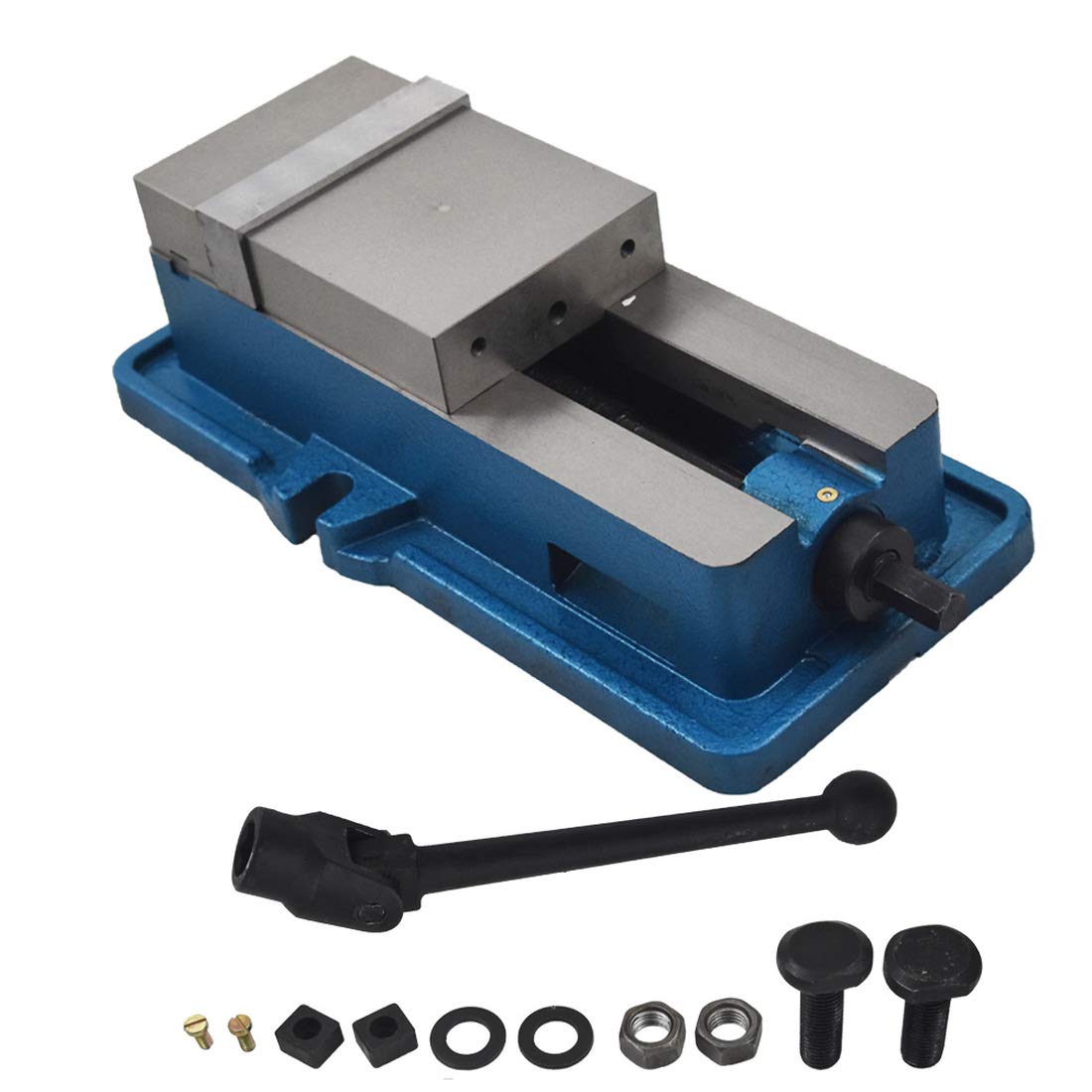

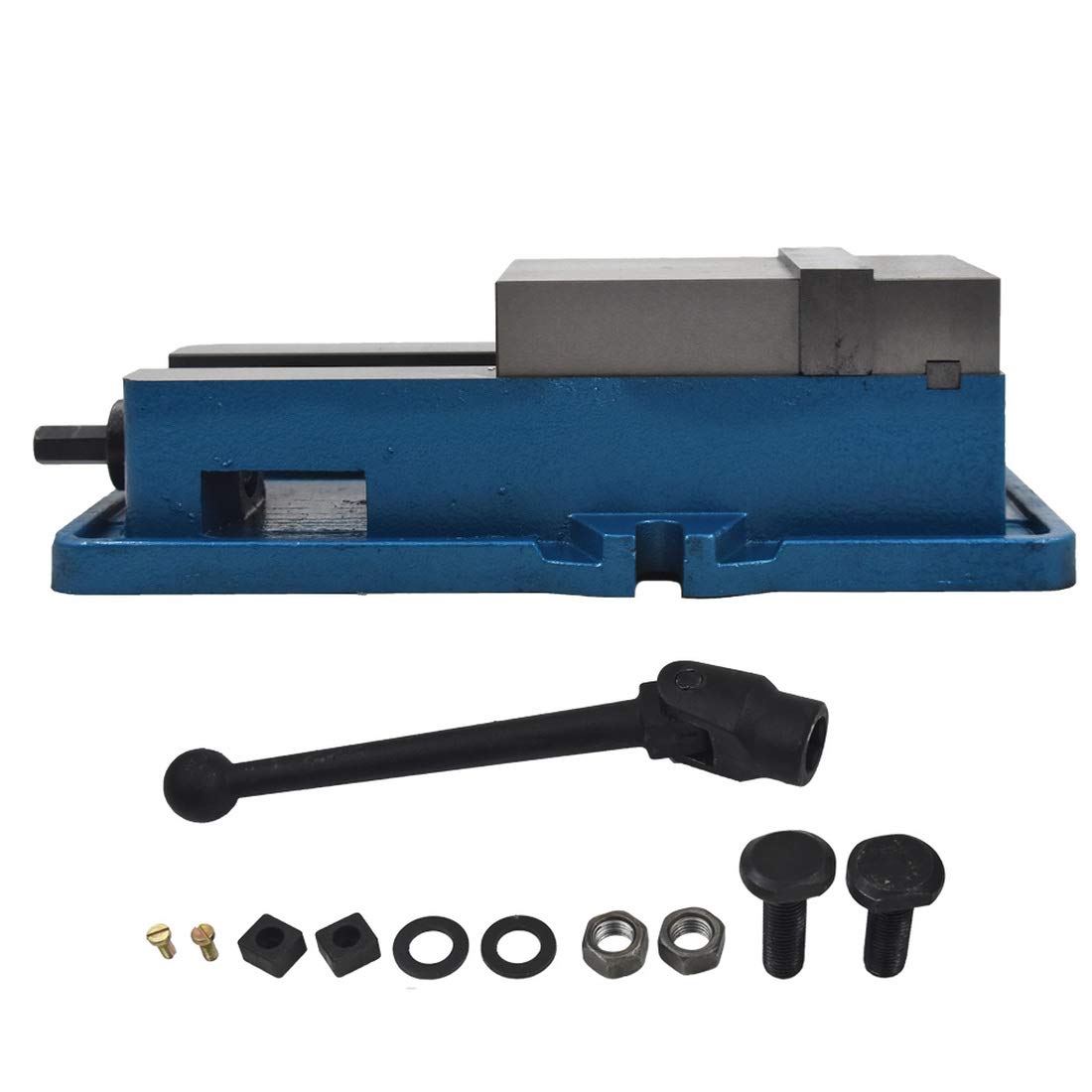

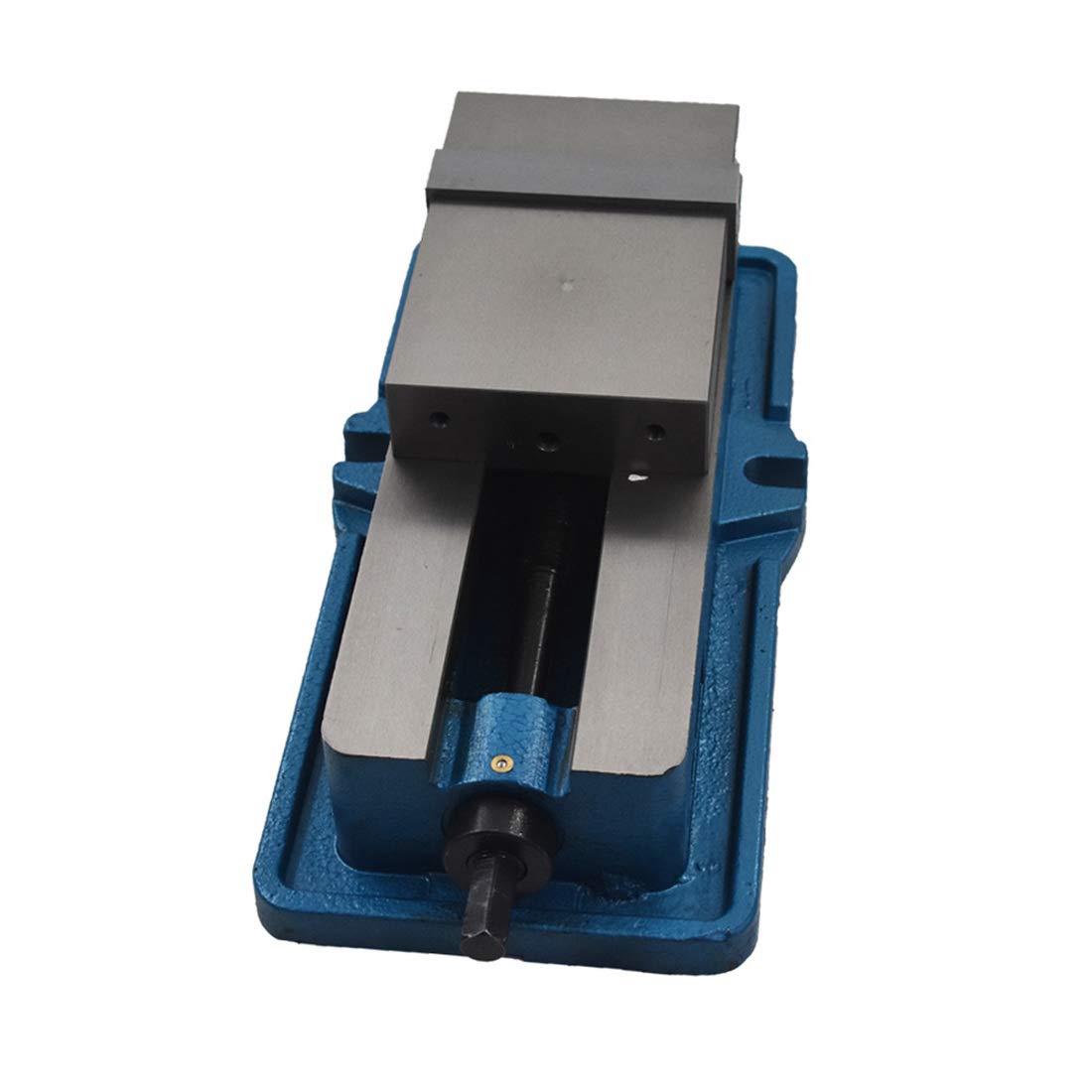

WFLNHB 6 x 6.3" Accuracy Mill Vise without Base Replacement for Milling Shaping and Drilling Machines

Brand: WFLNHB

Color: Blue

Features:

• Product Data: Jaw width - 6.30 inch/160 mm, maximum jaw opening - 6.30 inch/160 mm, jaw height - 1.75 inch/44.5 mm, total product length - 17.01 inch/432 mm, total product width 8.90 inch/226 mm, and total tong body height - 4.33 inch/110 mm.
• Quality Structure: The whole bench clamp is made of material with high hardness and stiffness. 2 screws from the top through the jaw reduce keys side force and make the vise body not easy to broke, extend vise life.
• Strong Clamping Force: After fine grinding, the surface of the clamp is smooth and flat. Clamp the workpiece without shaking. When clamping, the hemispherical body in the pliers applies a 45 degree downward force to the workpiece, so that the workpiece is stable without upward displacement, and the processing accuracy is higher.
• Reinforced and Adjustable: The solid base and rotary handle make the use more stable and convenient. The K-type angle lock nut is made of ductile iron, which is solid and durable.
• Widely used: Accuracy mill vise is suitable for ordinary milling machines, CNC milling machines and machining centers. Most of the work of the fitter is completed by using the vice, such as sawing, filing, chiseling, etc.

model number: ae6a4957-159f-407b-983b-8bcae541c96c

Part Number: Does Not Apply

Details: Accuracy ground to accuracy
Used in milling, shaping and drilling machines.
Angle tight, postive lock style-lock down type jaws
Jaws interchangeable with industry standard vise

EAN: 6941110115885

Package Dimensions: 18.1 x 12.8 x 6.5 inches
