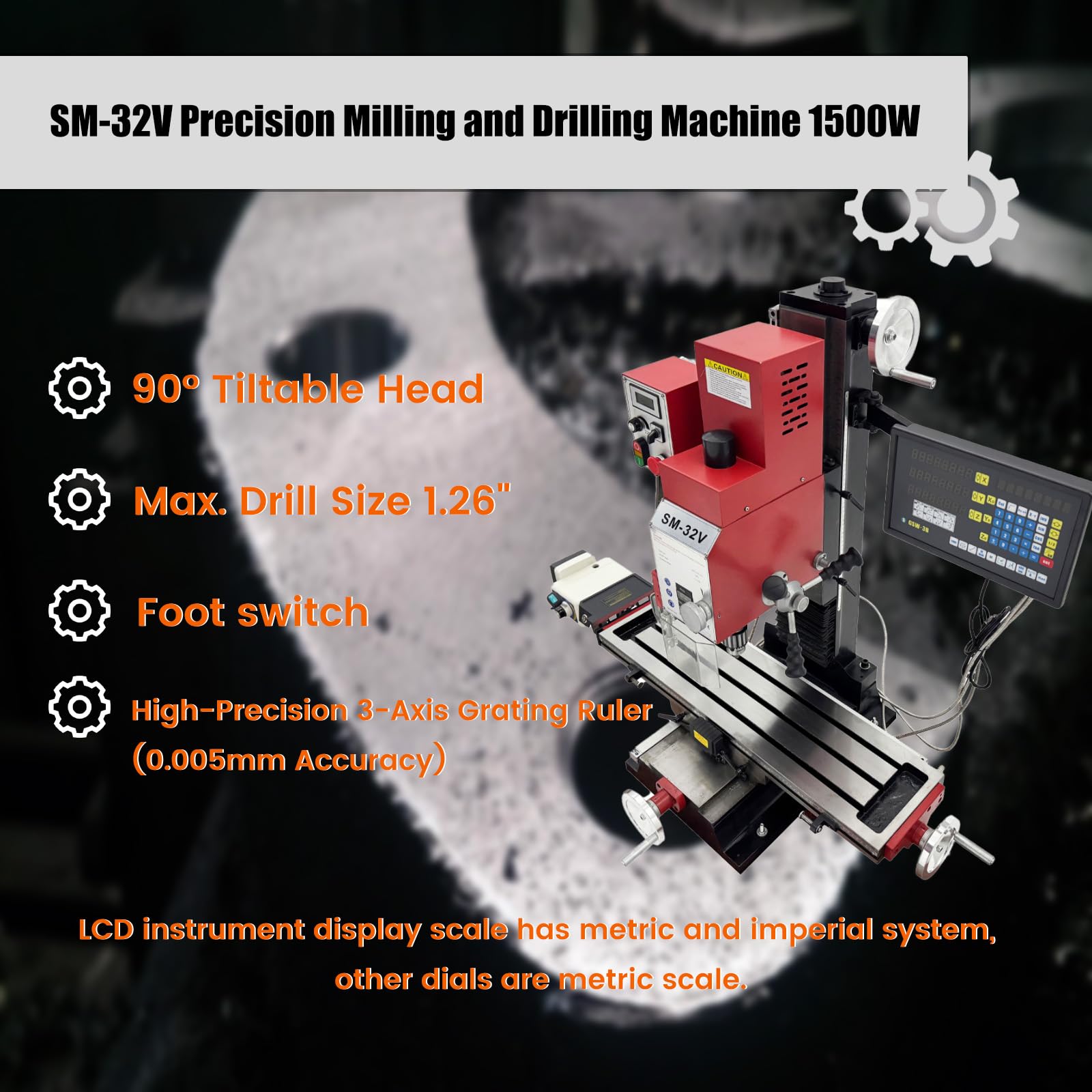

WYDDDARY 110V Mini Precision Milling and Drilling Machine 2HP Brushless, with 33.1"×8.3" Work Table, R8 Spindle 50-2250RPM, X-Axis Power Feed & 3-Axis DRO for Metal Wood DIY

Brand: WYDDDARY

Color: Red

Features:

• 【Versatile Drilling & Milling – Multi-Function Machine】Max drilling diameter: 1.26' (32mm). Face milling capacity: 2.95' (75mm). Vertical milling capacity: 1.26' (32mm). R8 spindle taper ensures stable tool holding. Perfect for drilling, milling, precision parts processing, sample processing, and model making. X-axis power feed (0-200rpm) for automated operation.

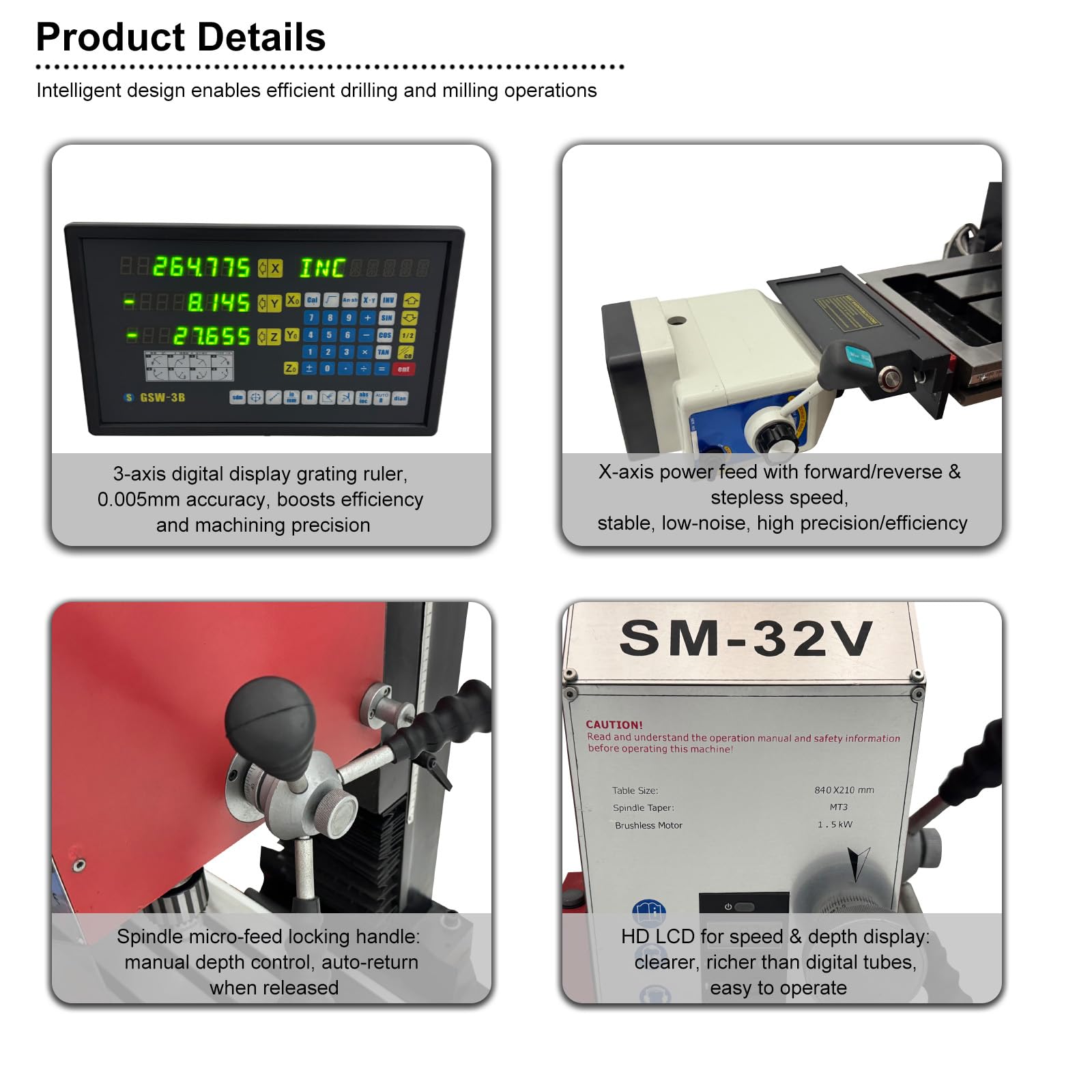

• 【Three-Axis Digital Readout – 0.005mm Precision】Equipped with 3-axis grating ruler (X/Y/Z) for precise angle and length measurement and control. Precision reaches 0.005mm. Features include zero clear, preset, inch/metric display, relative/absolute switch, auto centering, calculator, and power-off memory. Greatly improves work efficiency and machining accuracy.

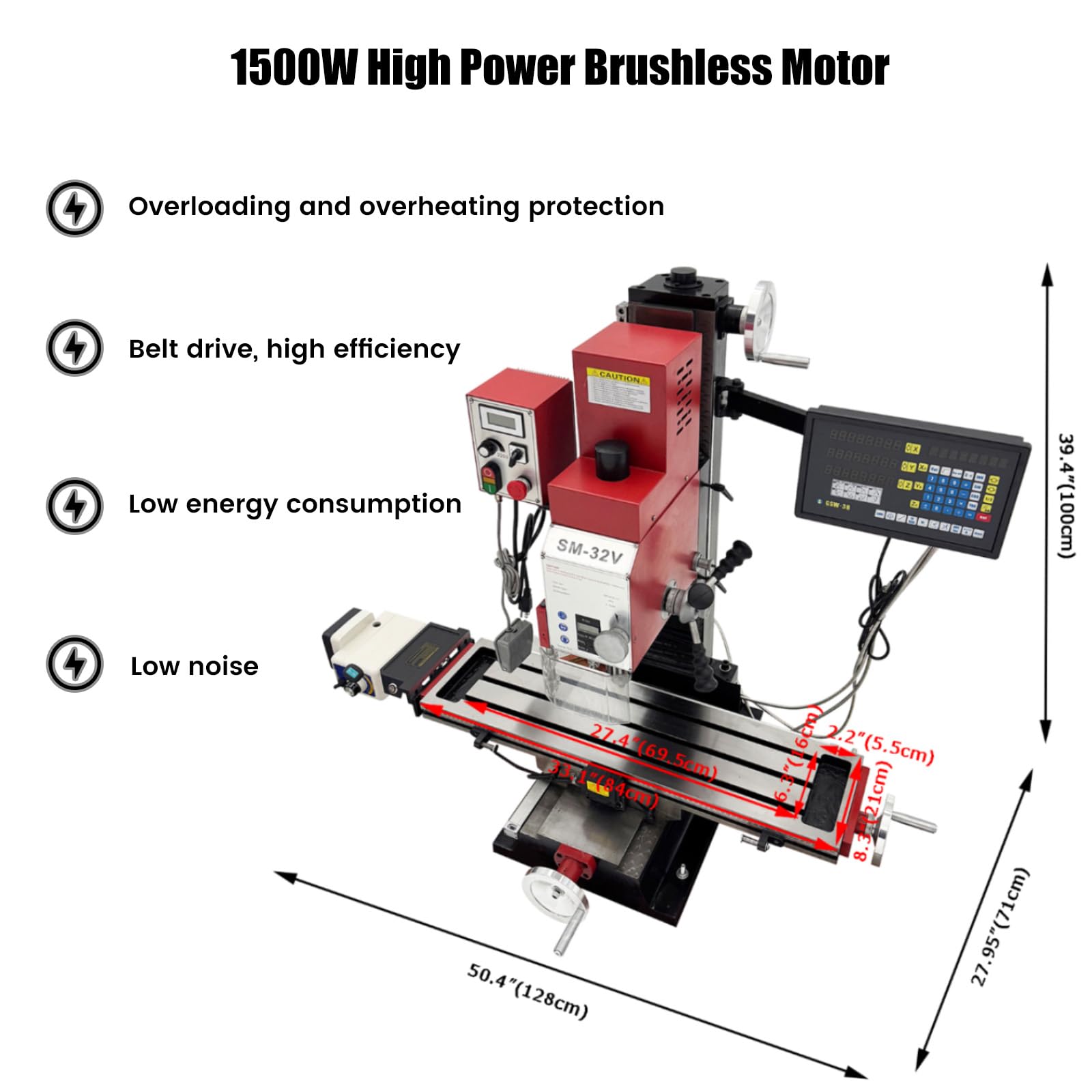

• 【1500W Brushless Motor 】High-quality 1500W brushless all-copper motor delivers strong, reliable power. Belt drive design offers high efficiency, low energy consumption, and quiet operation. Overload and overheat protection for safety and extended service life. Variable speed 50-2250RPM for both high-speed and low-speed precision machining.

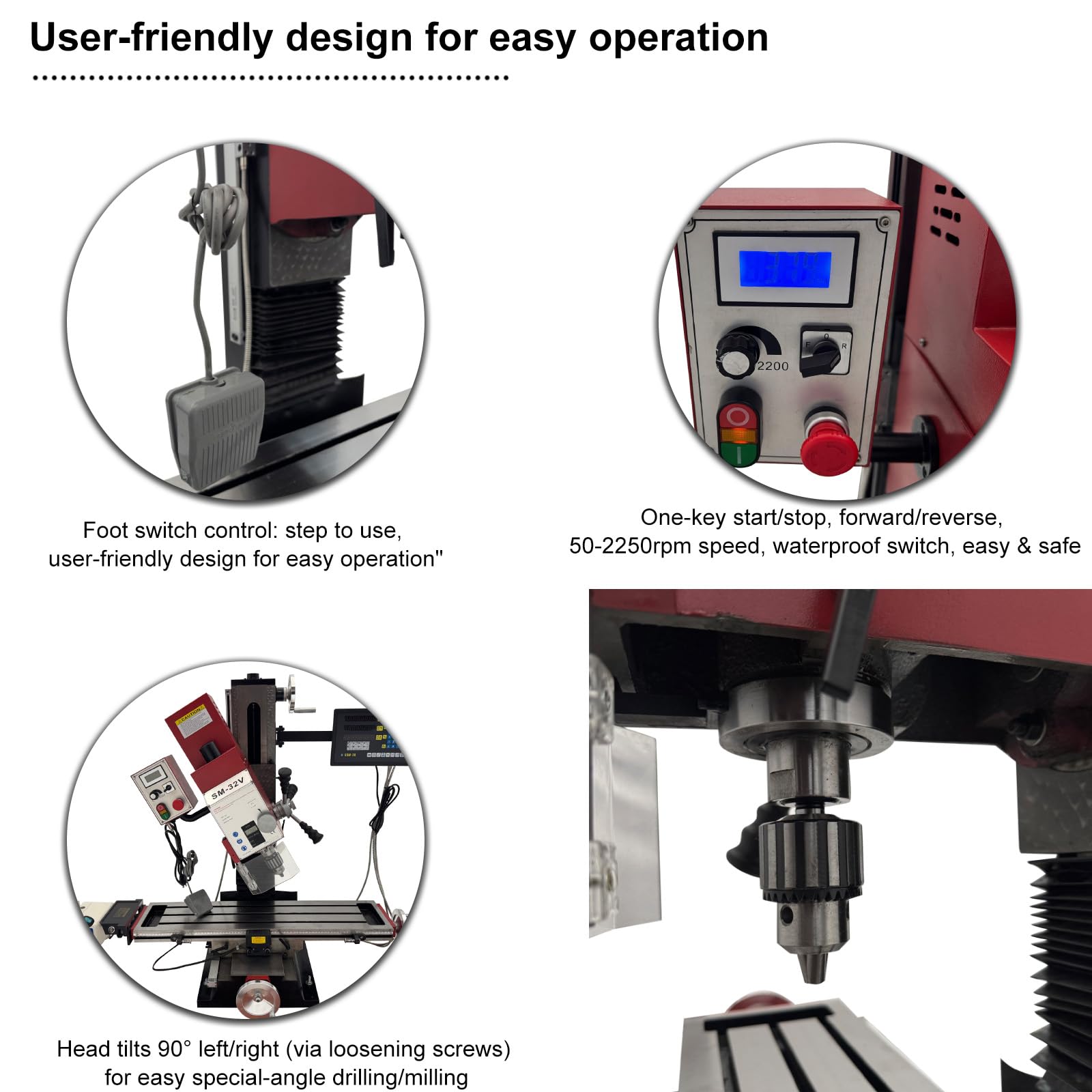

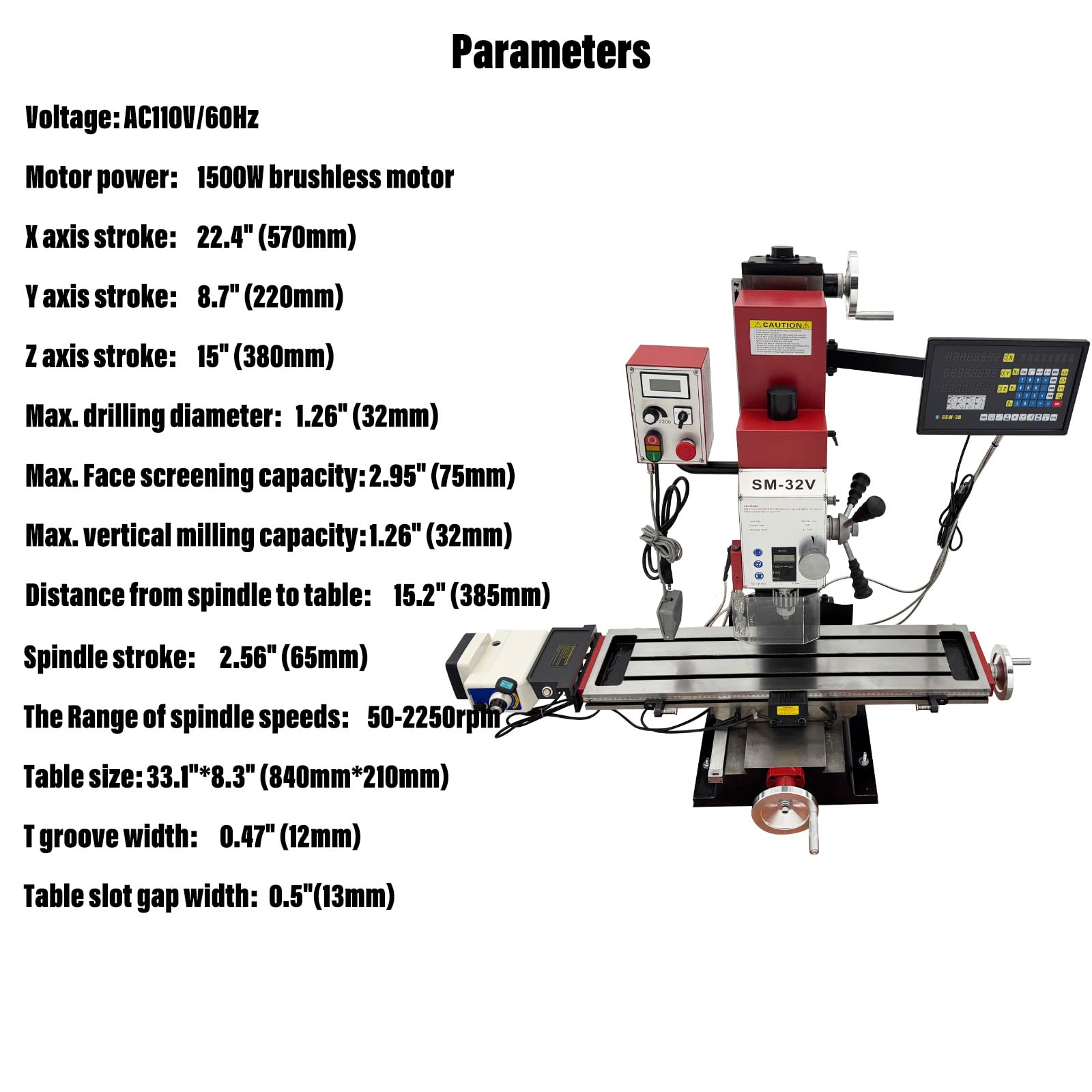

• 【Spindle Tilts ±90° & 360° Rotatable – Flexible Angled Work】Loosen fixing screws to tilt the spindle left or right up to ±90°. The nose can actually rotate 360° for maximum versatility. Easy drilling and milling at special angles. X/Y/Z strokes: 22.4'/8.7'/15' (570/220/380mm). Spindle to table distance: 15.2' (385mm) for larger workpieces.
• 【Large Workbench – Wide Application Range】Table size: 33.1×8.3 inches (840×210mm) with 0.47' (12mm) T-slots. Ideal for metal, wood, plastic, and Buddha beads finishing. All-metal construction with integrated spindle and brass gear for durability. Perfect for home DIY, hobbyists, and precision part processing.

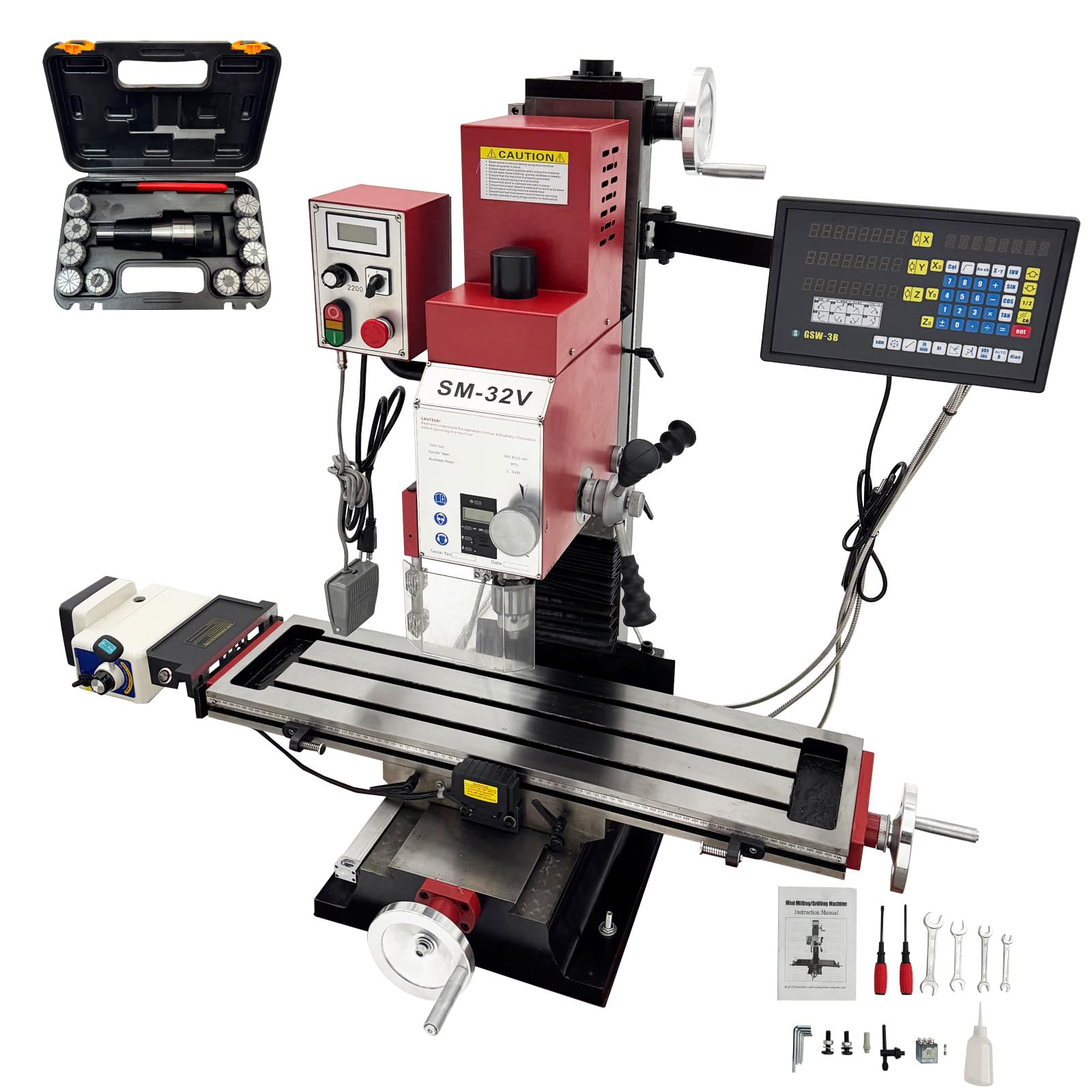

• Complete Accessories -- Axis X power feed *1 Grating ruler *1 Milling chuck set *1(R8-ER32) Straight screwdriver *1 Cross screwdriver *1 Fork wrench *4 Hexagon wrench *5 Drill chuck wrench *1 Oil can *1 English manual *1 Fuse *1 Relay *1

model number: SM-32V

Part Number: CD028365

EAN: 0198462096010

Package Dimensions: 45.7 x 35.0 x 30.7 inches
