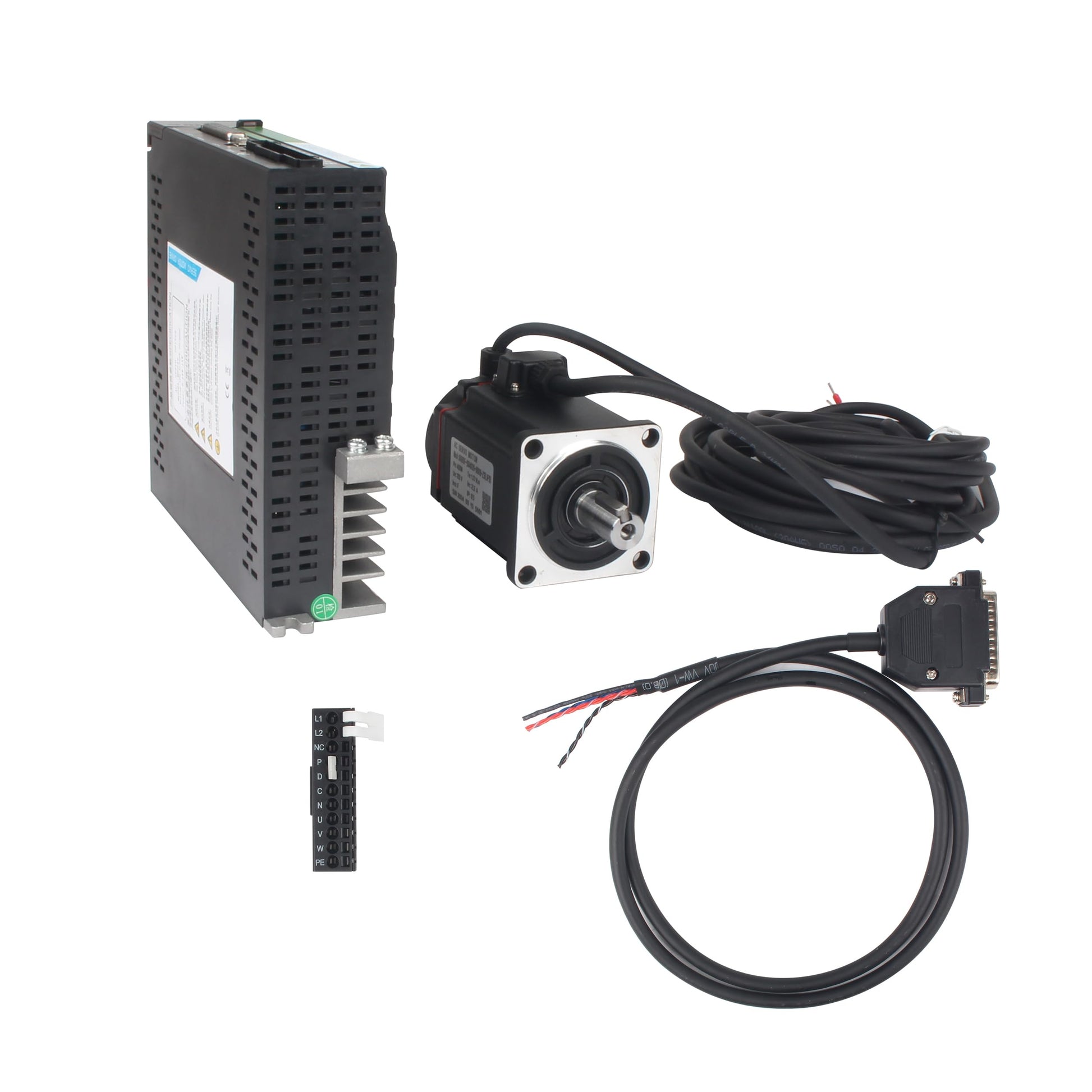

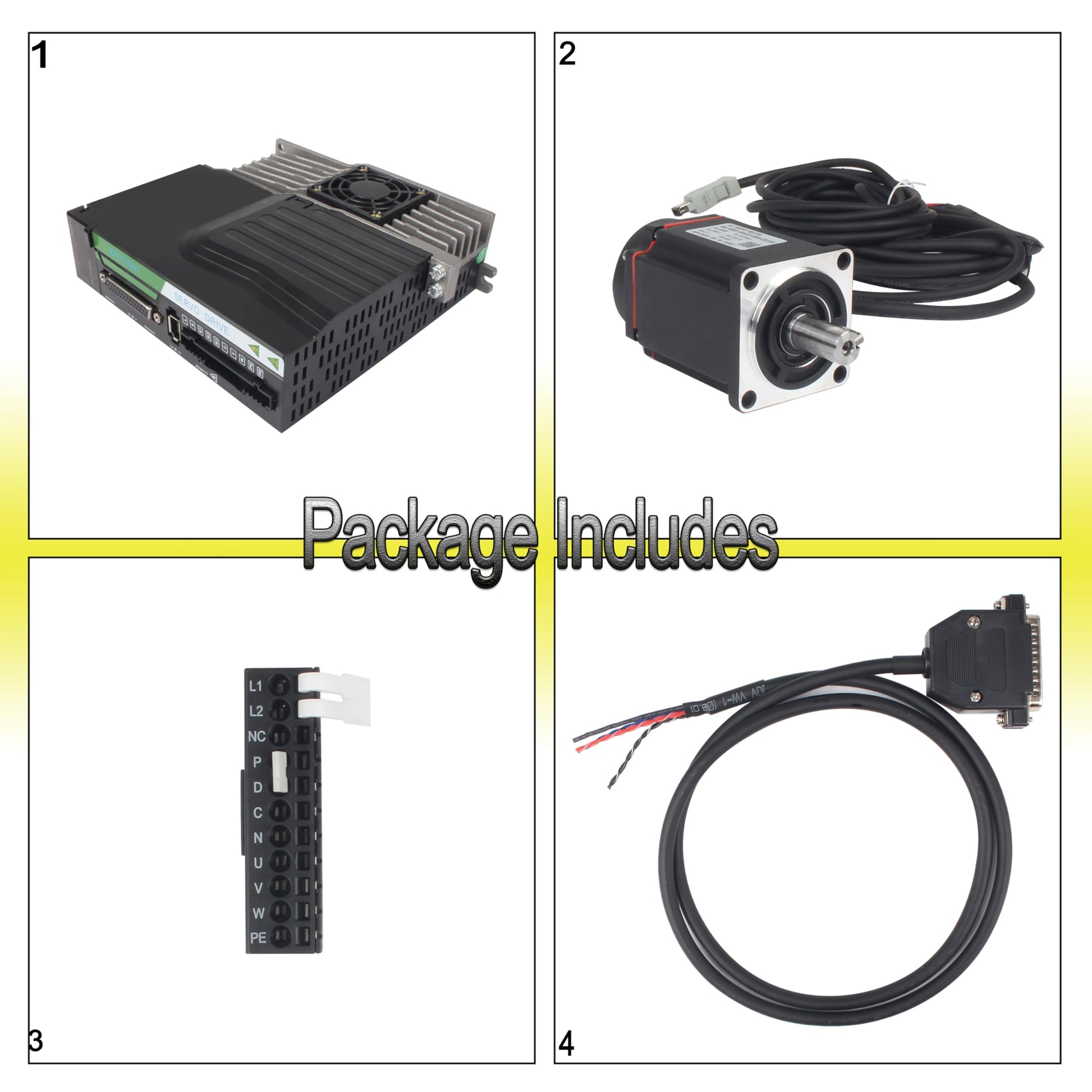

XUNKUNER AC Servo Motor Kit, AC220V 3000rpm L3000 17-bit Encoder RS485 Servo Motor Driver Controller Kit for CNC(400W Without Brake)

Brand: XUNKUANER

Features:

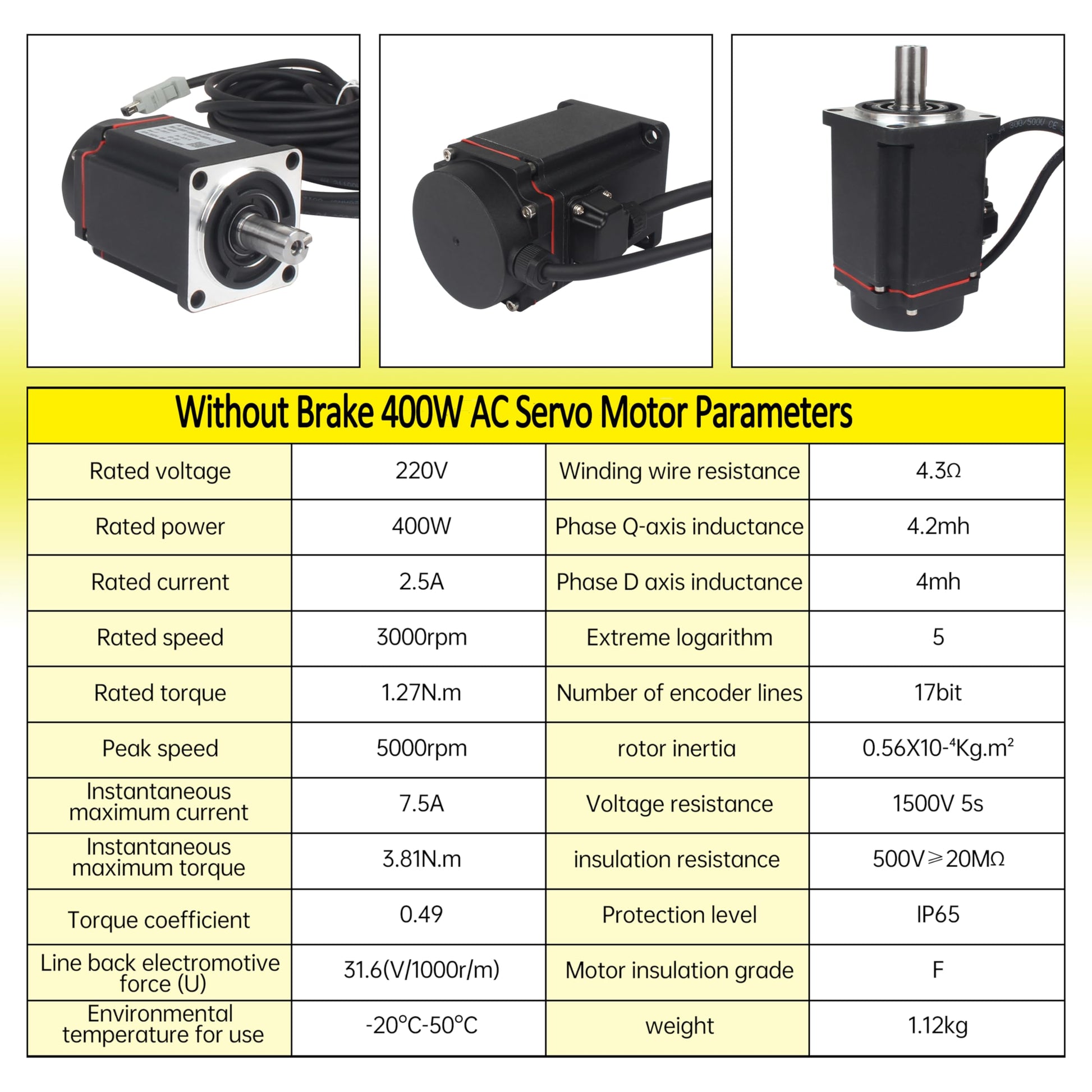

• {400W without brake Motor } Protection structure: IP65;Number of poles: 5 pairs; Rated power supply: 220V; Rated speed: 3000r/min; Peak speed: 5000r/min; Rated torque: 1.27N.m; Max torque: 3.81N.m; Rated current: 2.5A; Max current: 7.5A;

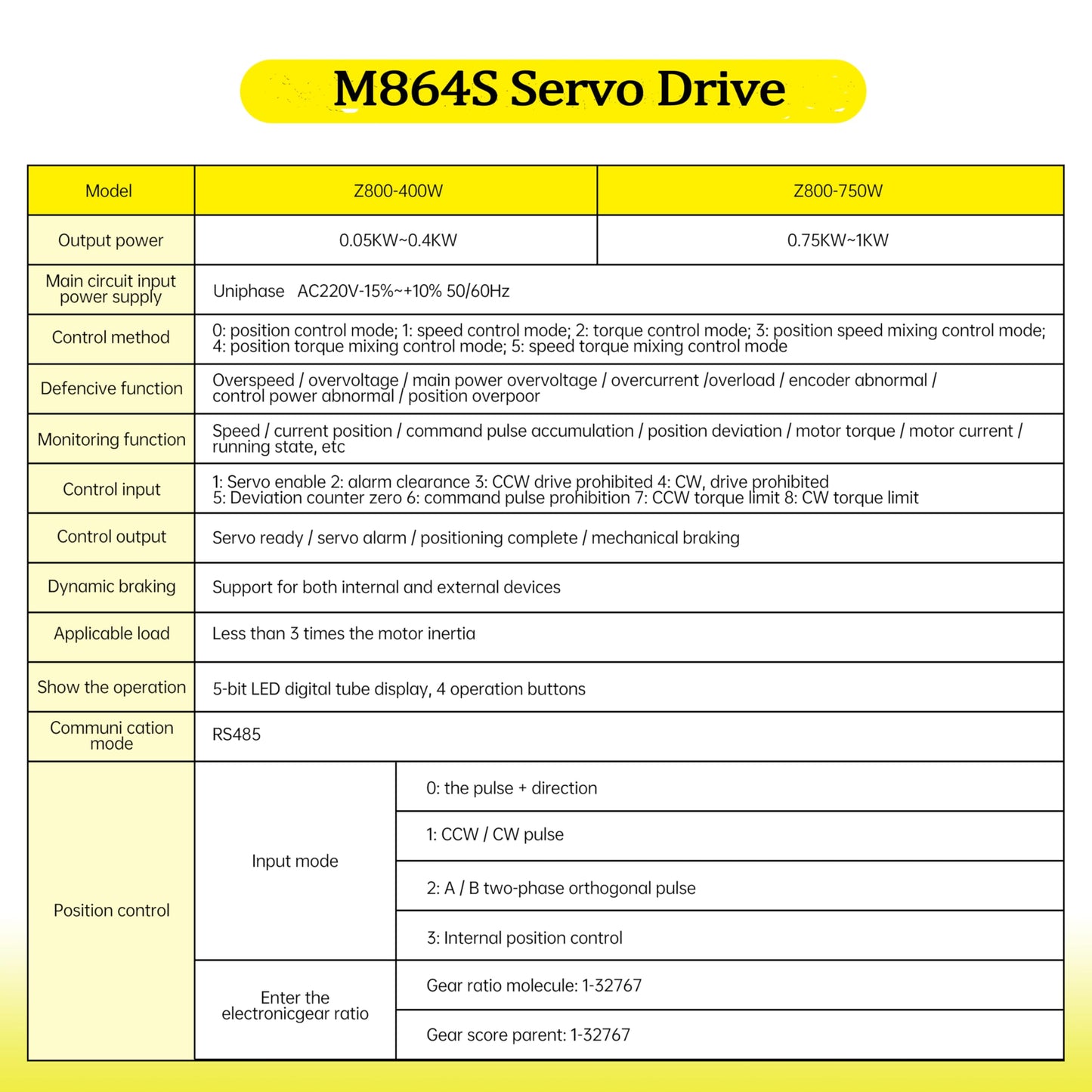

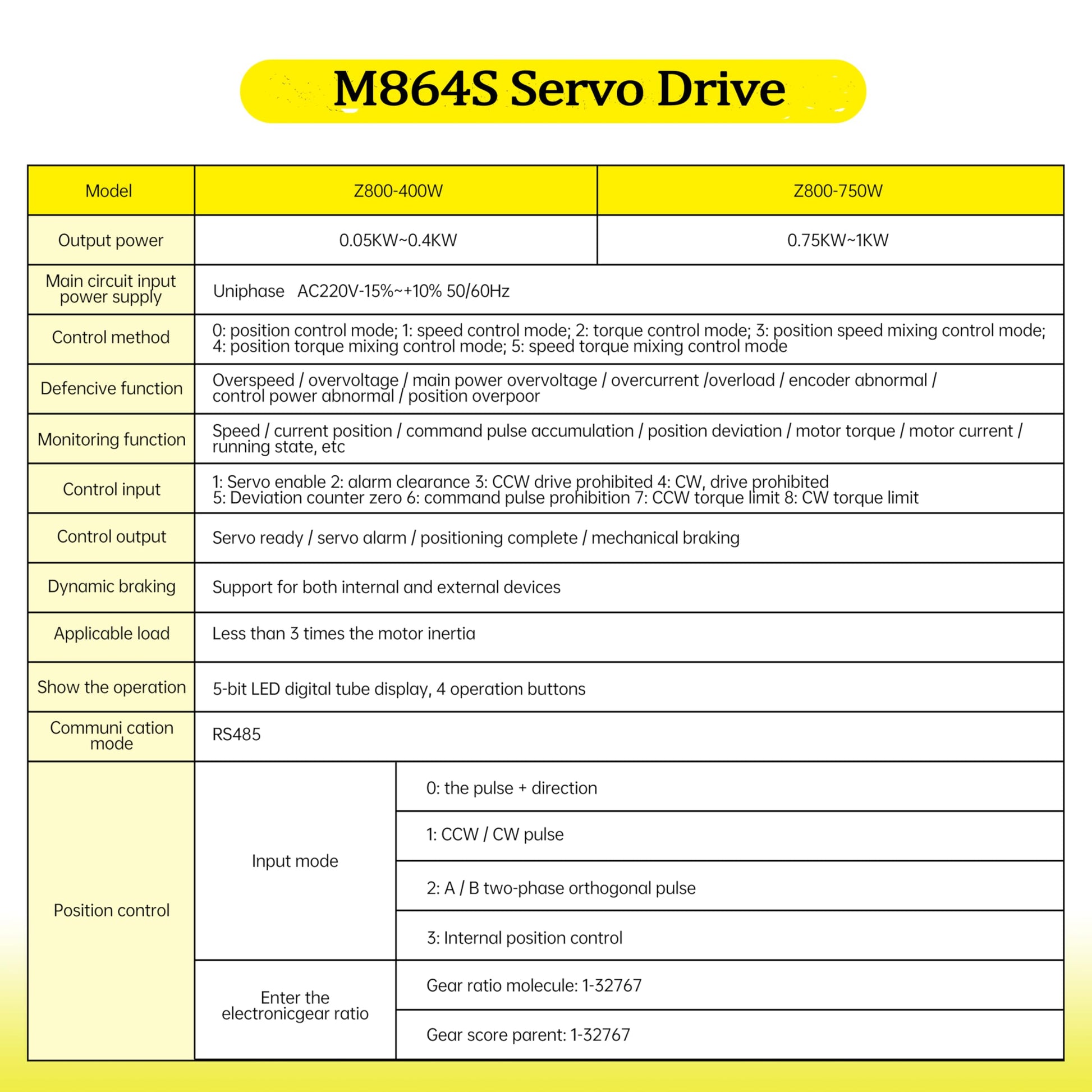

• {M864S Driver } Input voltage: AC220V (50/60Hz); Power:0.1KW-1KW;Cooling method: Heat dissipation air cooling; Encoder type: 17 bit magnetic encoder.Control mode: SVPWM control; Operating temperature: 0℃-+55℃; Storage temperature: -20℃-80℃; Protection level: IP54
• {17 bit Encoder} 17 bit single loop absolute value encoder, 5 pairs of poles,to ensure the accuracy ; NOTE:The encoder only has a single turn function. If you need multi turn function, please replace it with an encoder with multi turn function yourself
• {Driver Feature}1. Communication method: RS485; 2. Protection functions: overcurrent, overvoltage, overload, and undervoltage protection, encoder abnormality protection, position error protection, etc; 3. Control methods: position control method, speed control method, torque control method, position speed hybrid control method, position torque hybrid control method, speed torque hybrid control method; 4. Display operation: 5-digit LED digital display, 4 operation buttons; 6 Other functions can be found in the manual
• {Application} Widely used in carving equipment, industrial robotic arms, semiconductor equipment, measuring equipment, medical equipment and other fields in the market. Attention: The product is for general industrial use and should not be used on devices that may directly endanger personal safety

Part Number: 60BSF-S04030-060B

Package Dimensions: 11.8 x 9.8 x 7.9 inches
