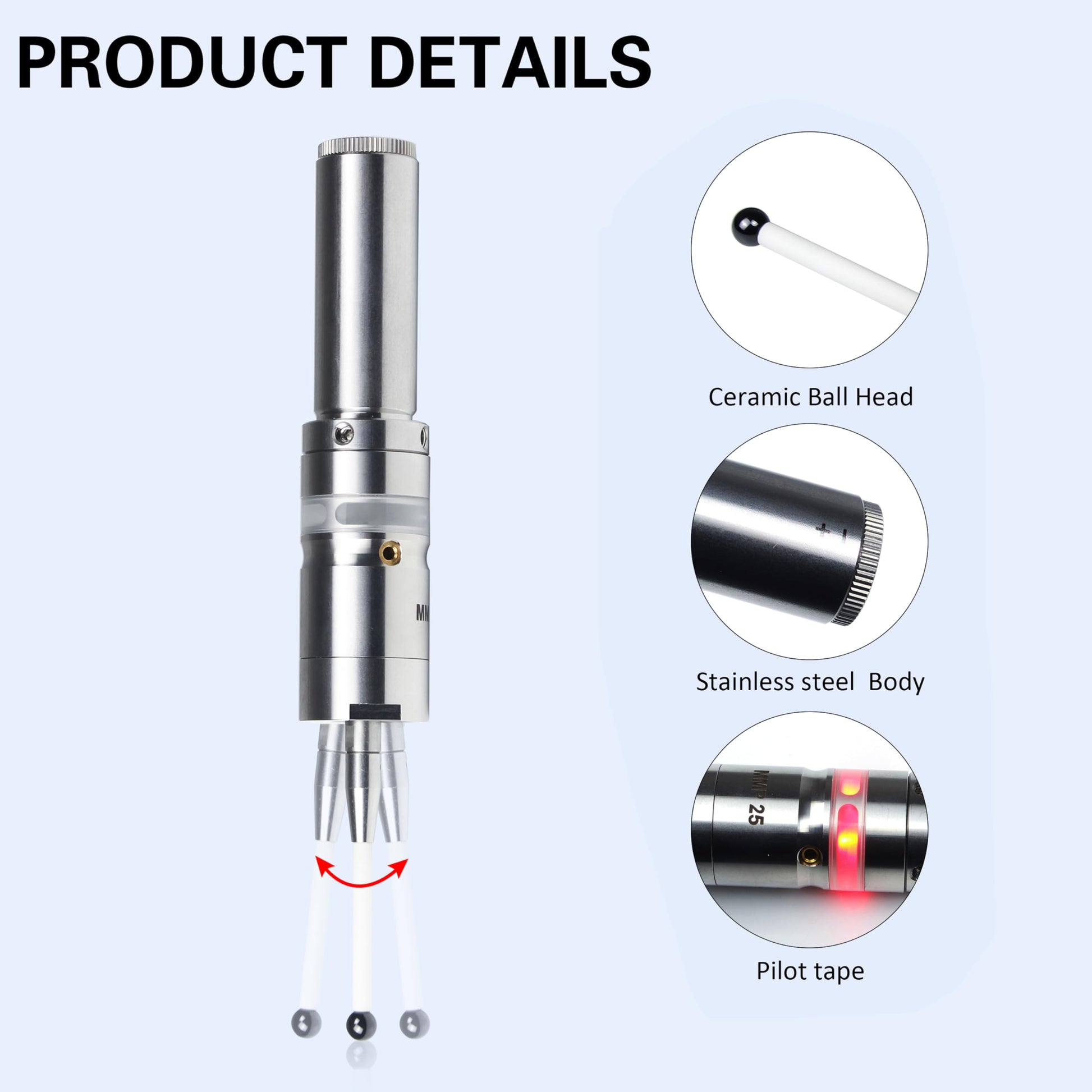

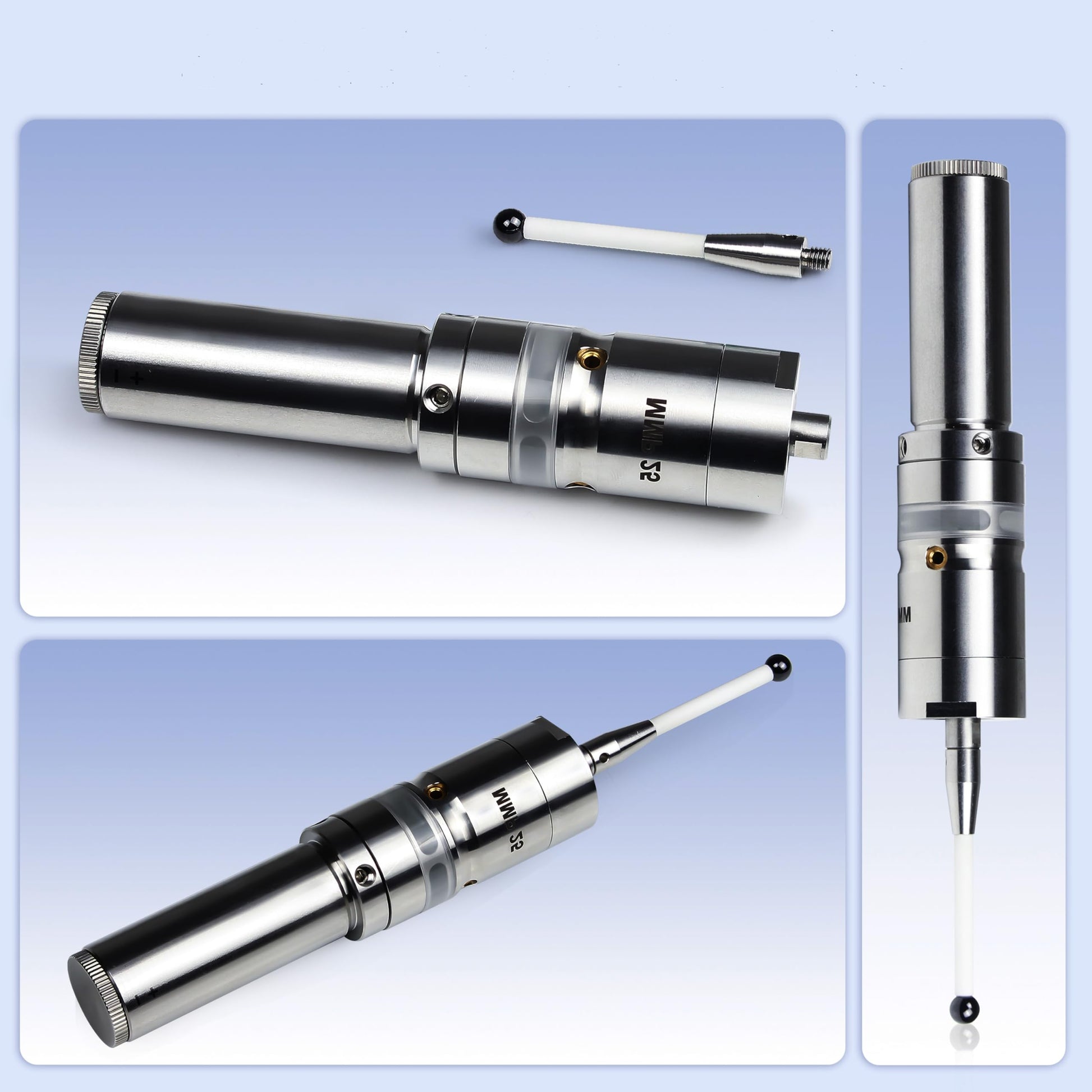

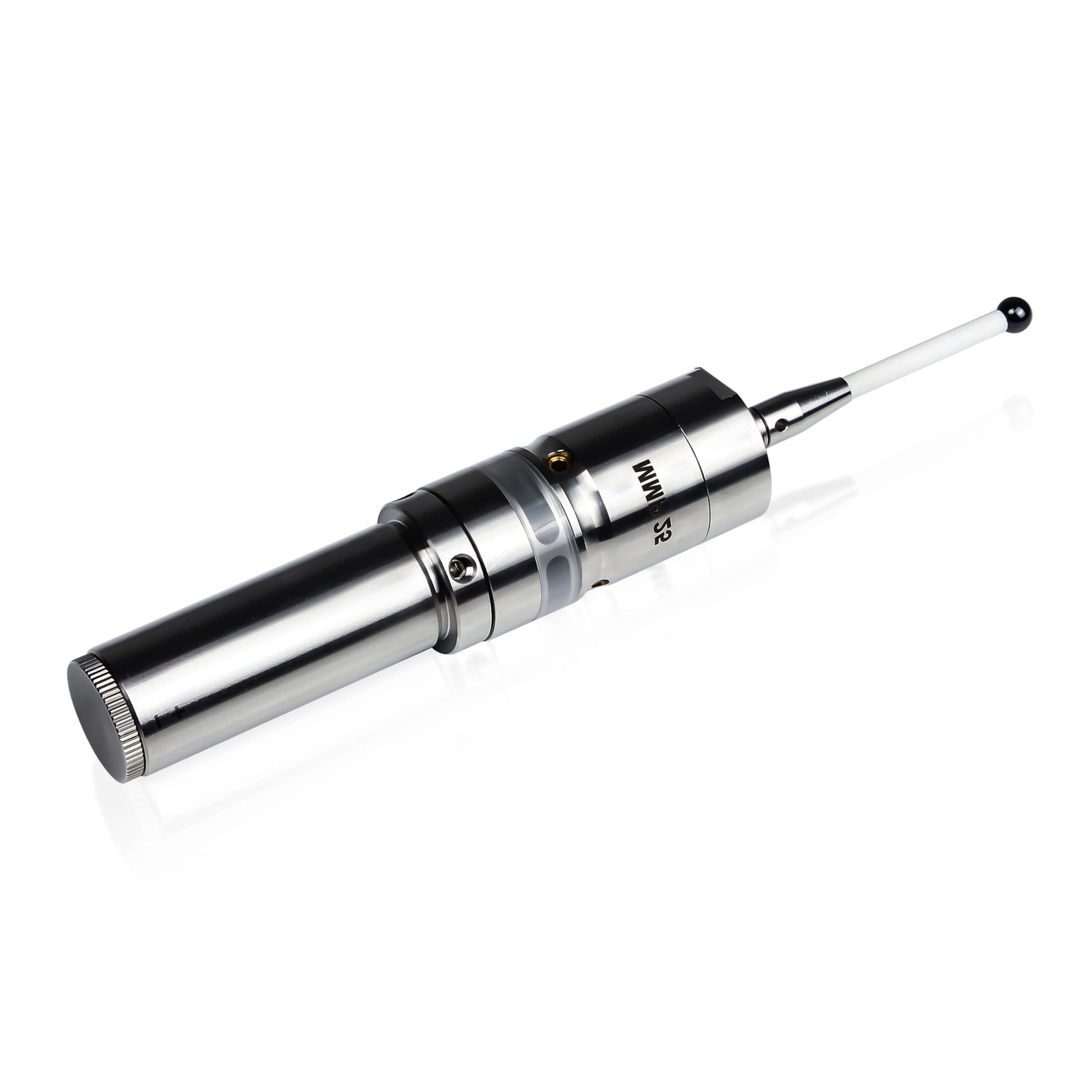

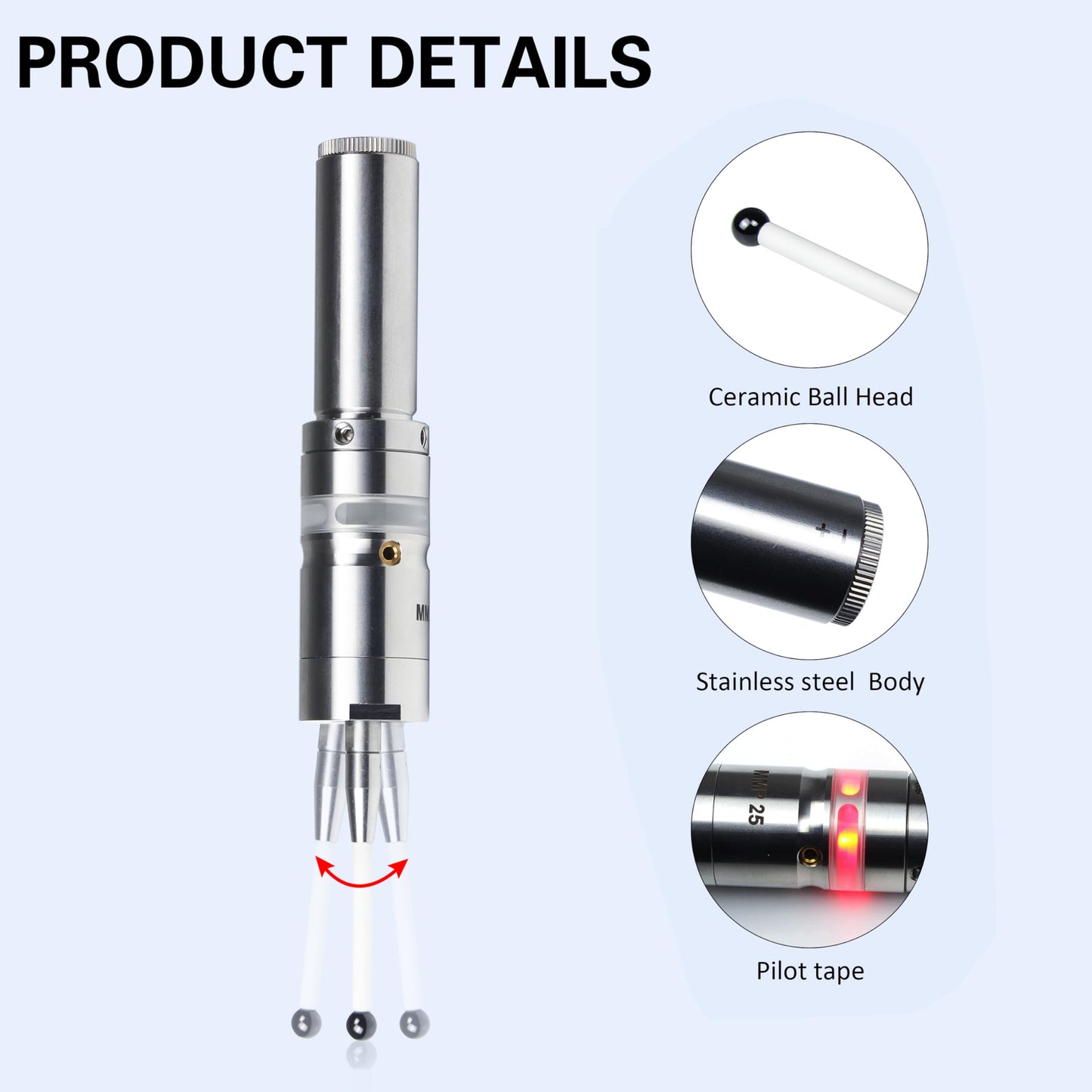

XUNKUNER MMP25 3D Photoelectric Touch Probe Edge Finder, 0.001mm High Accuracy, Ceramic Probe, XYZ Axis Centering Rod Trigger Sensor for CNC Lathe Milling Machine

Brand: XUNKUANER

Features:

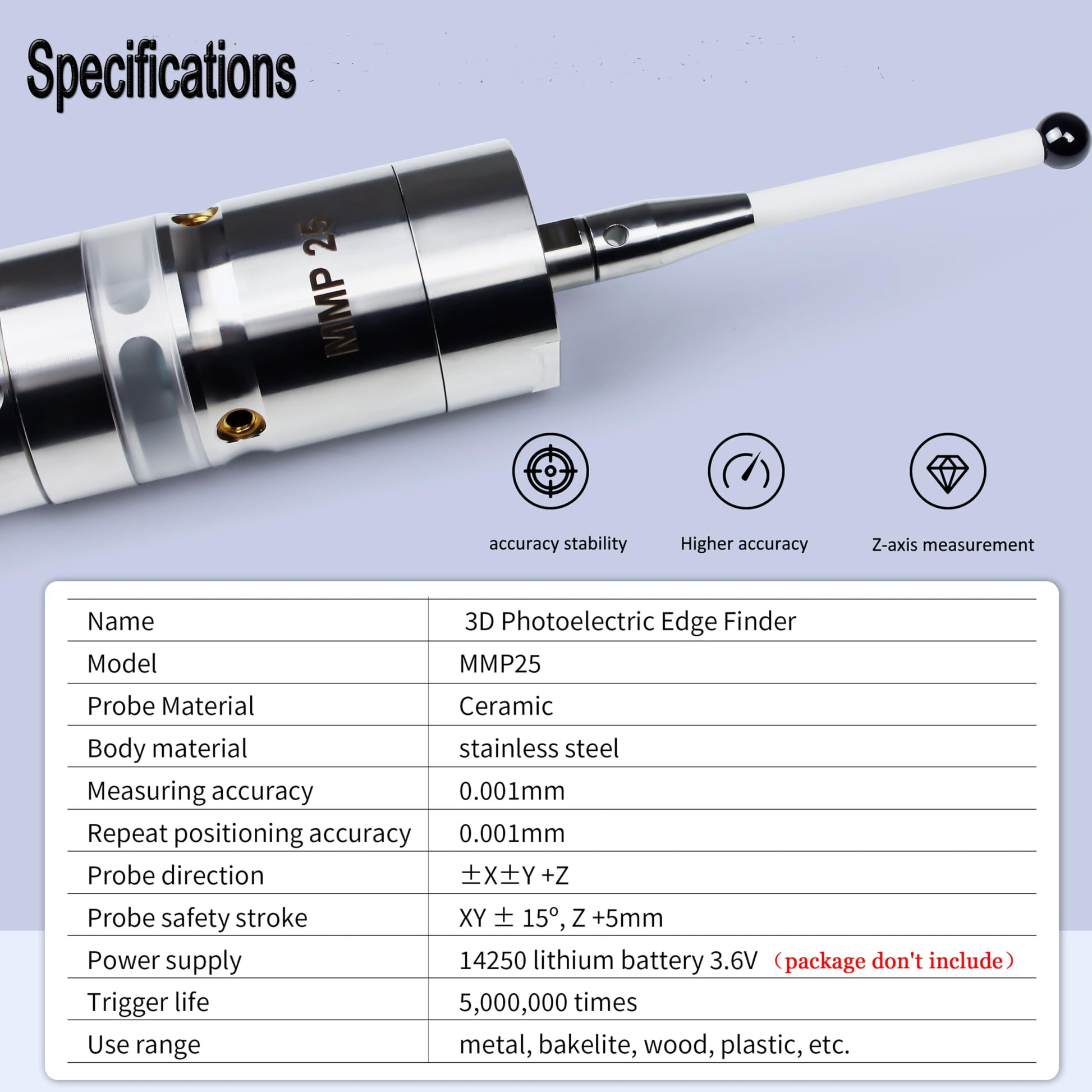

• Parameter: Model: MMP25;Reciprocating positioning accuracy ≤ 0.001mm; Probe direction: +-X +-Y +Z; Probe safety stroke: X.Y +-15°; Z +5mm; Trigger life:5,000,000 times;Probe Material:Ceramics (NOTE:Powered:3.6V 14250 lithium ,but not included)
• Measurable material: The 3D Edge Finder can measure insulation materials such as metal, electric wood, wooden boards, plastics, etc. Because the principle of conductivity is not required, the workpiece material and machine spindle are non-conductive and can still be measured
• High quality: This CNC probe has a measurement accuracy of ≤ 0.001mm and repeatability of ≤ 0.001mm. The edge detector adopts a sturdy sealed housing, with a main body made of stainless steel and a ceramic ball head; Good structural stability, excellent performance, and high measurement accuracy
• Easy to use ： (1) After installing the 3D edge probe on the machine, rotate the spindle to check the jumping of the probe ball; (2) After detecting the jumping of the probe ball, adjust it with four M3 fixing screws until it reaches a jumping of 0.01mm. (3) Tighten the screw and the probe can be used
• Package list：1PC MMP25 3D Electronic Edge Finder

Part Number: MMP25

Package Dimensions: 5.9 x 3.1 x 1.2 inches
