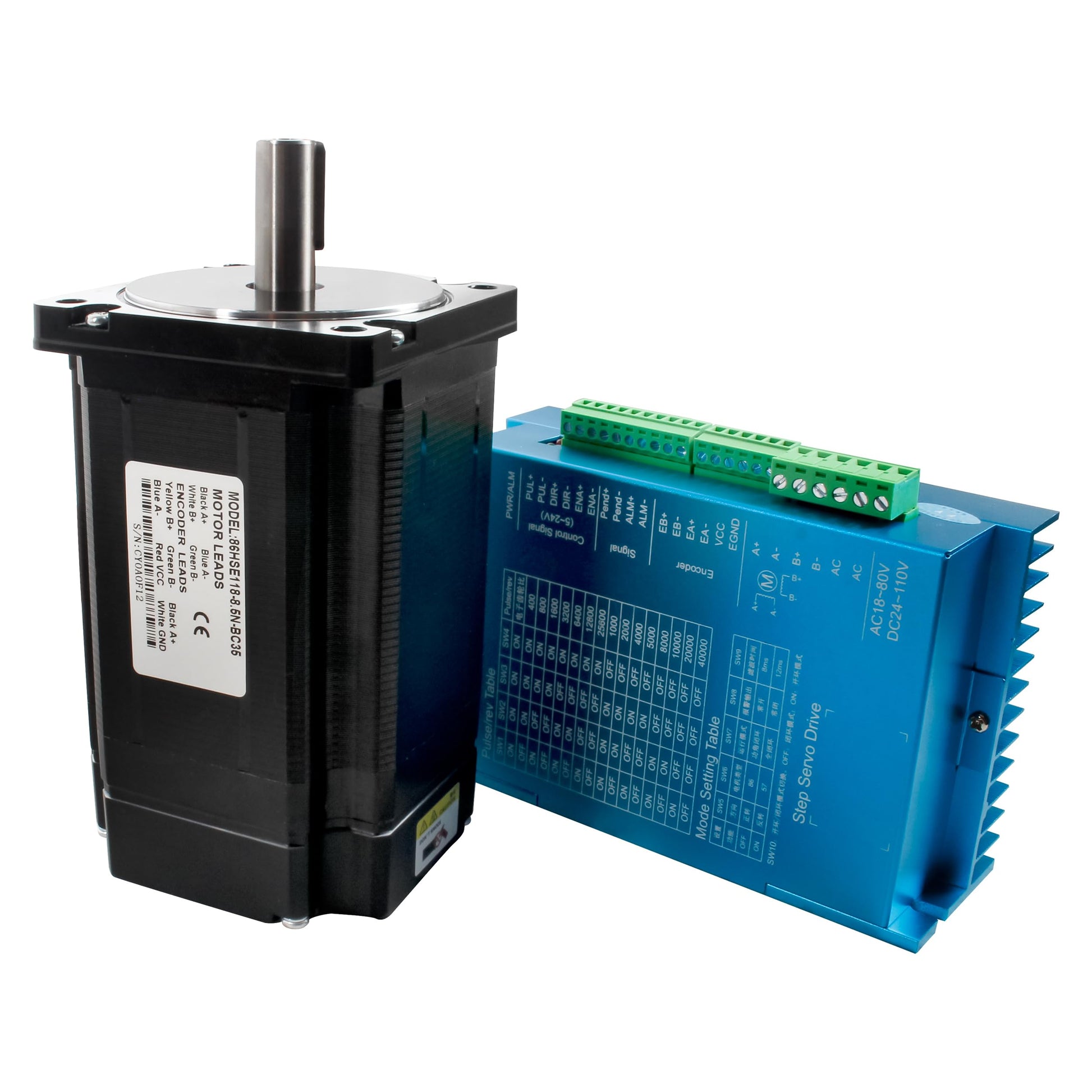

XUNKUNER Nema 34 Closed Loop Stepper Motor 8.5Nm with HBS86H V4 Driver Kit, 2-Phase 1.8° Hybrid Servo Motor, 6.0A 18-80VAC Closed Loop Driver, 1000CPR Encoder 51200 Microsteps for CNC

Brand: XUNKUANER

Features:

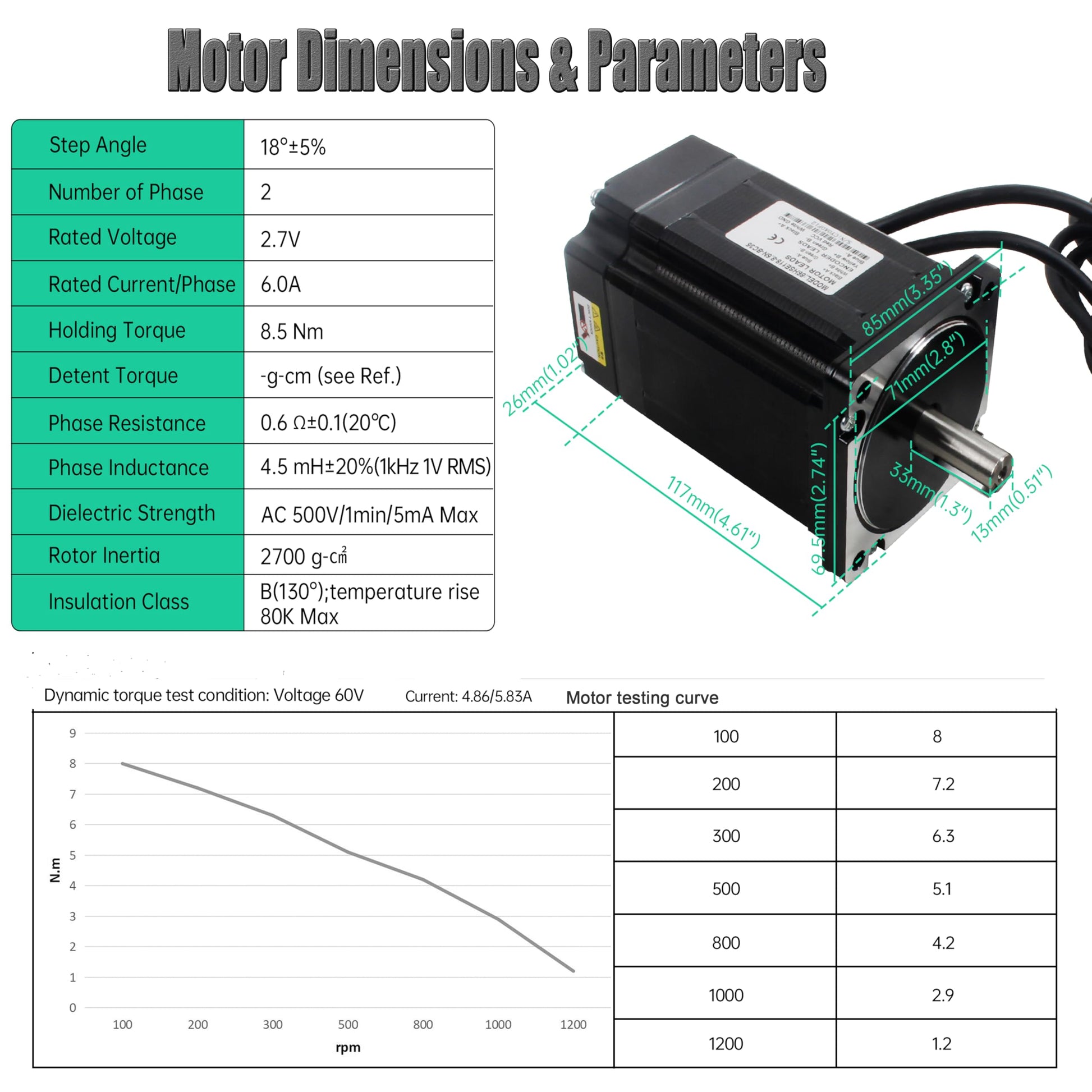

• 【Nema34 Closed Loop Stepper Motor】Step angle:1.8℃; Phase: 2; rated voltage:2.52V / 2.7 V / 4.2V;Rated Current: 6A; Phase Resistance: 0.42Ω / 0.6Ω / 0.75Ω; Phase Inductance: 2.2mH / 4.5mH / 5.8mH; Holding Togque: 4.5Nm /8.5Nm /12Nm;Rotor Inertia: 1400g.cm² / 2700g.cm² / 4000g.cm²;Wight:2.5kg / 4.1kg / 5.4kg

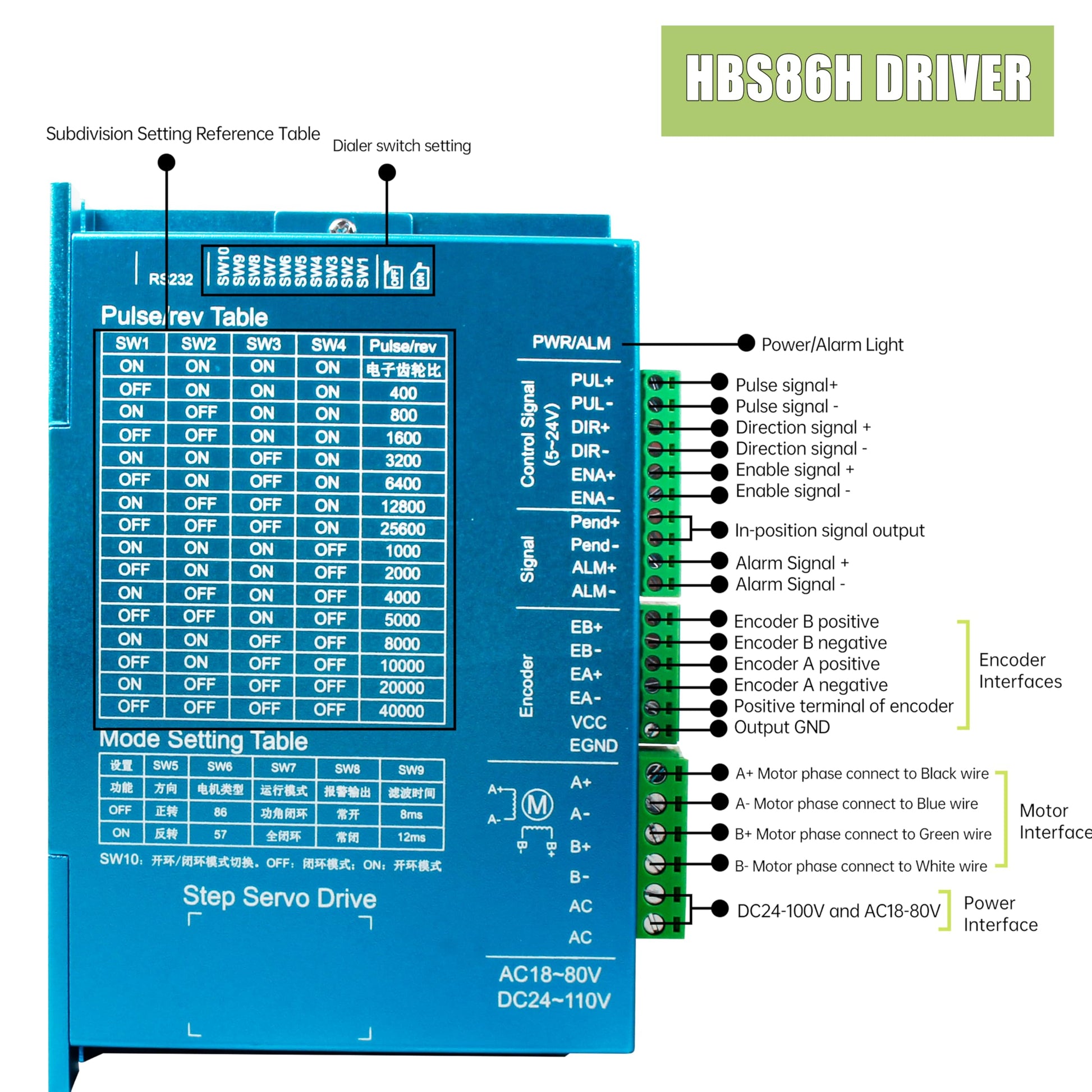

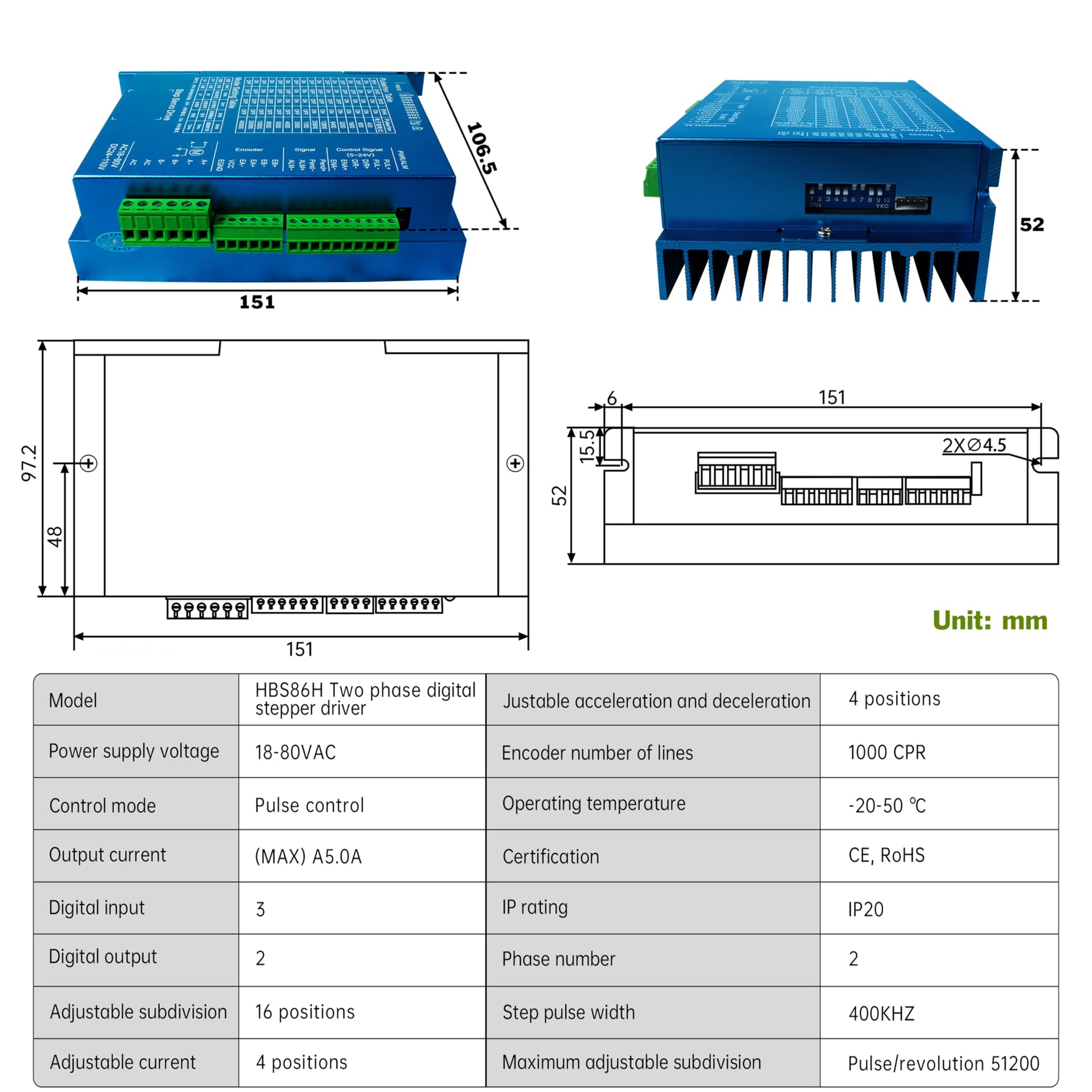

• 【HBS86H V4 Driver】Power supply voltage: 18-80AC; Control mode: pulse control; Maximum output current: 6.0A; Step pulse width: 400KHZ; Maximum adjustable subdivision: 51200 pulses/revolution; Waterproof: IP20; Encoder line count: 1000CPR

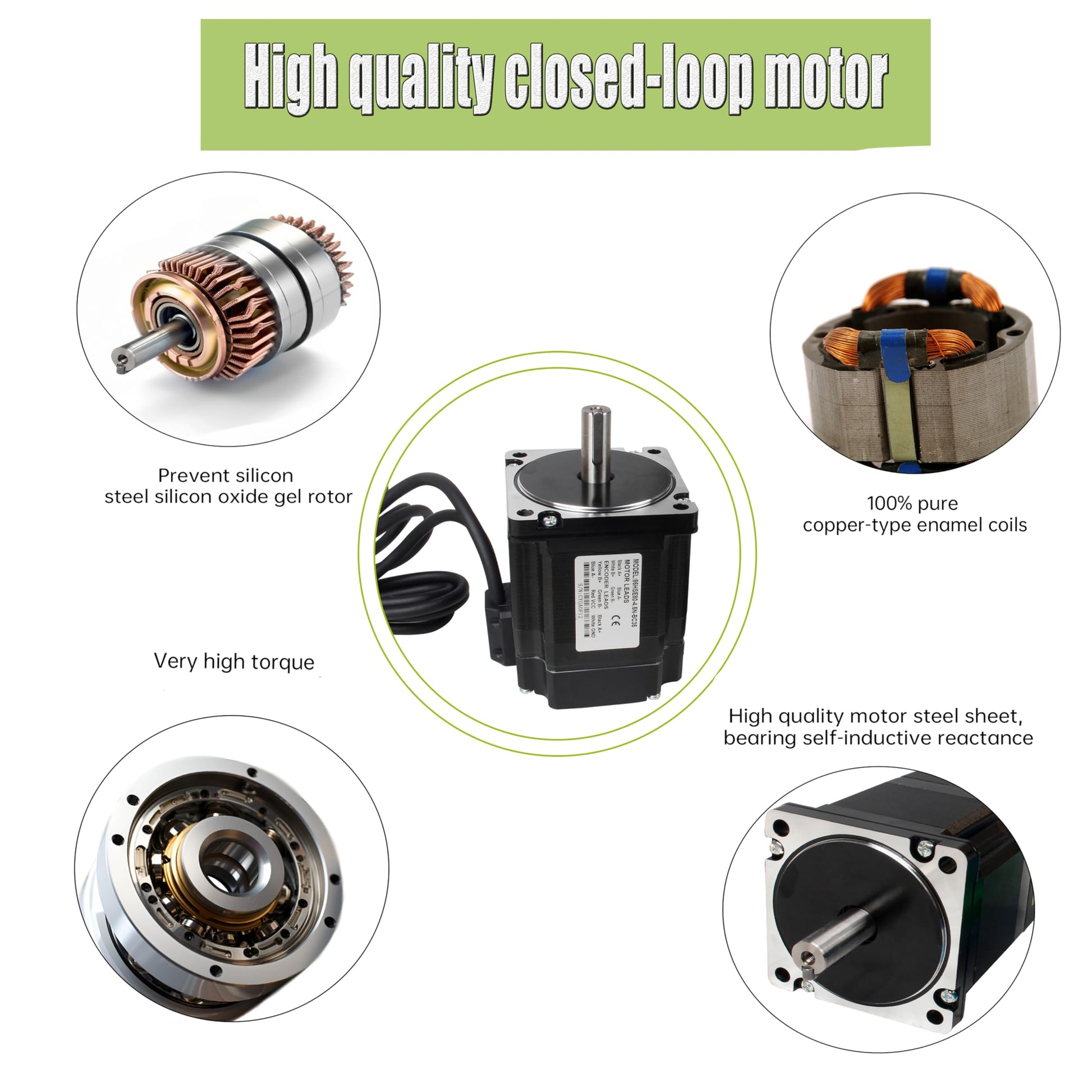

• 〖Exquisite design〗 The closed-loop system for stepper motors that never loses step; The stepper motor control adopts a new generation 32-bit DSP. Vector control technology can ensure the accuracy of the motor; Improve the output torque and working speed of the motor; Automatically adjust the current according to the load; The pulse response frequency can reach 200KHZ; 16 micro step options, up to 51200 micro steps per revolution
• 〖Protection Function〗 Supports overvoltage protection, overcurrent protection, and position over tolerance protection. The built-in position and alarm output signals can help the upper computer monitor, and the position deviation alarm function can ensure the safe operation of the machine
• 〖 Application 〗 Suitable for various small and medium-sized automation equipment and instruments, such as screw locking machines, wire stripping machines, winding machines, terminal machines, lasers Machines, inkjet printers, small and medium-sized engraving machines, electronic processing equipment, automatic grasping equipment, specialized CNC machine tools, packaging equipment and machines Tools, people, etc. The application effect is particularly good in devices where users expect low noise and high speed

model number: 86HSE80-8.5N-BC35

Part Number: 86HSE80-8.5N-BC35

Package Dimensions: 9.8 x 7.9 x 5.9 inches
