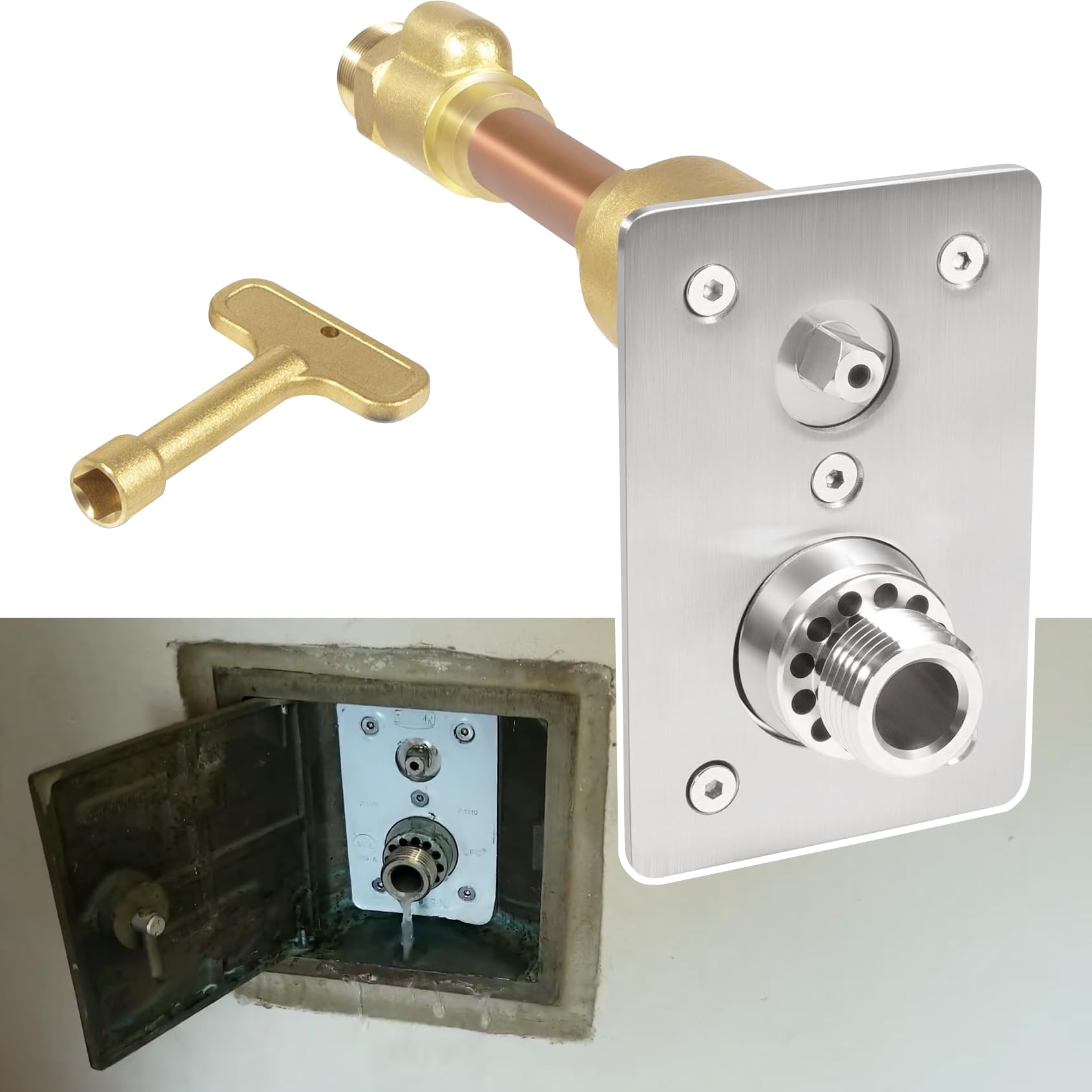

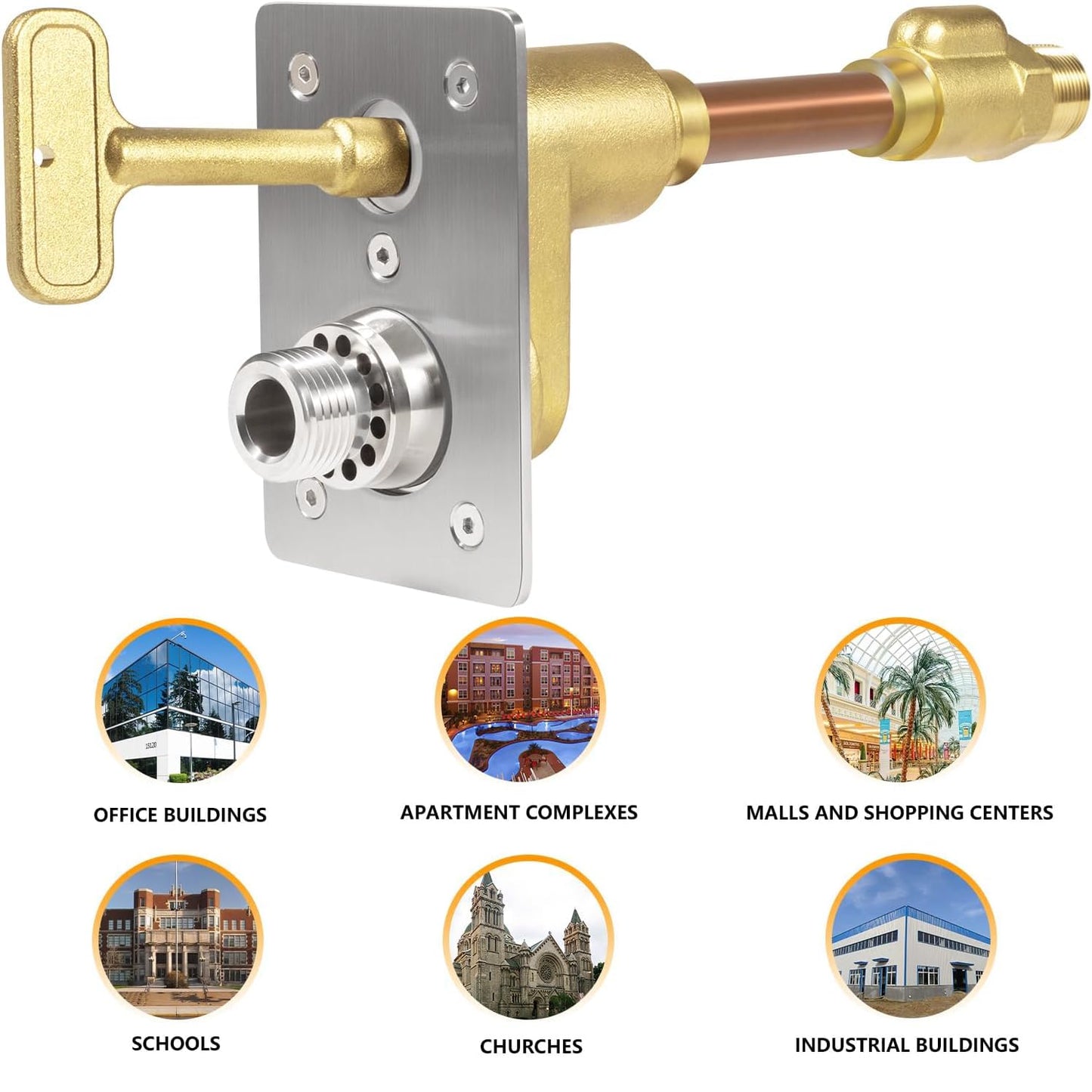

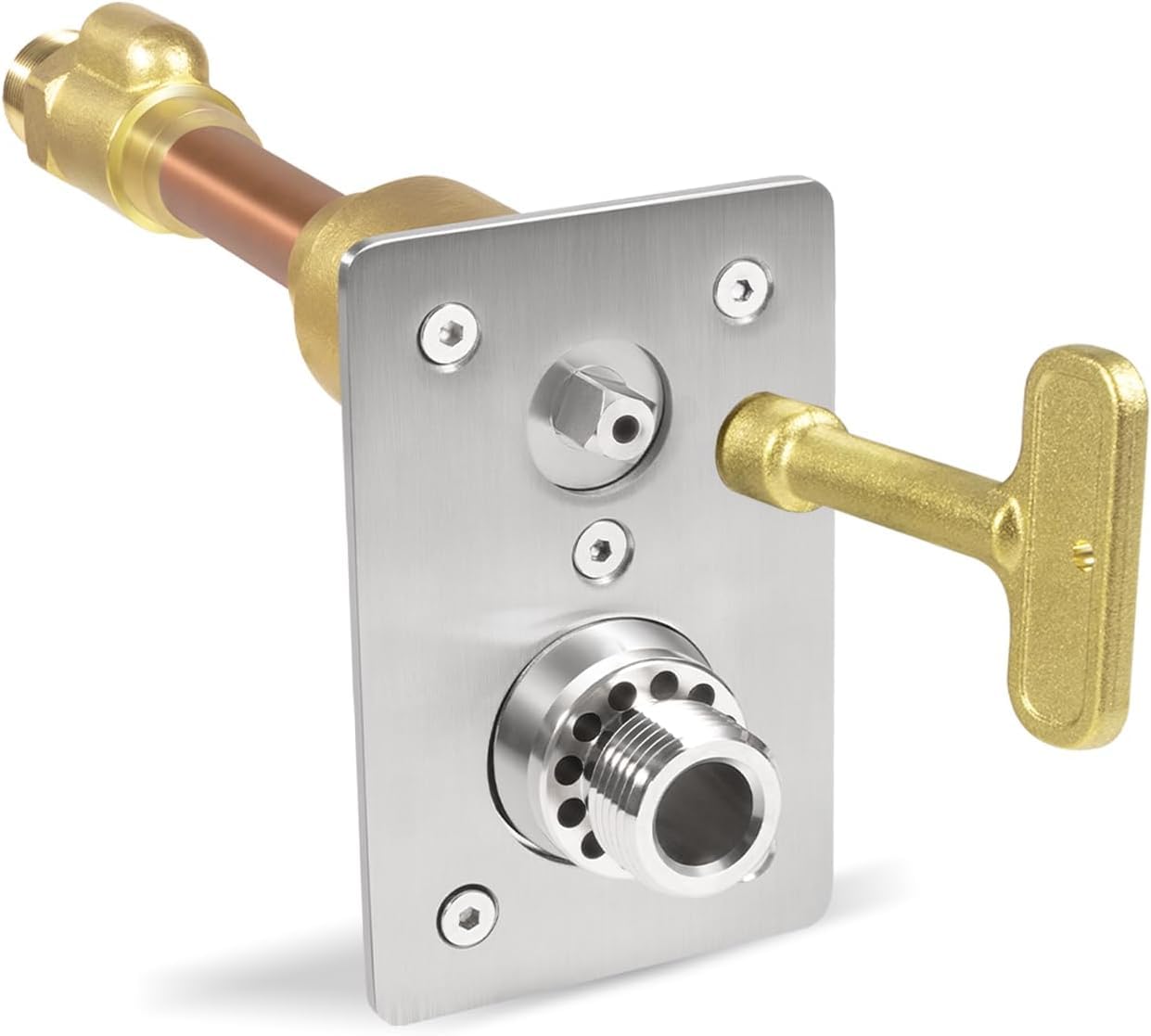

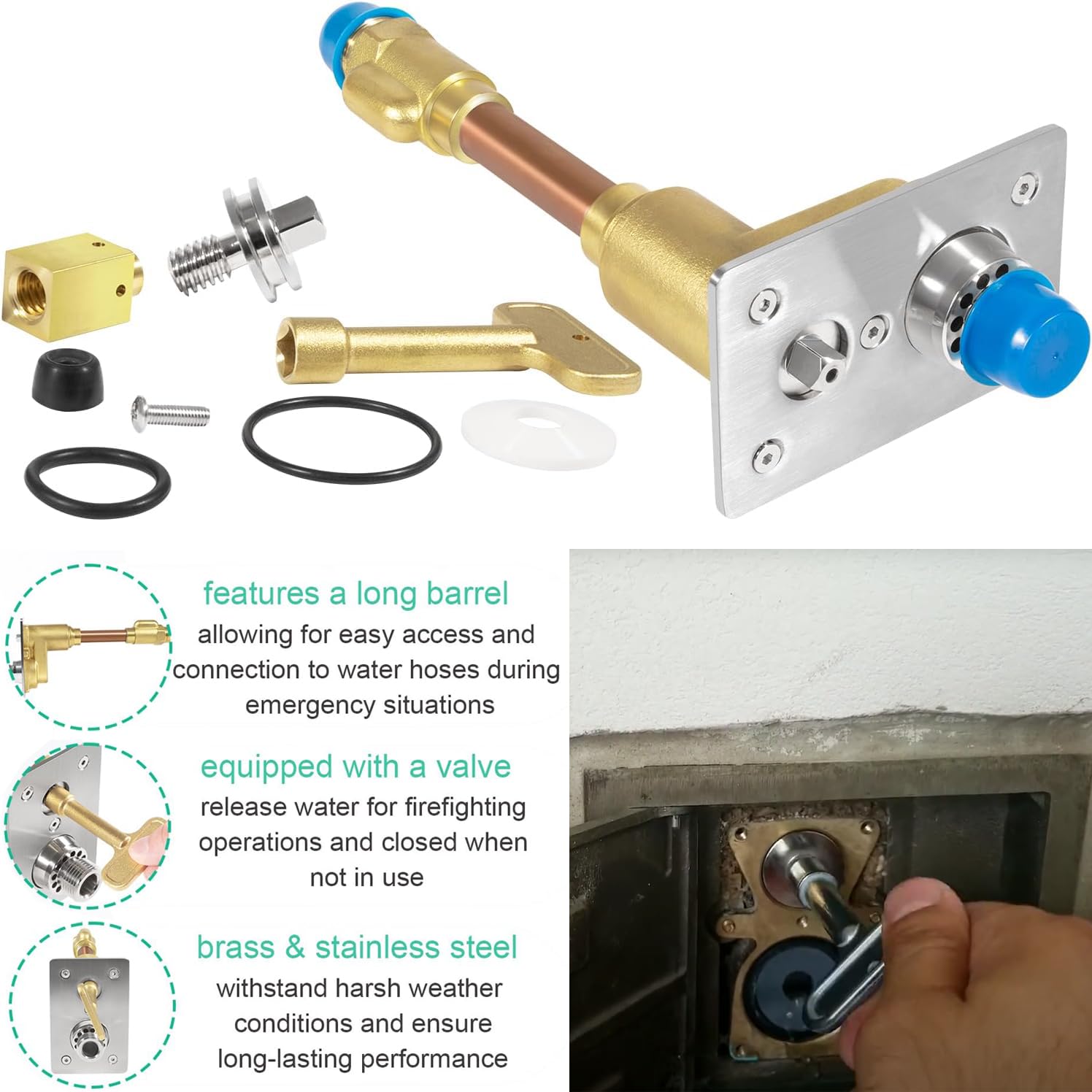

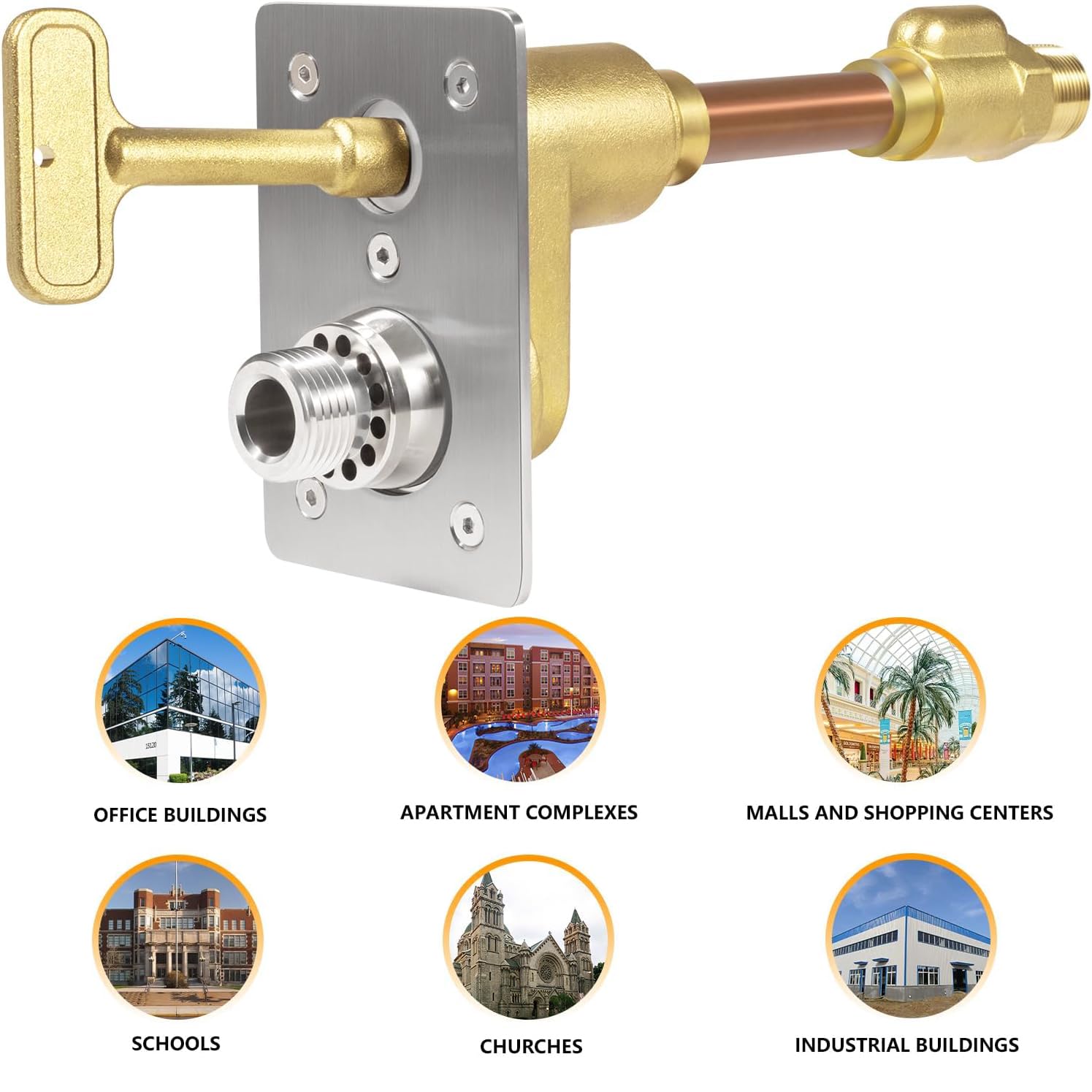

Z1321-CXL-6 Z1321-CXL Exposed Wall Hydrant Lead-Free 6'', 3/4“MPT, Auto Draining, Non-Freeze, Anti-Siphon, for Commercial Applications, Office Buildings, Malls, Schools

Brand: Generic

Color: Copper

Features:

• This is a wall hydrant for 6” wall thickness; model Z1321-CXL-6,Recommended for commercial applications such as office buildings, apartment complexes, malls and shopping centers, schools, churches, and industrial buildings
• This hydrant is mounted on the exterior wall of a building to provide water to the building's outdoor areas and comes with a key that opens or closes the valve to start or stop the flow of water, which helps prevent unauthorized use of the hydrant.
• Exposed, lead-free, non-freeze automatic draining wall hydrant for flush installation. Hydrant features integral
• backflow preventer with anti-siphon technology, copper casing, bronze and stainless steel interior components, non-turning operating rod with free-floating compression closure valve, combination 3/4” [19] female solder and 3/4” [19] male pipe thread inlet connection, and 3/4” [19] male hose connection.
• Hydrant furnished with type 304 stainless steel faceplate and includes operating key.

model number: Z1321-CXL-6

Part Number: Z1321-CXL-6

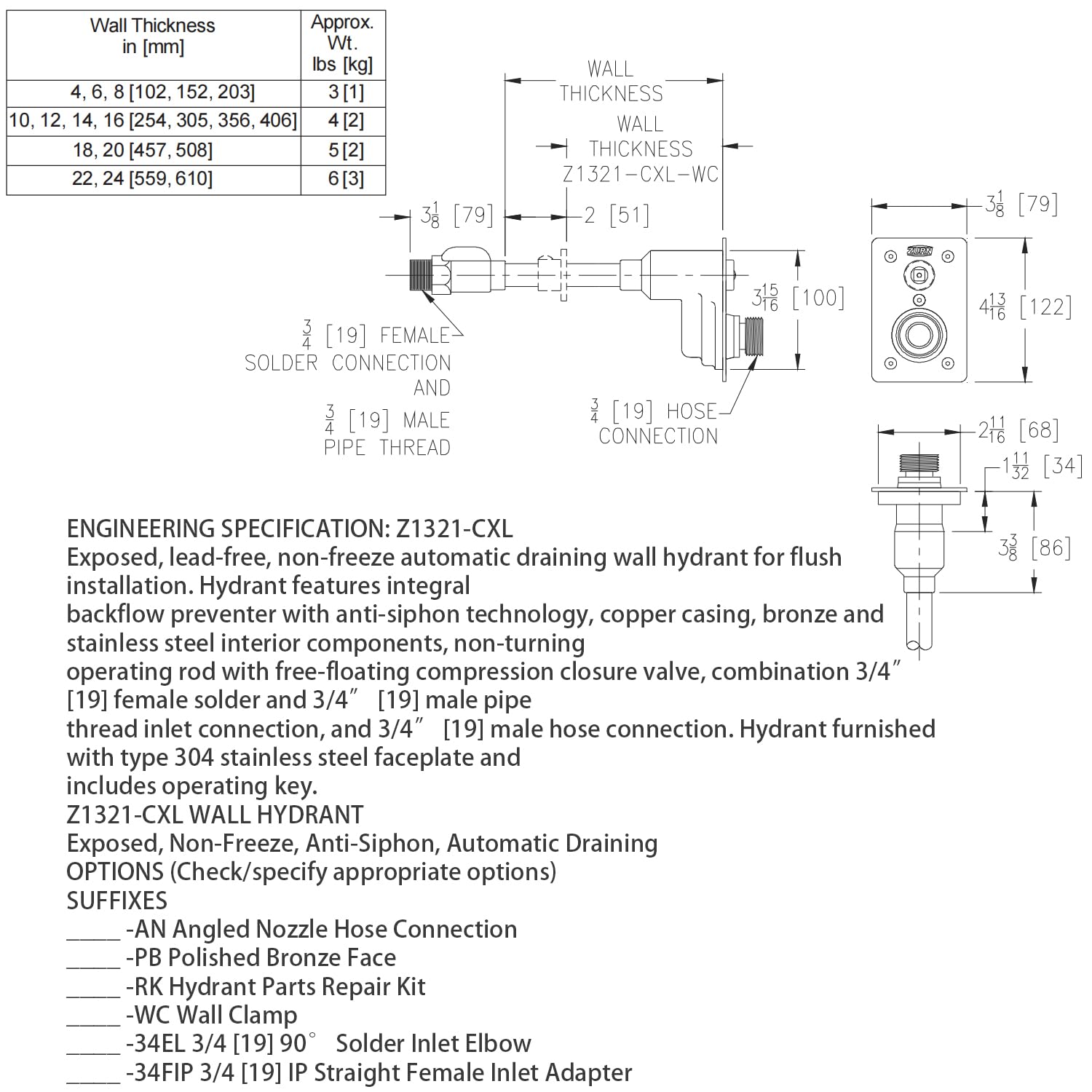

Details: ENGINEERING SPECIFICATION: Z1321-CXL
Exposed, lead-free, non-freeze automatic draining wall hydrant for flush installation. Hydrant features integral backflow preventer with anti-siphon technology, copper casing, bronze and stainless steel interior components, non-turning operating rod with free-floating compression closure valve, combination 3/4” [19] female solder and 3/4” [19] male pipe thread inlet connection, and 3/4” [19] male hose connection. Hydrant furnished with type 304 stainless steel faceplate and includes operating key.

Z1321-CXL WALL HYDRANT

Exposed, Non-Freeze, Anti-Siphon, Automatic Draining
OPTIONS (Check/specify appropriate options)
SUFFIXES

____ -AN Angled Nozzle Hose Connection
____ -PB Polished Bronze Face

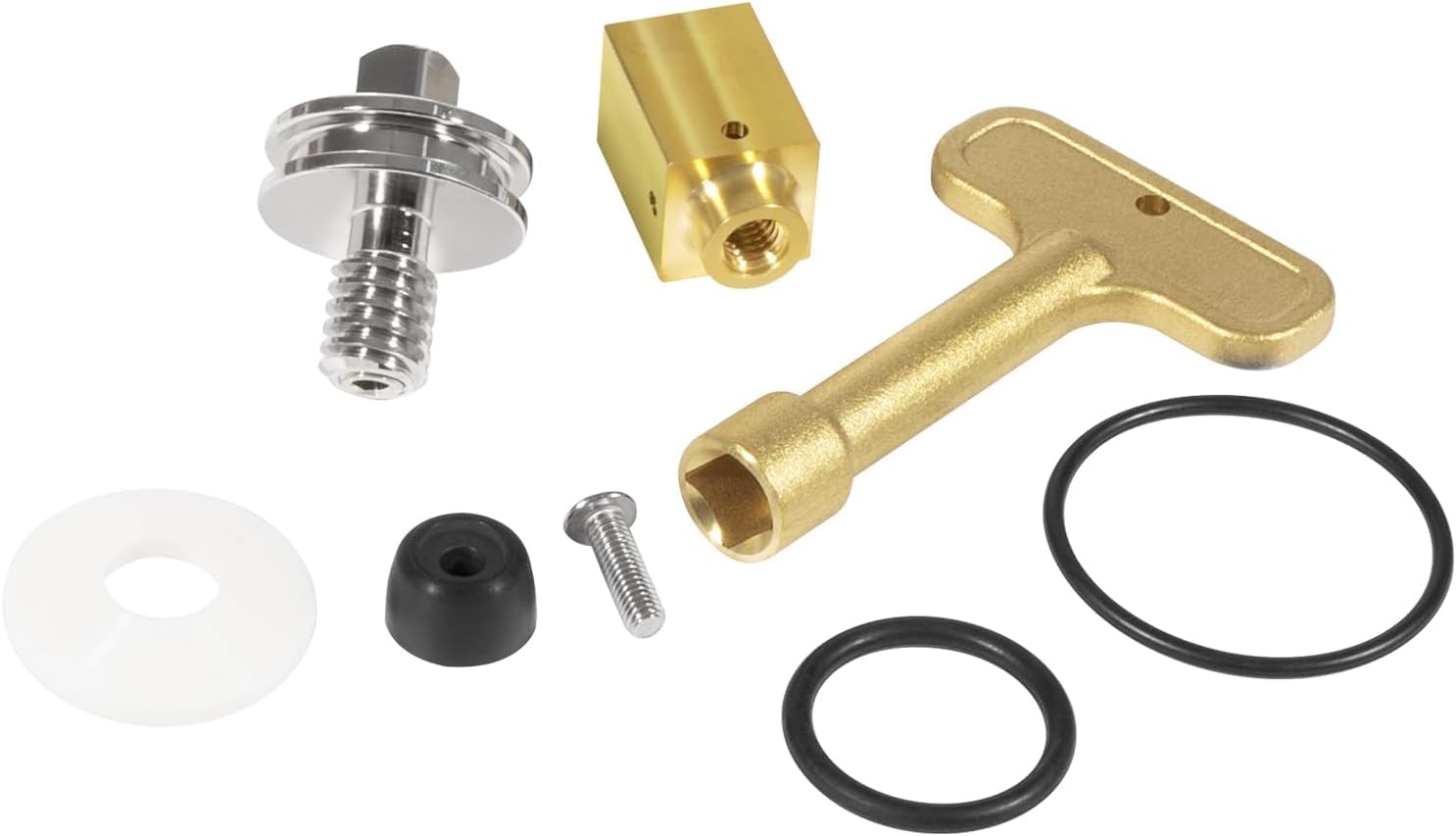

____ -RK Hydrant Parts Repair Kit
____ -WC Wall Clamp
____ -34EL 3/4 [19] 90° Solder Inlet Elbow
____ -34FIP 3/4 [19] IP Straight Female Inlet Adapter

Package Dimensions: 11.0 x 5.0 x 4.0 inches
