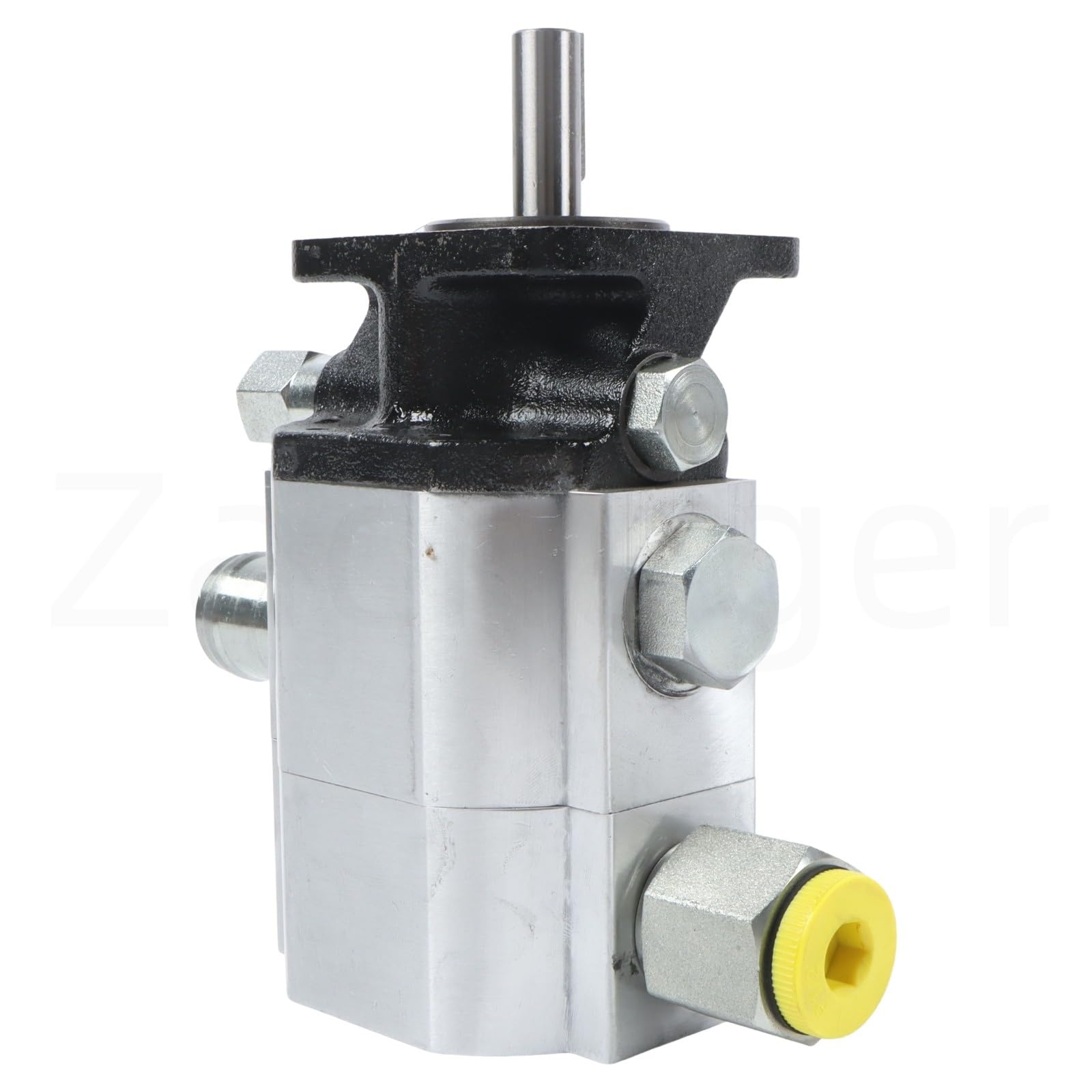

Zachager Hydraulic Pump Log Splitting Pump Build Repair Kit—13 GPM 2-stage pump, coupler, mount, and hardware—fits 3/4" engine crankshaft, DIY project or repair

Brand: Zachager

Features:

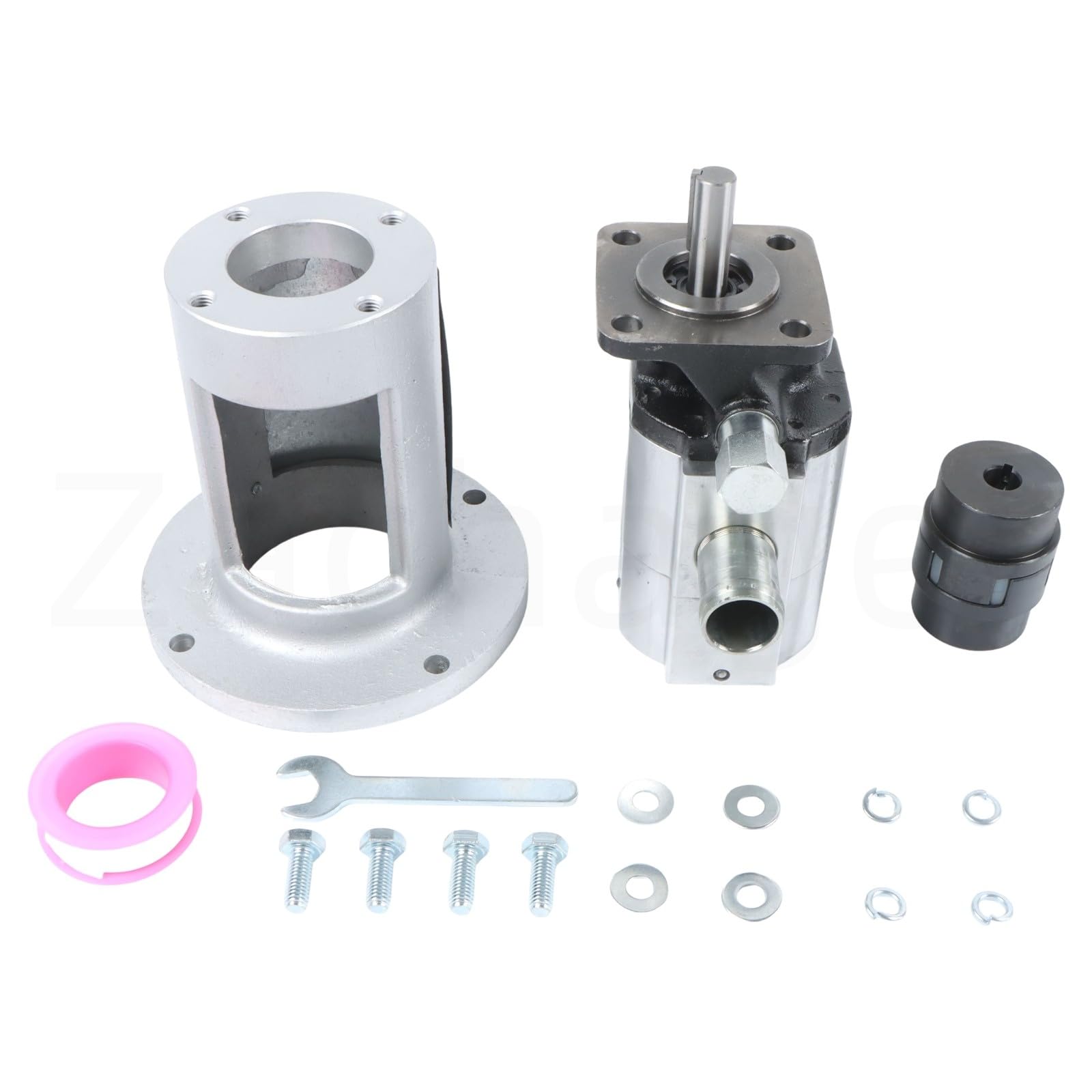

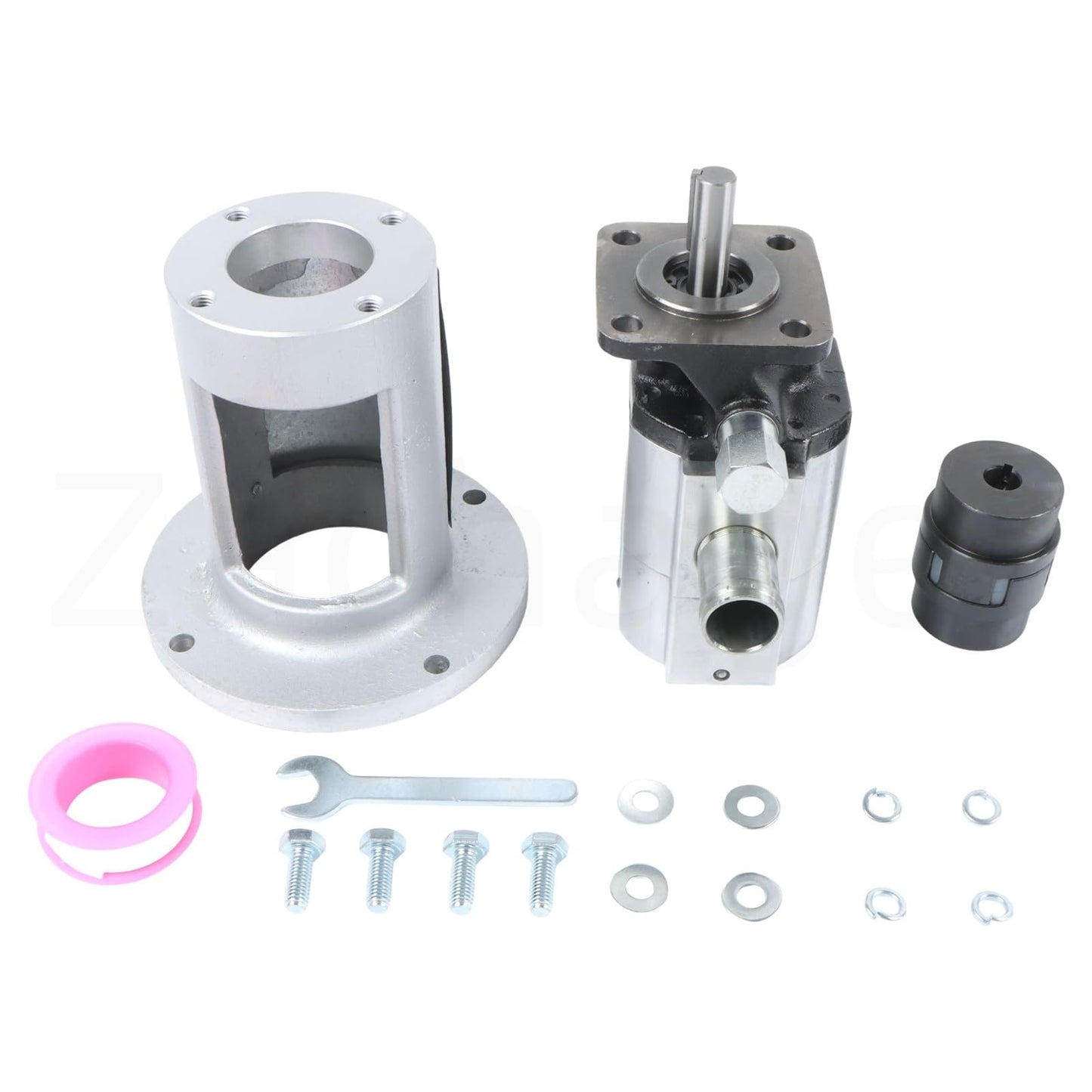

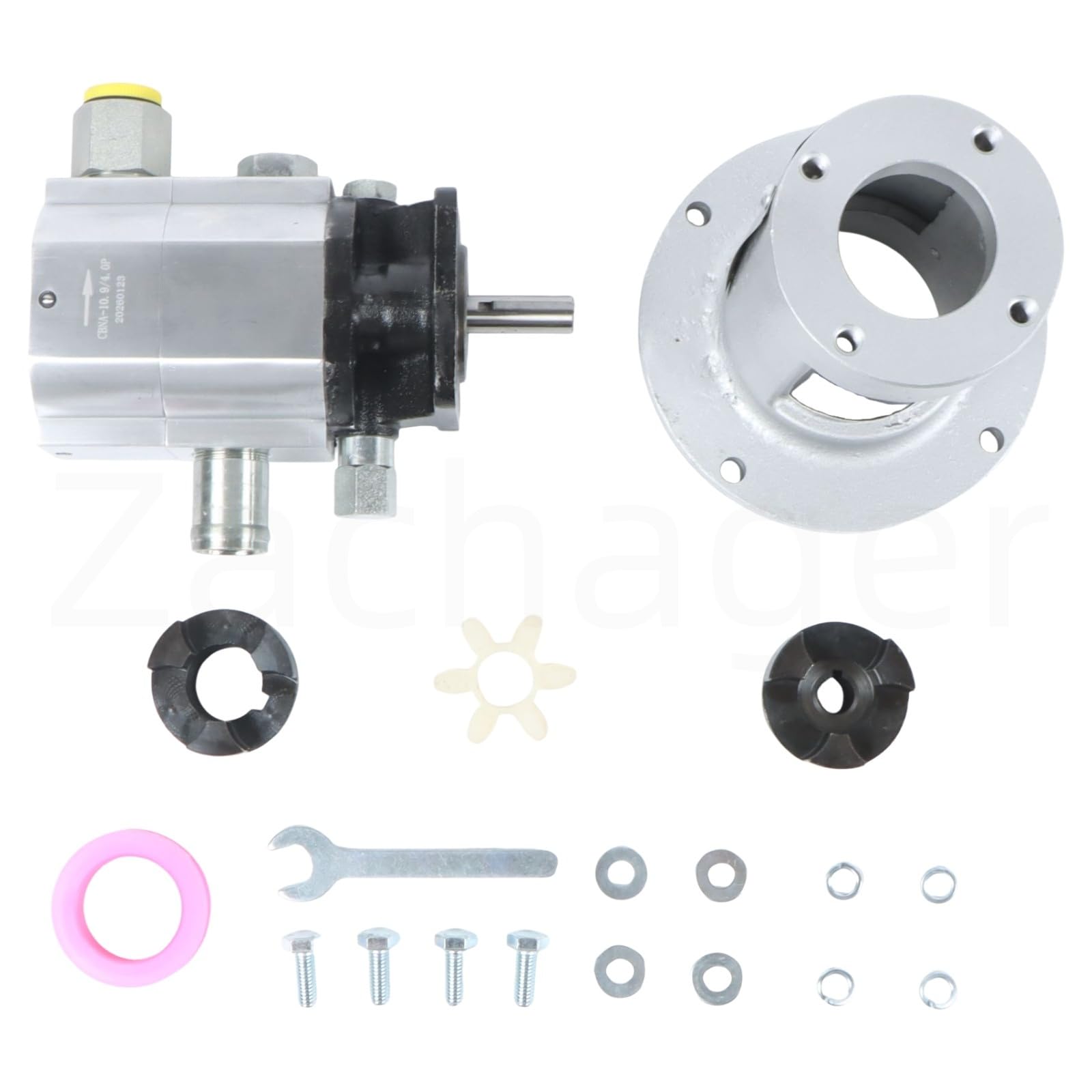

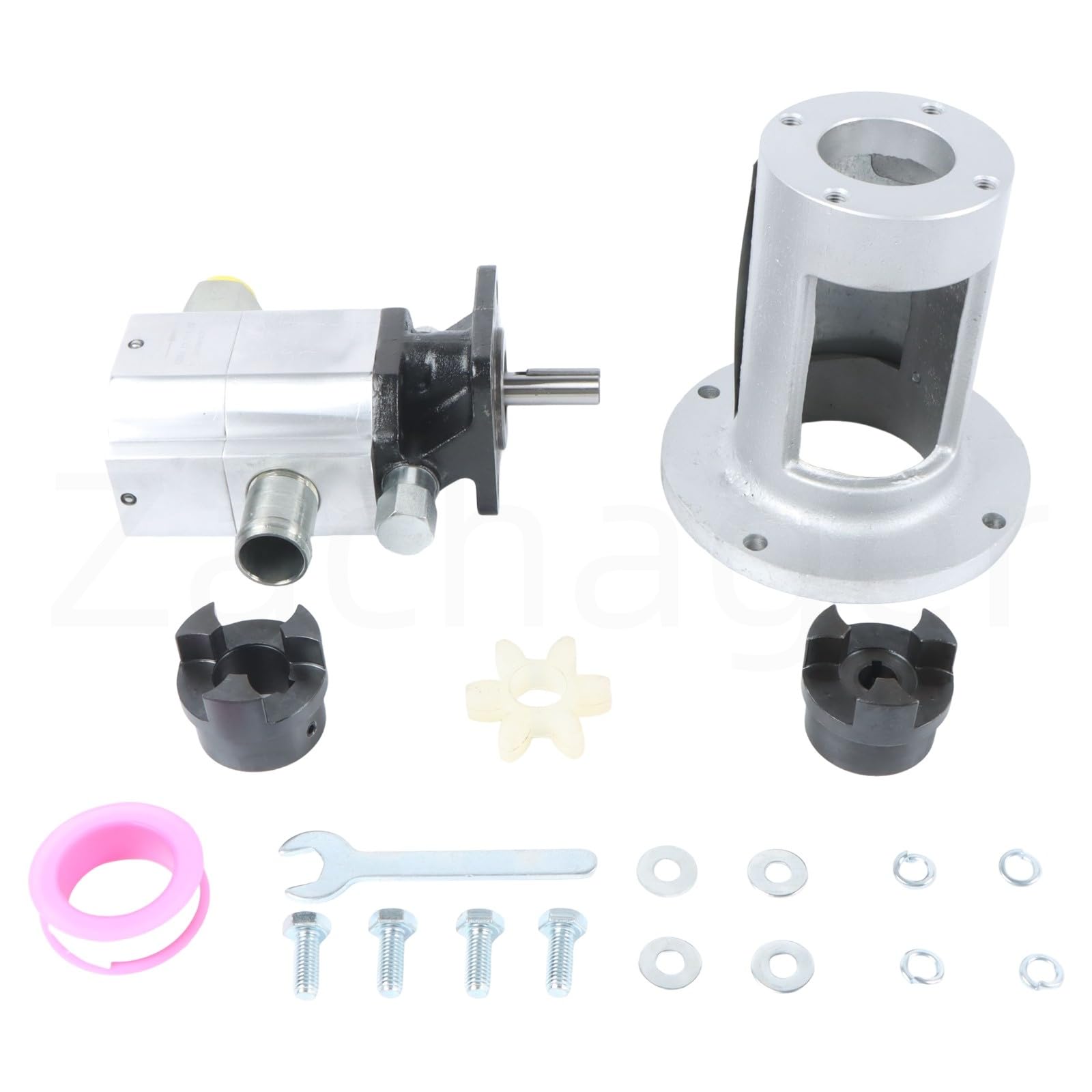

• 🔩【Kit included】Hydraulic pump wood splitting pump 13GPM (1x product comes with wrench, 2x product comes with bushing, 1x coupler, 1x mounting base, 2x bolts). Compatible with many brands of wood splitters. Can be used to replace original parts or for DIY wood splitter projects.

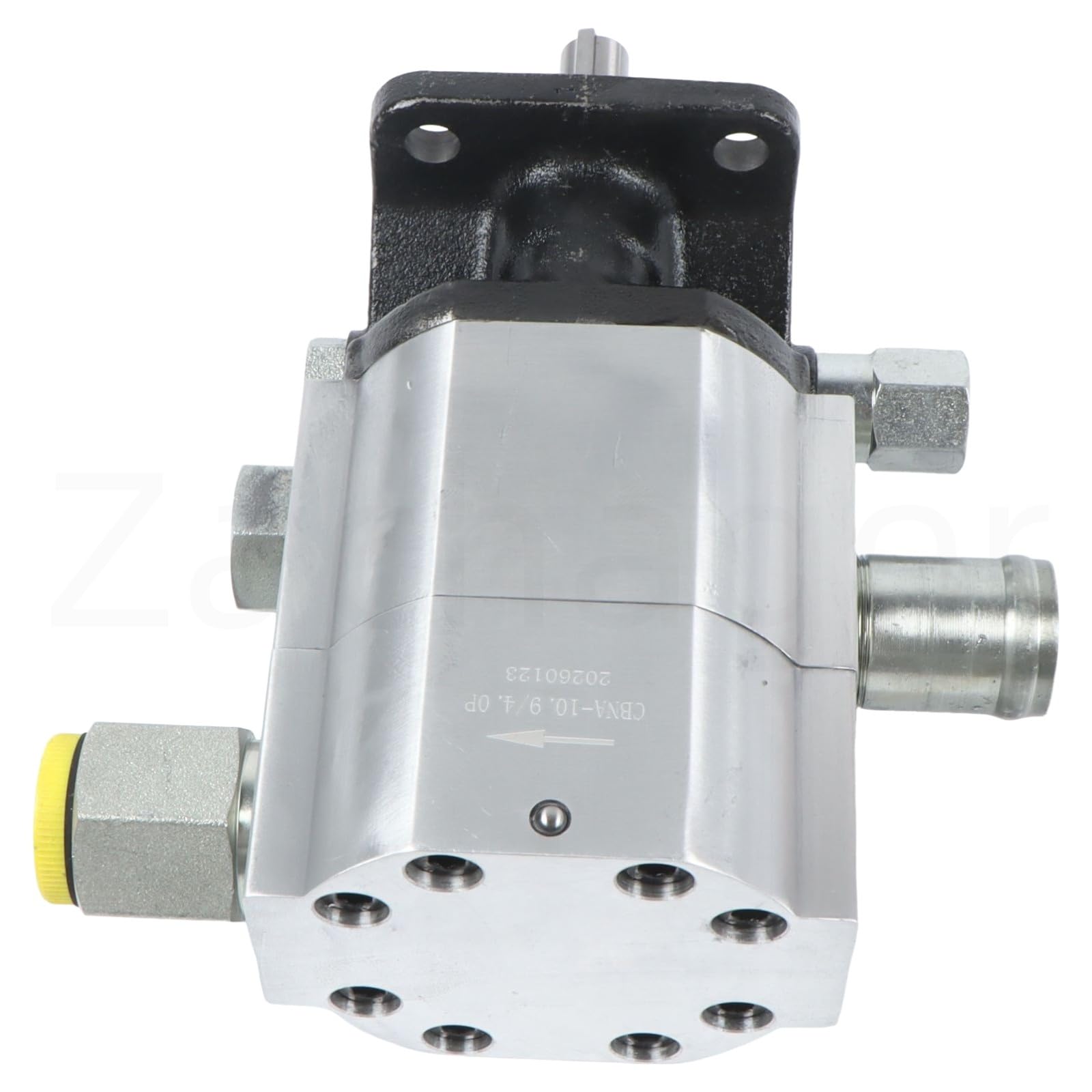

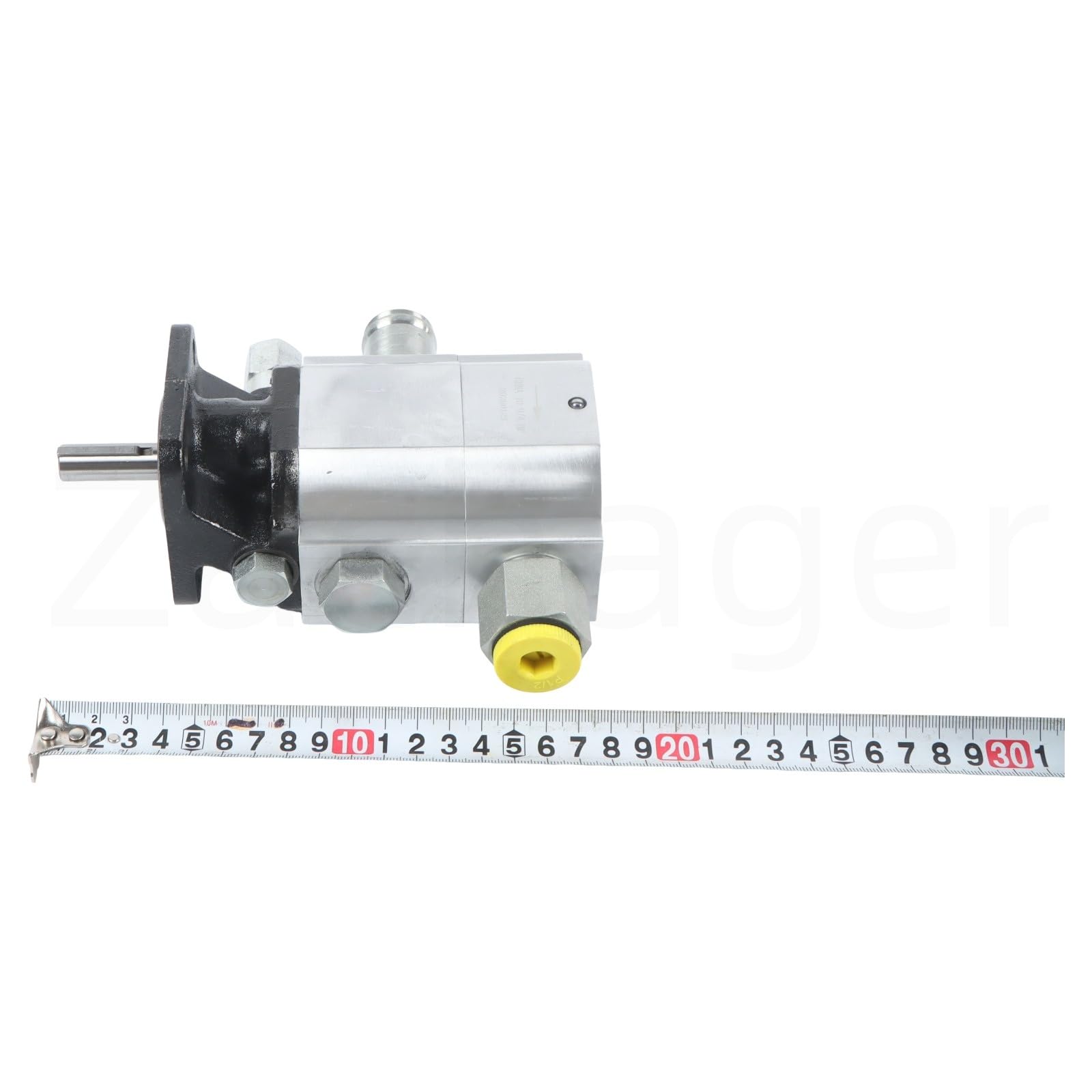

• 🔩【Direct bolt installation - no guesswork】Upgrading or repairing your wood splitter should be easy and convenient. Our pumps are designed to be precise direct replacements for original pumps. It comes with standard keyway shaft: 1/8-inch square keyway; water inlet: 1.0-inch diameter pipe; water outlet: 1/2-inch NPT thread. Installation takes just a few minutes. Use the existing two-bolt mounting pattern. Save time and hassle with adapters and get you back to work quickly.

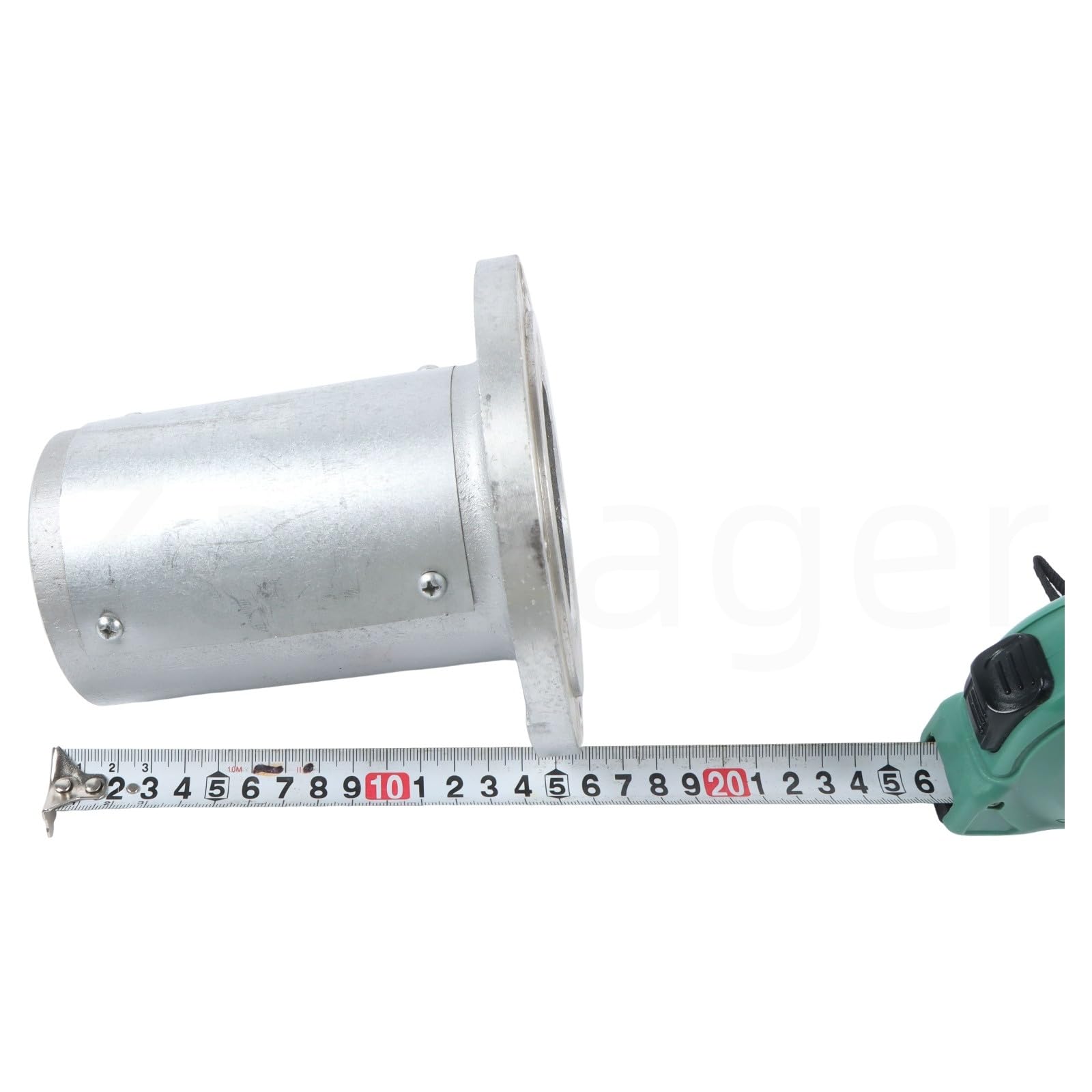

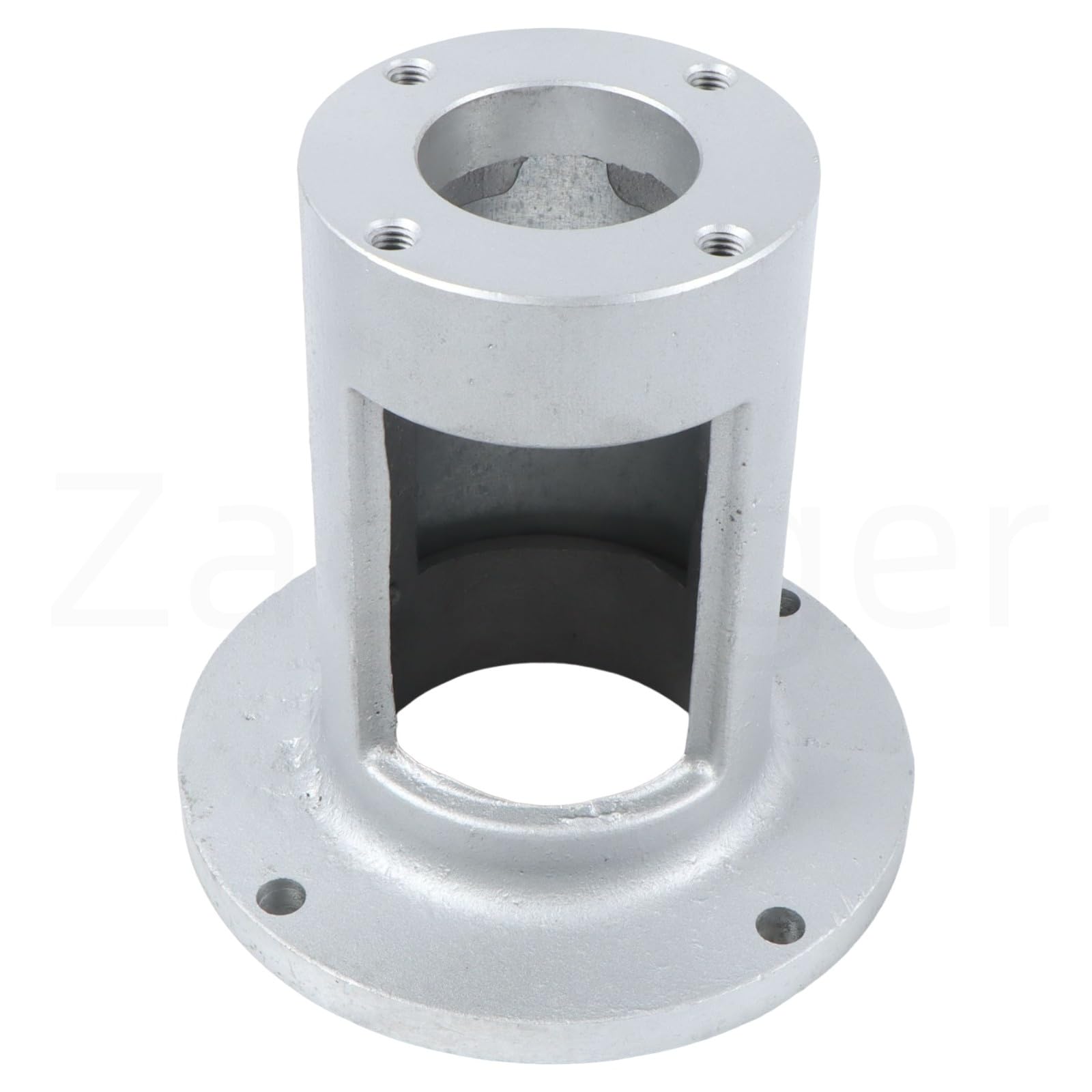

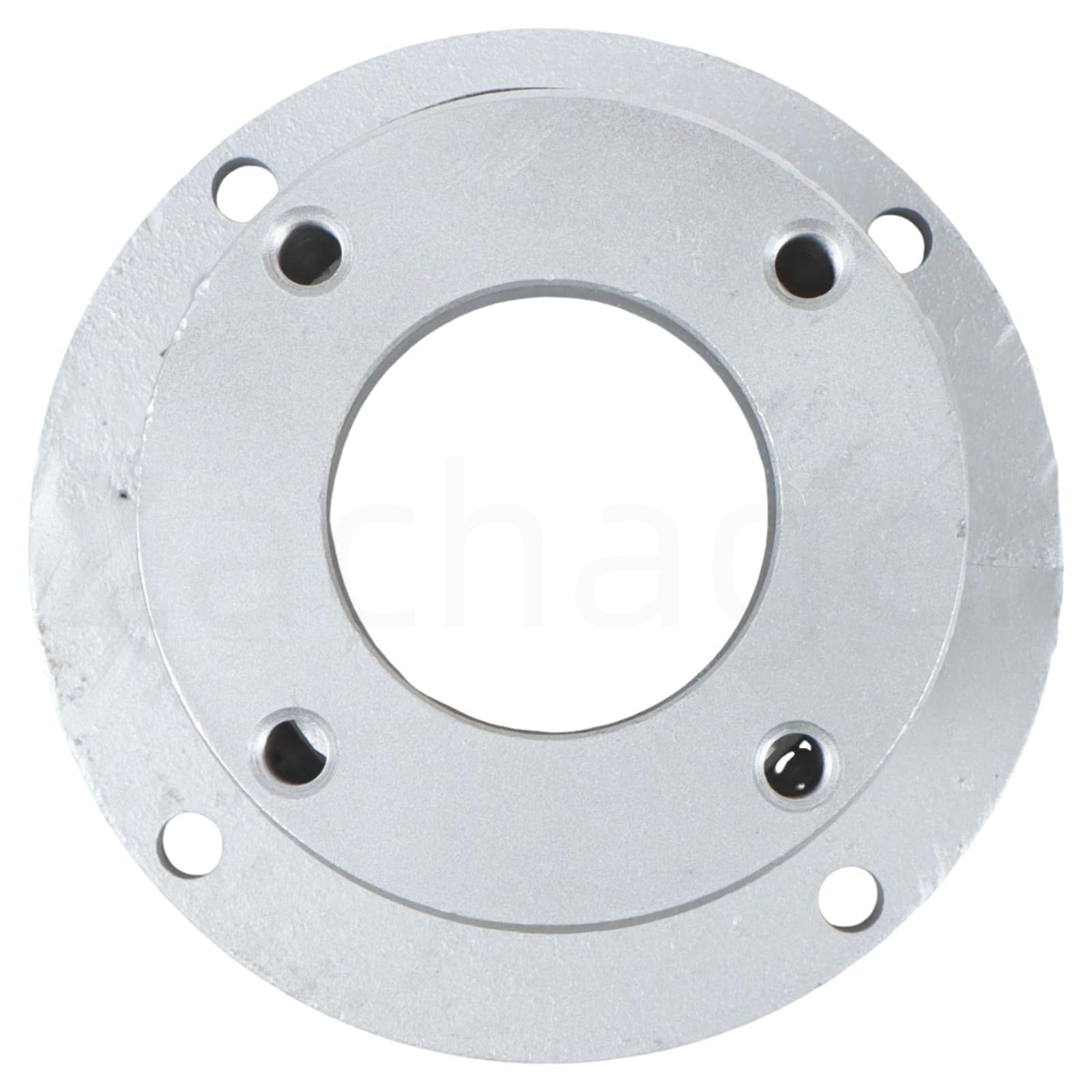

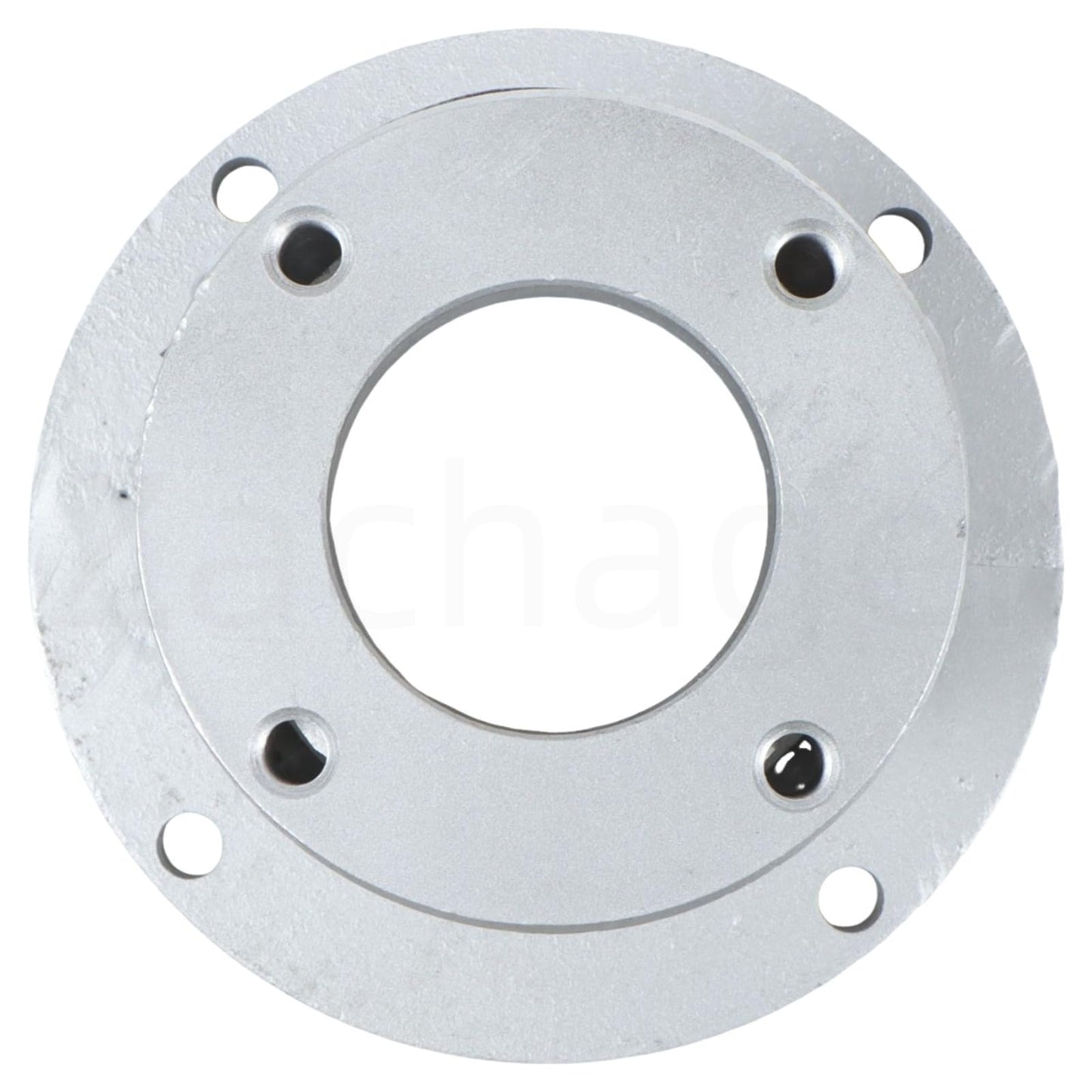

• 🔩【Installation Base Specifications】Pump connection side: Bolt circle diameter is 2-3/4 inches (approximately 69.85 mm), with adjacent mounting holes spaced 2 inches (approximately 50.8 mm) on center.Engine connection side: Bolt circle diameter is 3-9/16 inches (approximately 90.49 mm), and adjacent mounting holes are spaced 2.5 inches (approximately 63.5 mm) on center.This mount fits most 4 to 7 horsepower gasoline engines and is a direct replacement for the original pump mount in a wide range of 15 to 27 ton log splitters.
• 🔩【Coupling component specifications】Pump End Coupling: Shaft bore 1/2 in. diameter with 1/8 in. wide keyway. Engine End Coupling: Shaft bore 3/4 in. diameter with 3/16 in. wide keyway. Matching Rubber Cross Shaft Assembly: Torque rating is 90 in. lbs. (approximately 10.17 N.m), maximum allowable speed is 11,000 rpm.
• 🔩【Versatile and trustworthy hydraulic solutions】In addition to being used in log splitters, this pump is also the powerhouse of hydraulic presses, dump trailers, snow plows and agricultural equipment. Each pump undergoes rigorous performance testing before leaving the factory. With over ten years of expertise in the hydraulic industry, you're buying not just a part, but proven reliability and professional support.

model number: 13 GPM 2-stage pump

Package Dimensions: 15.2 x 10.1 x 8.8 inches
