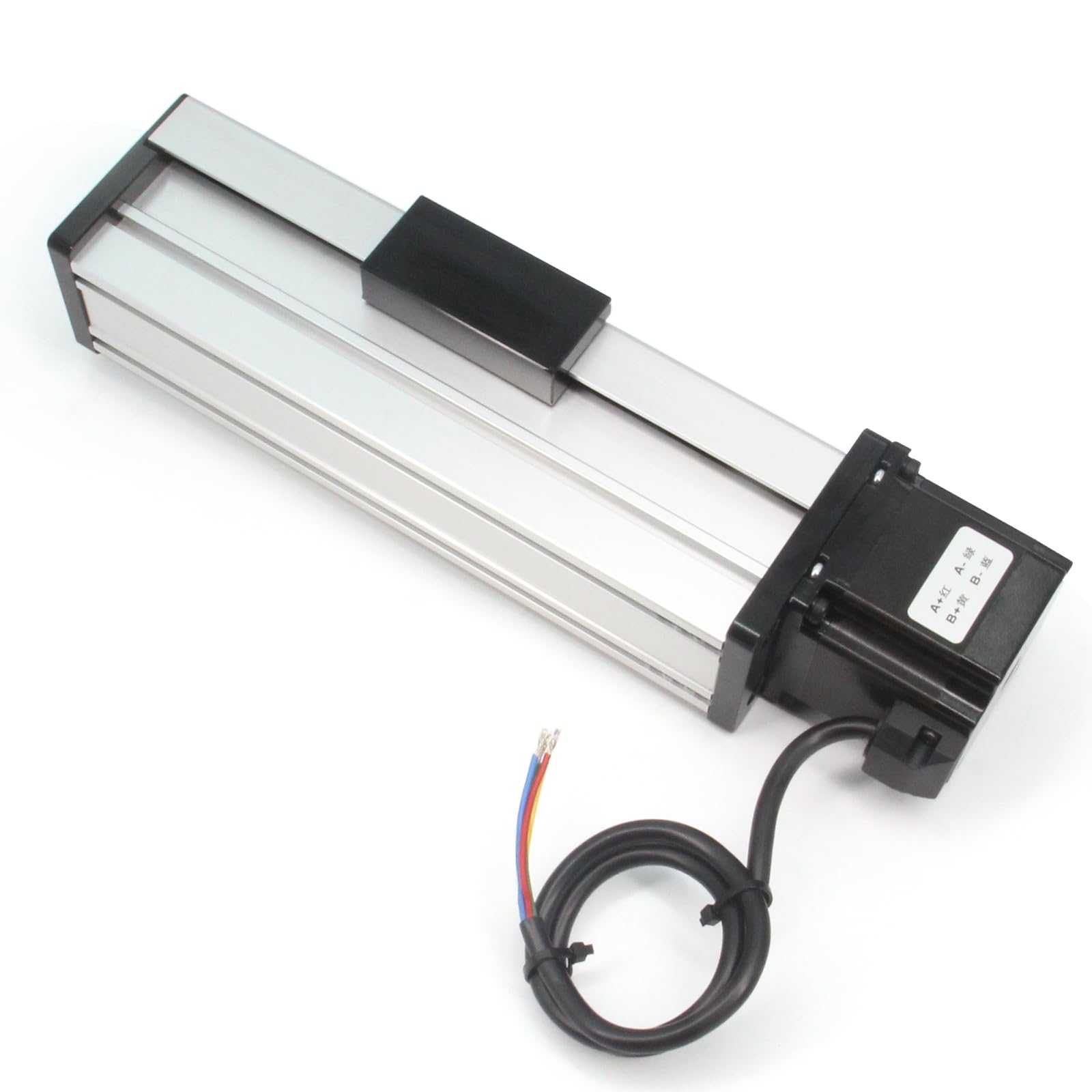

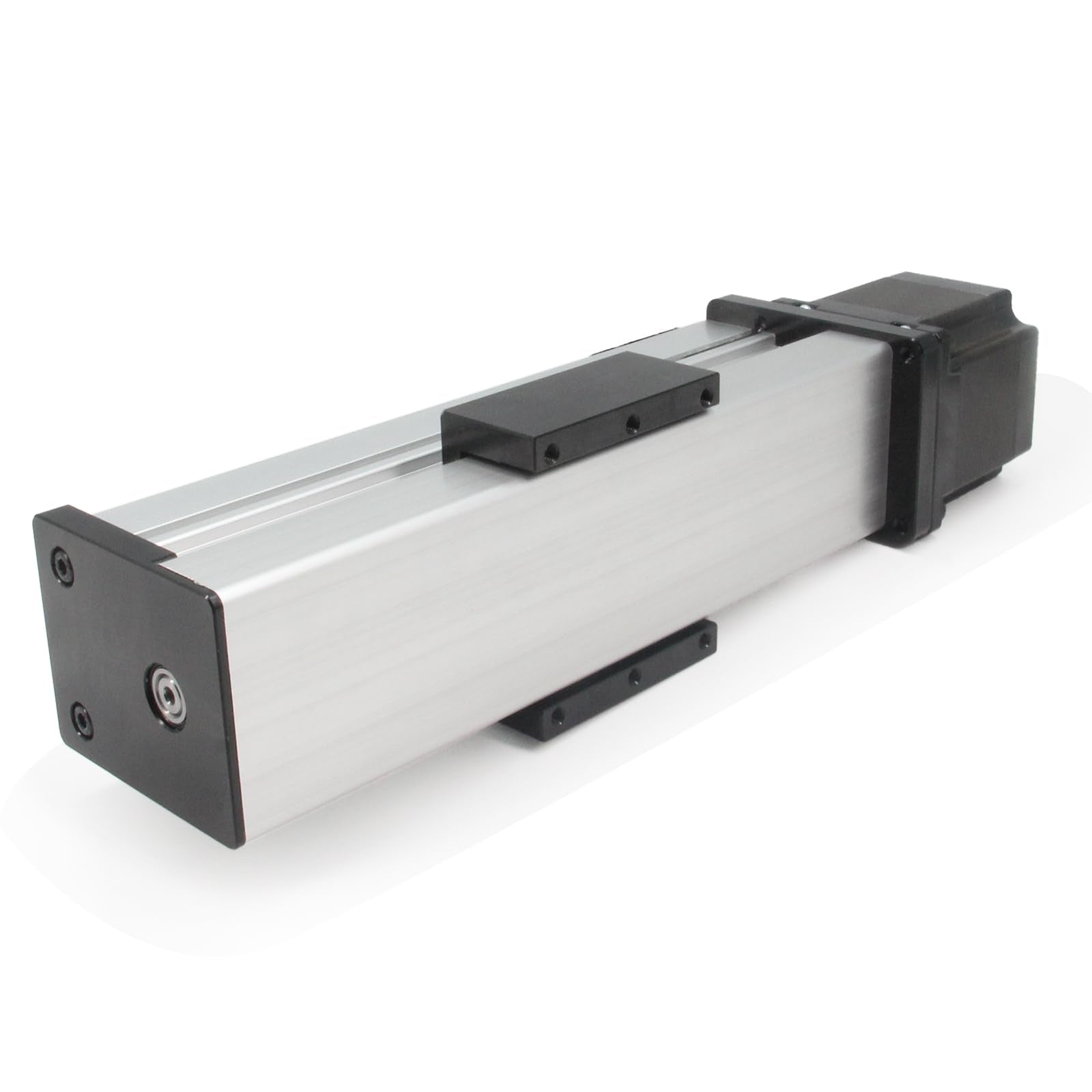

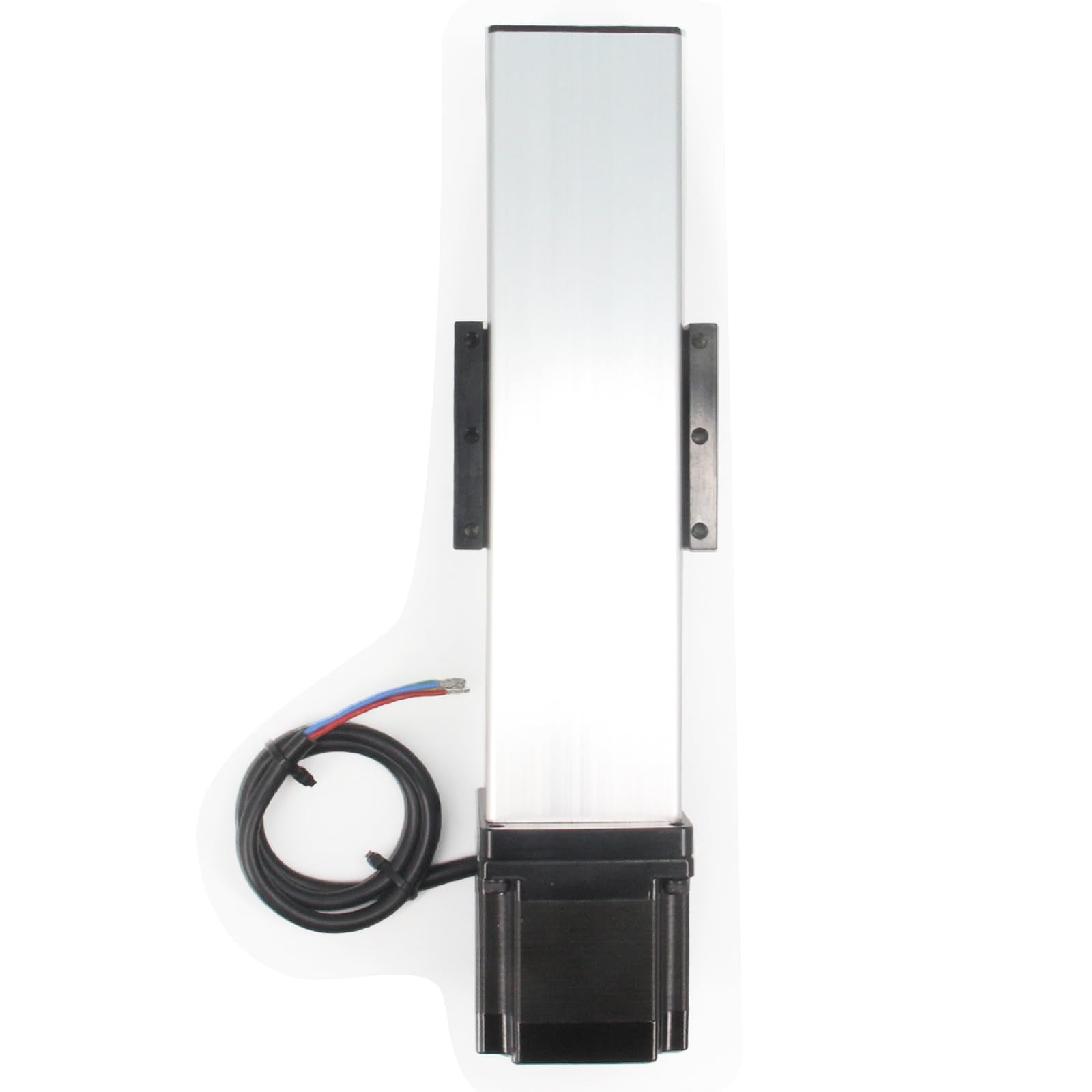

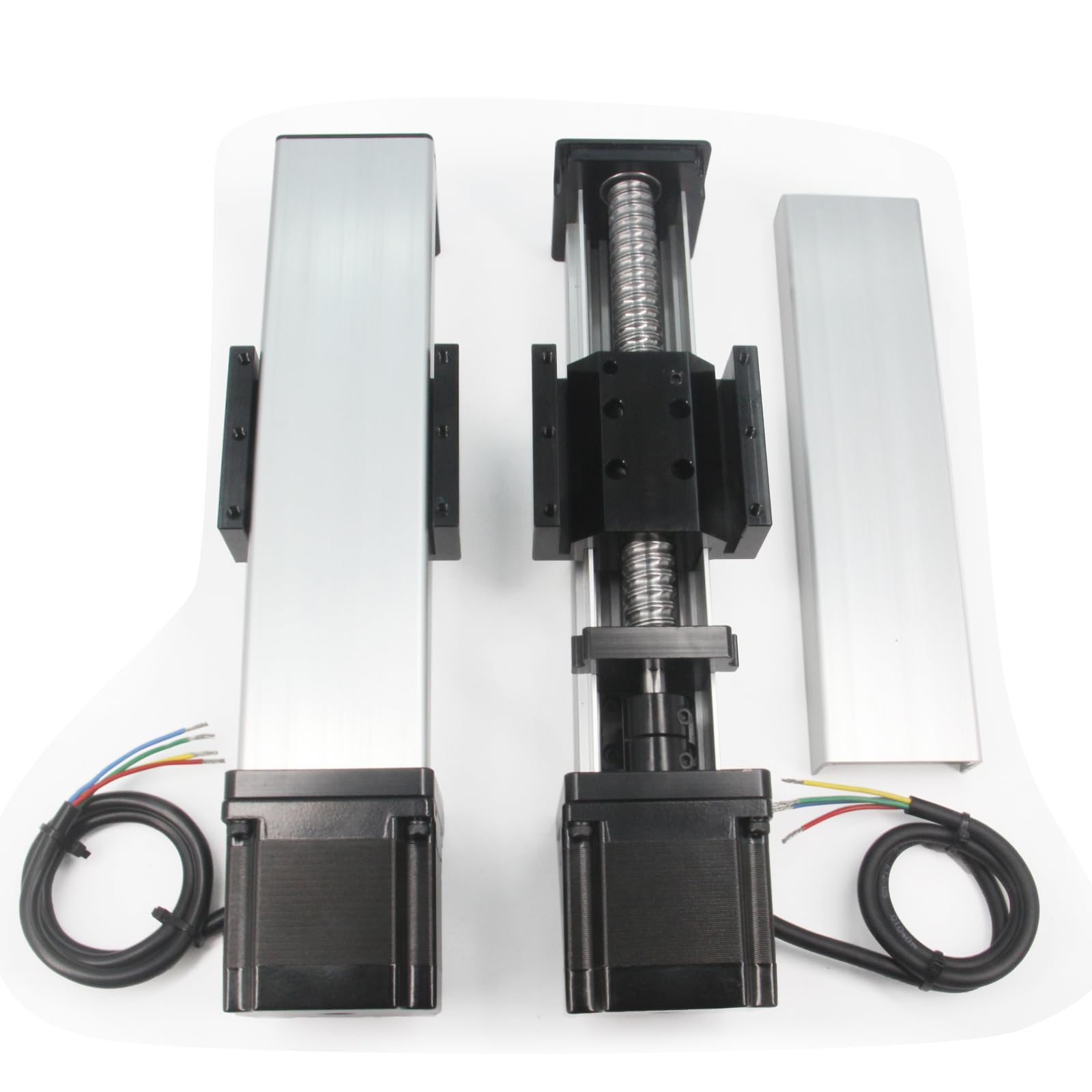

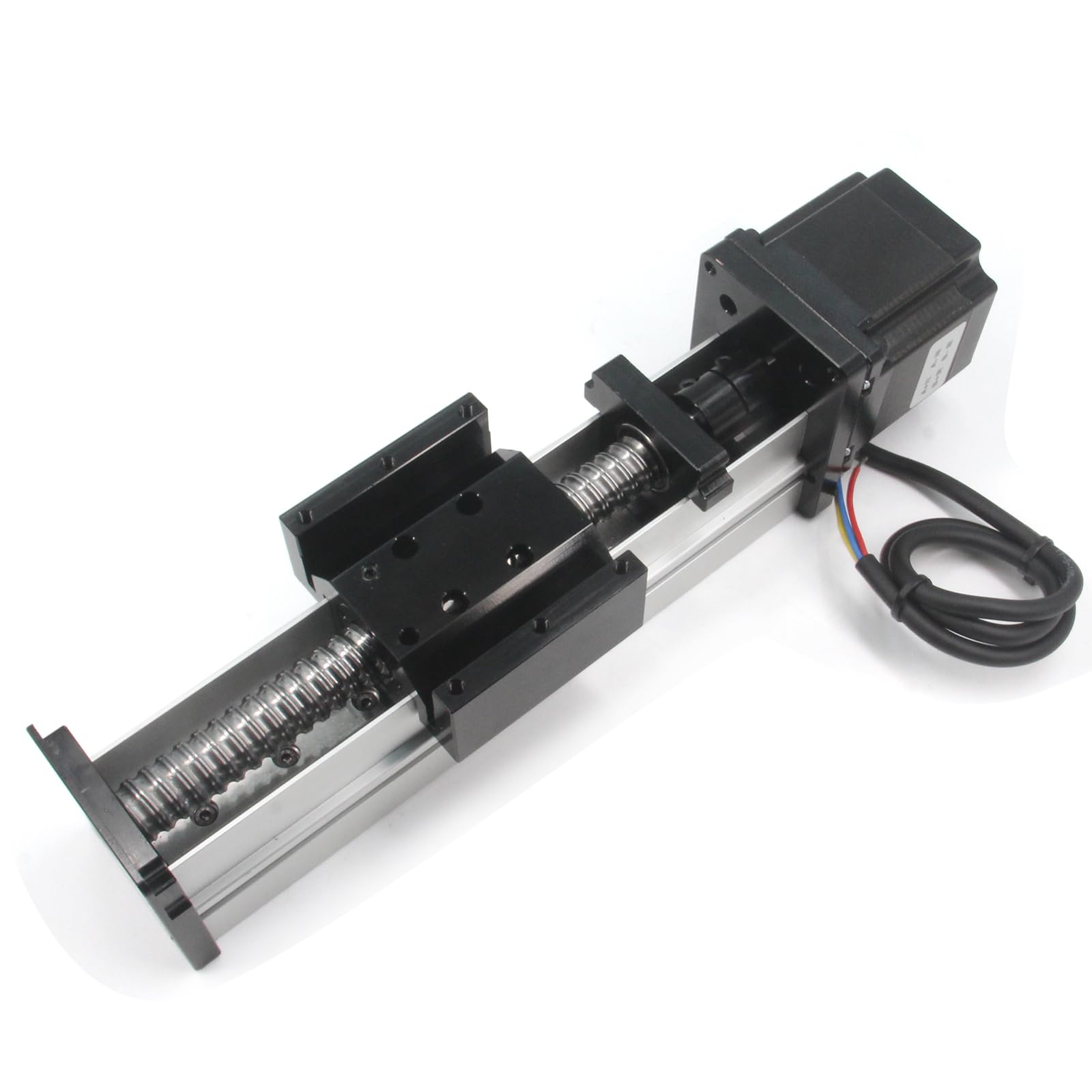

Zeberoxyz Fully Enclosed Linear Rail Guide Ballscrew SFU1605 with Square Linear Rails with NEMA23 Stepper Motor, 100mm Effective Stroke Length for CNC Router Parts (Size:100mm)

Brand: Zeberoxyz

Features:

• Material: Made of high quality metal, fine workmanship, stable performance and high work efficiency, and is an essential part of linear motion; Fully Enclosed Style: high quality Aluminum Alloy material, effective dust proof, oxidation treatment slide table is not easy to rust
• High Accuracy: Repeat positioning accuracy is ±0.03mm; Load: Maximum horizontal load capacity: 30kg; Maximum vertical load capacity: 15kg; Speed: 0-50mm/s
• Effective Stroke: 100mm/3.9inch effective stroke, Total length: 275mm/10.8inch, Ballscrew type: SFU1605 ( diameter: 16mm, pitch of screw: 5mm ) Lead: 5mm (the lead screw can move 5mm in one turn), 6pcs M4 threaded hole on the moving block to fix the workpiece
• Package Content: 1pcs Fully Enclosed Linear Stage Actuator with NEMA23 Stepper Motor
• Widely used for CNC Router Machine, inspection equipment, optical laboratory precision measurement, fine-tuning displacement, production machinery, mechanical equipment positioning and movement.

Part Number: ZE019-1

Details: Product Name: 100mm Effective Travel Length Fully Enclosed Linear Rail Guide Ballscrew SFU1605 with Square Linear Rails with NEMA23 Stepper Motor

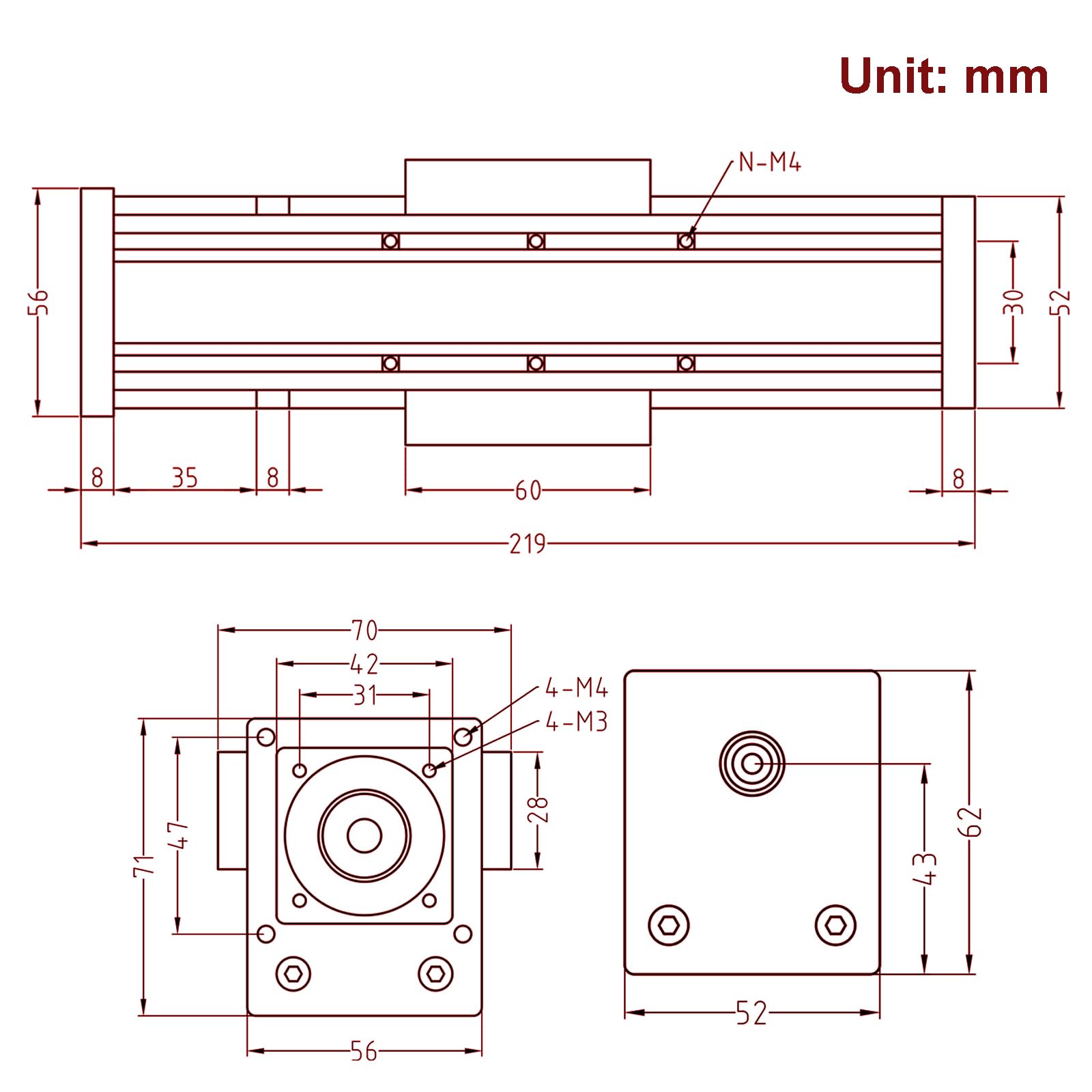

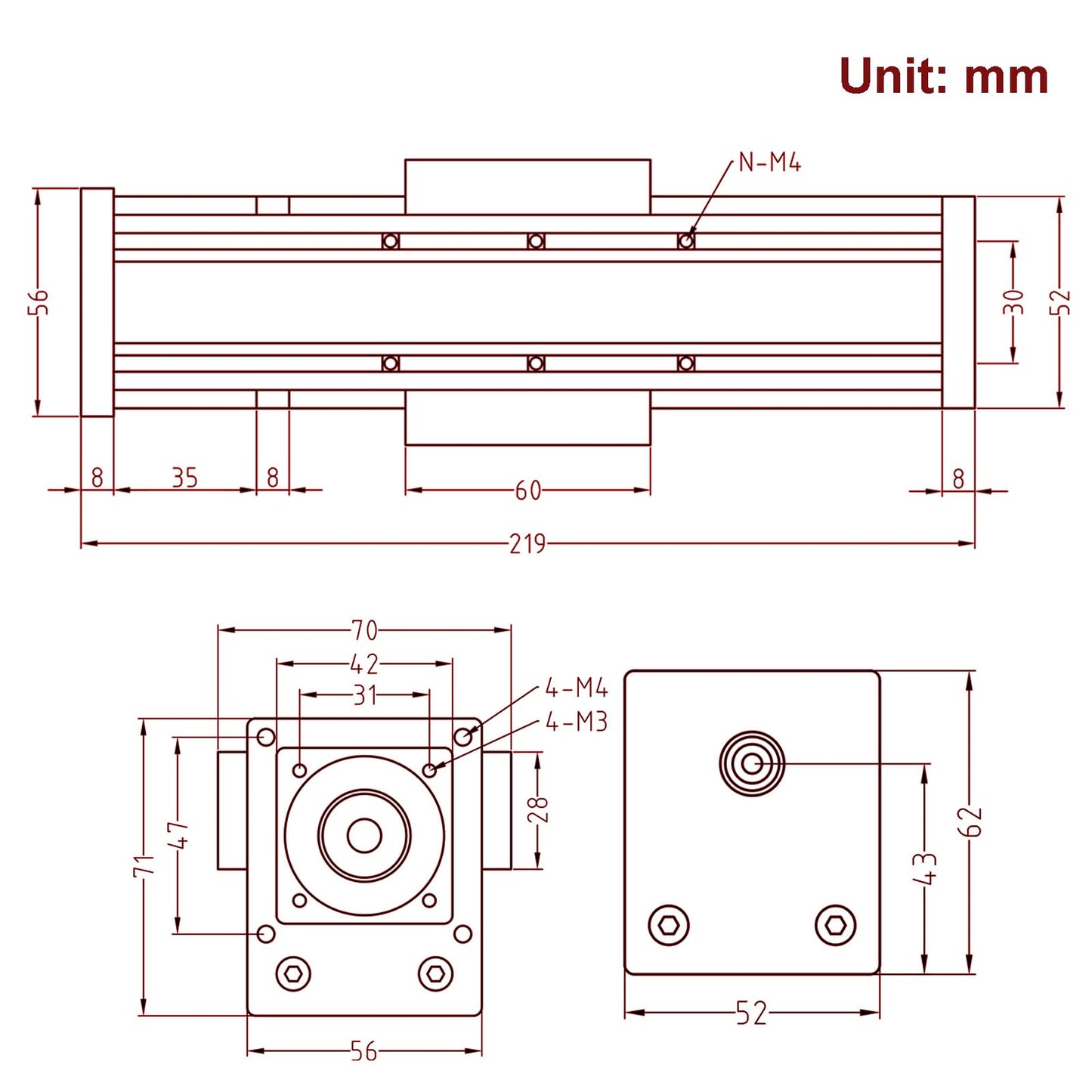

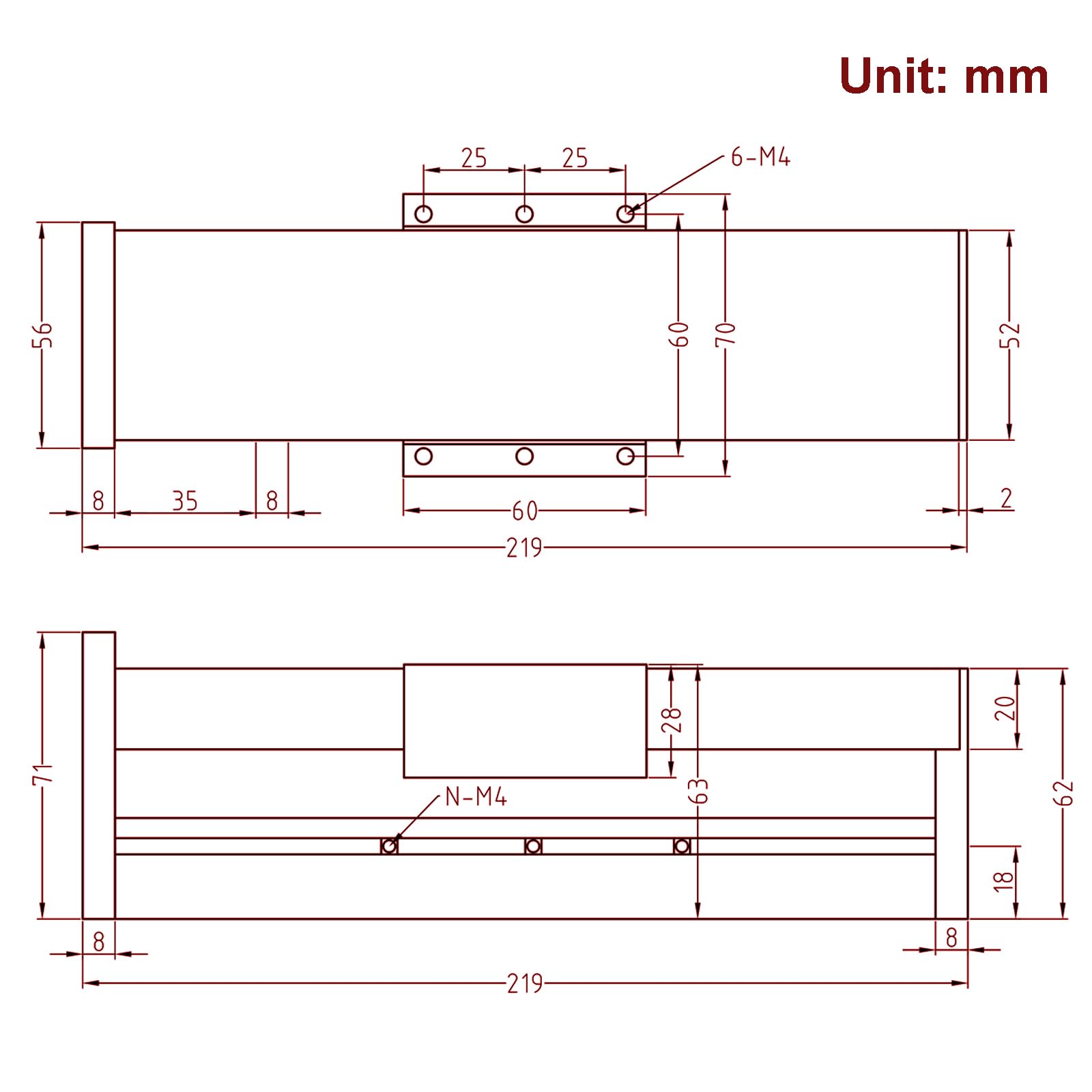

Install: 6pcs M4 threaded hole to fix the workpiece
Type: Fully Enclosed Linear System Moulde
Ballscrew Type: SFU1605 (diameter:16mm, pitch of screw:5mm)
Level Ballscrew: C7
Weight:about 1945g
Stepper Motor Parameter:
Step angle: 1.8 degree
Motor flange size: 57mm
Motor length: 56mm
Holding torque: 1.2N.m
Voltage:DC 24V
Current: 3A
Resistance: 0.8 ohm
Inductance: 2.4 mH
Rotor Inertia: 440g.cm
Lead wire: 4pcs
Wiring:
Red: A+
Green: A-
Yellow: B+
Blue: B-
Linear Stage Actuator Parameter:
Effective Travel Length: 100mm/3.9inch
Total length: 275mm/10.8inch
Package Content:
1pcs Fully Enclosed Linear Stage Actuator with NEMA23 Stepper Motor
PLEASE NOTE:
Please allow 0-1mm error due to manual measurement.
Due to different display screens and lighting effects, the actual color of the item may be slightly different from the color shown.
Any question or problem, do not hesitate to contact or QA us,we will try our best to service you with in 24 hours.

Package Dimensions: 11.0 x 3.5 x 2.7 inches
